1:4 3/4 Piper J-3 Cub GP/EP Gas ARF 90.5"

Item No. PMMA0320
Backorder
Brand Logo
4.7 out of 5 Customer Rating

1:4 3/4 Piper J-3 Cub GP/EP Gas ARF 90.5"

Item No. PMMA0320
$349.99
Free financing available through Easy Pay
Earn points on this item
Next Shipment October 2022
Selected Store
|

Product Details

Key Features
  • Construction: Laser cut balsa and light plywood with hard points for mounting scale float kit (not included) built into fuselage, operational cockpit side-doors
  • Wing: Two-piece with quick-connect, streamlined wing struts, dual servo control flaps and ailerons
  • Covering: Hangaar 9 UltraCote
  • Engine Mount: Two-piece composite plastic
  • Motor Mount: Plywood
icon-box
In The Box
  • Prebuilt and covered, Wing, Fuselage and Tail assemblies, Landing Gear, Wheels, Cockpit Instrument Panel, Painted Pilot, Hardware Package
icon-how-to
Needed to Complete
  • Electric Power; Brushless Motor: Rimfire 1.20 recommended Electronic Speed Control: Battery: 6S LiPo Battery Charger, LiPo Charging Bag
  • Glow Power; Engine: 1.20 two-stroke Glow Fuel, Glow Starter, Electric Starter
  • Gasoline Power; Engine: 20cc two-stroke
  • Radio: At least 8-channel
  • Servo: 7 standard servo: 2 aileron; 2 flap; 1 elevator; 1 rudder; 1 throttle (if using glow or gasoline engine)
  • Propeller: Compatible with selected brushless motor, or glow/gasoline engine
  • Building and field equipment
1:4 3/4 Piper J-3 Cub GP/EP Gas ARF 90.5"

Video Overview



Overview

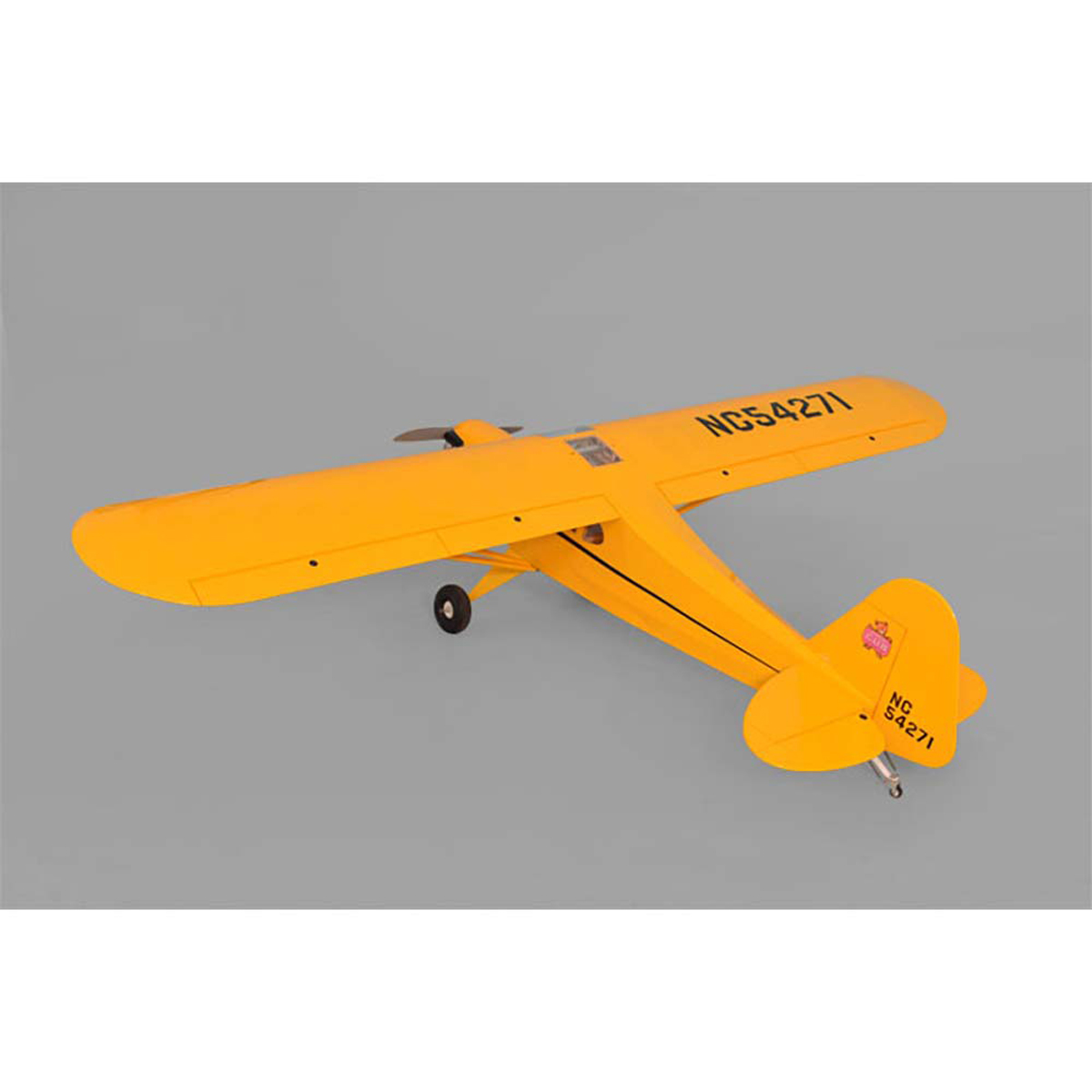

The 90.5" span Piper J-3 Cub GP/EP/Gas ARF combines classic looks with modern versatility! It arrives packed with superior scale details, including a realistic cockpit, instrument panel and pilot figure, operational cockpit side doors and functional panel flaps. For even more authenticity, add optional floats

Key Features

  • Construction: Laser cut balsa and light plywood with hard points for mounting scale float kit (not included) built into fuselage, operational cockpit side-doors
  • Wing: Two-piece with quick-connect, streamlined wing struts, dual servo control flaps and ailerons
  • Covering: High quality heat shrink
  • Engine Mount: Two-piece composite plastic
  • Motor Mount: Plywood

Product Specifications

Completion Level Almost Ready-To-Fly
Minimum Speed Control 80 Amp
Propeller Size Depends on motor or engine selected
Servos Sold Separately
Skill Level Level 2
Trim Scheme Colors Cub Yellow and black
Wingspan 90.5 in (2300mm)
Receiver Sold Separately
Landing Gear Prebent aluminum with steerable tailwheel
Speed Control Sold Separately
Wing Area 1219 sq in (78.6 sq dm)
Product Weight 7.9 - 8.1lbs (3600 - 4000g)
Wing Loading 25.0oz/sq in (76.3g/sq dm)
Battery Sold Separately
Engine Size .120 two stroke glow engine/ 20 CC two stroke gas engine (not included)
Motor Size Recommended RimFire 1.20 (not included)
Product Length 60.6 in (1541mm)
Steering Steerable tailwheel
Airfoil Shape Y-Clark
Material Wood
Minimum Required Radio 8-channel
Radio Sold Separately
