Product Details

The AWD series is a Four Wheel Drive chassis with drift tires and paired with the Syncro KT-531P Transmitter. Perfect for drifting in small spaces.
Key Features
  • RTR Based On MA-020 Chassis
  • Gyro Sensitivity Adjustment Function
  • Drift Tires Are Installed As Standard
  • Completed Body Comes With Display Model Finish
  • Features VCS (Variable Camber Suspension)
icon-box
In The Box
  • (1) 1/28 Toyota Corolla Levin AE86 Mini-Z AWD RTR
  • (1) Syncro KT-531P Transmitter
  • (4) Pinion Gears (15T, 17T, 19T, 21T)
  • (3) Spur Gears (27T, 29T, 31T)
  • (1) Wheel Wrench
  • (1) Pinion Removal Tool
icon-how-to
Needed to Complete
  • (4) AAA Batteries for Chassis
  • (4) AAA Batteries for Transmitter

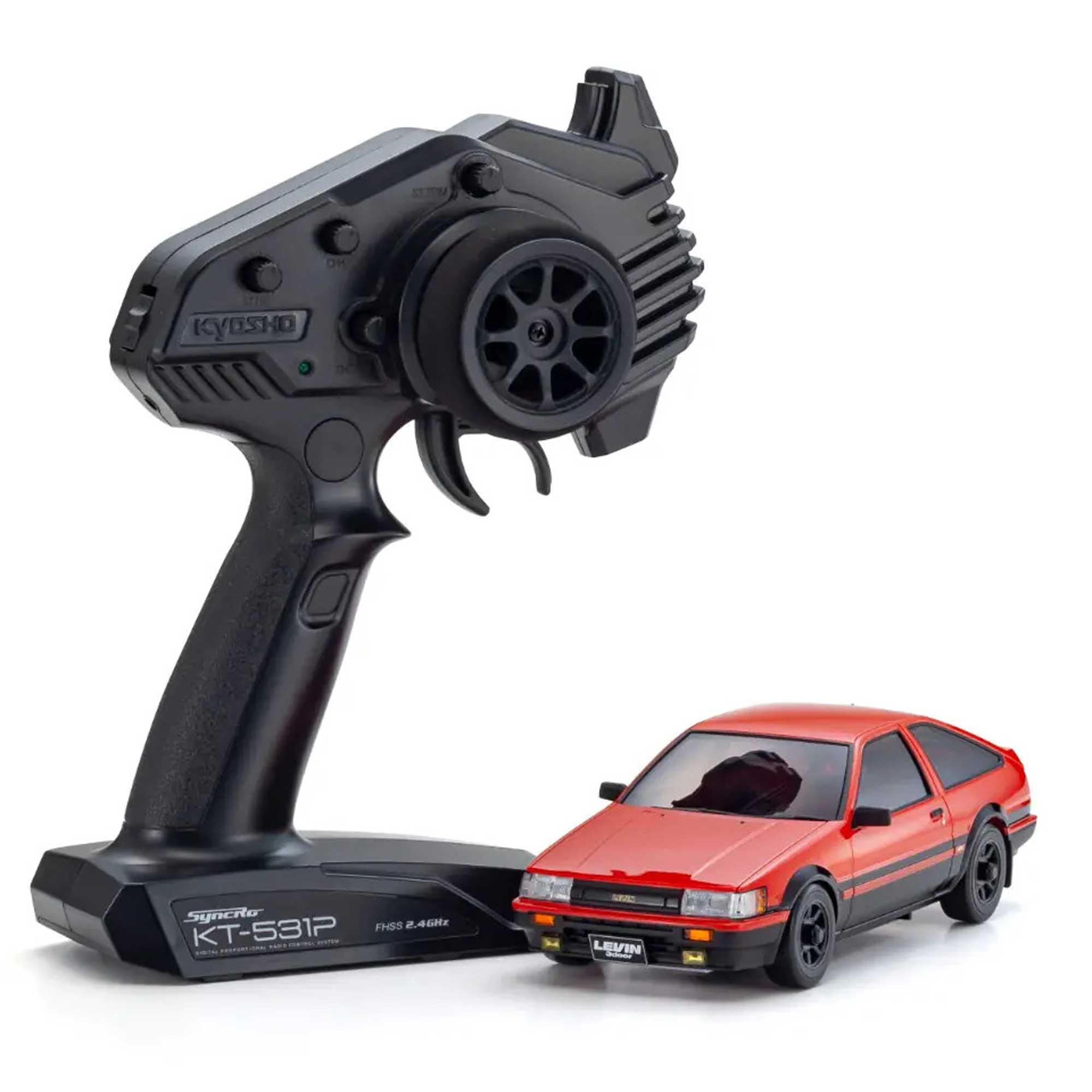

1/28 Toyota Corolla Levin AE86 Mini-Z AWD RTR, Red/ Black

MINI-Z AWD Toyota COROLLA LEVIN AE86 Overview

To bring its dynamic performance to even more drivers, the MINI-Z AWD is now available in a Readyset. The MA-020 chassis features VCS (variable camber suspension) on the front that optimizes camber change with suspension stroke and a specially designed circuit board. The chassis design allows space for installing the optional gyro unit sold separately MZW446. The gyro can be adjusted by turning a small volume on the chassis to reflect the amount of steering correction in response to changes in chassis posture, allowing beginners through to experts to drive to their full potential. Fully fitted out with precision ball bearings, the high drive efficiency of the MA-020 chassis is complimented in the Readyset by the unique scale body and 2.4GHz Syncro KT-531P R/C system that requires no frequency band setting, all at a great value price. Simply install the batteries to enjoy the thrill of drift driving with the included set of drift tires. The chassis is compatible with nearly all ASC MINI-Z bodies (additional parts maybe required for some body styles). The MINI-Z AWD promises a unique world of dramatic racing action for you to experience and enjoy.

Features

  • MINI-Z AWD Readyset based on MA-020 chassis.
  • Circuit board updated with optimized steering control program.
  • Chassis features gyro sensitivity adjustment function.
  • Drift tires are installed as standard.
  • Readyset requires only batteries to be ready for action!
  • Features 2.4GHz Syncro KT-531P transmitter that requires no setup of frequency bands.
  • Factory completed body comes with display model quality finish.
  • Features VCS (variable camber suspension) that adjusts camber in accordance with suspension stroke.
  • Coil spring on front suspension can be easily replaced without tools.
  • Wide range of optional parts is available to be installed.
  • Note: Optional ICS can NOT be used. Also, this model is specially designed for the KT-531P transmitter. It is not compatible with the KT-18, KT-19, EX-5UR ASF, EX-6 or EX-6R transmitters. It is only compatible with the special gyro unit (sold separately MZW446).
Scale Corolla Levin AE86 Body
Scale Corolla Levin AE86 Body

Also known as the ‘Hachiroku’, the Corolla Levin AE86 was released in 1983 and is distinguished by its FR layout and lively engine response. With a reputation for nimble driving performance, the AE86 along with its brother model, the Sprinter Trueno, has widespread appeal even today.

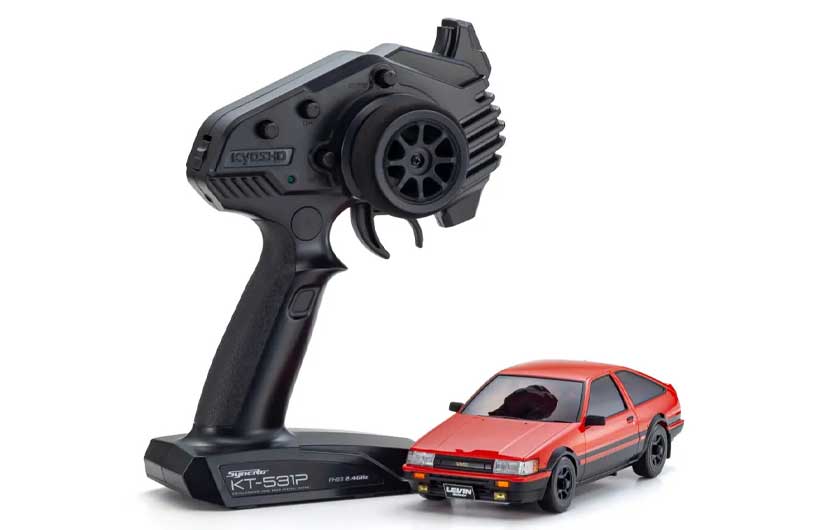

Syncro KT-531P Transmitter Included
Syncro KT-531P Transmitter

Includes stylish design of Syncro KT-531P transmitter. Features steering / throttle trim as well as dual rate adjustment of steering angle and control the flashing speed of optional LEDs. In addition, the transmitter has a Training Mode feature which limits speed of the car for easy learning (default setting at the time of shipment is Training Mode).

ready To Run MA-020 AWD Chassis
MA-020 AWD Chassis

Special AWD Chassis is based on the MA-020 chassis and features the RA45 unit.

Adjustable VCS Front Suspension
VCS Front Suspension

Features VCS front suspension that optimizes camber change in concert with suspension stroke. Replacement of front suspension coil springs is easy.

Strut-Type Rear Suspension
Strut-Type Rear Suspension

Equipped with strut-type rear suspension.

Full Ball Bearings Pre-Installed
Full Ball Bearings

Full bearing specifications include 14 ball bearings.

Equipped With Drift Tires As Standard
Drift Tires

Equipped with drift tires as standard.

Optional Gyro Mounting Space
Gyro Mount Space

Equipped with special mount space and gyro adjustment volume for the optional gyro unit.

Product Specifications

Battery Sold Separately
Body Pre-painted Plastic Body
Charger Sold Separately
Chassis MA-020 Chassis
Completion Level Ready-To-Run
Differential Gear Diffs
Drive Type Forward/Brake/Reverse
Drivetrain AWD
Front Track 2.22" (56.5mm)
Manufacturer # 32641RBK
Motor Type Brushed
Power Type Electric
Product Height 2.08" (53 mm)
Product Length 6.47" (164 mm)
Product Width 2.67" (68 mm)
Radio Included
Rear Track 2.22" (56.5mm)
Receiver Included
Scale 1/28
Servos Included
Shock Type Friction Shocks
Speed Control Included
Suspension Independent Suspension
Vehicle Size Mini
Vehicle Type On-Road
Wheelbase 3.7" (94 mm)
