1/28 Suzuki Jimny Sierra APIO TS4 MINI-Z 4X4 Crawler RTR, Medium Gray

Item No. KYO32525G
Discontinued
Brand Logo
4.2 out of 5 Customer Rating

1/28 Suzuki Jimny Sierra APIO TS4 MINI-Z 4X4 Crawler RTR, Medium Gray

Item No. KYO32525G
This Item is No Longer Available
Selected Store

Product Details

icon-box
In The Box
  • (1) MINI-Z 4X4 Jimny Sierra APIO TS4
  • (1) KT-531P 2.4GHz Transmitter
  • (6) Pinion Gears (10T, 12T, 14T, 16T, 18T, 20T)
  • (3) Pinion Gear Spacers
icon-how-to
Needed to Complete
  • (4) AAA Batteries for Chassis
  • (4) AAA Batteries for Transmitter

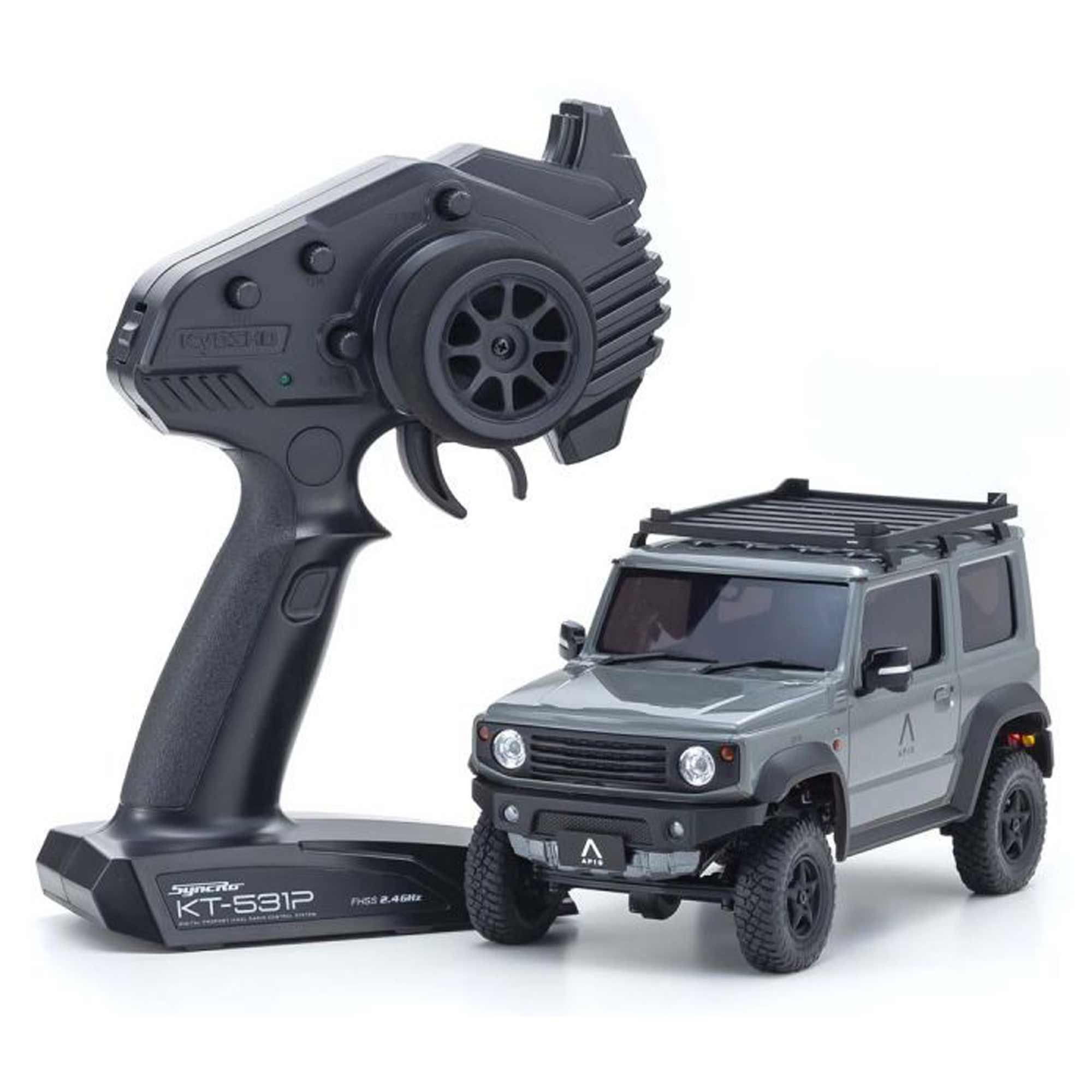

1/28 Suzuki Jimny Sierra APIO TS4 MINI-Z 4X4 Crawler RTR, Medium Gray

Introduction

The combination of the highly-detailed body and a completely new 4x4 chassis design opens up new levels of performance, well beyond anything RC enthusiasts have ever seen from a mini crawler. Designed in collaboration with Jimny Proshop Apio, the wild ride of the Jimny has been recreated with realistic front grill, front bumper, rear bumper, roof rack, rear ladder, rear number plate, Yoshimura muffler and wheels!

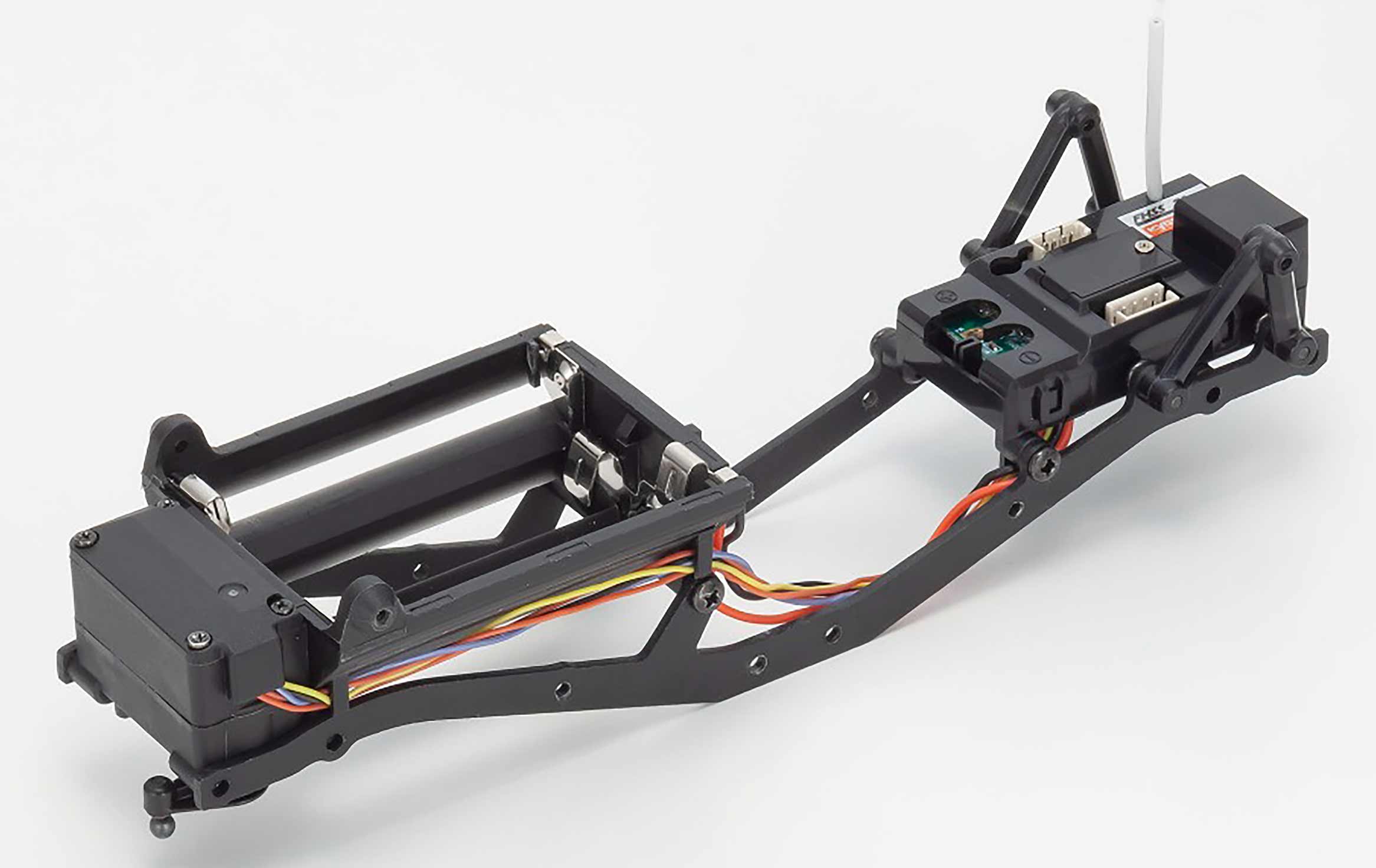

Ladder Frame Design
Ladder Frame Design

The Mini-Z 4X4 uses a ladder frame design with steel vertical plates to deliver the ultimate balance of rigidity and flex for superior performance and durability.

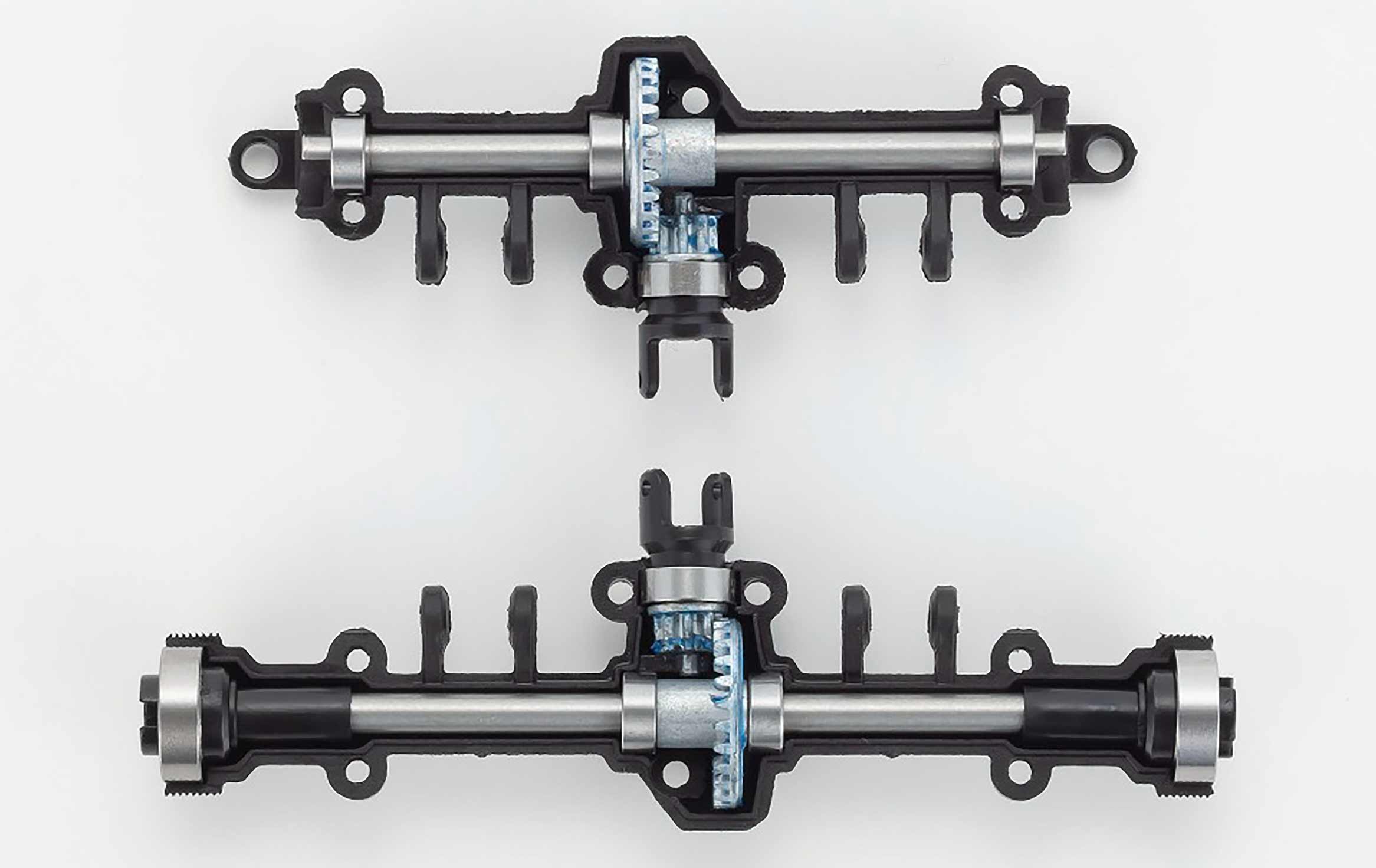

Solid Axles
Solid Axles

Solid front and rear axles feature steel tie rods and captured ends. Ring and pinion gear and other components feature metal construction for durability and consistent performance.

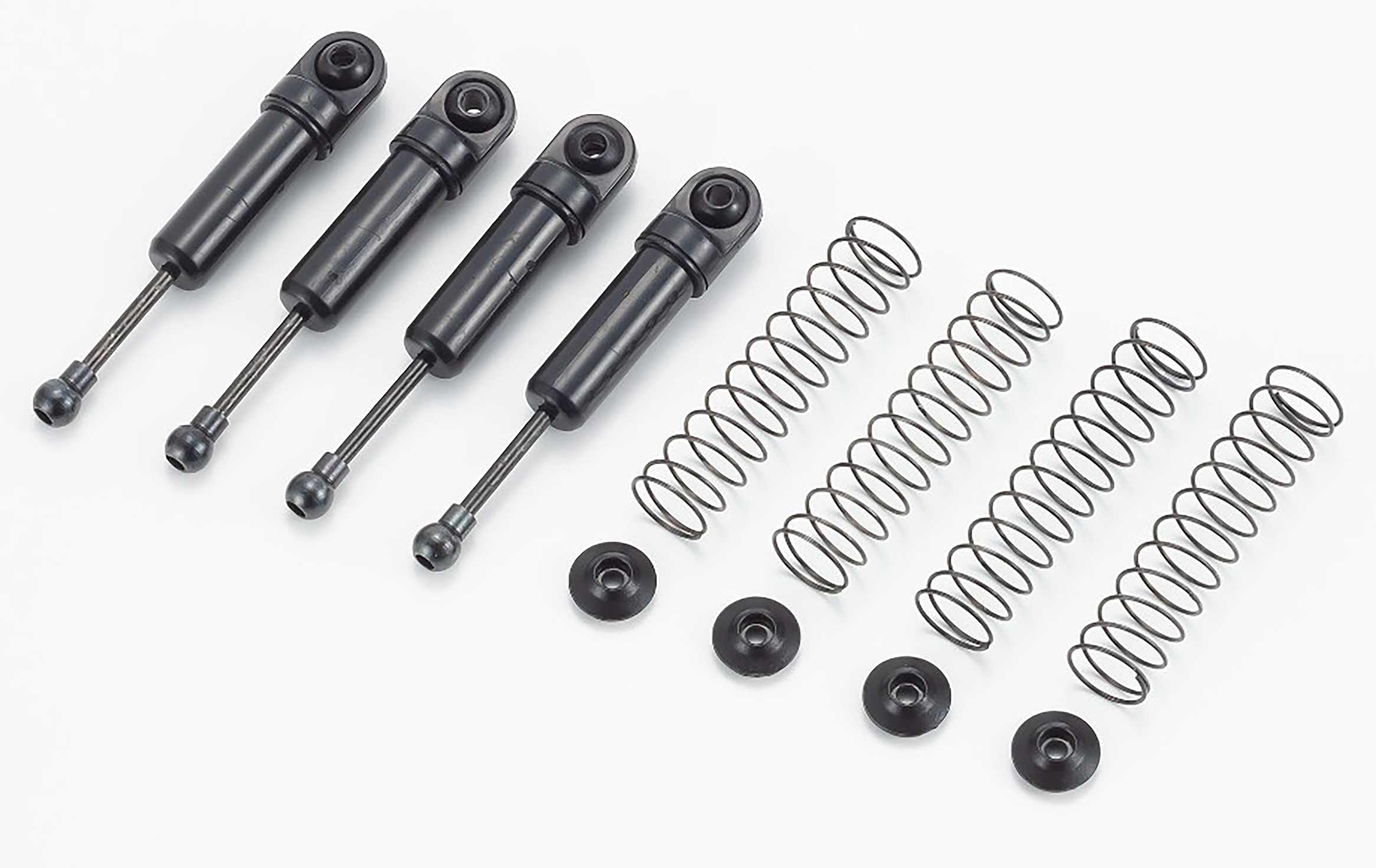

Coil-Over Shocks
Coil-Over Shocks

Coil over shocks feature a 360 degree spring retainer that cannot be lost on the trail and keep the springs where they need to be while operating at the limits of the suspension.



Gearbox
Gearbox

The gearbox features molded covers, ball bearings, and 6 pinion gears that allow a full range of adjustment according to your chosen terrain. As with all Mini-Z models the gear mesh is easily set using the provided spacers.

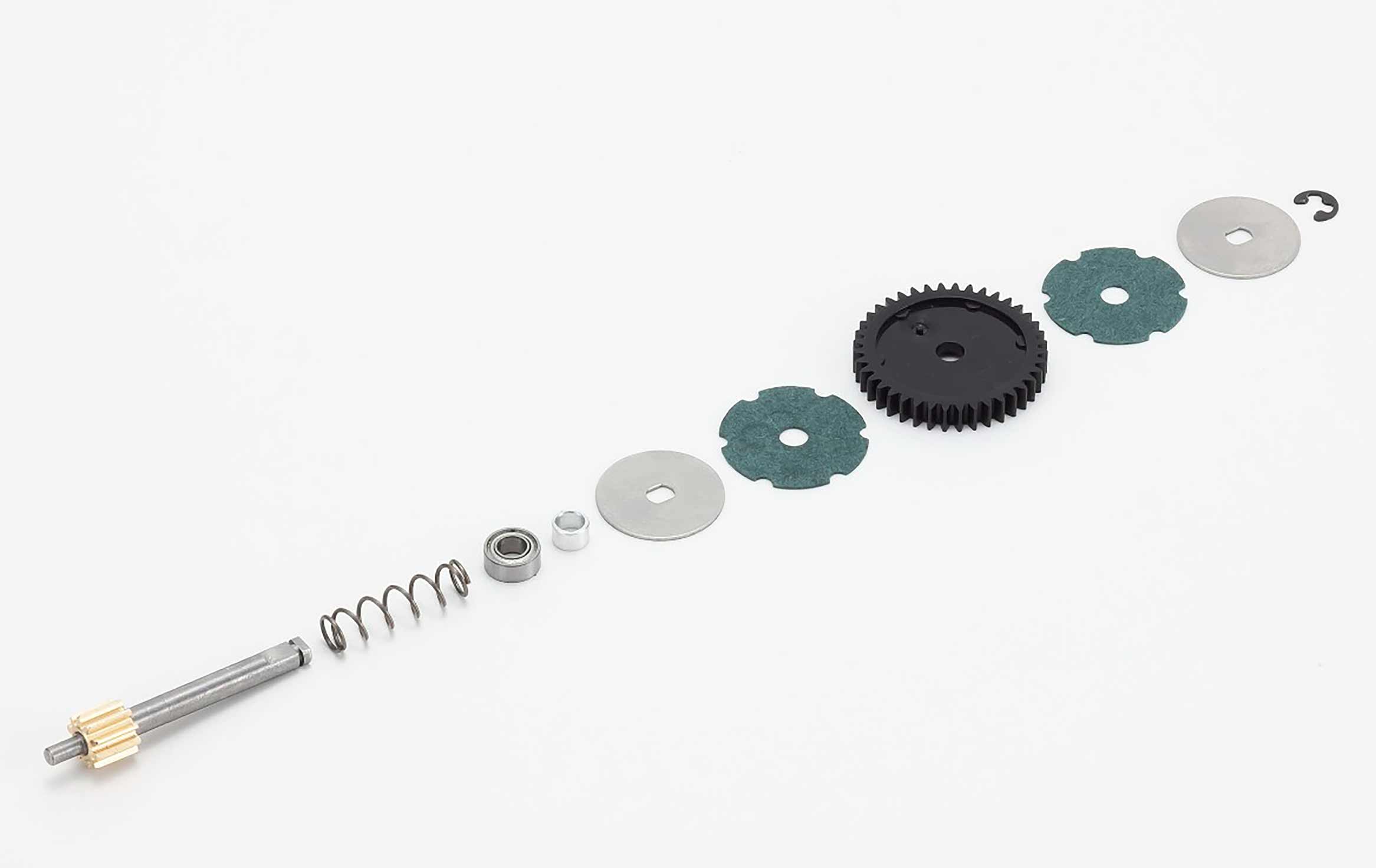

Slipper Clutch
Slipper Clutch

A standard slipper clutch protects the drive system and features a metal shaft and primary gear for durability.



Product Specifications

Motor Type Brushed
Speed Control Included
Wheelbase 4.72441" (120 mm)
Ball Bearings Full Ball Bearings
Chassis MX-01 Chassis
Completion Level Ready-To-Run
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Product Height 4.01575" (102 mm)
Battery Sold Separately
Gear Ratio Adjustable
Product Length 7.51969" (191 mm)
Steering Type 2WS
Suspension Solid Axle
Power Type Electric
Servos Included
Product Weight 8.5 oz (249g)
Vehicle Type Rock Crawler
Charger Sold Separately
Differential Gear Diffs
Receiver Included
Shock Type Coil-Over
Battery Tray Dimensions AAA Batteries
Vehicle Size Mini
Product Width 3.30709" (84 mm)
Radio Included
Approximate Assembly Time Fully Assembled
Body Factory-painted body complete with many fine details
Scale 1/28
