Product Details

AWD series is a Four Wheel Drive chassis with Drift tires and paired with the Syncro KT-531P Transmitter. Perfect for drifting in small spaces.
Key Features
  • Ready-Set Based On MA-020 Chassis
  • Circuit Board Updated With Optimized Steering
  • Drift Tires Are Installed As Standard
  • Features 2.4GHz Syncro KT-531P Transmitter
  • Body Comes With Display Model Quality Finish
icon-box
In The Box
  • (1) MINI-Z AWD Subaru WRX STI WR
  • (1) Syncro KT-531P Transmitter
  • (1) Mini Pylon
  • (4) Pinion Gears (15T, 17T, 19T, 21T)
  • (3) Spur Gears (27T, 29T, 31T)
  • (1) Set Of Spare Nuts
  • (1) Wheel Wrench
  • (1) Pinion Removal Tool
icon-how-to
Needed to Complete
  • (4) AAA Batteries for Chassis
  • (4) AAA Batteries for Transmitter
1/28 Subaru WRX STI WR MINI-Z AWD RTR, Blue

Introduction

To bring its dynamic performance to even more drivers, the MINI-Z AWD is now available in a Readyset. The MA-020 chassis features VCS (variable camber suspension) on the front that optimizes camber change with suspension stroke and a specially designed circuit board. The chassis design allows space for installing the optional gyro unit(Sold separately:MZW446>here for gyro support). The gyro can be adjusted by turning a small volume on the chassis to reflect the amount of steering correction in response to changes in chassis posture, allowing beginners through to experts to drive to their full potential. Fully fitted out with precision ball bearings, the high drive efficiency of the MA-020 chassis is complimented in the Readyset by the unique scale body and 2.4GHz Syncro KT-531P R/C system that requires no frequency band setting; all at a great value price. Simply set the batteries to enjoy the thrill of drift driving with the included set of drift tires. The chassis is compatible with nearly all ASC MINI-Z bodies (additional parts maybe required for some body styles). The MINI-Z AWD promises a unique world of dramatic racing action for you to experience and enjoy.

Features

  • MINI-Z AWD Readyset based on MA-020 chassis.
  • Special circuit board updated with optimized steering control program.
  • Chassis features gyro sensitivity adjustment function.
  • Drift tires are installed as standard.
  • Readyset requires only batteries to be ready for action!
  • Features 2.4GHz Syncro KT-531P transmitter that requires no setup of frequency bands.
  • Factory completed body comes with display model quality finish.
  • Features VCS (variable camber suspension) that adjusts camber in accordance with suspension stroke.
  • Coil spring on front suspension can be easily replaced without tools.
  • Wide range of optional parts is available to be installed.
  • Note: Optional ICS can NOT be used. Also, this model is specially designed for the KT-531P transmitter. It is not compatible with the KT-18, KT-19, EX-5UR ASF, EX-6 or EX-6R transmitters. It is only compatible with the special gyro unit (sold separately:MZW446).
Subaru WRX STI
Subaru WRX STI

Launched in 2014 under Subaru’s ‘STI’ motor sports brand, the four-door sedan is a descendant of the famous Impreza which made its name in the World Rally Championship. The WRX STI is characterized by its aggressive front to back bodylines and is equipped with the renowned horizontally opposed ‘boxer’ EJ20 engine.



KT-531P Transmitter
KT-531P Transmitter

Includes stylish design of Syncro KT-531P transmitter. Features steering / throttle trim as well as dual rate adjustment of steering angle and control function LEDs. In addition, the transmitter has a Training Mode feature which limits speed of the car for easy learning(Default setting at the time of shipment is Training Mode).

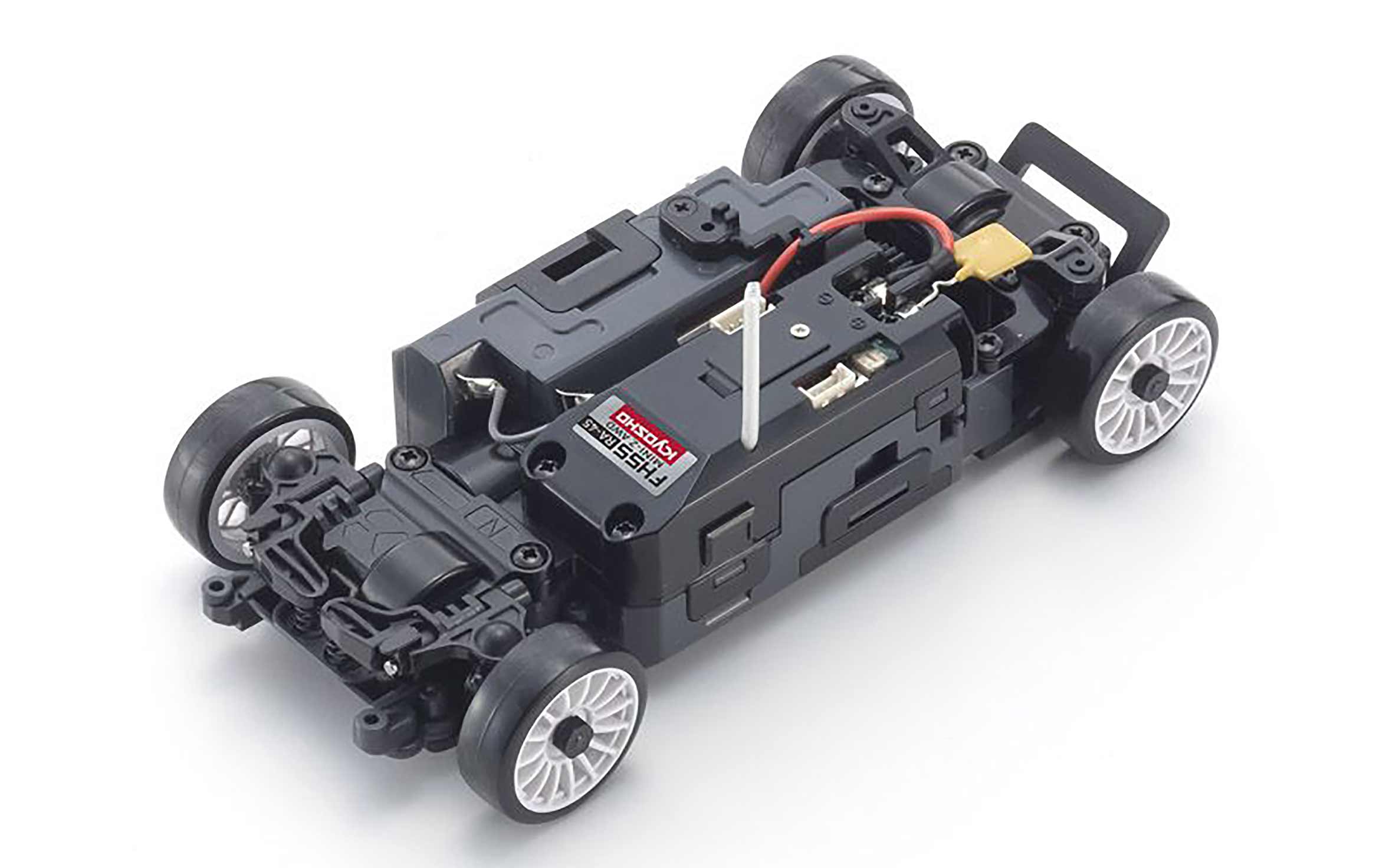

AWD Chassis
AWD Chassis

Special AWD chassis is based on the MA-02 chassis and features the RA45 unit.



VCS Front Suspension
VCS Front Suspension

Features VCS front suspension that optimizes camber change in concert with suspension stroke. Replacement of front suspension coil springs is easy with no tools required.



Rear Suspension
Rear Suspension

Equipped with strut-type rear suspension.

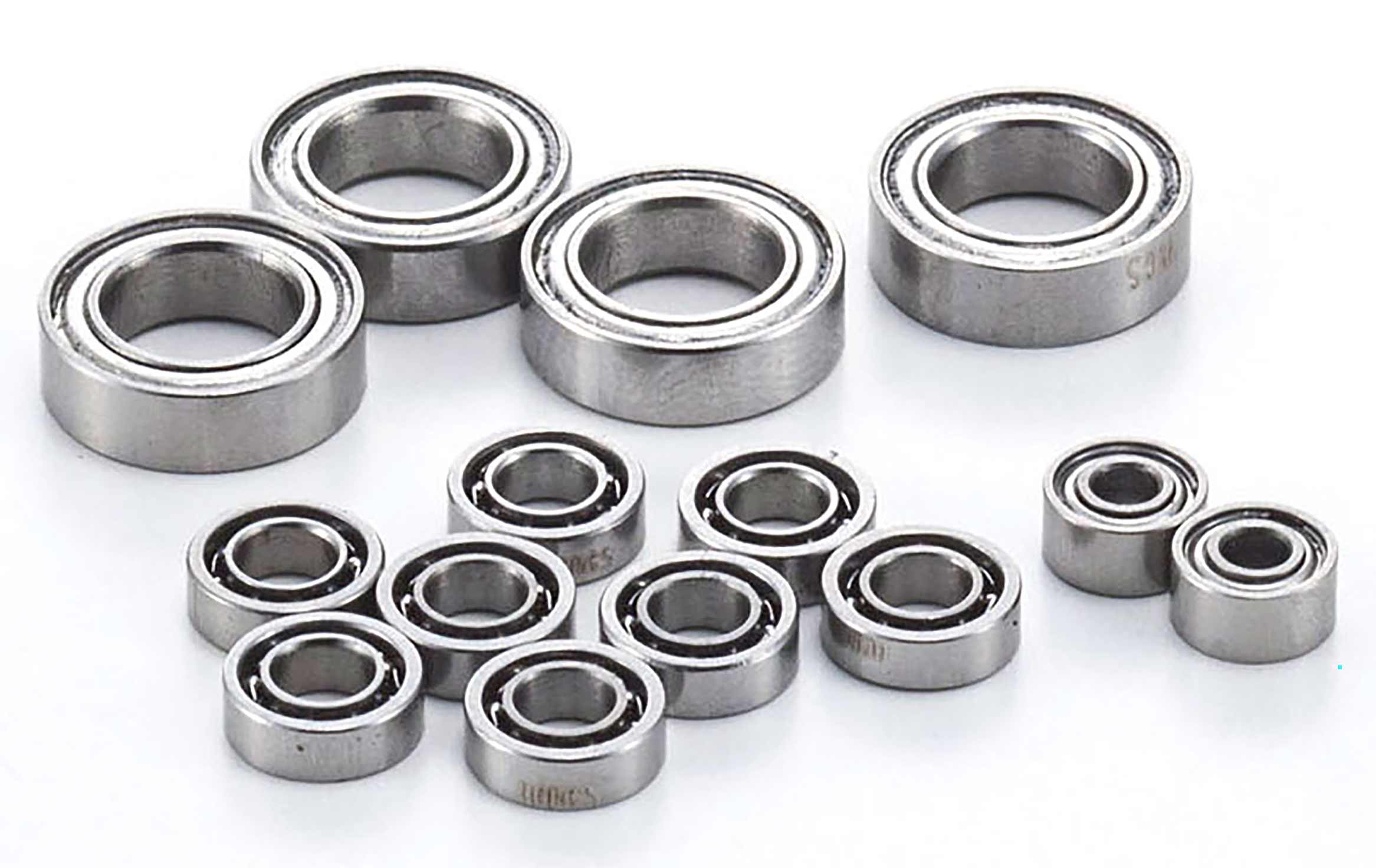

Full Ball Bearings
Full Ball Bearings

Full bearing specifications include 14 ball bearings.

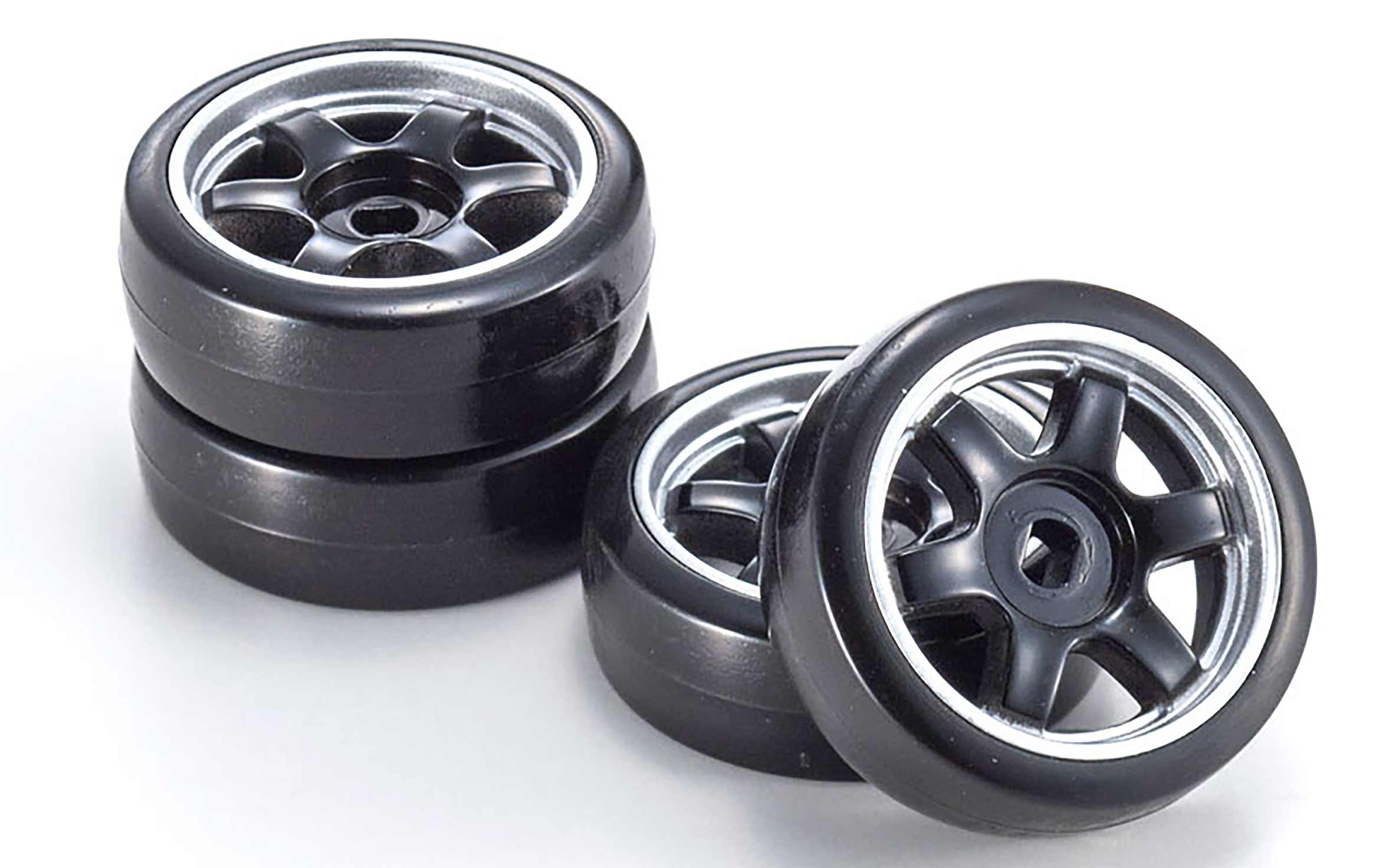

Drift Tires
Drift Tires

Equipped with drift tires as standard.

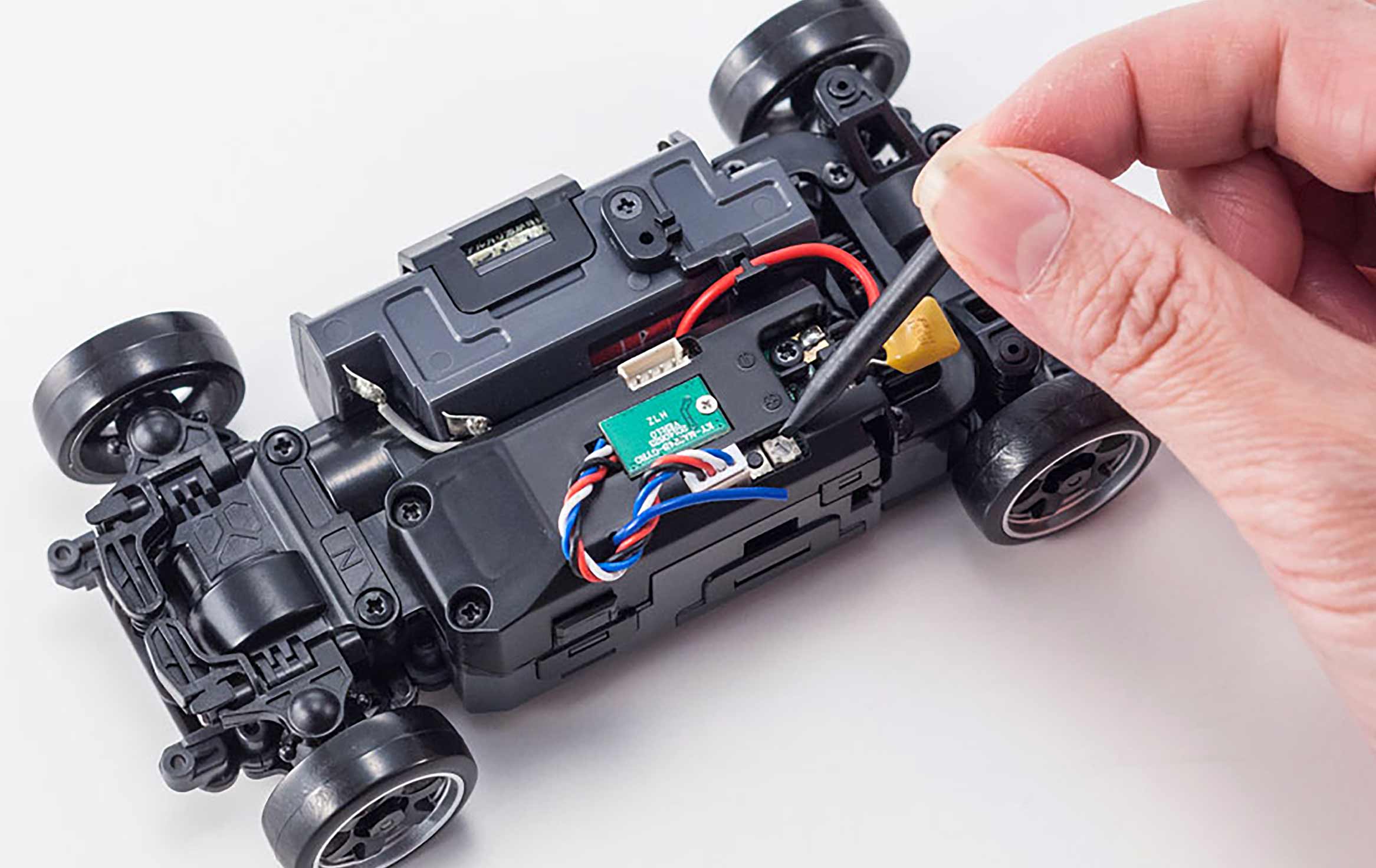

Optional Gyro
Optional Gyro

Equipped with special mount space and gyro adjustment volume for the optional gyro unit (sold separately:MZW446).



Product Specifications

Charger Sold Separately
Product Weight 6.8 oz (193g)
Vehicle Type On-Road, Drift Car
Ball Bearings Full Ball Bearings
Chassis MA-02 Chassis
Completion Level Ready-To-Run
Drivetrain AWD
Drive Type Forward/Brake/Reverse
Product Height 2.16535" (55 mm)
Battery Sold Separately
Gear Ratio Adjustable
Product Length 6.69291" (170 mm)
Steering Type 2WS
Suspension Independent
Approximate Assembly Time Fully Assembled
Body Painted and marked complete body
Scale 1/28
Vehicle Size Mini
Product Width 2.75591" (70 mm)
Radio Included
Battery Tray Dimensions AAA Batteries
Motor Type Brushed
Speed Control Included
Wheelbase 3.85827" (98 mm)
Differential Gear Diffs
Receiver Included
Shock Type Coil-Over
Power Type Electric
Servos Included
