1/28 Skyline 2000GT-R KPGC10 Mini-Z AWD RTR, White

Item No. KYO32636W
Brand Logo
5 out of 5 Customer Rating

1/28 Skyline 2000GT-R KPGC10 Mini-Z AWD RTR, White

Item No. KYO32636W
$199.99
RC Club points earned on this item shown at checkout.
Select Options
EnviroMAX AAA Alkaline Battery (24)
KYO32636W FUG4400BP24
EnviroMAX AAA Alkaline Battery (24)
In Stock
$21.99
AAA EnviroMAX Alkaline Battery (4)
KYO32636W FUG4400BP4
AAA EnviroMAX Alkaline Battery (4)
In Stock
$4.49
0 Item Selected Items Selected
EZRUN Mini28 Combo, 6500KV
KYO32636W HWI38020368
EZRUN Mini28 Combo, 6500KV
In Stock
$129.99
0 Item Selected Items Selected
In Stock
Selected Store

Product Details

The Mini-Z AWD series is a Four Wheel Drive chassis with Drift tires and paired with the Syncro KT-531P Transmitter. Perfect for drifting in small spaces.
Key Features
  • Based On MA-020 Chassis
  • Updated With Optimized Steering Control
  • Drift Tires Are Installed As Standard
  • Features 2.4GHz Syncro KT-531P Transmitter
  • Body Comes With Display Model Quality Finish
icon-box
In The Box
  • (1) 1/28 Skyline 2000GT-R KPGC10 Mini-Z AWD RTR
  • (1) Syncro KT-531P Transmitter
  • (4) Pinion Gears (15T, 17T, 19T, 21T)
  • (3) Spur Gears (27T, 29T, 31T)
  • (1) Mini Pylon
icon-how-to
Needed to Complete
  • (4) AAA Batteries for Chassis
  • (4) AAA Batteries for Transmitter

Introduction

To bring its dynamic performance to even more drivers, the MINI-Z AWD is now available in a Readyset. The MA-020 chassis features VCS (variable camber suspension) on the front that optimizes camber change with suspension stroke and a specially designed circuit board. The chassis design allows space for installing the optional gyro unit MZW446 (Sold separately). The gyro can be adjusted by turning a small volume dial on the chassis to reflect the amount of steering correction in response to changes in chassis posture, allowing beginners through to experts to drive to their full potential. Fully fitted out with precision ball bearings, the high drive efficiency of the MA-020 chassis is complimented in the Readyset by the unique scale body and 2.4GHz Syncro KT-531P R/C system that requires no frequency band setting; all at a great value price. Simply install the batteries to enjoy the thrill of drift driving with the included set of drift tires. The chassis is compatible with nearly all ASC MINI-Z bodies (additional parts maybe required for some body styles). The MINI-Z AWD promises a unique world of dramatic racing action for you to experience and enjoy.

Features

  • MINI-Z AWD Readyset based on MA-020 chassis.
  • Special circuit board updated with optimized steering control program.
  • Chassis features gyro sensitivity adjustment function.
  • Drift tires are installed as standard.
  • Readyset requires only batteries to be ready for action!
  • Features 2.4GHz Syncro KT-531P transmitter that requires no setup of frequency bands.
  • Factory completed body comes with display model quality finish.
  • Features VCS (variable camber suspension) that adjusts camber in accordance with suspension stroke.
  • Coil spring on front suspension can be easily replaced without tools.
  • Wide range of optional parts is available to be installed.
FEATURE_TITLE
Scale Details

Body style is all about scale and detail. Injection molded accessory parts such front and rear over fenders combine with chrome bumper and grille, and the replica GT-R emblem puts the finishing touch.



Syncro KT-531P Transmitter
Syncro KT-531P Transmitter

Includes stylish design of Syncro KT-531P transmitter. Features steering / throttle trim as well as dual rate adjustment of steering angle and control the flashing speed of optional LEDs. In addition, the transmitter has a Training Mode feature which limits speed of the car for easy learning (default setting at the time of shipment is Training Mode).



MA-02 Chassis
MA-02 Chassis

Special AWD chassis is based on the MA-02 chassis and features the RA45 unit.



VCS Front Suspension
VCS Front Suspension

Features VCS front suspension that optimizes camber change in concert with suspension stroke. Replacement of front suspension coil springs is easy with no tools required.



Rear Suspension
Rear Suspension

Equipped with strut-type rear suspension.

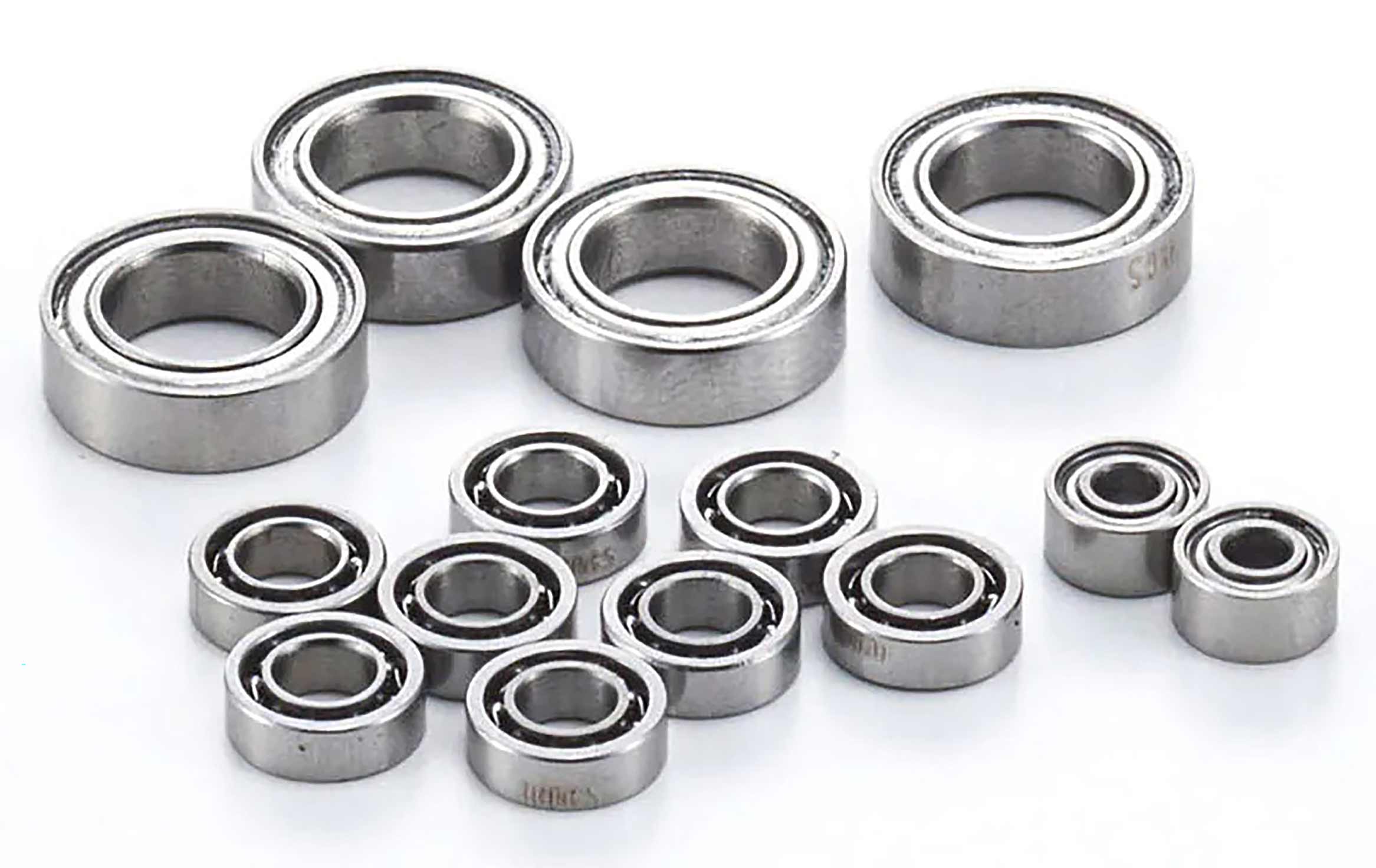

Full Ball Bearings
Full Ball Bearings

Full bearing specifications include 14 ball bearings.

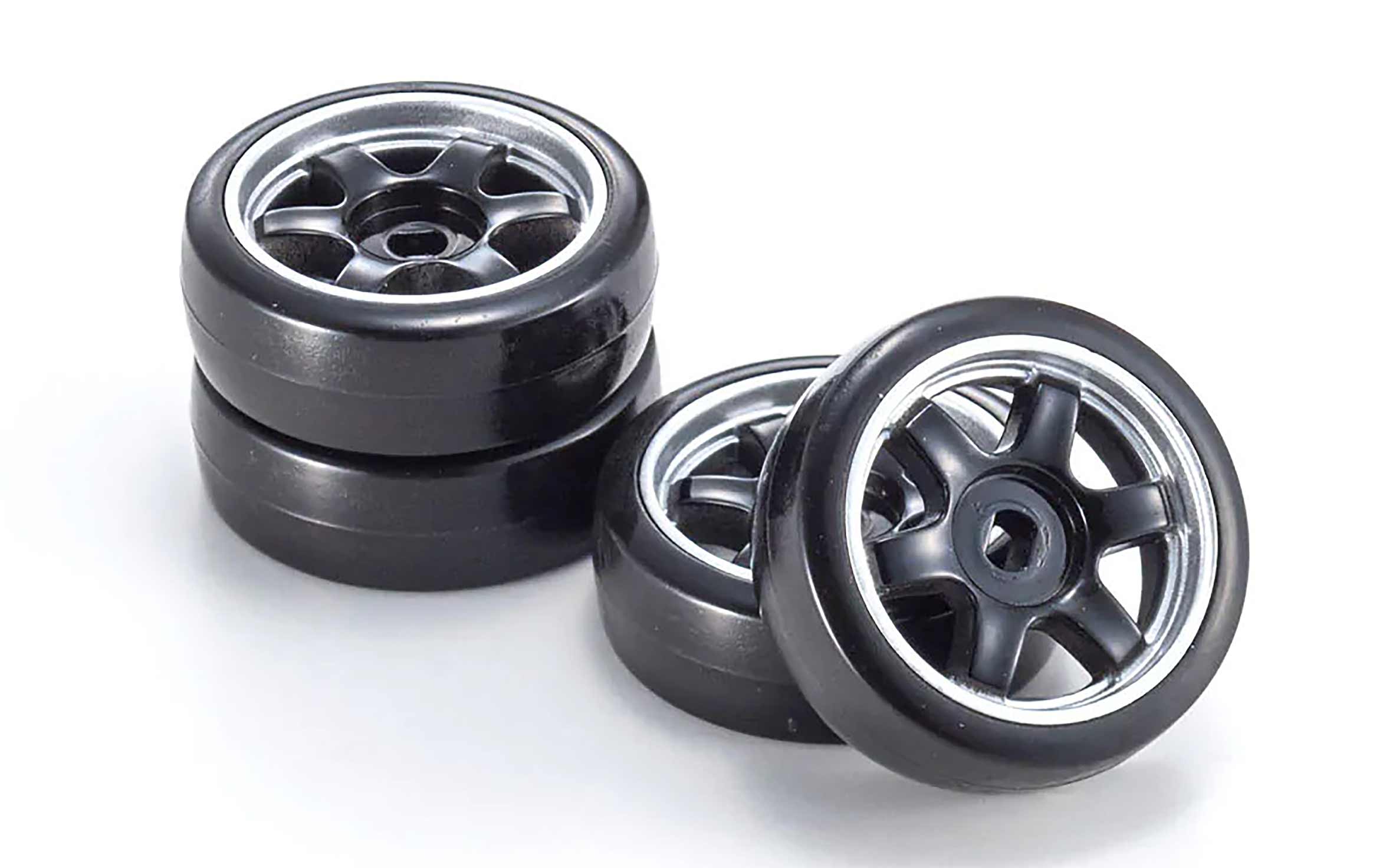

Drift Tires
Drift Tires

Equipped with drift tires as standard.



Optional Gyro
Optional Gyro

Equipped with special mount space and gyro adjustment volume dial for the optional gyro unit MZW446 (sold separately).



Product Specifications

Manufacturer # 32636W
Power Type Electric
Servos Included
Battery Sold Separately
Product Length 6.41" (163 mm)
Suspension Independent Suspension
Tire Type Drift Tires
Motor Type Brushed
Rear Track 2.22" (56.5mm)
Speed Control Included
Wheelbase 3.7" (94 mm)
Charger Sold Separately
Differential Gear Diffs
Receiver Included
Shock Type Friction Shocks
Approximate Assembly Time Fully Assembled
Body Display Model Quality Finish
Scale 1/28
Vehicle Type Drift Car
Ball Bearings Full Ball Bearings
Chassis MA-020-N Chassis
Completion Level Ready-To-Run
Drivetrain AWD
Drive Type Forward/Brake/Reverse
Product Height 2" (51 mm)
Front Track 2.22" (56.5mm)
Vehicle Size Mini
Product Width 2.63" (67 mm)
Radio Included
