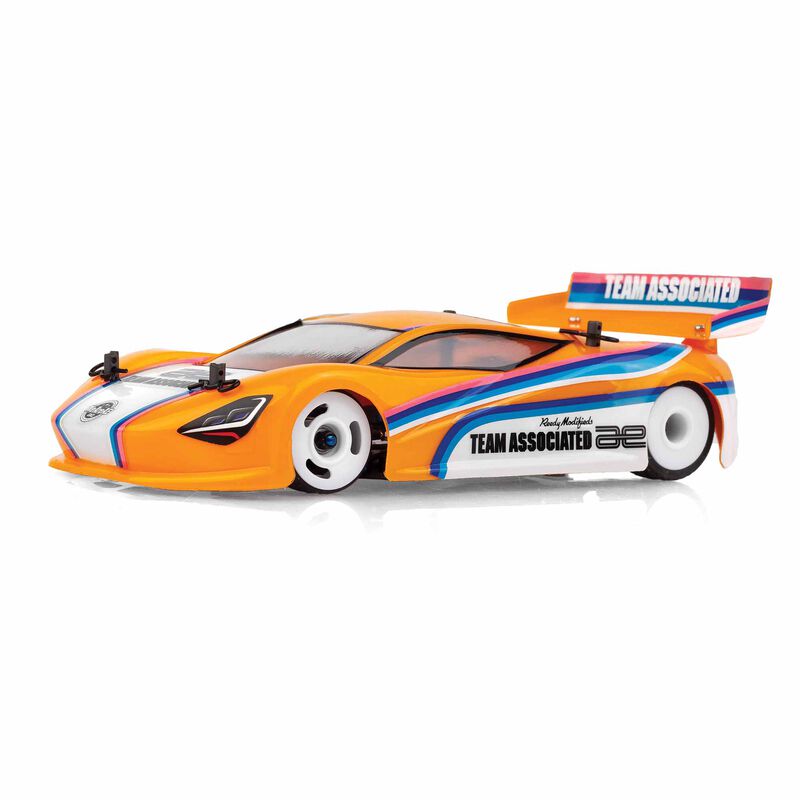

1/28 RC28 2WD On-Road Team Kit

Item No. ASC20165
Discontinued
Brand Logo
5 out of 5 Customer Rating

1/28 RC28 2WD On-Road Team Kit

Item No. ASC20165
This Item is No Longer Available
Selected Store

Product Details

Introducing the Team Associated RC28R Team Kit.
Key Features
  • Steel Chassis Plate For Low Center Of Gravity
  • Optimized Steering Geometry With Adjustable Servo Mount
  • Torsion Style Side Links Act As Side Spring
  • Adjustable Rear Pod Roll Center Inserts
  • Hard Plastic And Polycarbonate Body Mounting
icon-box
In The Box
  • (1) 1/28 RC28 2WD On-Road Team Kit
icon-how-to
Needed to Complete
  • (1) 1/28 On-Road Body

Overview

This compact on-road race car is designed with the same engineering precision found in every AREA 51-developed product. Though small in scale, the RC28R delivers big performance in an easy to set up package. Featuring a fixed-arm front suspension with included optional molded upper arms for tuning caster and camber. The torsion side links (soft, medium, and hard included) replace the need for a side spring making setup easy while adding performance in areas a conventional spring does not. The battery holder design ensures quick access without disturbing the center shock.

The steel chassis plate provides a low center of gravity while the insert adjustable roll center enables chassis roll adjustment based on the grip level. The pitch, roll and droop can further be tuned/Adjusted with the threaded aluminum center shock, spring collars and side damper tubes. The two-piece rear pod allows quick axle height adjustment utilizing Factory Team carbon fiber shims. Fine-tune Ackermann on the fly with the adjustable servo mount. Compact, tunable, and designed to race, the RC28R is built for high performance and fun—even in tight spaces.

Features

  • Steel chassis plate for low center of gravity
  • Fixed arm style front end with optional molded upper arms to adjust caster and camber
  • Front bulkhead design allows for quick upper arm changes with consistent fitment and position
  • Optimized steering geometry with adjustable servo mount to tune ackerman on the fly
  • Easily removable battery holder to access the battery without removing center shock
  • Torsion style side links act as side spring with soft, medium, and hard options included
  • Adjustable rear pod roll center inserts to tune roll characteristics to grip level
  • Optimized roll geometry with side damper tubes
  • Threaded aluminum center shock with adjustable droop and spring collar
  • Two-piece rear pod with adjustable axle heights for different tire diameters and ride heights utilizing Factory Team carbon fiber shims
  • Gear differential included and can fit other aftermarket options currently available
  • Hard plastic and polycarbonate body mounting options included
  • White wheels included that fit optional front wheel flanges to tune steering feel
  • Universal front bumper included

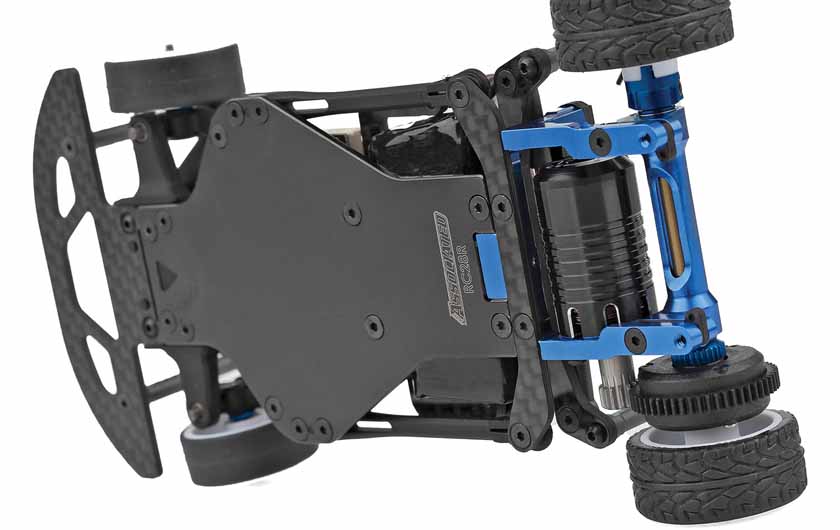

Chassis
Chassis

Steel chassis plate for low center of gravity.

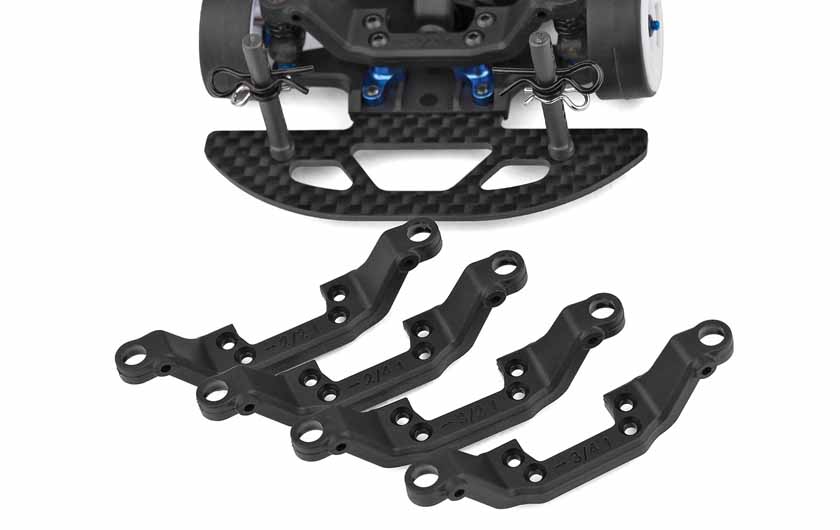

Front Suspension
Front Suspension

Fixed arm style front end with optional molded upper arms to adjust caster and camber.

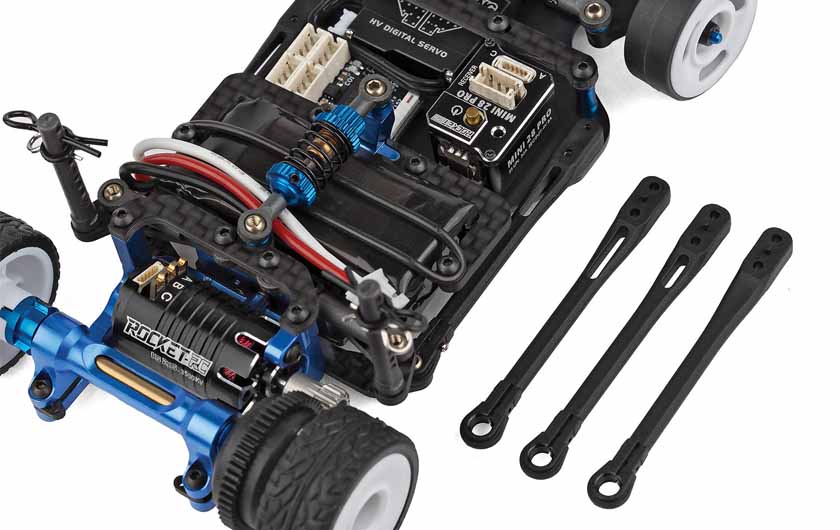

Side Links
Side Links

Torsion style side links act as side spring with soft, medium, and hard options included.

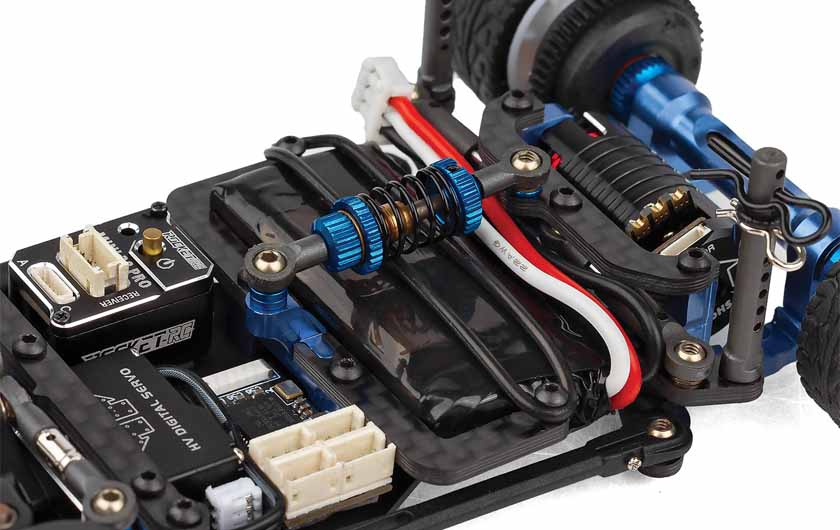

Center Shock
Center Shock

Threaded aluminum center shock with adjustable droop and spring collar.

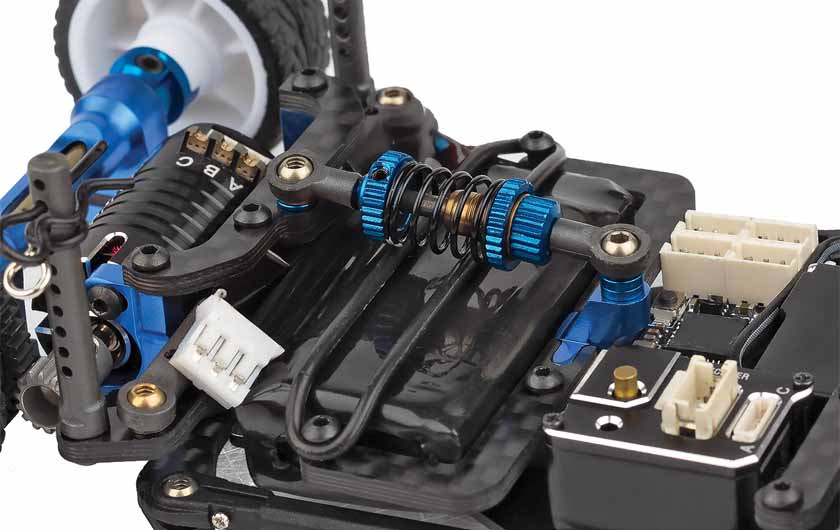

Battery Holder
Battery Holder

Easily removable battery holder to access the battery without removing center shock.

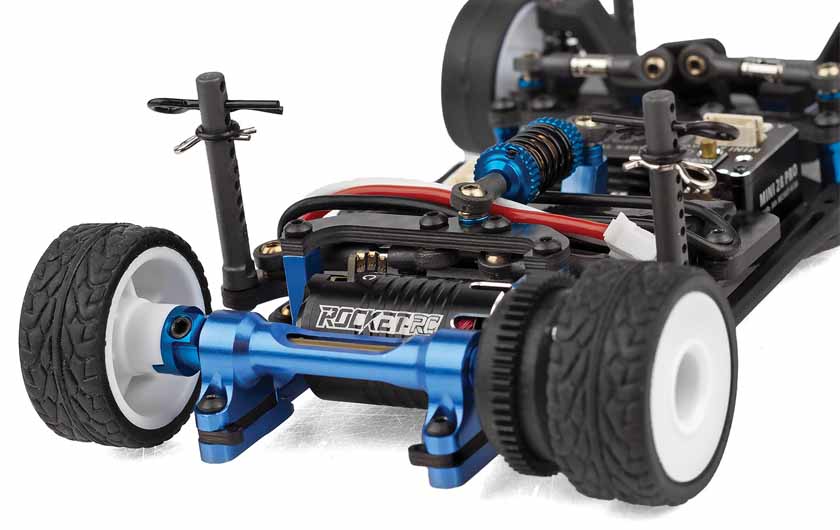

Rear Pod
Rear Pod

Two-piece rear pod with adjustable axle heights for different tire diameters and ride heights utilizing Factory Team carbon fiber shims.

Product Specifications

Battery Sold Separately
Body Sold Separately
Charger Sold Separately
Chassis Steel Chassis
Completion Level Kit
Differential Gear Diffs
Drive Type Forward/Brake/Reverse
Drivetrain 2WD
Manufacturer # 20165
Power Type Electric
Product Length 5.51" (140 mm)
Radio Sold Separately
Receiver Sold Separately
Scale 1/28
Servos Sold Separately
Speed Control Sold Separately
Suspension Independent A-arm suspension
Vehicle Size Mini
Vehicle Type On-Road
Wheelbase 3.85" (98 mm)
