1/28 Mitsubishi Lancer Evolution X Mitsubishi Motors Dealer Team MINI-Z AWD RTR

Item No. KYO32632M
Discontinued
Brand Logo
3.7 out of 5 Customer Rating

1/28 Mitsubishi Lancer Evolution X Mitsubishi Motors Dealer Team MINI-Z AWD RTR

Item No. KYO32632M
This Item is No Longer Available
Selected Store

Product Details

AWD series is a Four Wheel Drive chassis with Drift tires and paired with the Syncro KT-531P Transmitter. Perfect for drifting in small spaces.
Key Features
  • Readyset Based On MA-020 Chassis
  • Special Circuit Board Updated With Optimized Steering Control
  • Chassis Features Gyro Sensitivity Adjustment Function
  • Drift Tires Are Installed As Standard
  • Readyset Requires Only Batteries To Be Ready For Action!
icon-box
In The Box
  • (1) MINI-Z AWD Mitsubishi Lancer Evo X Team
  • (1) Painted And Marked Complete Body
  • (1) Syncro KT-531P Transmitter
  • (1) Mini Pylon
  • (4) Pinion Gears (15T, 17T, 19T, 21T)
  • (3) Spur Gears (27T, 29T, 31T)
  • (1) Spare Nut
  • (1) Wheel Wrench
  • (1) Pinion Removal Tool
icon-how-to
Needed to Complete
  • (4) AAA Batteries for Transmitter
  • (4) AAA Batteries for Chassis
1/28 Mitsubishi Lancer Evolution X Mitsubishi Motors Dealer Team MINI-Z AWD RTR

Introduction

To bring its dynamic performance to even more drivers, the MINI-Z AWD is now available in a Readyset. The MA-020 chassis features VCS (variable camber suspension) on the front that optimizes camber change with suspension stroke and a specially designed circuit board. The chassis design allows space for installing the optional gyro unit(sold separately). The gyro can be adjusted by turning a small volume dial on the chassis to reflect the amount of steering correction in response to changes in chassis posture, allowing beginners through to experts to drive to their full potential. Fully fitted out with precision ball bearings, the high drive efficiency of the MA-020 chassis is complimented in the Readyset by the unique scale body and 2.4GHz Syncro KT-531P R/C system that requires no frequency band setting; all at a great value price. Simply set the batteries to enjoy the thrill of drift driving with the included set of drift tires. The chassis is compatible with nearly all ASC MINI-Z bodies (additional parts maybe required for some body styles). The MINI-Z AWD promises a unique world of dramatic racing action for you to experience and enjoy.

Features

  • MINI-Z AWD Readyset based on MA-020 chassis.
  • Special circuit board updated with optimized steering control program.
  • Chassis features gyro sensitivity adjustment function.
  • Drift tires are installed as standard.
  • Readyset requires only batteries to be ready for action!
  • Features 2.4GHz Syncro KT-531P transmitter that requires no setup of frequency bands.
  • Factory completed body comes with display model quality finish.
  • Features VCS (variable camber suspension) that adjusts camber in accordance with suspension stroke.
  • Coil spring on front suspension can be easily replaced without tools.
  • Wide range of optional parts is available to be installed.
Lancer Evolution
Lancer Evolution

Based on the street version Lancer, the Lancer Evolution was tuned for World Rally Championship competition. This Production World Rally Championship (PWRC) 10th ‘X’ generation model also competed in the 2008 Rally Japan.



Syncro KT-531P
Syncro KT-531P

Includes stylish design of Syncro KT-531P transmitter. Features steering / throttle trim as well as dual rate adjustment of steering angle and control the flashing speed of optional LEDs. In addition, the transmitter has a Training Mode feature which limits speed of the car for easy learning (default setting at the time of shipment is Training Mode).

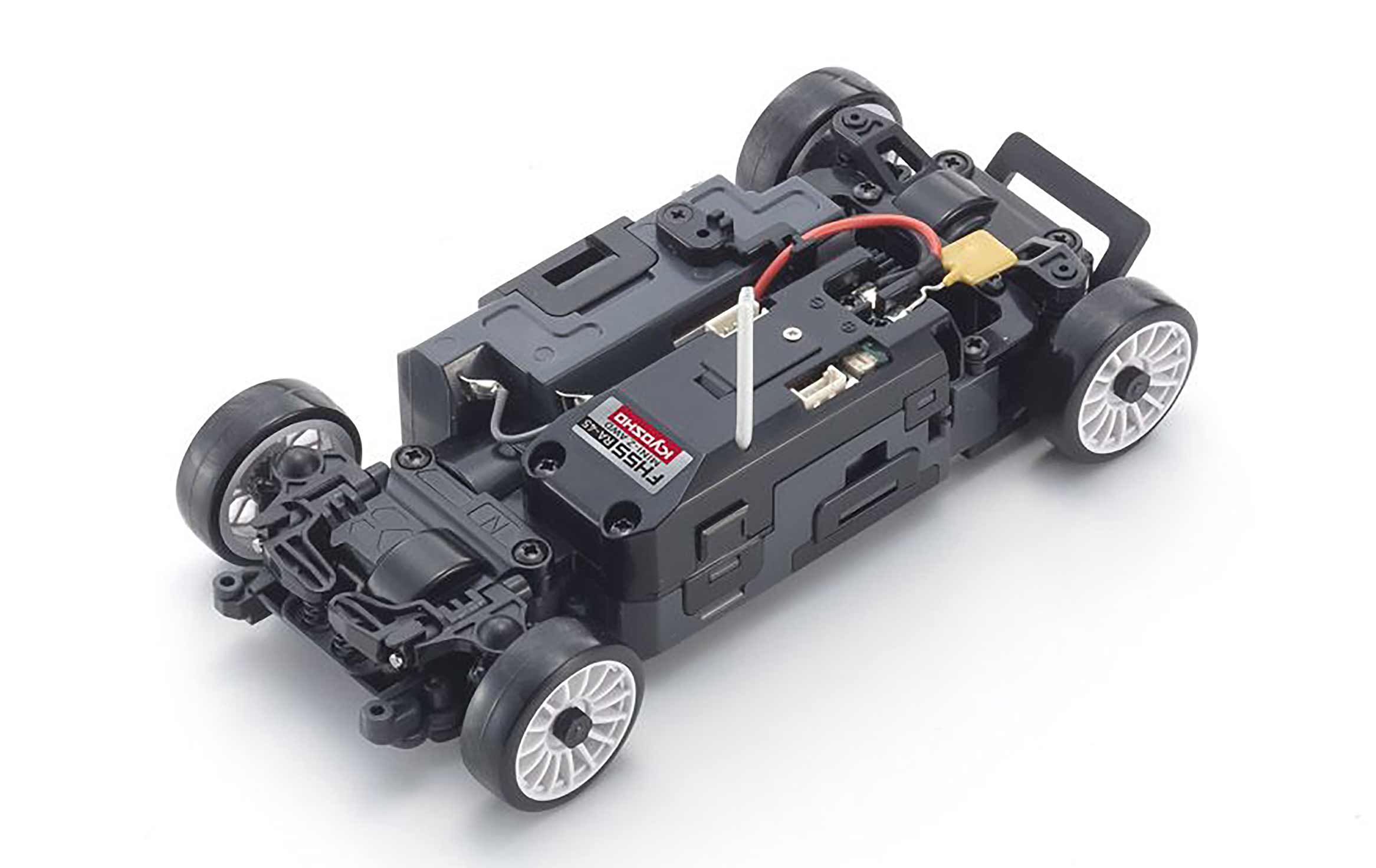

MA-020 Chassis
MA-020 Chassis

Special AWD chassis is based on the MA-020 chassis and features the RA45 unit.



VCS Front Suspension
VCS Front Suspension

Features VCS front suspension that optimizes camber change in concert with suspension stroke. Replacement of front suspension coil springs is easy with no tools required.



Rear Suspension
Rear Suspension

Equipped with strut-type rear suspension.

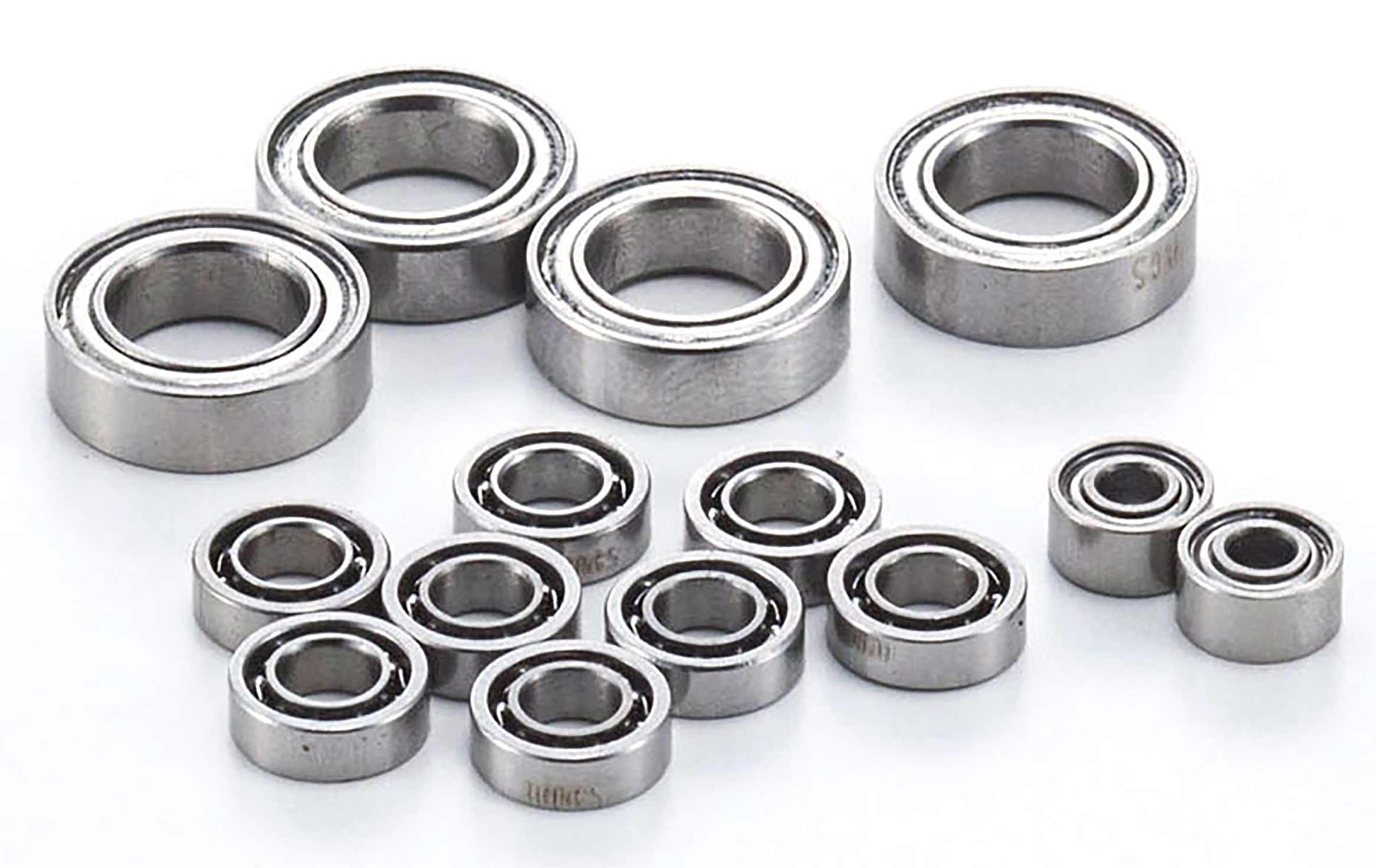

Ball Bearings
Ball Bearings

Full bearing specifications include 14 ball bearings.



Drift Tires
Drift Tires

Equipped with drift tires as standard.



Optional Gyro
Optional Gyro

Equipped with special mount space and gyro adjustment volume for the optional gyro unit (MZW446 sold separately).



Product Specifications

Ball Bearings Full Set
Battery Included
Body Pre-Painted Body
Charger Included
Completion Level Ready-To-Run
Drive Type Forward/Brake/Reverse
Drivetrain AWD
Front Track 58.5mm
Motor Type Brushed
Power Type Electric
Product Height 2.027559" (51 mm)
Product Length 6.33858" (161 mm)
Product Weight 170g
Product Width 2.75591" (70 mm)
Radio Included
Rear Track 58.5mm
Receiver Included
Scale 1/28
Servos Included
Shock Type Coil-Over
Speed Control Included
Steering Type 2WS
Vehicle Size Mini
Vehicle Type Drift Car
Wheelbase 3.54331" (90 mm)
