1/28 Land Rover Defender 90 Adventure Mini-Z 4x4 Crawler RTR, Phoenix Orange/Santorini Black

Item No. KYO32531MO
Brand Logo
5 out of 5 Customer Rating

1/28 Land Rover Defender 90 Adventure Mini-Z 4x4 Crawler RTR, Phoenix Orange/Santorini Black

Item No. KYO32531MO
$169.99
RC Club points earned on this item shown at checkout.
Select Options
EnviroMAX AAA Alkaline Battery (24)
KYO32531MO FUG4400BP24
EnviroMAX AAA Alkaline Battery (24)
In Stock
$21.99
AAA EnviroMAX Alkaline Battery (4)
KYO32531MO FUG4400BP4
AAA EnviroMAX Alkaline Battery (4)
In Stock
$4.49
0 Item Selected Items Selected
EZRUN Mini28 Combo, 6500KV
KYO32531MO HWI38020368
EZRUN Mini28 Combo, 6500KV
In Stock
$129.99
0 Item Selected Items Selected
In Stock
Selected Store

Product Details

The combination of the highly-detailed body and a completely new 4x4 chassis design opens up new levels of performance, well beyond anything RC enthusiasts have ever seen from a mini crawler.
Key Features
  • Highly-Detailed Body And a Completely New 4x4 Chassis Design
  • Uses a Ladder Frame Design With Steel Vertical Plates
  • Solid Front And Rear Axles Feature Metal Ring And Pinion gears
  • Coil Over Shocks Feature a 360 Degree Spring Retainer
  • The Gearbox Features Molded Covers, Ball Bearings, And 6 Pinion Gears
icon-box
In The Box
  • (1) 1/28 Mini-Z 4x4 Defender D90 Adventure RTR
  • (1) KT-531P 2.4GHz Transmitter
  • (6) Pinion Gears (10T, 12T, 14T, 16T, 18T, 20T)
  • (3) Pinion Gear Spacers
  • (1) 1/28 Mini-Z 4x4 Defender D90 Adventure RTR Manual
icon-how-to
Needed to Complete
  • (4) AAA Batteries for Chassis
  • (4) AAA Batteries for Transmitter
1/28 Land Rover Defender 90 Adventure Mini-Z 4x4 Crawler RTR, Phoenix Orange/Santorini Black

Introduction

In 2019 the world's most popular mini RC series, known as the Kyosho MINI-Z, celebrated more than 20 years of unmatched performance and scale realism in the hobby-grade RC category. The continuous pursuit of performance and evolution has led to the creation of a completely-new ‘MINI-Z 4x4’ design that delivers an all-new driving experience for RC fans of all stripes, with superior overall design, driving performance and high-quality injection-molded scale body construction. A significant feature of the MINI-Z 4x4 series is the greater emphasis of body detail and quality of finish that even surpasses existing benchmarks set by the MINI-Z. The body is also molded with thicker material to better resist crash damage from operation in rough terrain. Incorporating the same ladder- style frame of real 4WD vehicles, the MINI-Z 4x4 boasts a 3-link rigid axle suspension combining what would normally be two upper links into a single upper A-arm to deliver maximum suspension movement. A specially designed high-torque steering servo enables this machine to throw its elbows around in the hard terrain for excellent performance in the toughest rock-crawler conditions. The high-torque 130-size motor brings out the beast in the MINI-Z 4x4, specially geared to run well in the low to medium speed ranges common in crawling.

Designed to balance exquisite style, scale detail and superior driving performance, all the MINI-Z 4x4 needs is 8 x AAA alkaline batteries (sold separately). Enjoy driving under any conditions, from normal driving to rock crawling while appreciating the stunning visual appearance. The Kyosho Mini-Z 4x4 is the only mini crawler that delivers a full range of crawling performance in a smaller package.

Since 1948 this British cross-country legend has been active for more than 60 years. As the saying goes all good things come to an end, and the Defender 90 Adventure is one of three models created to commemorate the end of the Defender era. As its name suggests, this is one of the toughest models in the series and is fully equipped for the great outdoor adventure.

Defender 90 Adventure
Defender 90 Adventure

The combination of the highly-detailed body and a completely new 4x4 chassis design opens up new levels of performance, well beyond anything RC enthusiasts have ever seen from a mini crawler. The Defender 90 Adventure is one of three models created to commemorate the end of the Defender era. As its name suggests, this is one of the toughest models in the series and is fully equipped for the great outdoor adventure. With black over-fenders, front grille, roof rack, ladder, and snorkel are immaculately reproduced in a model that rests on the palm of your hand.

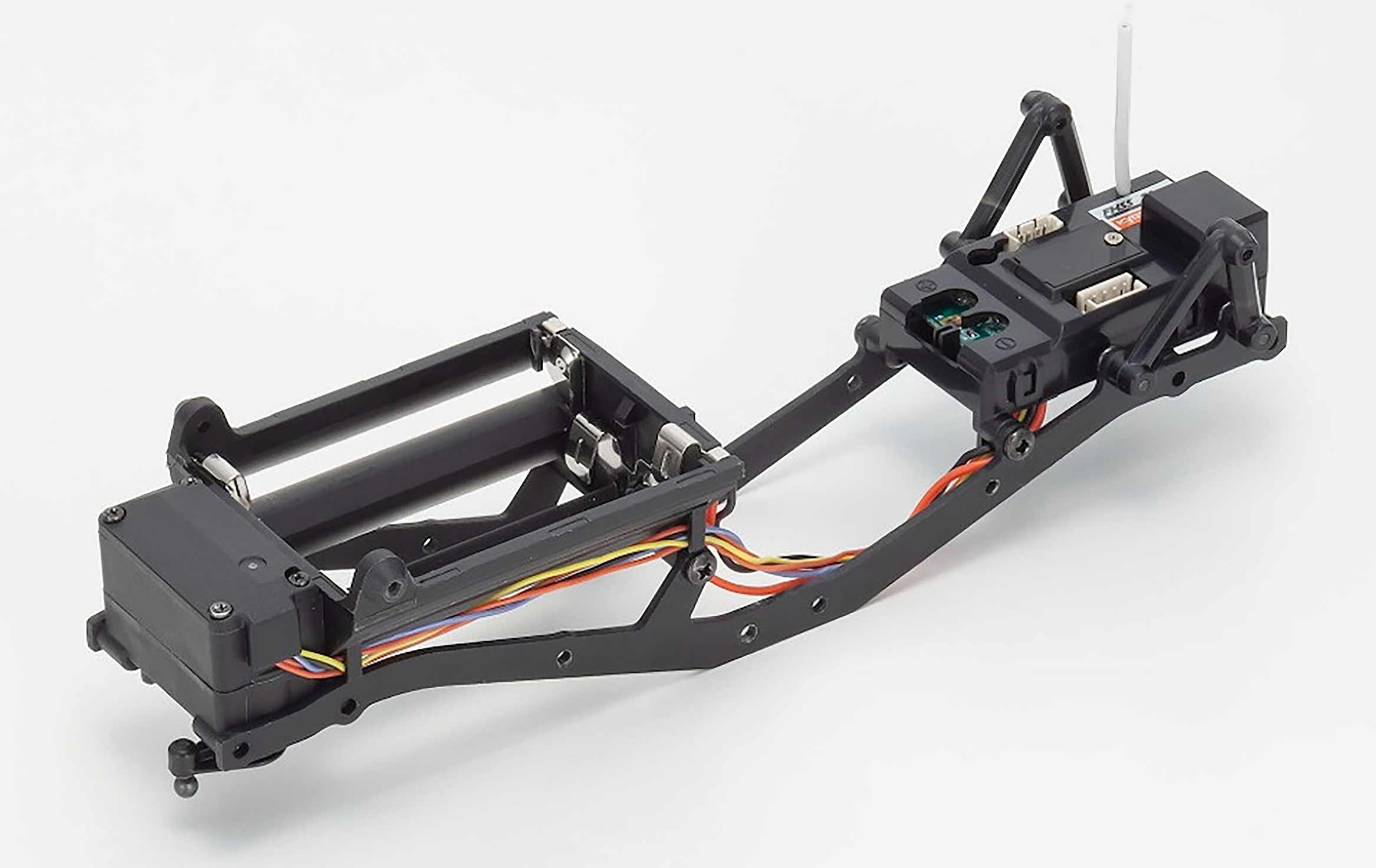

Ladder Frame
Ladder Frame

The Mini-Z 4X4 uses a ladder frame design with steel vertical plates to deliver the ultimate balance of rigidity and flex for superior performance and durability.

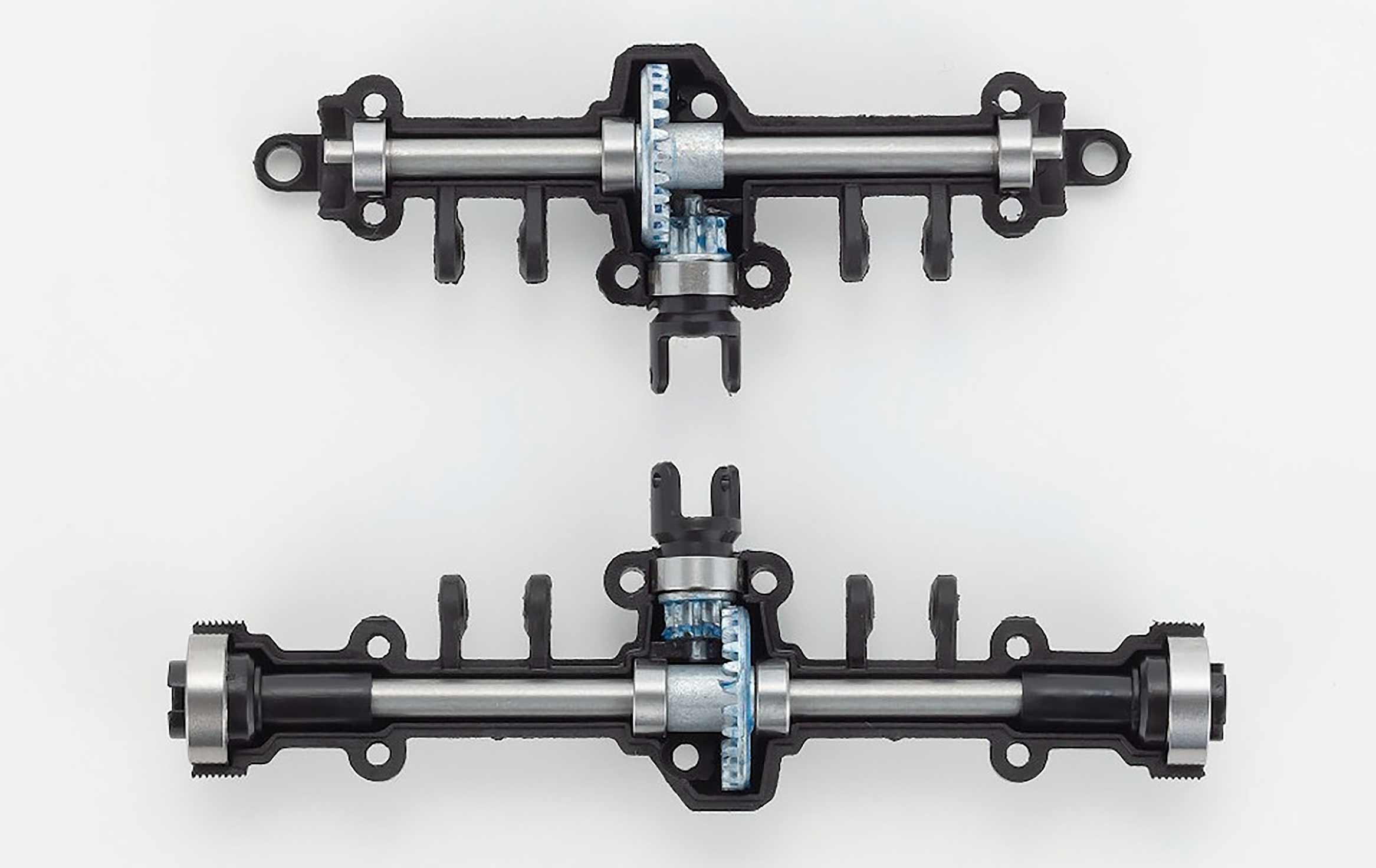

Front and Rear Axles
Front and Rear Axles

Solid front and rear axles feature metal ring and pinion gear for durability and consistent performance.

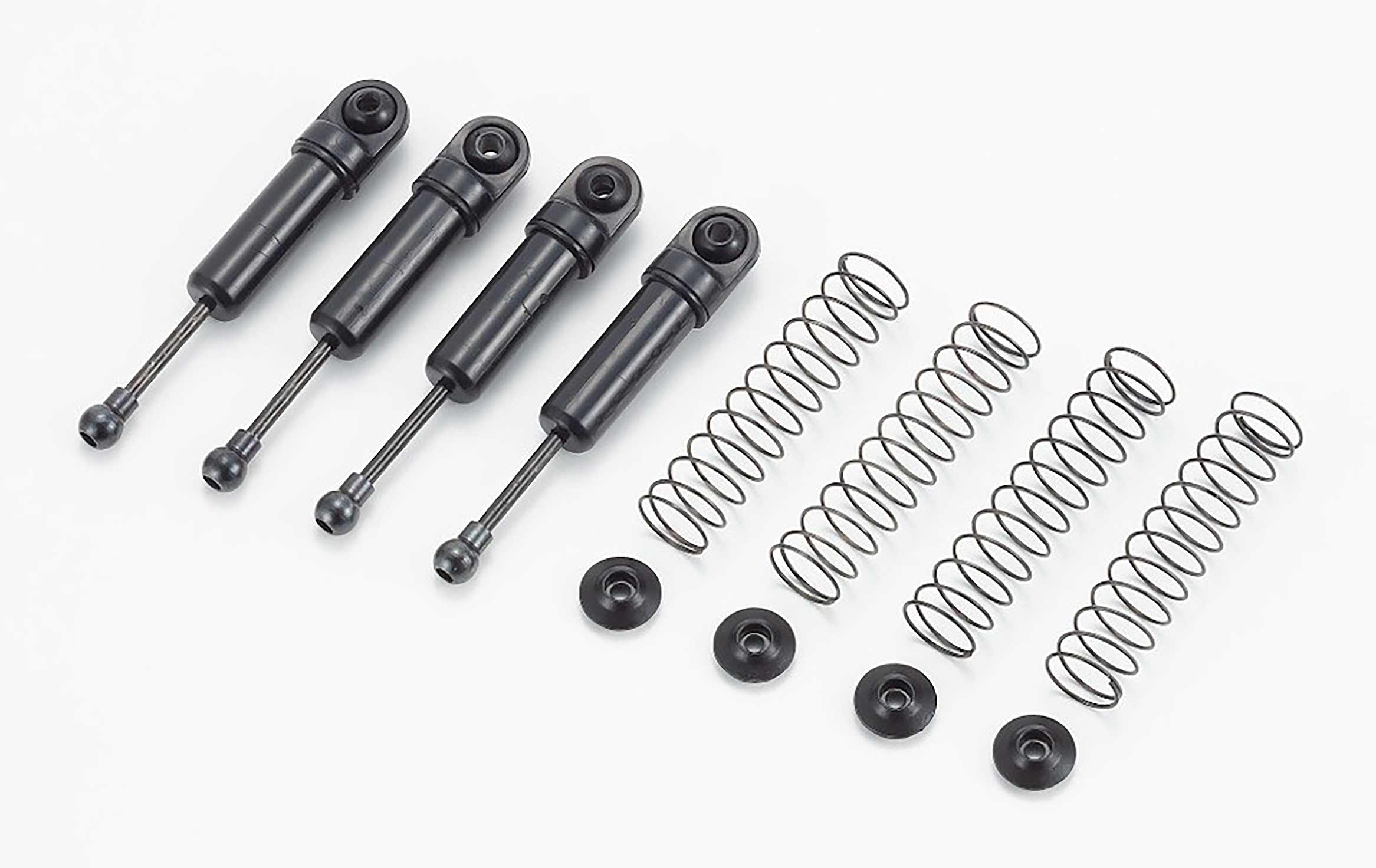

Coil-Over Shocks
Coil-Over Shocks

Coil over shocks feature a 360 degree spring retainer that cannot be lost on the trail and keep the springs where they need to be while operating at the limits of the suspension.

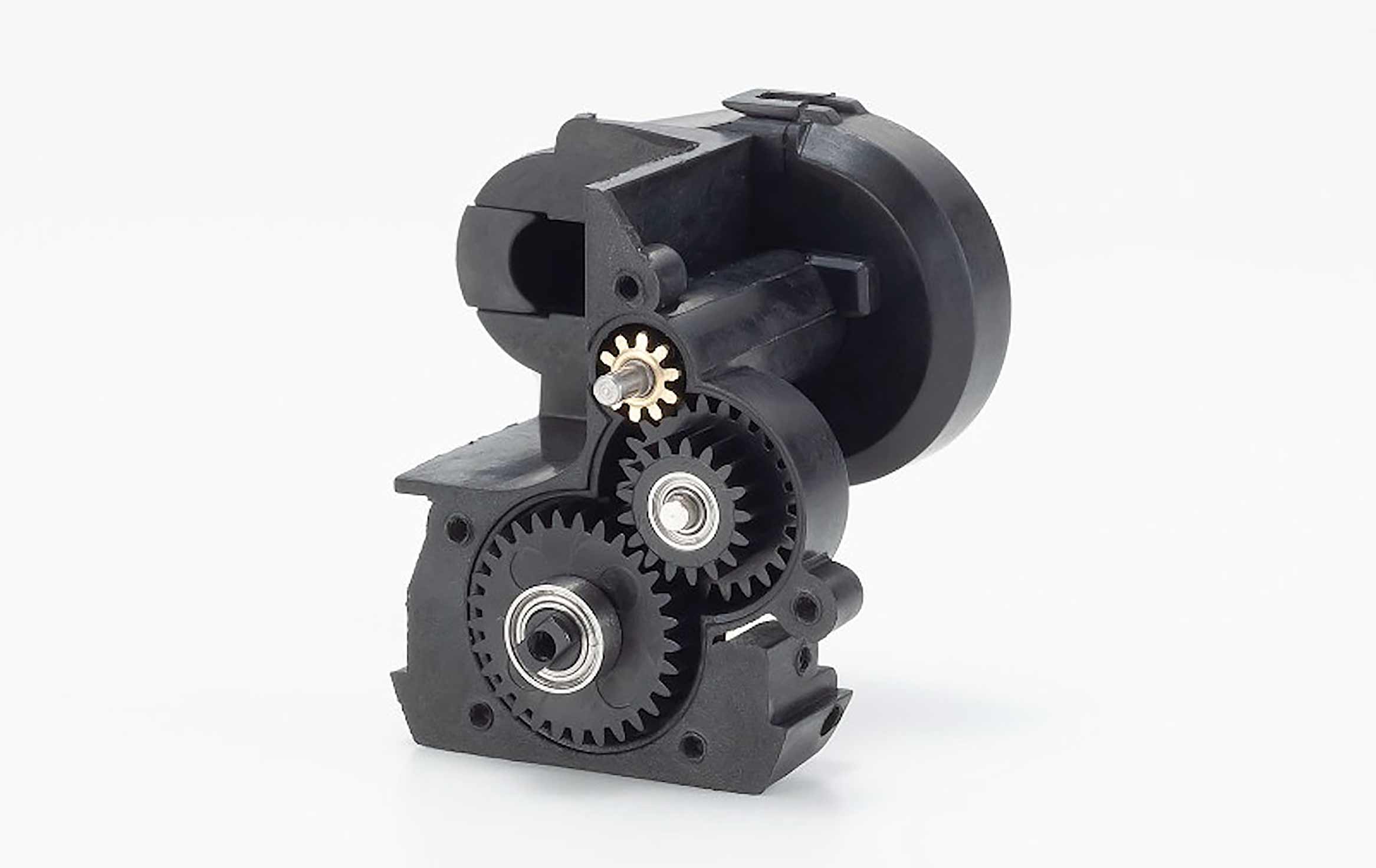

Gearbox
Gearbox

The gearbox features molded covers, ball bearings, and 6 pinion gears that allow a full range of adjustment according to your chosen terrain. As with all Mini-Z models the gear mesh is easily set using the provided spacers.

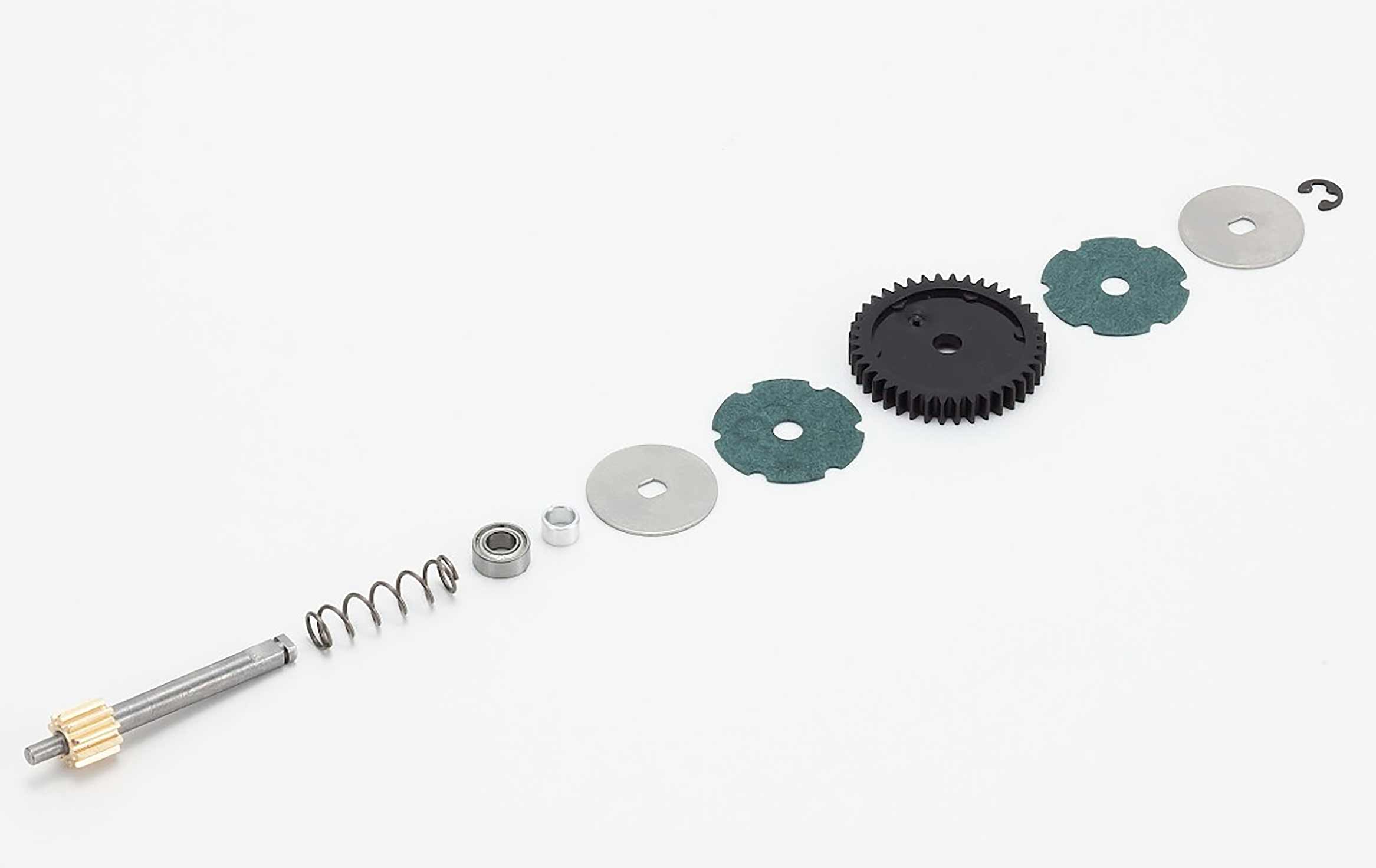

Slipper Clutch
Slipper Clutch

A standard slipper clutch protects the drive system and features a metal shaft and primary gear for durability.



Product Specifications

Ball Bearings Full Ball Bearings
Chassis MX-01
Completion Level Ready-To-Run
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Product Height 4.4" (112 mm)
Body Pre-Painted Hard Plastic
Scale 1/28
Motor Type Brushed
Rear Track 2.86" (72.7mm)
Charger Sold Separately
Differential Gear Diffs
Receiver Included
Shock Type Coil-Over
Battery Sold Separately
Gear Ratio Adjustable
Motor Size 130
Product Length 7.31" (186 mm)
Suspension Solid Axle
Speed Control Included
Wheelbase 4.33" (110 mm)
Front Track 2.86" (72.7mm)
Product Width 3.26" (83 mm)
Radio Included
Power Type Electric
Servos Included
Product Weight 8.81 oz (250g)
Vehicle Type Rock Crawler
