1/28 Jeep Wrangler Unlimited Rubicon Mini-Z 4x4 Crawler RTR, Silver w/ Accessories

Item No. KYO32528S
Discontinued
Brand Logo
4.7 out of 5 Customer Rating

1/28 Jeep Wrangler Unlimited Rubicon Mini-Z 4x4 Crawler RTR, Silver w/ Accessories

Item No. KYO32528S
This Item is No Longer Available
Selected Store

Product Details

The combination of the highly-detailed body and a completely new 4x4 chassis design opens up new levels of performance, well beyond anything RC enthusiasts have ever seen from a mini crawler.
Key Features
  • Ladder Frame Design With Steel Vertical Plates
  • Solid Front And Rear Axles
  • Ring And Pinion Gear And Other Components Feature Metal Construction
  • The Gearbox Features Molded Covers, Ball Bearings, And 6 Pinion Gears
  • Drive System Features A Metal Shaft And Primary Gear For Durability
icon-box
In The Box
  • (1) 1/28 MINI-Z 4WD Jeep Wrangler Rubicon RTR
  • (1) KT-531P 2.4GHz Transmitter
  • (6) Pinion Gears (10T, 12T, 14T, 16T, 18T, 20T)
icon-how-to
Needed to Complete
  • (4) AAA Batteries for Transmitter
  • (4) AAA Batteries for Chassis
1/28 Jeep Wrangler Unlimited Rubicon Mini-Z 4x4 Crawler RTR, Silver w/ Accessories

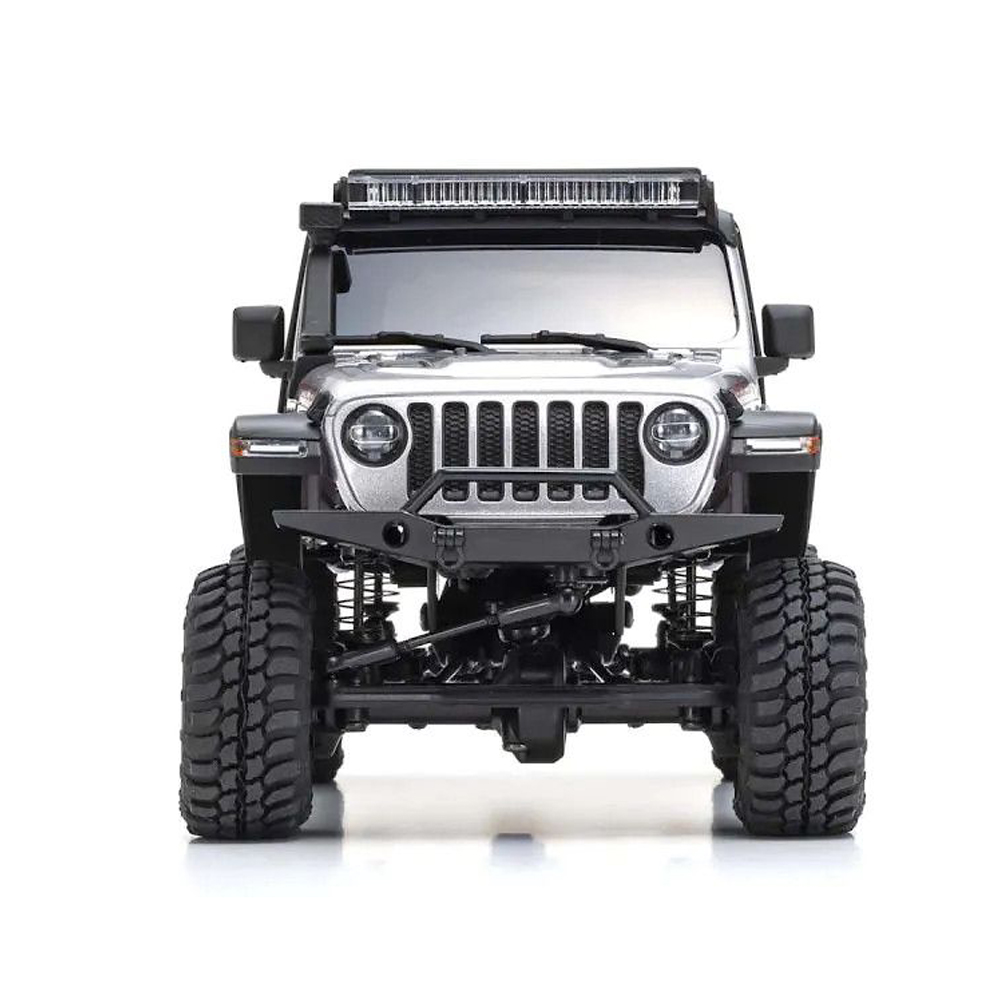

Introduction

In the signature Jeep® Wrangler lineup, the Rubicon boasts the strongest off-road performance. With black over-fenders, front grille with dark grey accent, and the distinctive Jeep® round headlights, the formidable styling of the black hard top is immaculately reproduced in a model that rests on the palm of your hand.

Video Overview



Jeep Wrangler Unlimited
Jeep Wrangler Unlimited

In the signature Jeep® Wrangler lineup, the Rubicon boasts the strongest off-road performance. With black over-fenders, front grille with dark grey accent, and the distinctive Jeep® round headlights, the formidable styling of the black hard top is immaculately reproduced in a model that rests on the palm of your hand.

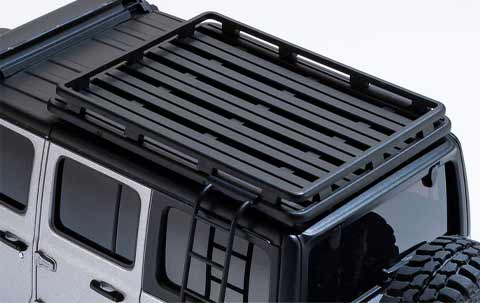

Roof Rack
Roof Rack

New body includes scale side ladders and roof rack.

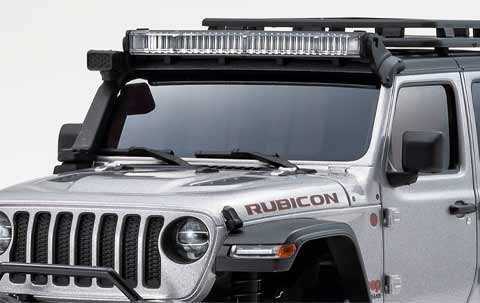

Plastic Details
Plastic Details

Black Over fenders, grille, light bar and snorkel enhance the scale appearance.



FEATURE_TITLE

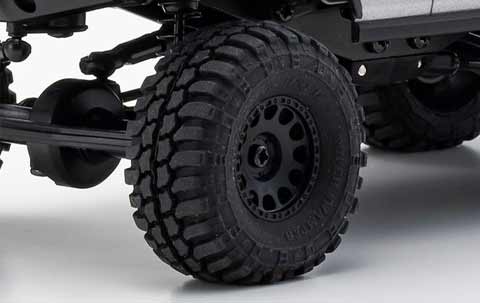

Wheels and Tires

New Fat Interco Super Swamper "Bigger" LTB tires with new wheels give a more aggressive look.

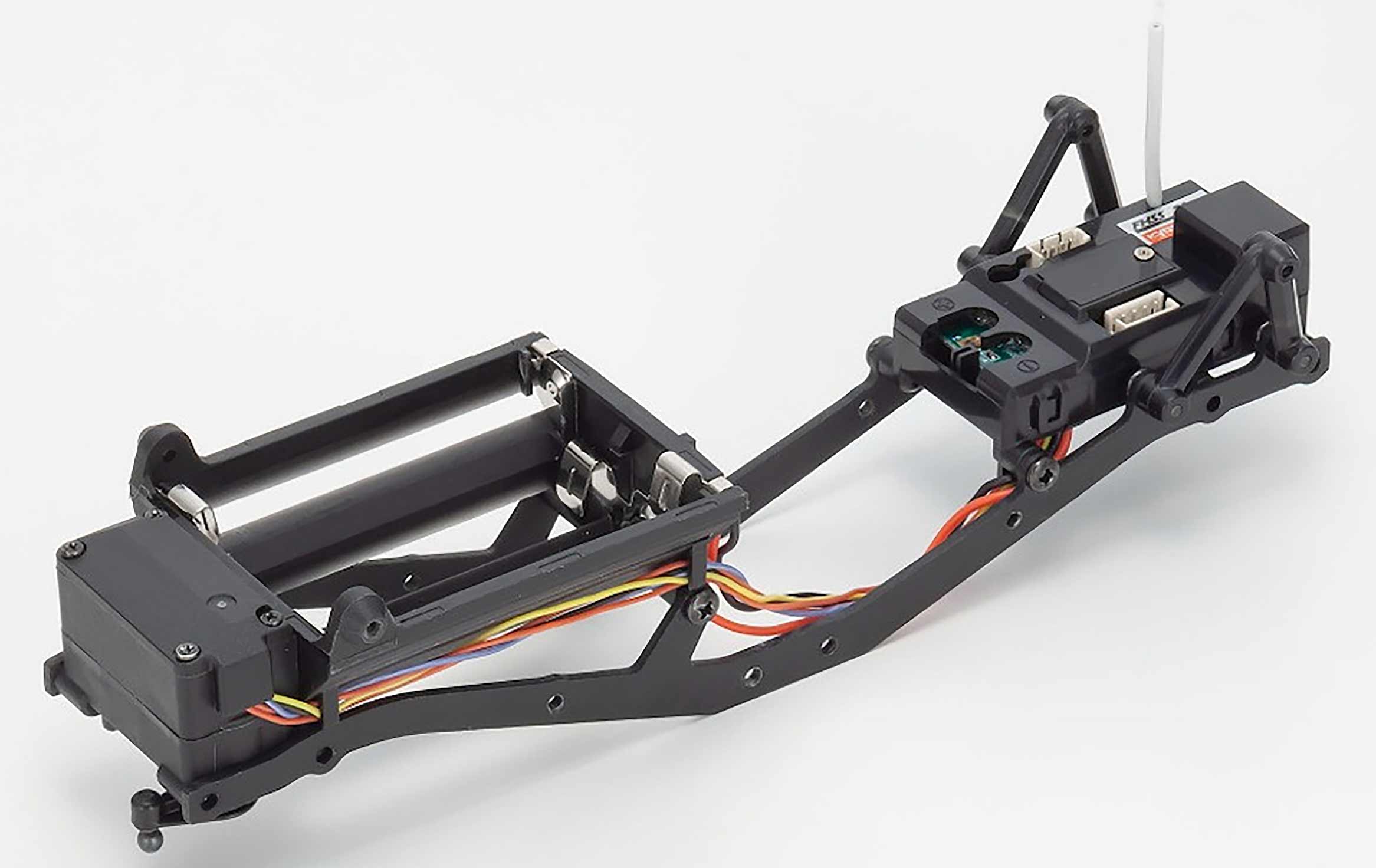

Ladder Frame Chassis
Ladder Frame Chassis

The Mini-Z 4X4 uses a ladder frame design with steel vertical plates to deliver the ultimate balance of rigidity and flex for superior performance and durability.

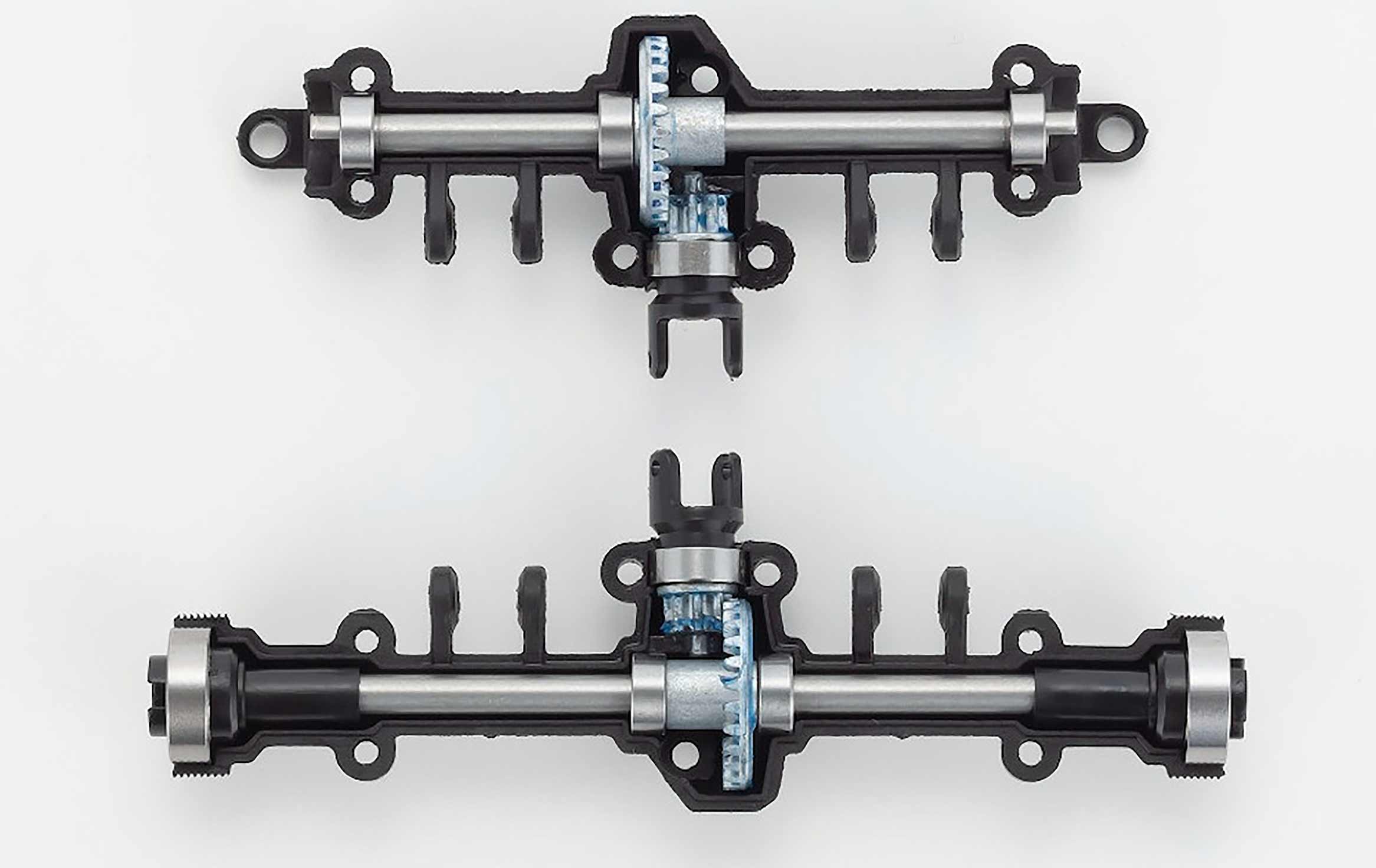

Differentials
Differentials

Solid front and rear axles feature metal ring and pinion gear for durability and consistent performance.



Coil Over Shocks
Coil Over Shocks

Coil over shocks feature a 360 degree spring retainer that cannot be lost on the trail and keep the springs where they need to be while operating at the limits of the suspension.

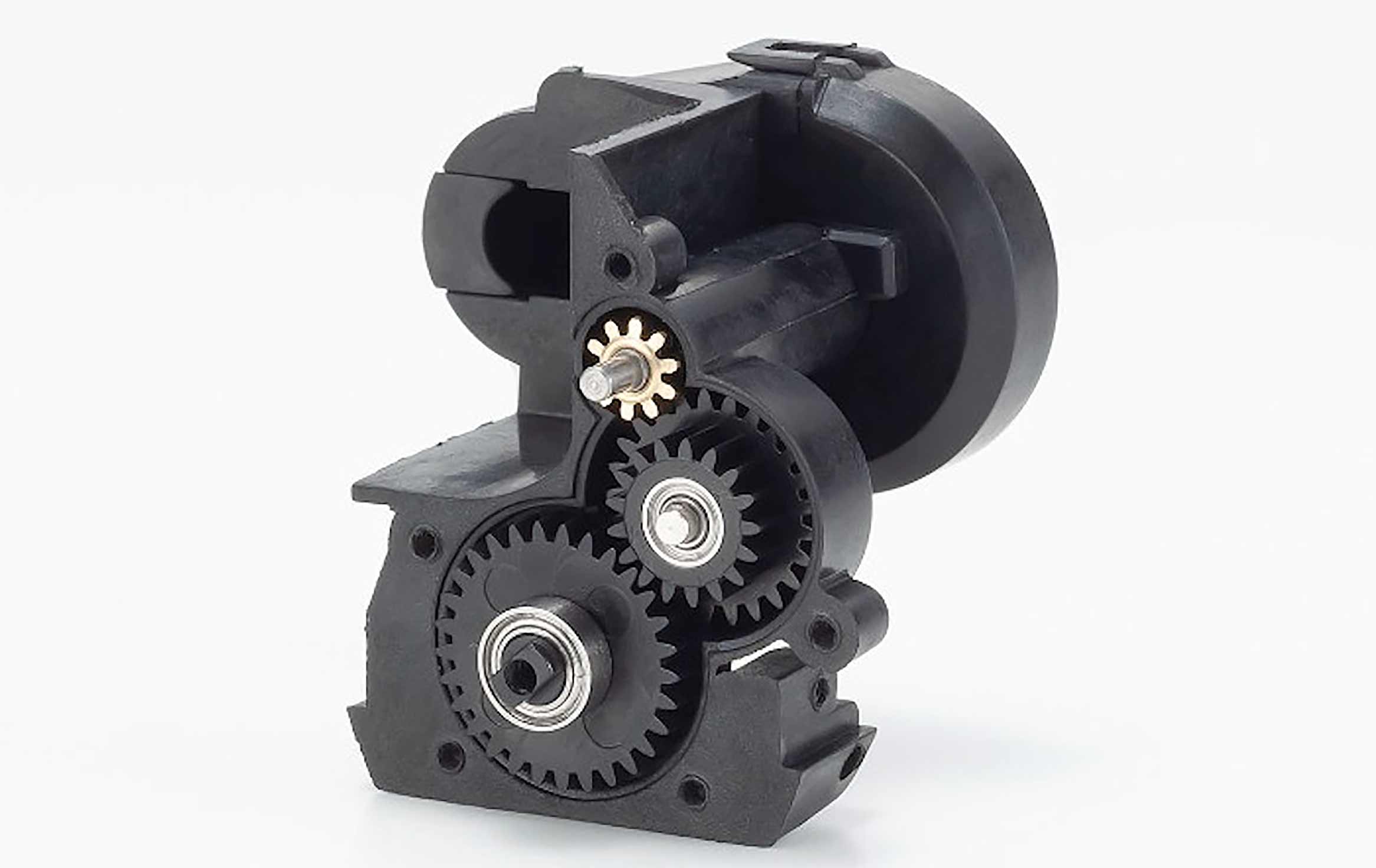

Gear Box
Gear Box

The gearbox features molded covers, ball bearings, and 6 pinion gears that allow a full range of adjustment according to your chosen terrain. As with all Mini-Z models the gear mesh is easily set using the provided spacers.

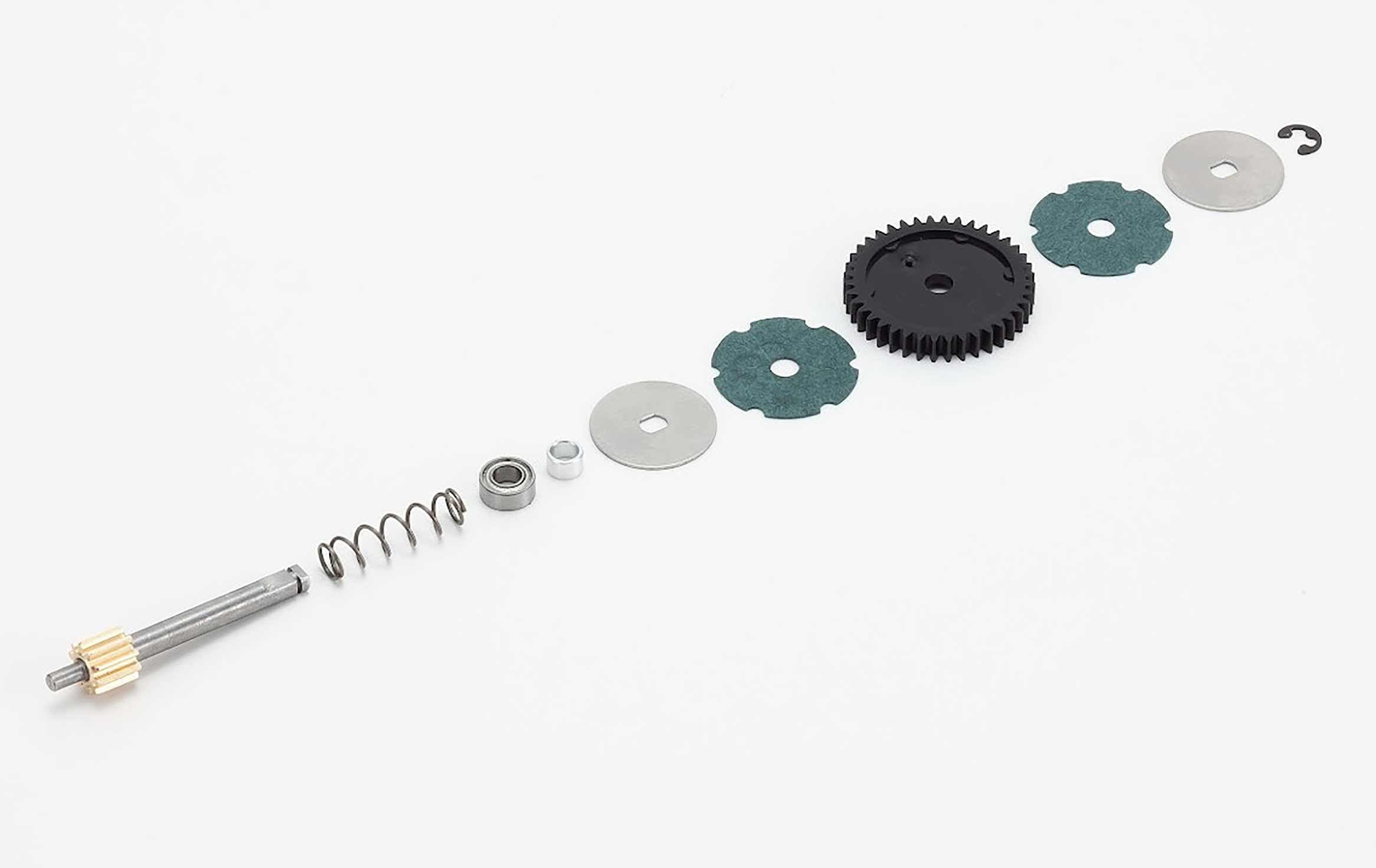

Slipper Clutch
Slipper Clutch

A standard slipper clutch protects the drive system and features a metal shaft and primary gear for durability.



Product Specifications

Approximate Assembly Time Fully Assembled
Ball Bearings Full Ball Bearings
Battery Sold Separately
Body Display Quality Body
Chassis MX-01 Chassis
Completion Level Ready-To-Run
Differential Gear Diffs
Drive Type Forward/Brake/Reverse
Drivetrain 4WD
Front Track 3.03" (77mm)
Gear Ratio Adjustable
Motor Size 130-Size
Motor Type Brushed
Power Type Electric
Product Height 3.77" (96 mm)
Product Length 7.95" (202 mm)
Product Weight 8.73 oz (247.6g)
Product Width 3.74" (95 mm)
Radio Included
Rear Track 3.03" (77mm)
Receiver Included
Scale 1/28
Servos Included
Shock Type Coil-Over Shocks
Speed Control Included
Suspension Solid Axle
Vehicle Size Mini
Vehicle Type Rock Crawler
Water-Resistant No
Wheelbase 4.72" (120 mm)
