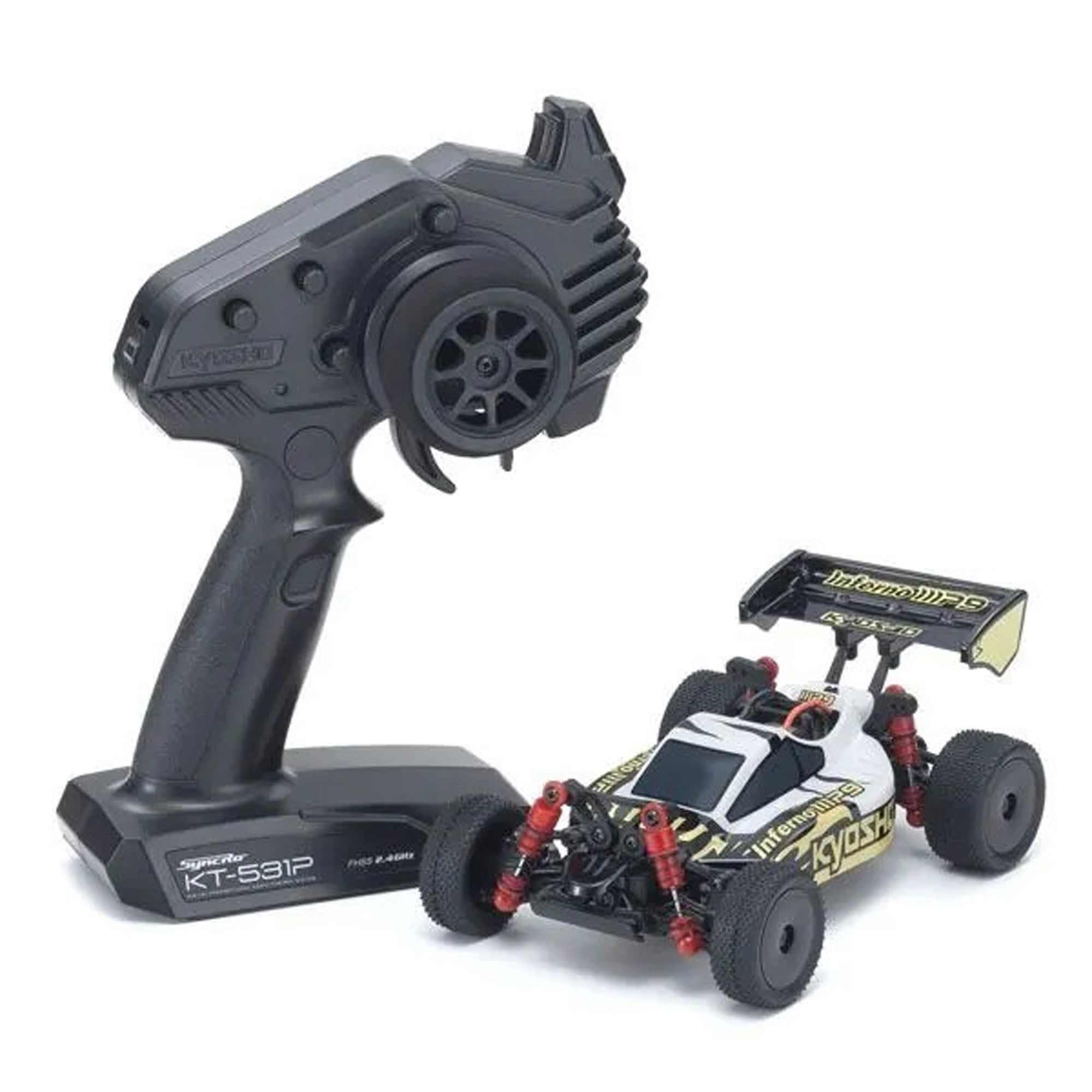

1/28 Inferno MP9 Mini-Z 4x4 Off-Road Buggy RTR, White/Black

Item No. KYO32093WBK
Discontinued
Brand Logo
5 out of 5 Customer Rating

1/28 Inferno MP9 Mini-Z 4x4 Off-Road Buggy RTR, White/Black

Item No. KYO32093WBK
This Item is No Longer Available
Selected Store

Product Details

Real racing buggy performance sits on the palm of your hand. The perfect first (or even second) R/C car!
Key Features
  • Fully Pre-Assembled Chassis
  • Includes Syncro KT-531P Transmitter
  • Optional Gyro Unit Set
  • Printed Polycarbonate Body
  • Real Racing Performance
icon-box
In The Box
  • (1) Mini-Z Buggy MP9
  • (1) KT-531P Transmitter
  • (1) Pre-Painted Polycarbonate Body
  • (3) Pinion Gears (11T, 13T, 15T)
  • (2) Spur Gears (33T, 35T)
  • (1) Pinion Gear Tool
  • (1) Pairing Stick
  • (1) Wheel Wrench
  • (1) Set of Spare Nuts For Wheels
icon-how-to
Needed to Complete
  • (4) AAA Batteries for Chassis
  • (4) AAA Batteries for Transmitter
1/28 Inferno MP9 Mini-Z 4x4 Off-Road Buggy RTR, White/Black

Introduction

Simply add eight AAA-size alkaline batteries to this Readyset and the MINI-Z Buggy brings the fun of R/C car action. The advanced compact design includes 4WD drive train with slipper clutch to protect the gear system, and 4-wheel independent double wishbone suspension with oil-filled shocks to deliver true racing buggy performance. Most critical components are protected within the high-rigidity dustproof chassis shell. 7-stage geared steering servo provides plenty of torque for precision steering response and combines with the control program to realize the MINI-Z’s signature linear handling and light feel. The circuit board also features manual volume adjustment for the optional gyro unit that stabilizes straight line running and improves cornering control. Modeled on the popular Inferno MP9, the MINI-Z buggy body matches performance with style featuring a distinctive new printed color scheme complimented by black wheels for the sharpest looking machine on the track. The fully pre-assembled Readyset package makes it simple and enjoyable for anyone to experience advanced R/C buggy performance, whether it’s your first car or as fun-driving second car.

Features

  • Readyset package allows model to be enjoyed straight after purchasing batteries.
  • Fully pre-assembled chassis with printed polycarbonate body.
  • Real racing performance will please buggy owners. Great for indoor practice.
  • Includes Syncro KT-531P transmitter. Allows various setting adjustments such as steering angle.
  • FHSS 2.4GHz R/C system removes the need to manage frequency bands.
  • Frequency crystals are not required and up to 40 cars can be run at the same time.
  • Optional gyro unit set (MZW446) can be installed. Gyro sensitivity can be manually adjusted on the chassis.
  • Most optional parts already released for MINI-Z Buggy can be installed.
Suspension and Drive
Suspension and Drive

Shaft driven 4WD and 4-wheel independent suspension are condensed in the MINI-Z’s compact size. The chassis powers easily over small bumps and gaps.



Chassis Features
Chassis Features

Main parts including sealed diff gearbox are contained within the dust proof structure. 15 ball bearings and a slipper clutch make this machine ready for serious action.



Efficient Design
Efficient Design

Flat finish to underside of chassis is achieved with contours for each part shape. Efficient design allows tie-rods to be changed simply by removing the chassis cover.



Optional Gyro
Optional Gyro

Includes connector for optional gyro unit (MZW446) and the tiny volume allows gyro unit’s sensitivity to be manually adjusted.



Oil Shocks
Oil Shocks

4-wheel independent double wishbone suspension equipped with oil shocks. Delivers surefooted road holding over a variety of different road surface conditions.



Drive Shafts
Drive Shafts

Realizes integrated coupling of drive shafts despite the constraints of its size. Also front suspension arms produce a 10-degree skid angle for improved rough-road performance.



Battery Box
Battery Box

Chassis features shell structure with battery boxes on each side. High rigidity extracts full effectiveness from the suspension.



KT-531P Transmitter
KT-531P Transmitter

Readyset includes KT-531P transmitter and other items. Requires only 4 batteries for the transmitter to start enjoying realistic buggy performance.



Product Specifications

Battery Sold Separately
Charger Sold Separately
Completion Level Ready-To-Run
Differential Gear Diffs
Drive Type Forward/Brake/Reverse
Drivetrain 4WD
Motor Size 130 Size
Motor Type Brushed
Power Type Electric
Product Height 2.67717" (68 mm)
Product Length 6.5748" (167 mm)
Product Weight 200g
Product Width 4.17323" (106 mm)
Radio Included
Receiver Included
Scale 1/28
Servos Included
Shock Type Oil Shocks
Speed Control Included
Steering Type 2WS
Suspension Independent Suspension
Vehicle Size Mini
Vehicle Type Buggy
Wheelbase 4.52756" (115 mm)
