Backorder
Brand Logo
5 out of 5 Customer Rating

1/12 Enduro12 4x4 Trail Truck, Ecto RTR

Item No. ASC40010C
Backorder
Brand Logo
5 out of 5 Customer Rating

1/12 Enduro12 4x4 Trail Truck, Ecto RTR

Item No. ASC40010C
$199.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
Back Order
Selected Store

Product Details

A performance rig built to endure!
Key Features
  • Reedy Hi-Torque Brushed 380 Motor
  • Durable Hi-Torque Mini Servo
  • 4-Link Front And Rear Suspension
  • Fully Adjustable, Threaded, Fluid-Filled Shocks
  • 13.98:1 Ratio 3-Gear Transmission
icon-box
In The Box
  • (1) 1/12 Enduro12 4x4 Trail Truck RTR
  • (1) Reedy 850mAh 7.4V LiIo Battery
  • (1) USB Charger
  • (1) 1/12 Enduro12 4x4 Trail Truck RTR Manual
icon-how-to
Needed to Complete
  • (4) AA Batteries for Transmitter
1/12 Enduro12 4x4 Trail Truck, Ecto RTR

Introduction

When hitting the trail, you want to do it with confidence and the answer is the Enduro12 Rock Crawler Trail Truck!

Features

  • Reedy Hi-Torque brushed 380 motor
  • 850mah Li-Ion 7.4V 2-cell battery and charger
  • Durable Hi-Torque mini servo
  • Metal front CVA drive axles
  • Dual front and rear option battery placement tray with hook-and-loop hold-down strap
  • Realistic scale 8-hole black wheels with soft compound tires
  • 4-link front and rear suspension
  • Fully adjustable, threaded, fluid-filled shocks
  • Low center-of-gravity servo mounting position
  • 13.98:1 ratio 3-gear transmission with integrated motor mount
  • Composite low-friction slider-type center drive shafts
  • Rubber-sealed ball bearing set
  • 12mm wide stance aluminum wheel hexes
  • Solid front and rear axles
  • Thermoformed high-strength polycarbonate body
  • One-piece cab and bed design
  • Dropped bed design
  • Injection-molded front bumper
  • Detailed grill and window decals
  • Stealth® X transmission
  • Aluminum steering plates
  • Aluminum steering rack
  • Integrated servo winch mount
  • Adjustable front and rear bumper mounts
  • Adjustable injection molded rock sliders
  • Threaded aluminum shock bodies
  • CMS (Chassis Mounted Servo)
  • Universal front drive axles
  • Stamped steel frame rails
  • Aluminum motor plate
  • Optimized ball cups for more fluid axle articulation
  • Telescopic driveshafts front and rear
  • Extruded aluminum driveshaft splines
  • One-piece rear axle design
  • Machined input pinion gear
  • Metal ring gear
  • Machined steel top shaft
  • Heavy duty 5mm diameter steel links
  • Metal ball bearings included
  • Steel 25T servo horn
  • Stealth® X transmission

Overview

Don’t let the small size fool you, the Enduro12 chassis is jam-packed with tons of features you’ll be glad to have out on the trail. At the heart is a 3-gear transmission with a 13.98:1 ratio and integrated motor mount. The forward-biased motor mount is designed to keep the weight over the front tires for better grip when climbing out on the rocks.

Feeding the power to the tires are a pair of low-friction slider-type driveshafts, metal front CVA drive axles, and metal ring and pinion gears. With the Enduro12 drivetrain, delivering useful power and torque will not be an issue.

Utilizing a 4-link suspension design with metal pivot balls in the front and rear allows for the use of a Servo On Axle (SOA) steering setup. This, paired with metal steering links and pivot balls, allows for precise and direct control over the roughest terrain.

The Enduro12 Trail Truck comes ready for adventure right out of the box, with performance-driven electronics. The small but powerful MT380 Reedy Power motor supplies smooth and reliable power to the drive train. The Flysky 2-in-1 brushed electronic speed control (ESC) and receiver unit has a built-in LED lighting controller. Together with the 2.4GHz Flysky transmitter and Reedy Power servo, control will not be an issue when tackling the rocks.

With all this packed in one box, we know the Enduro12 Trail Truck is ready for the trail -- Are you?

Element RC Enduro12 Ecto Video Overview

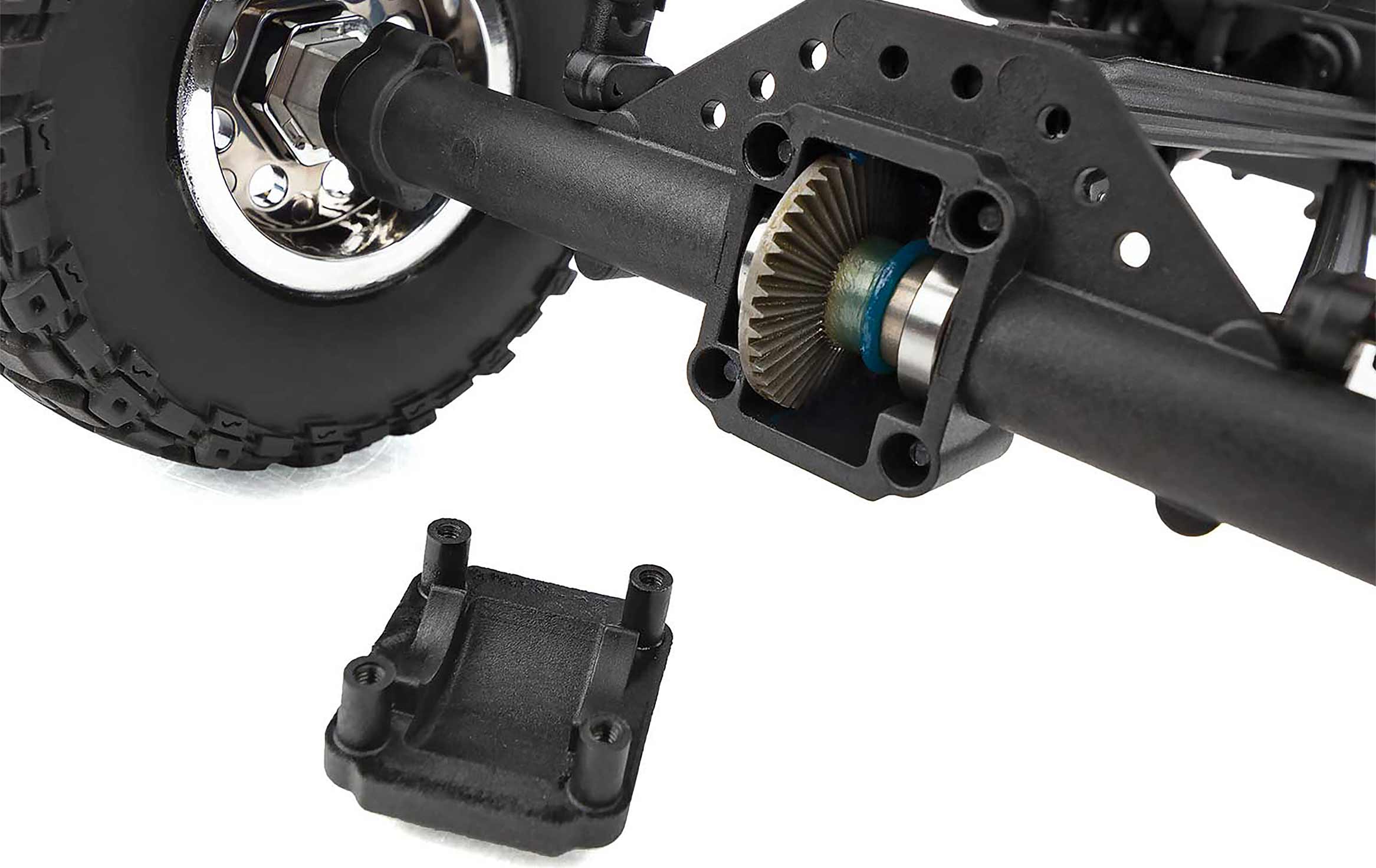

Axles And Suspension
Axles And Suspension

The front and rear axles house metal ring and pinion gears and are supported with 4-link front and rear suspension.

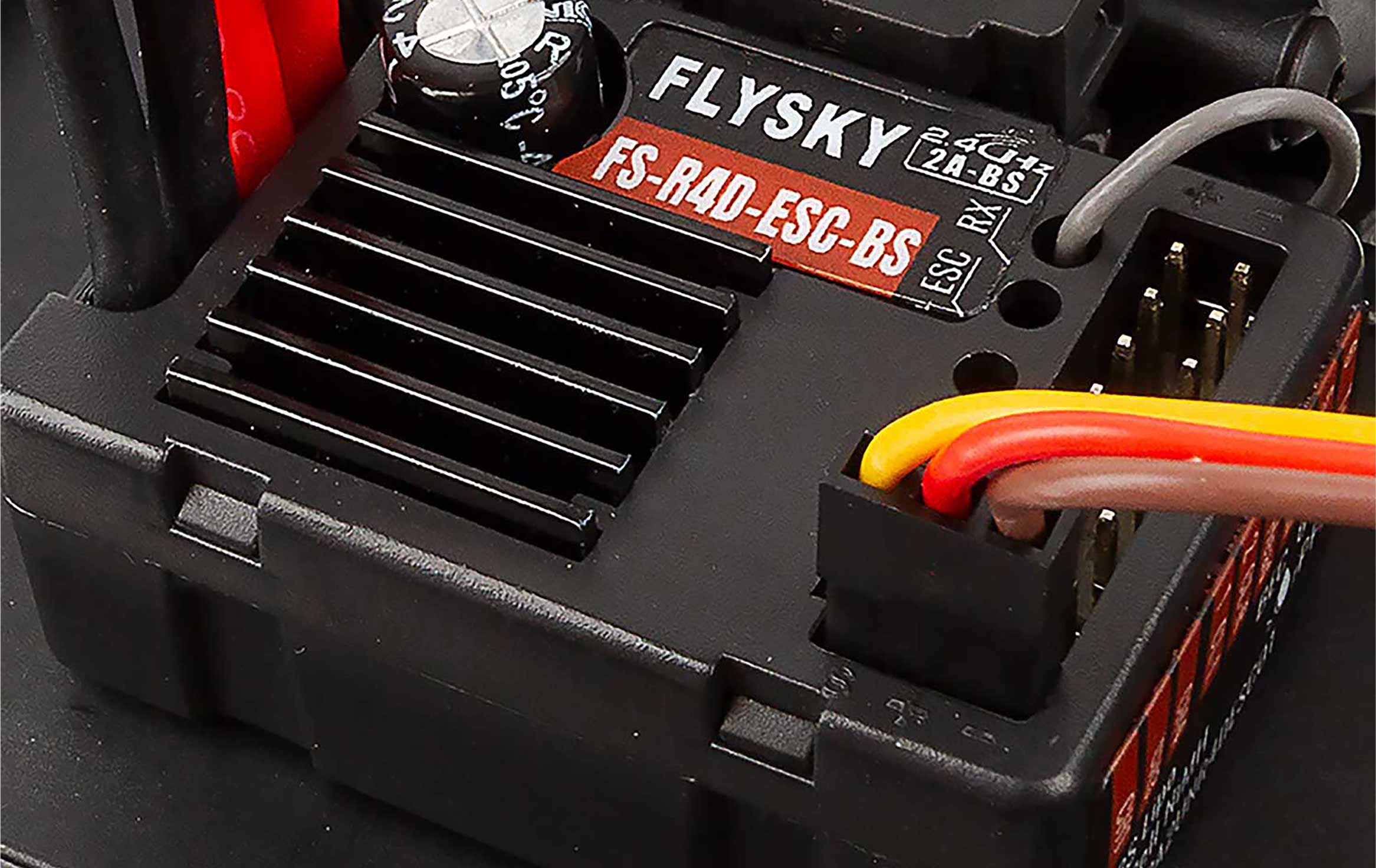

ESC/Receiver
Flysky 2-in-1 ESC/Receiver Unit

The Enduro12 RTR comes equipped with a Flysky 2-in-1 brushed electronic speed control (ESC) and receiver unit with built-in LED lighting controller.

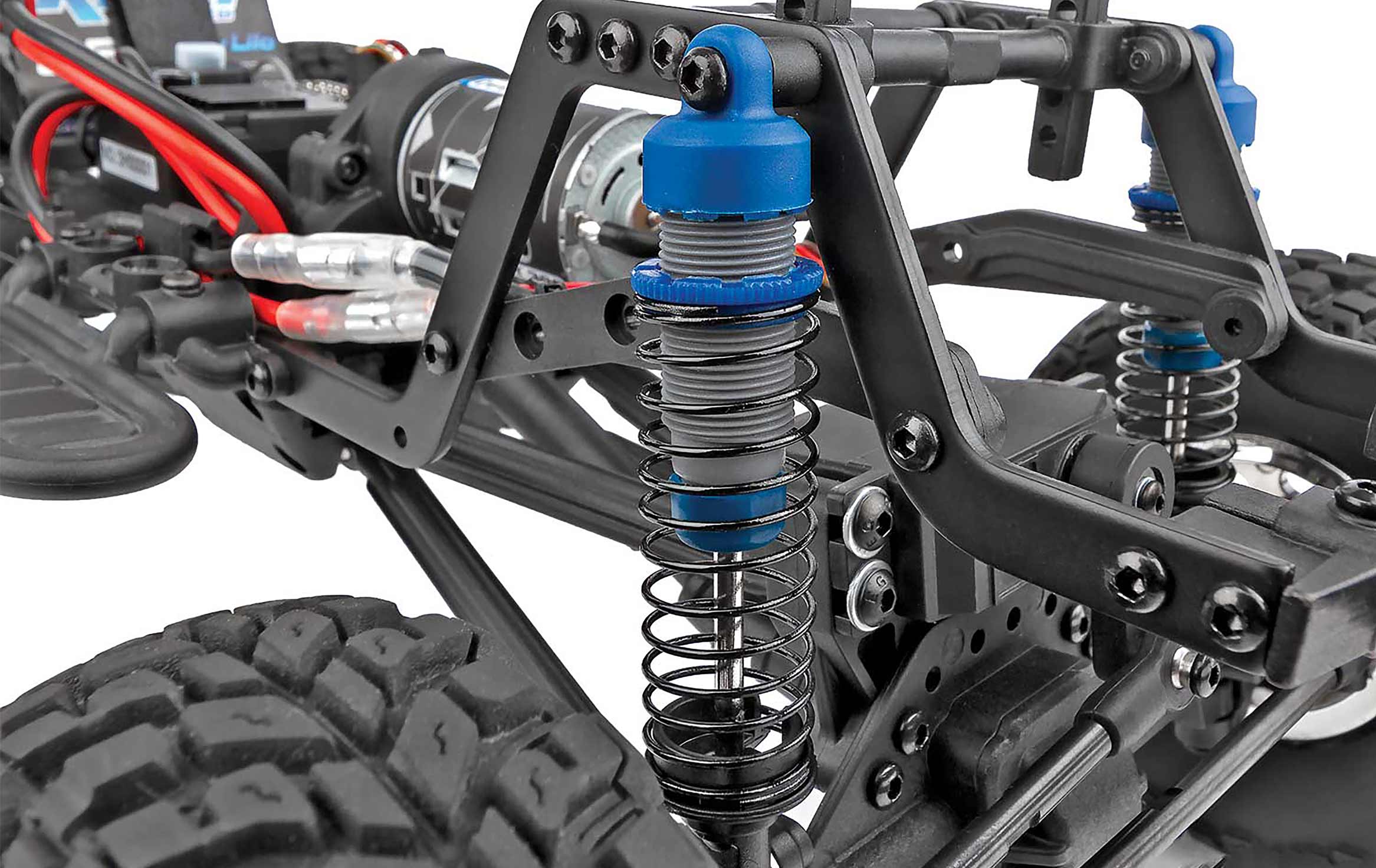

Shocks
Shocks

The fluid-filled threaded shock bodies provide plenty of damping and control over rough terrain.

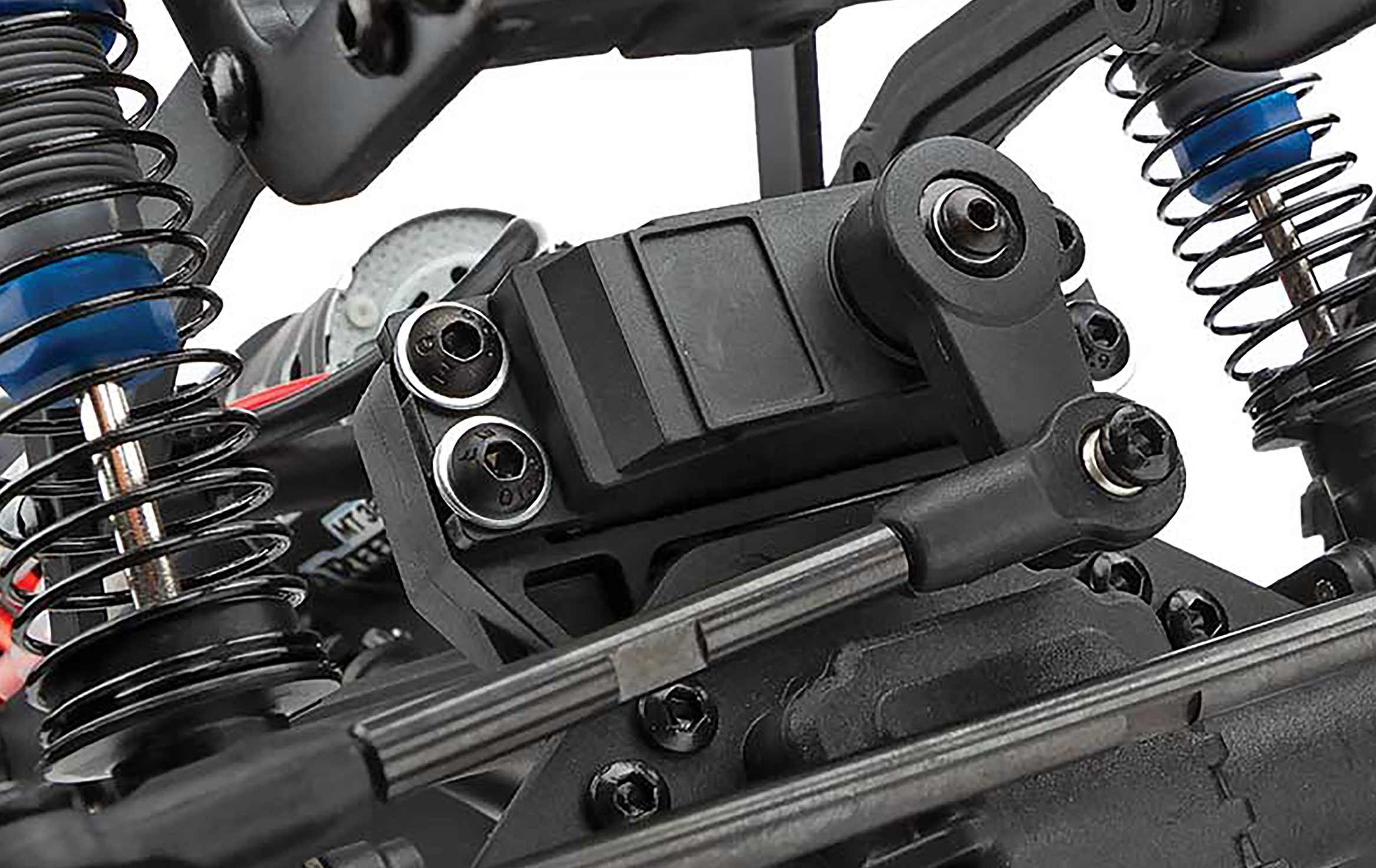

Steering And Servo
Steering And Servo

Paired with metal steering links, the Servo On Axle (SOA) steering provides direct and precise control on the trail.

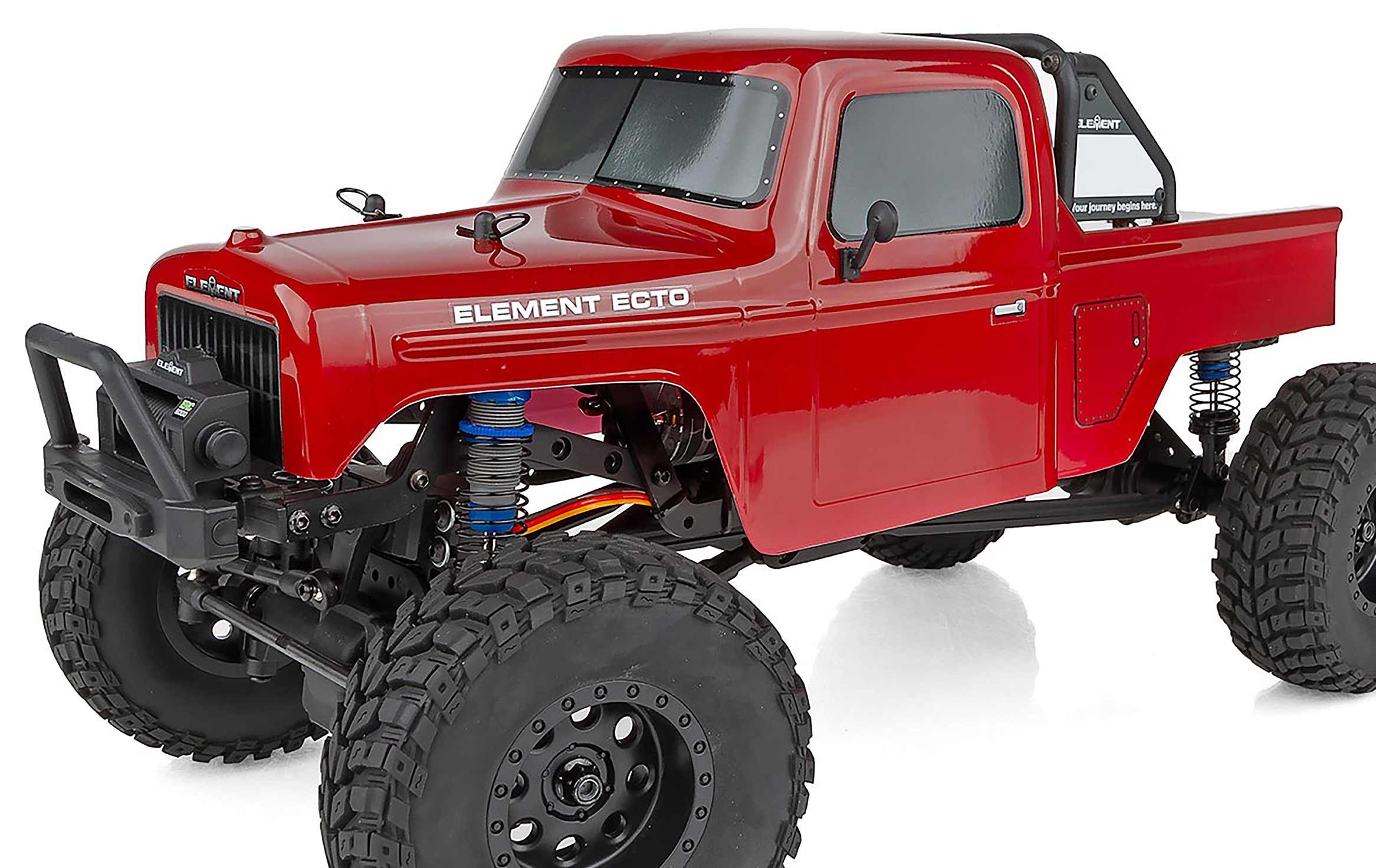

Keeping It Real
Keeping It Real

The Ecto Trail Truck body features a thermoformed high-strength polycarbonate one-piece cab and bed design with highly detailed decals, injection-molded front bumper, mirrors, and roll bar with side pods.

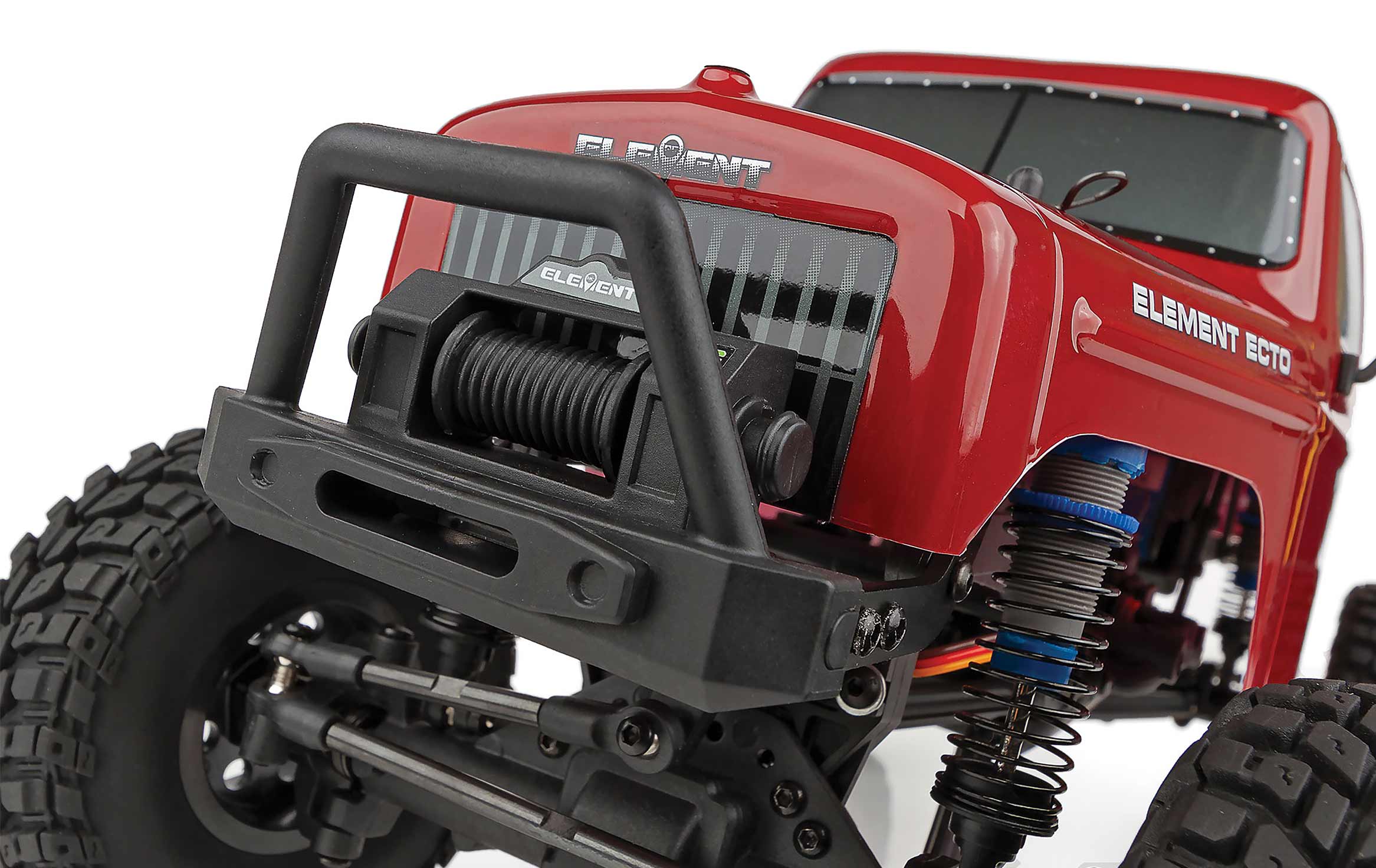

Details
Details

The injection-molded front bumper and detailed grill decal give the Ecto Trail Truck impressive scale looks.

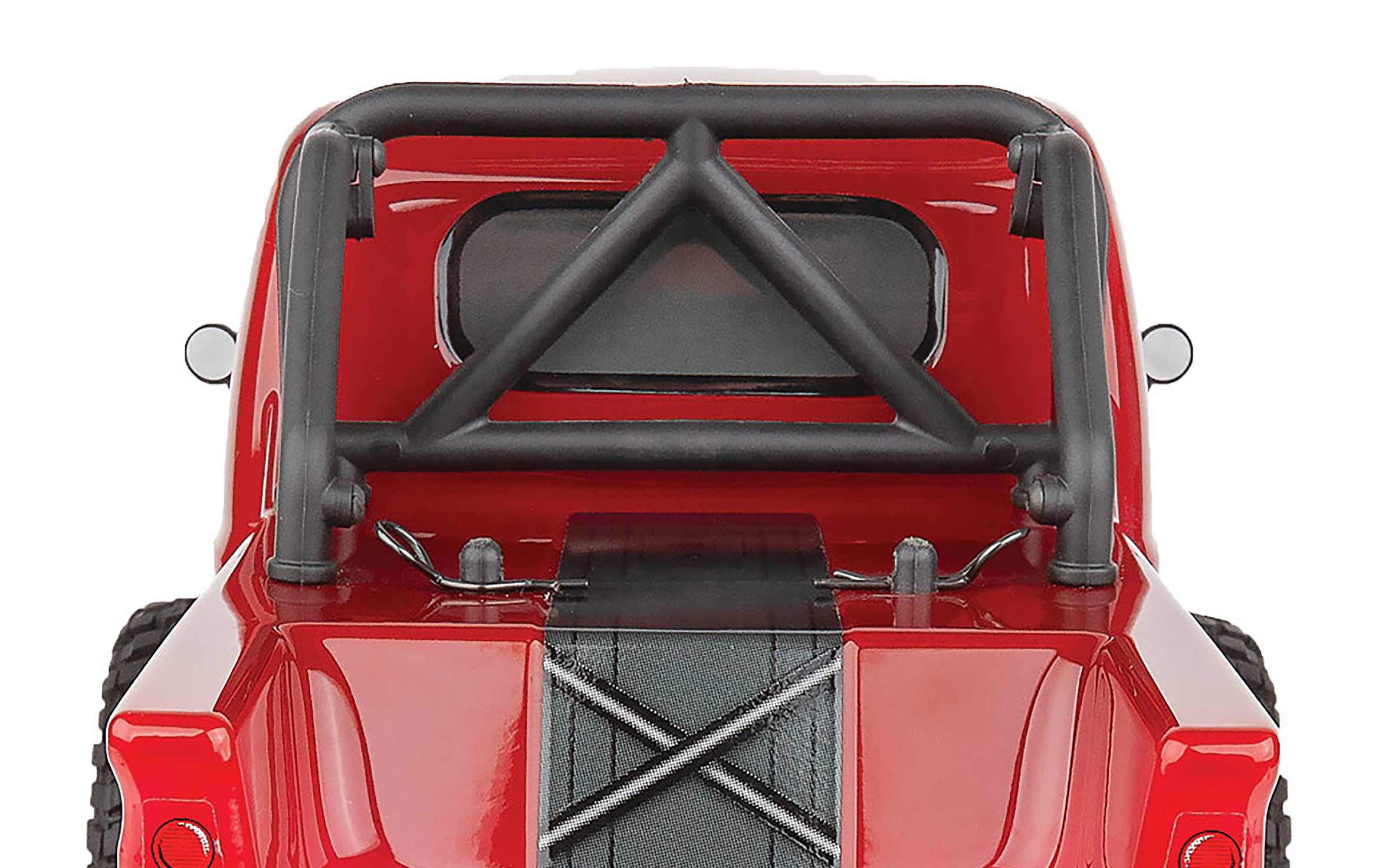

Injection-Molded Body Accessories
Injection-Molded Body Accessories

The Ecto comes complete with injection-molded roll bar and mirrors.

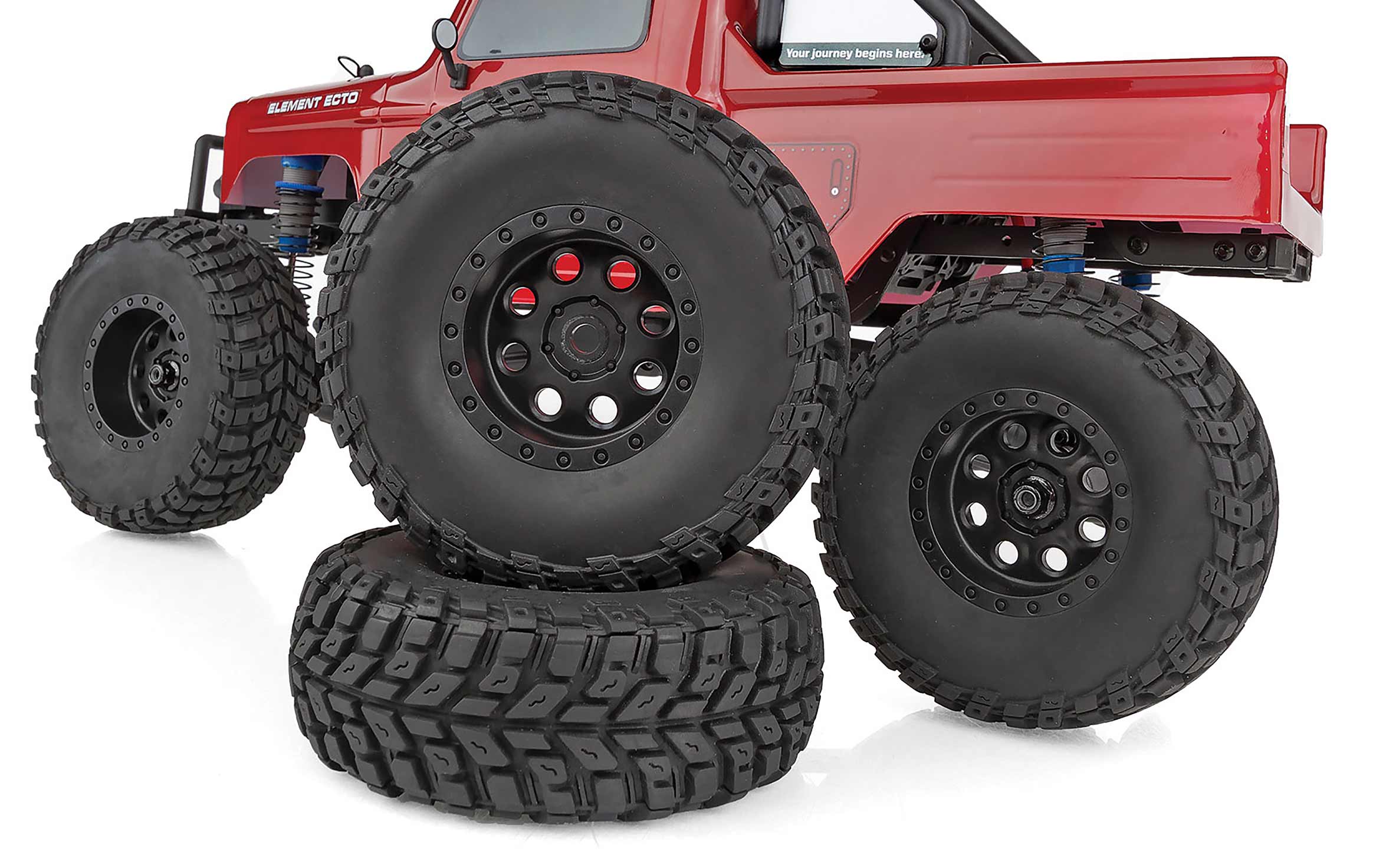

Wheels and Tires
Wheels and Tires

Gripping the trail is a set of high-performance tires molded in a soft compound rubber with a scale tread pattern. These tires are mounted on black 8-hole faux-beadlock wheels.

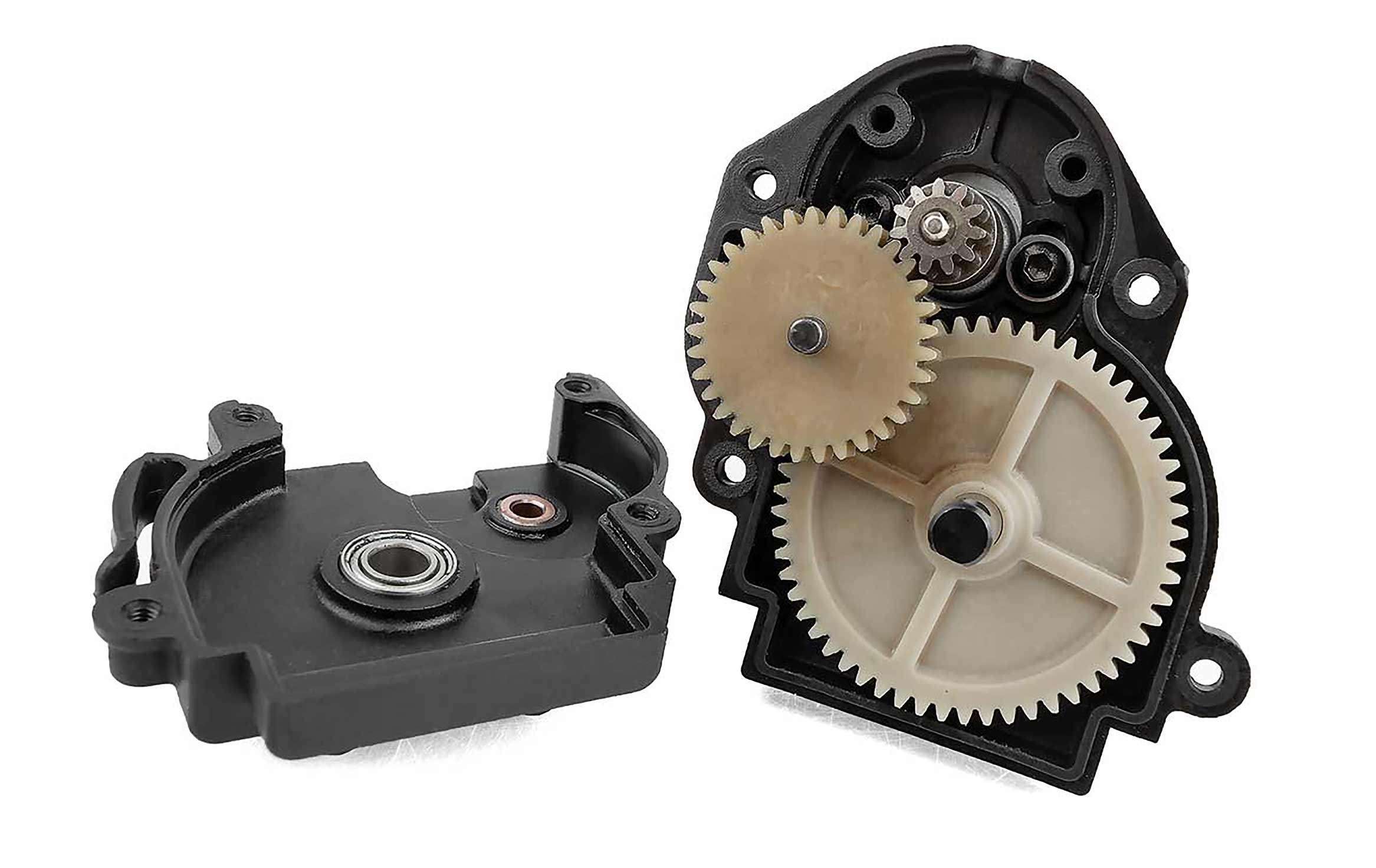

Transmission
Transmission

With a gear reduction ratio of 13.98:1, the 3-gear transmission allows for smooth slow crawling speeds with plenty of torque.



Product Specifications

Manufacturer # 40010C
Motor Type Brushed
Speed Control Included
Wheelbase 7.9" (201 mm)
Vehicle Type Rock Crawler
Radio Included
Power Type Electric
Servos Included
Charger Included
Differential Gear Diffs
Receiver Included
Shock Type Oil-Filled Shocks
Vehicle Size Mini
Product Width 16.5" (419 mm)
Battery Included
Internal Gear Ratio 13.98:1
Motor Size 380 Brushed Motor
Product Length 16.5" (419 mm)
Suspension 4-Link Suspension
Body Pre-Painted Polycarbonate
Scale 1/12
Chassis Frame Rail Chassis
Completion Level Ready-To-Run
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
