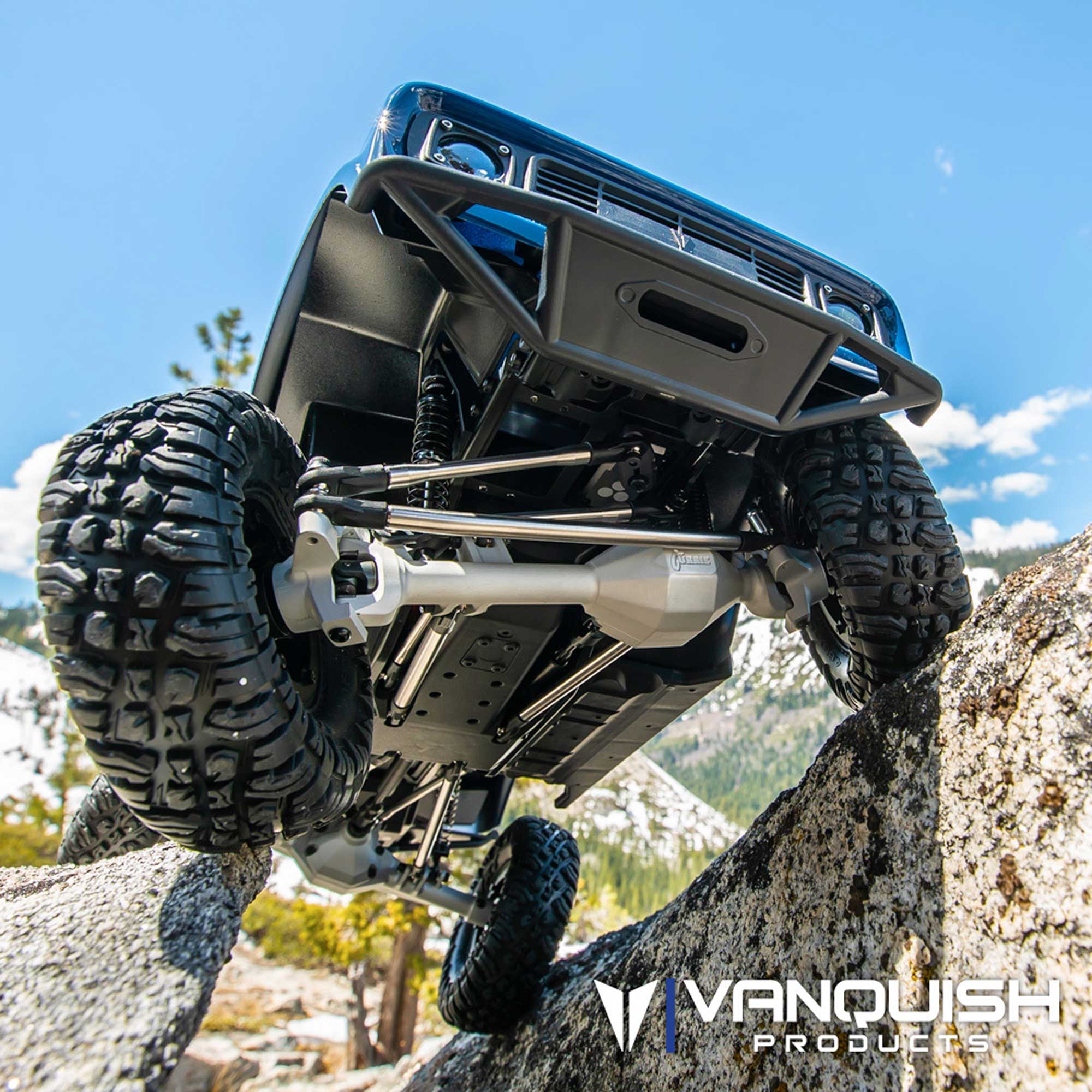

1/10 VS4-10 Pro Clear Anodized Axles, Origin Halfcab, Kit

Item No. VPS09003
Discontinued
Brand Logo
3.2 out of 5 Customer Rating

1/10 VS4-10 Pro Clear Anodized Axles, Origin Halfcab, Kit

Item No. VPS09003
This Item is No Longer Available
Selected Store

Product Details

Key Features
  • VFD Full Ball Bearing Transmission
  • Steel C-Channel Chassis
  • Beadlock Wheels with Adjustable Offset
  • VXT 4.65" Tires with Firm Foam Inserts
  • Origin Halfcab Polycarbonate Body
  • Clear Anodized Licensed Currie Enterprises F9 Front and Rear Axles
icon-box
In The Box
  • (1) VS4-10 Pro Clear Anodized - Origin Halfcab Kit
  • (4) Incision KMC Machete Plastic Beadlock Wheels and Vanquish VXT Tires with Foam Inserts
  • Instruction Manual and Paint Masks
icon-how-to
Needed to Complete
  • 2-3ch Radio with High-Torque Steering Servo
  • 540 Size Motor with 3mm Diameter Shaft
  • ESC
  • Battery and Charger
  • 20mm Servo Horn
  • Paint, Shock Oil, Grease and Tools
1/10 VS4-10 Pro Clear Anodized Axles, Origin Halfcab, Kit

Features

  • Full ball bearing transmission with scale molded housing
  • 90mm Incision Scale shocks with tops captured to shock towers in double shear for maximum support
  • Molded front and rear bumpers and rock sliders
  • Wide profile steel machined gears and hardened chromoly shafts
  • Low motor position with extended skid plate for protection (motor not included)
  • Retro Origin halfcab laser cut body with separate dash and many scale details
  • 3-link Panhard front suspension
  • 4-link double triangulated rear suspension

Overview

The VS4-10 Pro represents the top tier of RC scale vehicle kits, providing the highest quality materials, superior design, and the most durable platform available in its market. The VS4-10 Pro offers a list of features that have never been matched, providing a building and driving experience out of the box that are sure to impress.

Video Overview

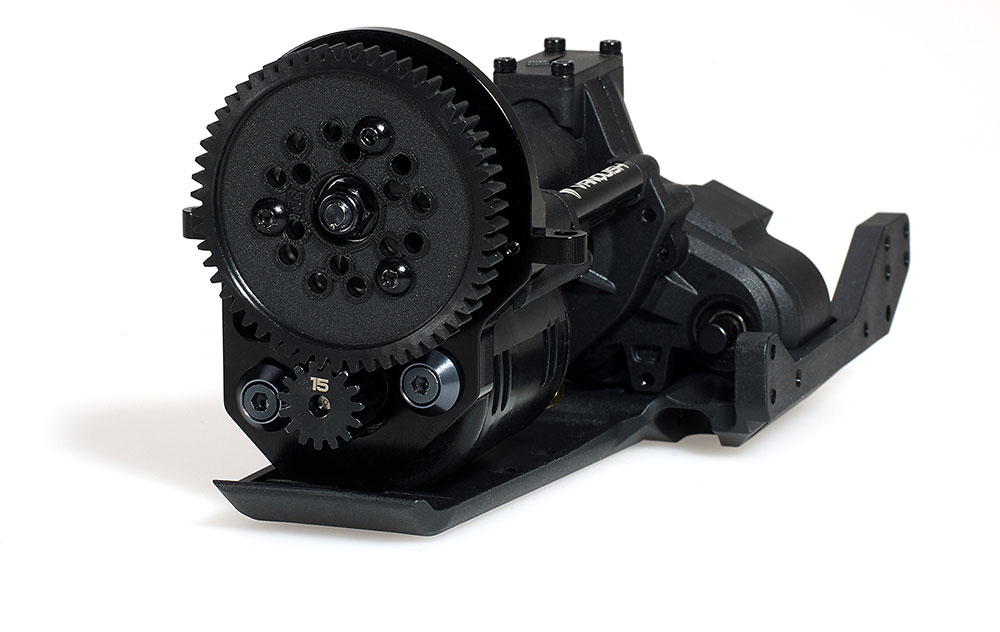

Transmission
Transmission

The VFD Transmission from Vanquish Products is designed to provide an optimal balance of performance, scale appearance, strength and versatile optional accessories. The VFD’s design places the motor forward and as low as possible to keep the weight where you want it. The VFD’s combination of offset front T-case output and offset pumpkin of the Currie front axle make this possible. The T-case utilizes unique aluminum bearing plates for high strength bearing positioning and the elimination of flex found in traditional plastic housings. The modular design of the bearing plates allow for optional gear ratios used to be used inside the T-case.

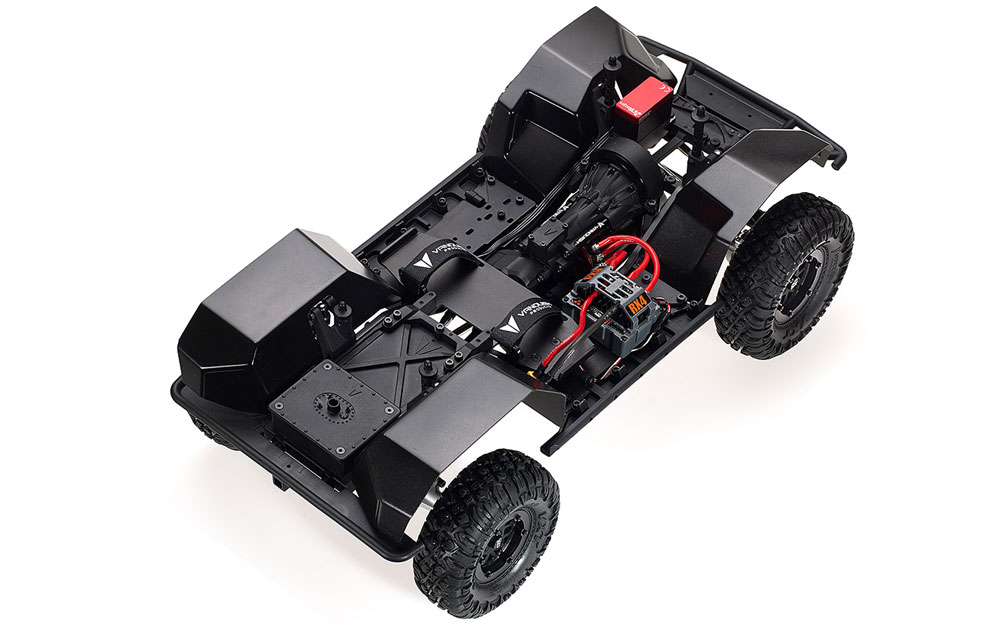

C-channel C-channel
C-channel Chassis

Vanquish Products VS4-10 Chassis is made to provide you with a balance scale looks and unhindered performance. The steel C-channel design provides scale detail, molded front and rear cross members fill the chassis rails in the highest stress locations for ultimate strength and provide features like dual servo mounts, winch line routing, and a fuel cell. The molded rock sliders come with a replaceable outer portion that perfectly fits the Origin Halfcab body. The VS4-10 chassis is developed to work with the included Vanquish Products VFD transmission. The panhard mount on the chassis is made from machined aluminum to withstand the impacts of severe trail conditions. Molded shock towers capture the top of the 90mm Incision Scale Shocks in double shear for maximum support. The aluminum battery and electronics trays provide multiple locations for battery and electronics placement. Full width molded front and rear bumpers increase approach and departure angles and allow for flexibility during impacts on the trail.

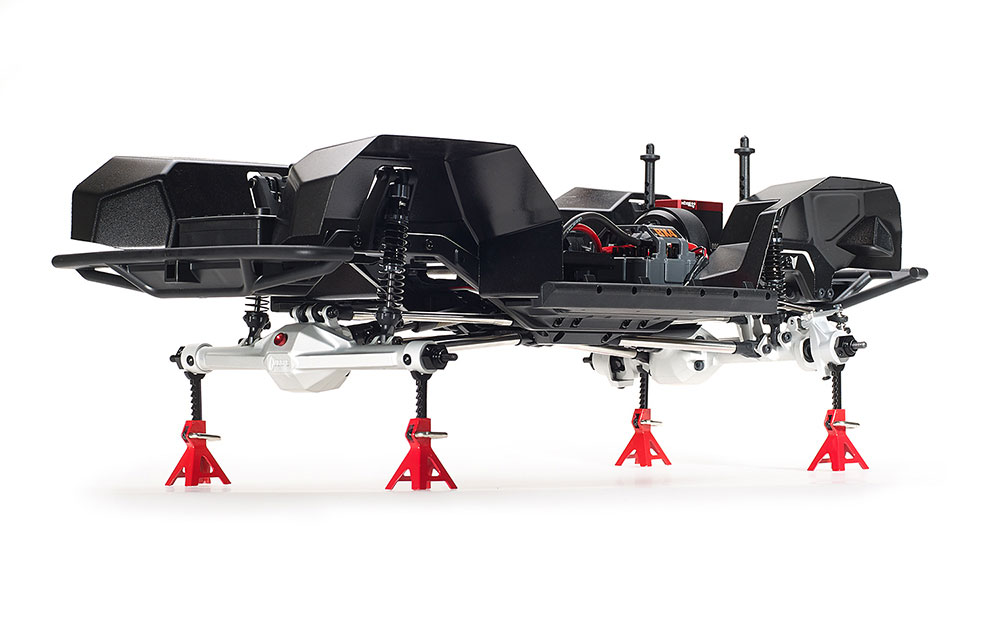

Drivetrain
Drivetrain

The VS4-10 Pro drivetrain utilizes the new VFD transmission and our proven axles you already know and trust. The licensed Currie Enterprises F9 style front axle features an offset front differential housing and uses chromoly VDI universal axle shafts, high-pinion hypoid ring gear, chromoly 6 bolt spool and patent pending one-piece bearing retainers to create an incredibly scale and durable front axle assembly. Integrated inner c-hubs create an unmatched scale look and are strengthened to provide the most durable axle housing possible, with easily replaceable chromoly threaded inserts for the knuckle king pin screws. The rear Currie F9 style axle features a centered differential housing and equal length chromoly axle shafts, with the same gears and spool found in the front axle.

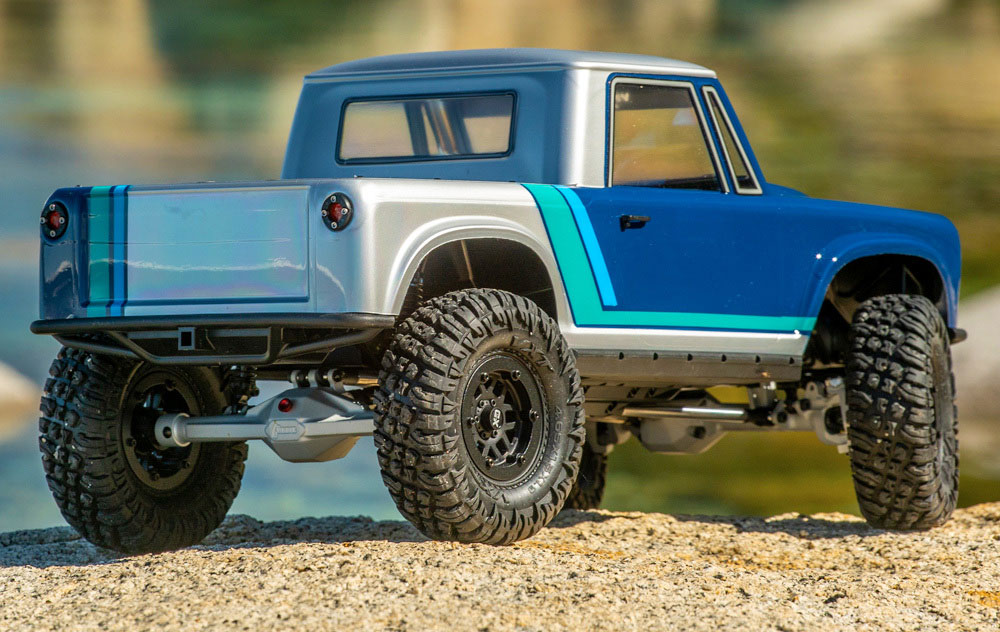

Halfcab Body
Halfcab Body

The Origin Halfcab polycarbonate body offers retro styling with a modern flair. The full polycarbonate interior was designed by Knight Customs with front bucket seats, a detailed dash and large cargo area in the back. The dash attaches to the interior and molded plastic details like steering wheel and gear shifter help bring the interior to life. The detailed front grill assembly is injection molded and features 10mm LED ready headlight buckets, with a scale radiator assembly, fans, and fan shrouds. In addition, the front light buckets can be replaced with optional Vanquish Rigid Industries Q-Series light pods for even more light! The rear light buckets fit 5mm LEDs, so everyone will take notice when you are coming or going. Other scale details like windshield wipers, door handles and fuel filler cap are included to step up the appearance even further. The entire body, interior and mounting holes are all laser cut – so all you need to worry about is paint.

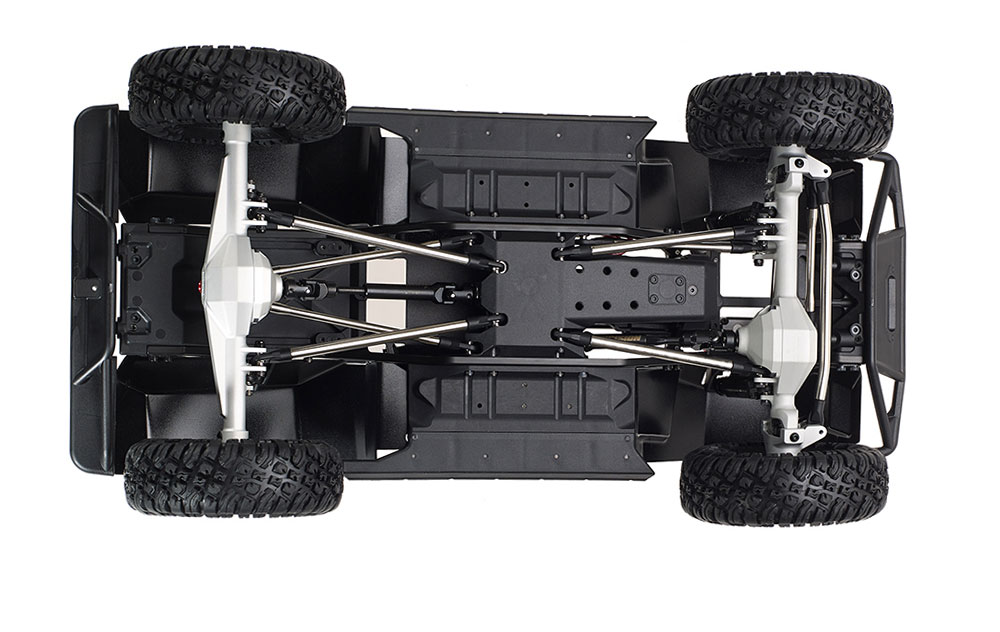

Suspension
Suspension

The VS4-10 features Incision 90mm Scale shocks with aluminum threaded bodies, dual X-ring seals, locking preload collars, keyed spring cups, polished steel shock shafts, and machined pistons. The front 3-link with panhard suspension provides scale looks by keeping the servo out of sight, while still providing room for large suspension travel. The suspension pivots on a full set of stainless steel links to keep the weight down low with a smooth transition from the link to the rod ends. All suspension mounts are sized to fit to the rod end pivot ball perfectly and eliminate excess side to side play.

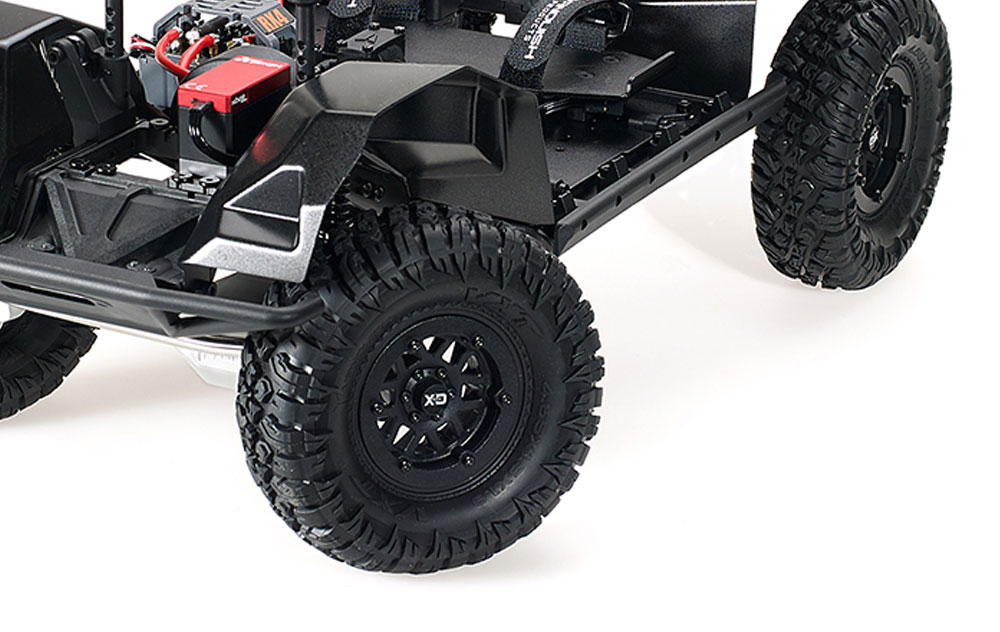

Tires and Wheels
Tires and wheels

The VS4-10 includes Incision KMC Machete plastic beadlock wheels and Vanquish VXT tires. The wheels are true beadlocks and are compatible with all Incision aluminum hub options. The VXT tires are 4.65" tall and are molded in a soft and sticky natural rubber compound for performance right out of the box. Firm foams are used to provide sidewall support that helps prevent the tire from rolling over, while keeping the tread in contact with the terrain.



Product Specifications

Ball Bearings Full set including transmission
Battery Sold Separately
Body Clear laser cut polycarbonate
Charger Sold Separately
Chassis Steel C-channel, molded front and rear cross members
Completion Level Kit
Differential Offset front, centered rear
Drive Type Forward/Brake/Reverse
Drivetrain 4WD
Gear Pitch 32P
Gear Ratio Front 41.3, Rear 44.0
Internal Gear Ratio Front 2.95, Rear 3.15
Pinion 15T
Power Type Electric
Product Height 9.8" (249 mm)
Product Length 19.3" (490 mm)
Product Width 9.43" (240 mm)
Radio Sold Separately
Scale 1/10
Servos Sold Separately
Shock Type 90mm aluminum body
Speed Control Sold Separately
Spur Gear 56T
Suspension Front, 3-link Panhard, Rear, double triangulated 4-link
Vehicle Type Rock Crawler
Water-Resistant Yes
Wheelbase 12.3" (312 mm)
