1/10 Turbo Optima Gold 4WD Buggy Kit

Item No. KYO30619
Brand Logo
4.3 out of 5 Customer Rating

1/10 Turbo Optima Gold 4WD Buggy Kit

Item No. KYO30619
Free financing available through Easy Pay
Earn points on this item
Next Shipment November 2021
Selected Store

Product Details


  • While a faithful reproduction the original Turbo Optima, each key performance component has been revised for compatibility with modern power sources.
  • 4WD belt drive.
  • Pulley for chain is also included in the kit so purchase of an optional chain can change the drive system.
  • Equipped with FRP radio plate that is compatible with major brand ESC’s (speed controllers).
  • Three toe angle settings ( 0°, 1°, 2°) can be used by inserting resin bushes into the rear hub carrier.
  • Modernized aluminum hexagon wheel hubs can be securely fixed with set screws.
  • Equipped with metal counter gear.
  • Full ball bearing specifications (18 bearings).
  • Includes separate helmet and polycarbonate body.
  • Battery stays are compatible with various modern batteries and secured with hook and loop fasteners (battery strap with KYOSHO logo) for easy removal of battery.
  • Hex screws used for assembly provide secure construction.

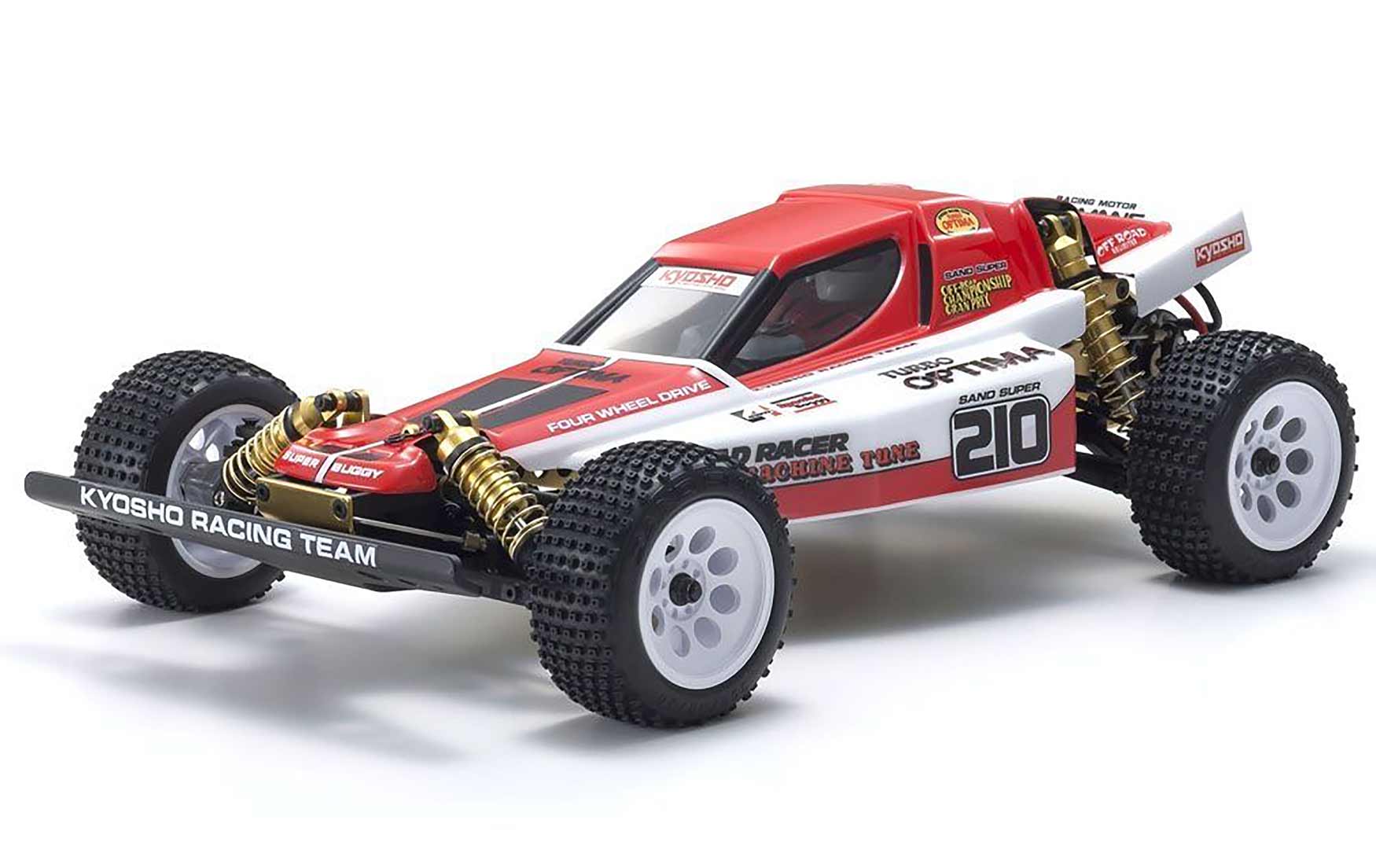

After the dynamic impact of the Optima was felt across the R/C racing scene, the Turbo Optima launched in 1986 as the strongest machine in the series. Until now. In addition to large diameter tires, large capacity pressure shocks, front & rear stabilizers and Le Mans 240S motor, the immortal Turbo Optima has modernized for 8.4V power and makes its debut as the 7th model of the vintage series. Key components of the Turbo Optima chassis have been redesigned to meet the demands of modern racing conditions and power sources, and share DNA with the Optima and Javelin. The new Turbo Optima is not simply a reproduction of the original and includes gold anodized parts that were optional upgrades on the original, gold shocks with dial adjustment of chassis height and new modern block pattern tires. Higher specs and design features deliver modern performance standards and visual impact that captures the magic of the original.

Needed to Complete
  • 2 channel R/C system (servo x 1, ESC x 1).
  • 540 size motor (27T-20T recommended).
  • Battery (7.2V NiMh battery or 7.4V Li-Po battery).
  • Battery charger.
  • Paint and tools for body painting.
  • Batteries for transmitter.
  • Tools (1.5/2.0/3.0mm hex wrench screwdriver, needle nose pliers, curved scissors, cutter.
What's in the Box?
  • Chassis kit with clear body and driver figure.
  • Decals.
  • Hex wrenches.
  • Cross wrench.
  • Shock wrench.
  • Shock oil.
  • Grease.

Video Overview

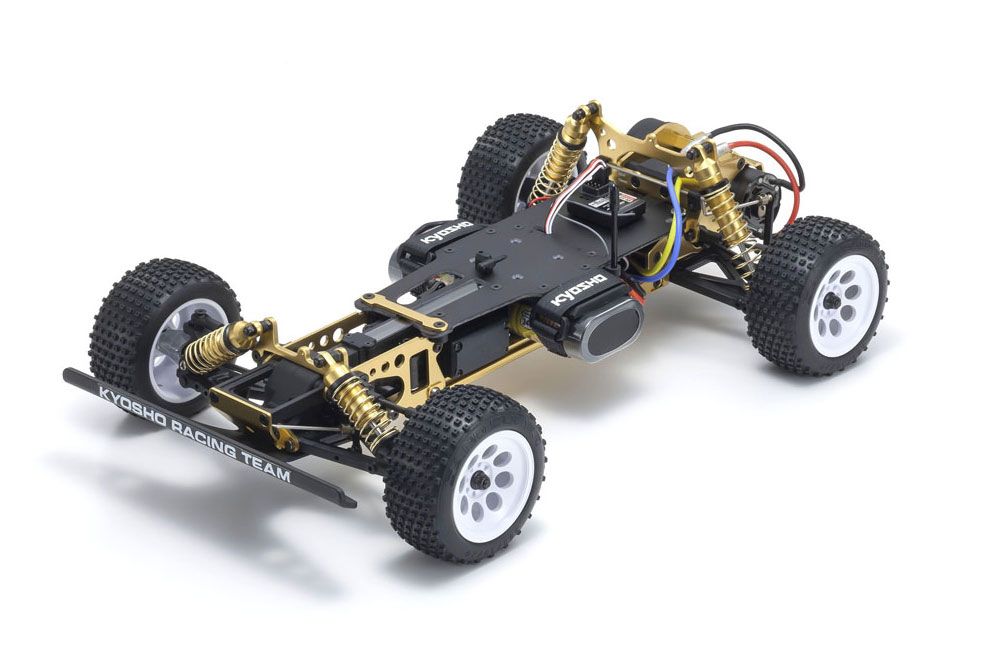

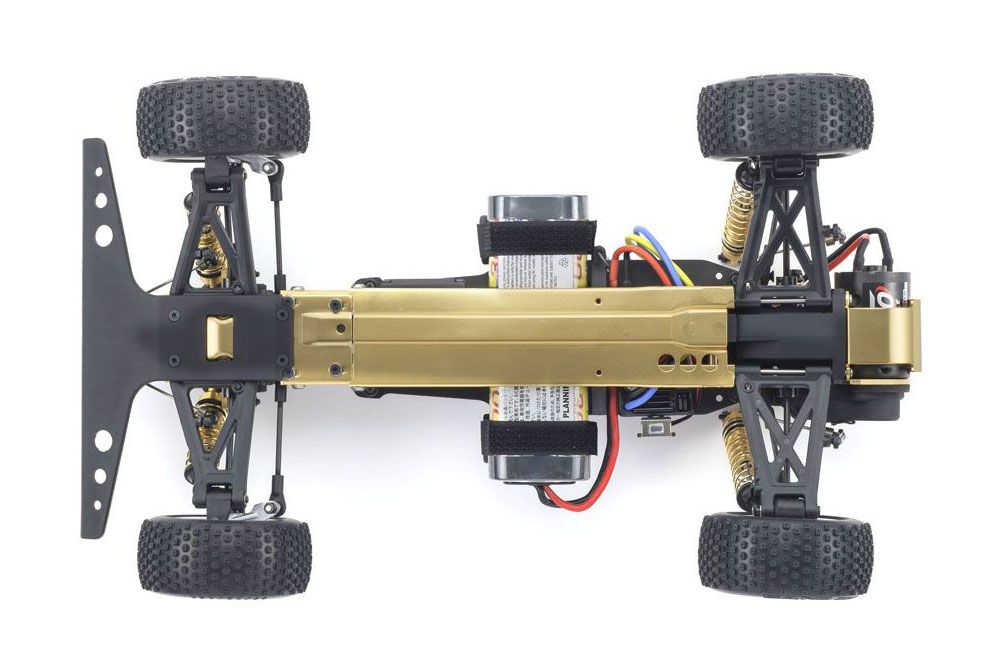

Aluminum backbone-style chassis

Simple design of the aluminum backbone-style chassis realizes high rigidity. A total of 15 key gold anodized aluminum components that were optional upgrades in the original such as main chassis, shock stay, and motor guard are included as standard.


Aluminum alloy

Aluminum alloy is used in the main chassis, shock stays and plates for superior strength and corrosion resistance. Countersunk screws reduce the number of nuts used and produce a flat finish. Gold anodized under guard is also included as standard.

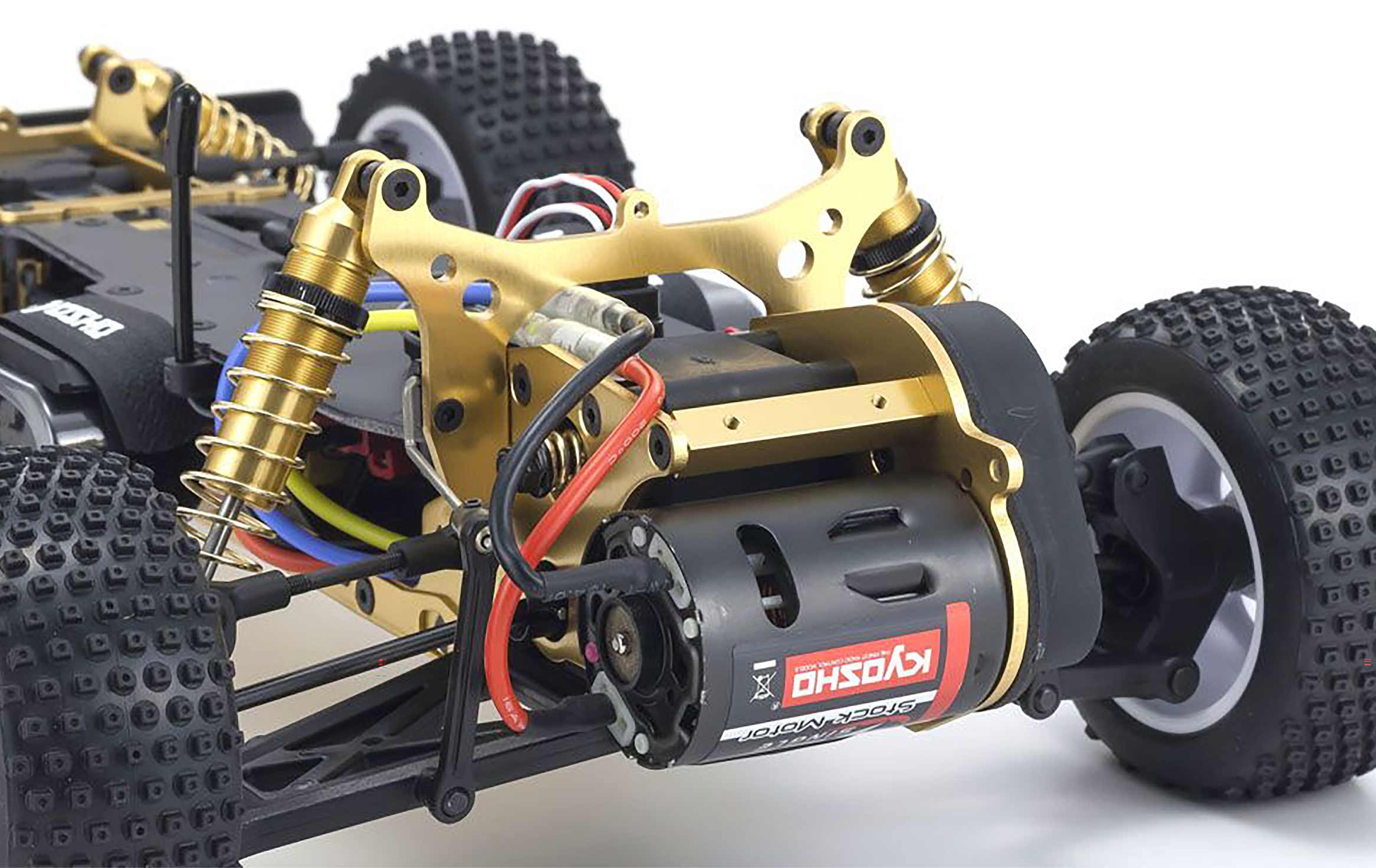

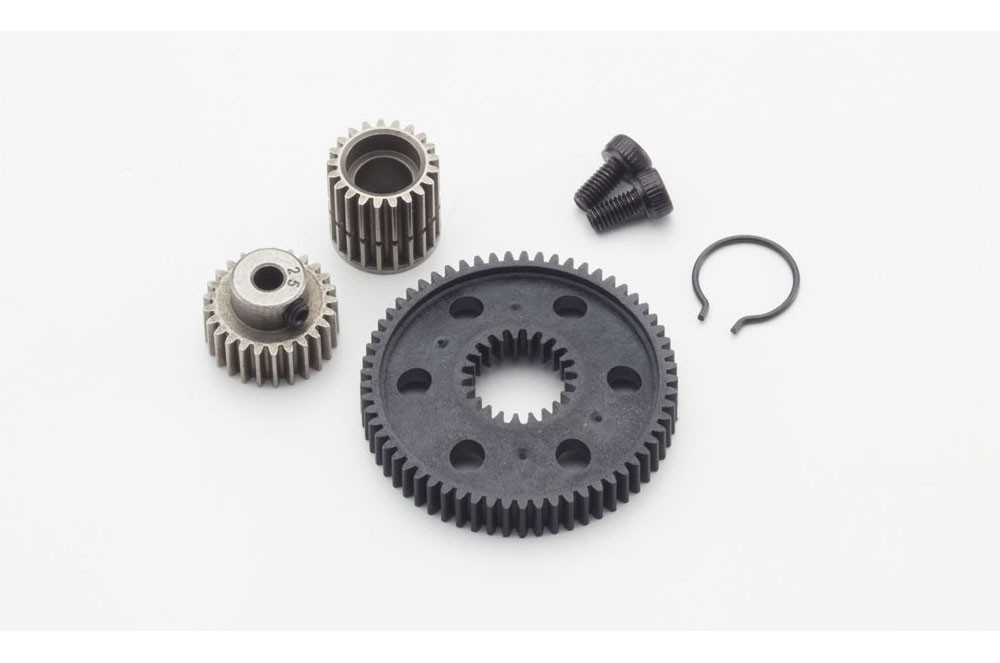

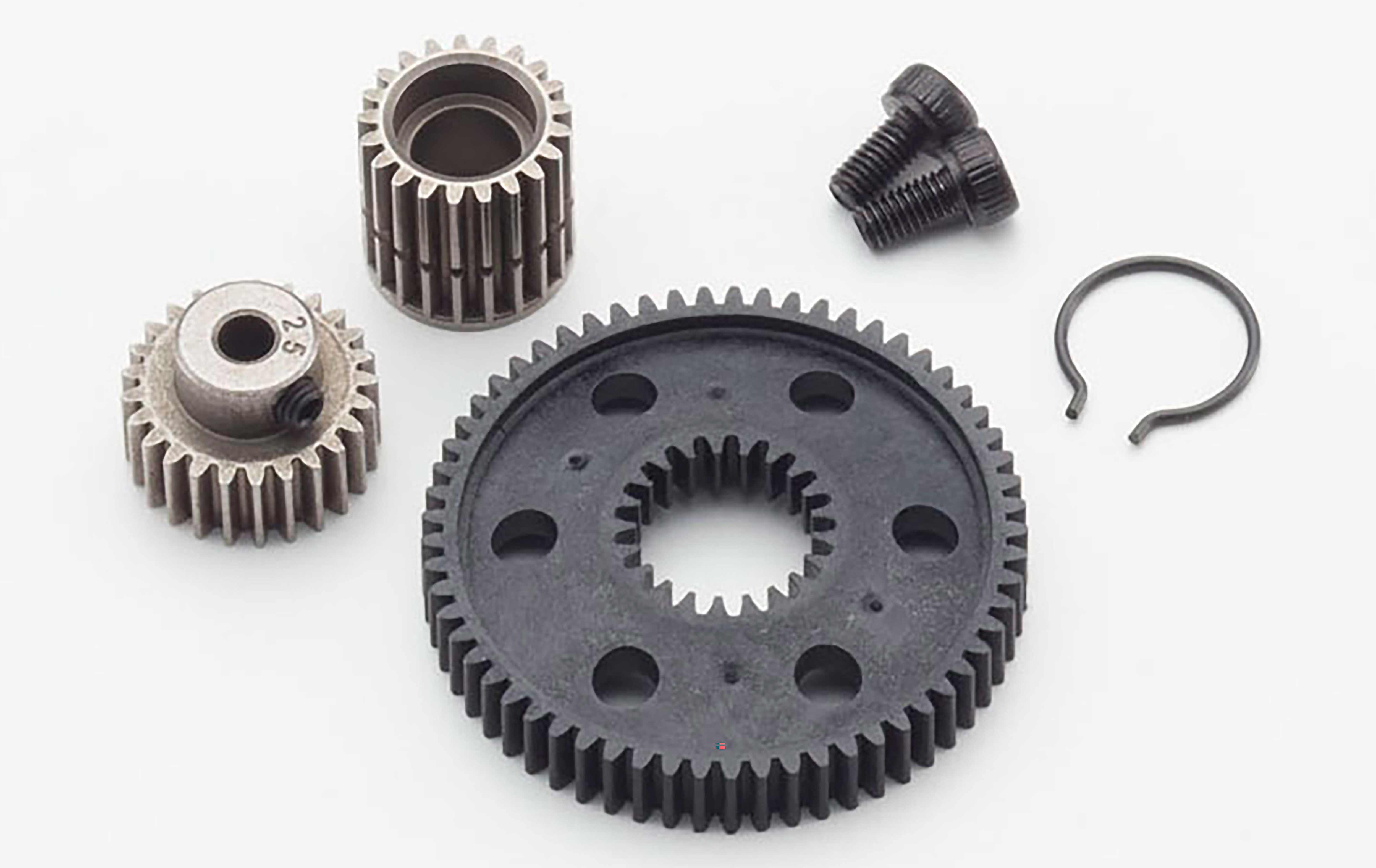

Pitch gears

Sintered alloy 48 pitch gears combined with high impact nylon gears and newly added slipper clutch will cope with the current power plants.

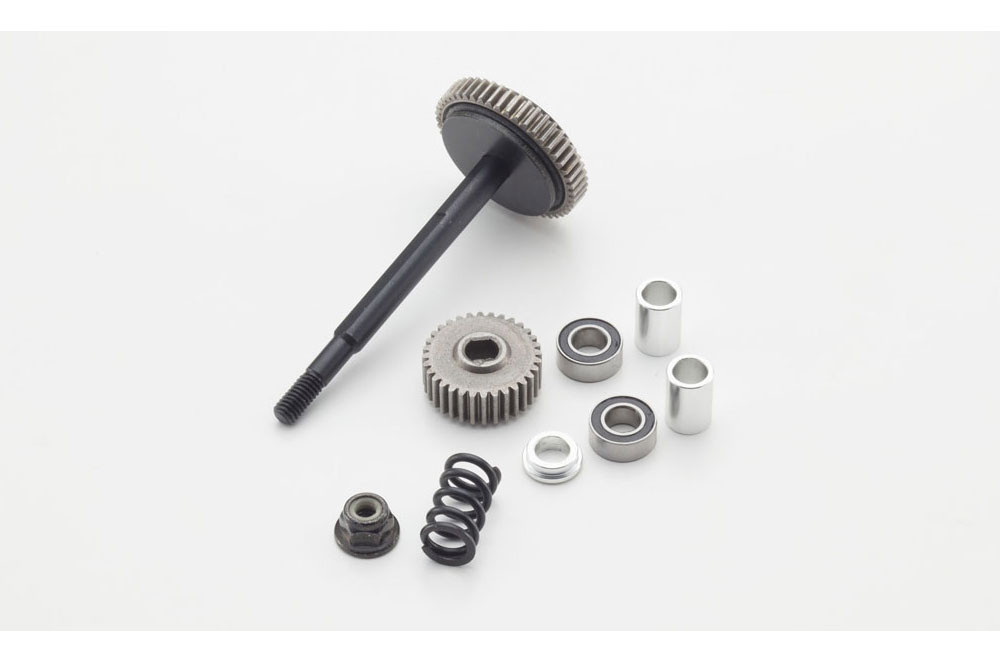

The gearbox is equipped with a slipper clutch that protects the drive system from sudden load changes such as jump landings and is easily adjustable for compatibility with various surface conditions.

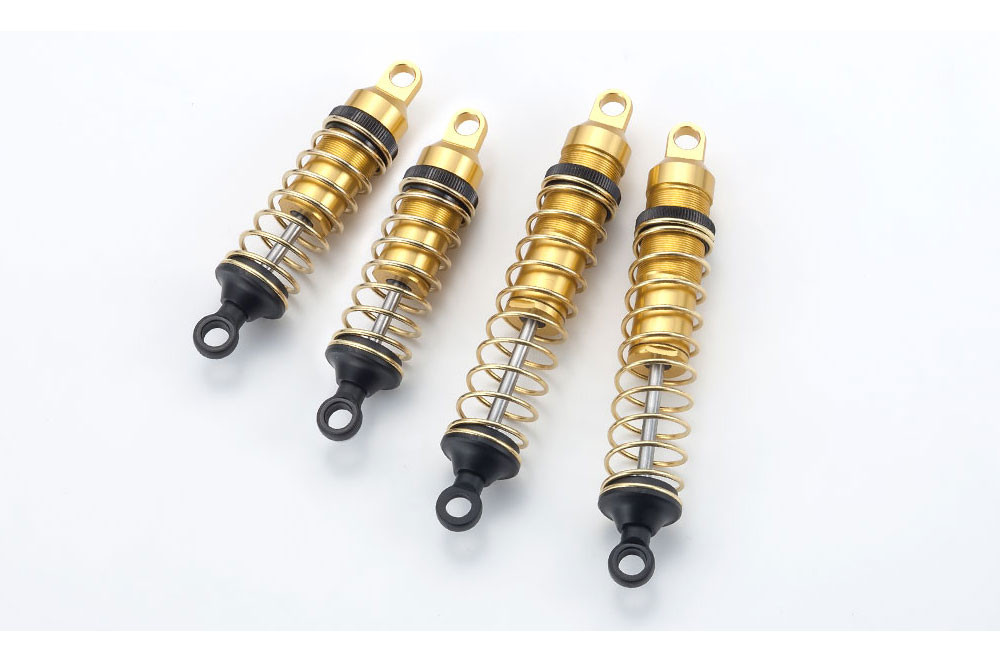

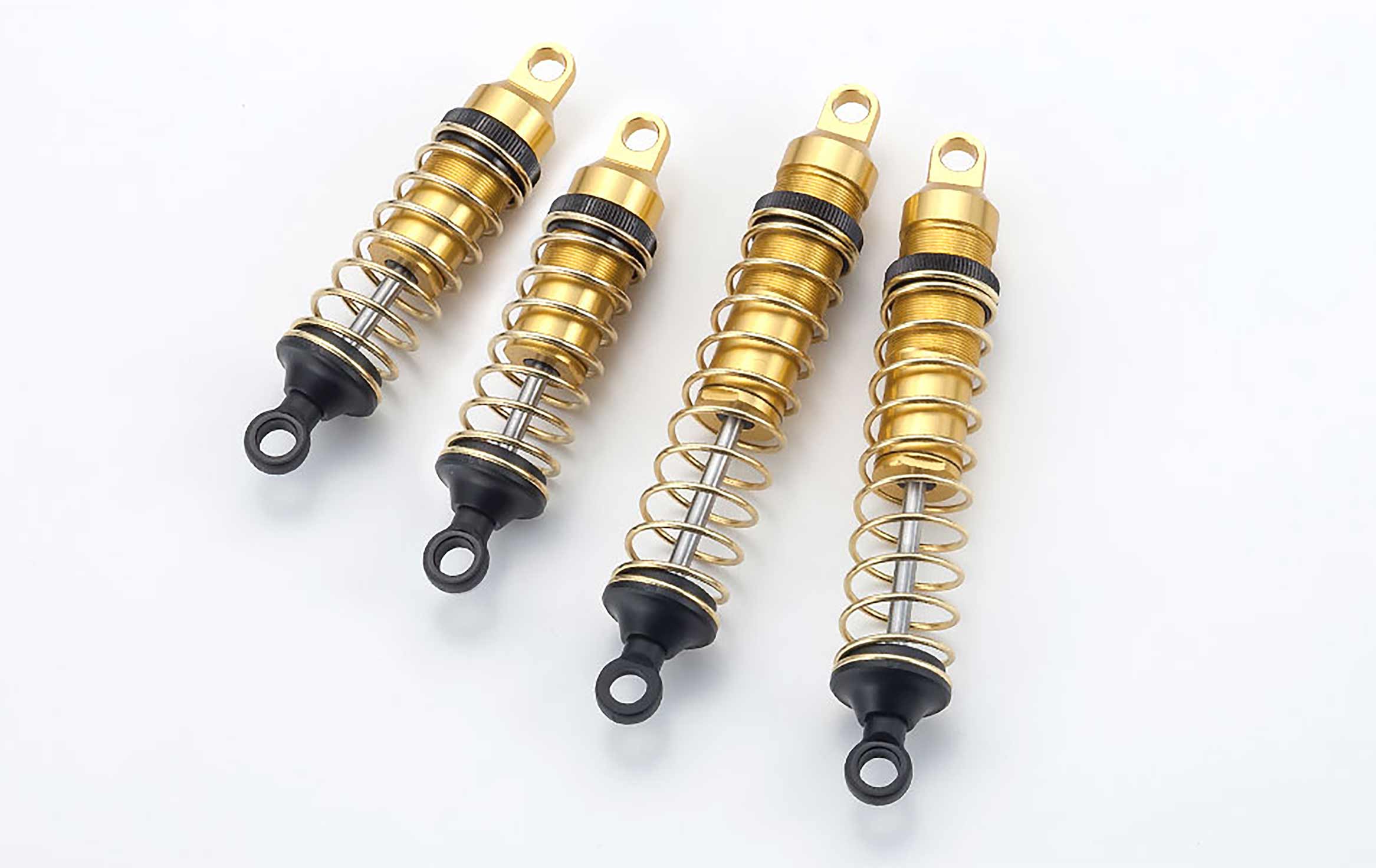

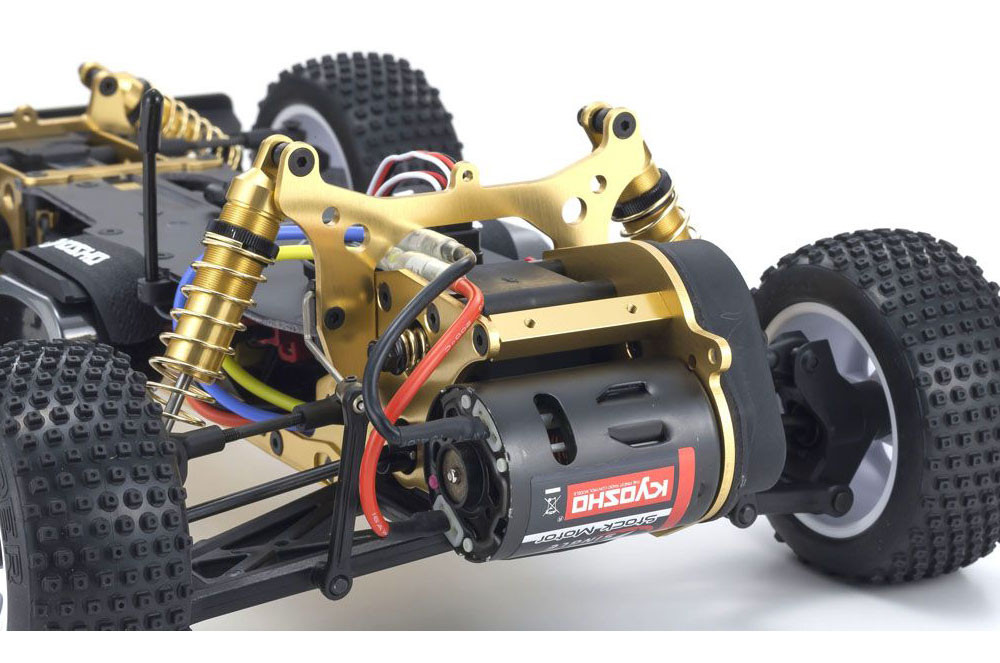

Aluminum oil shocks

Aluminum oil shocks modernized with dial adjustment of chassis height while recreating the style of the original. Refined shock absorber setting.


Double wishbone suspension

Reliable movement and long stroke of the double wishbone suspension with reinforced arms increases control feel.

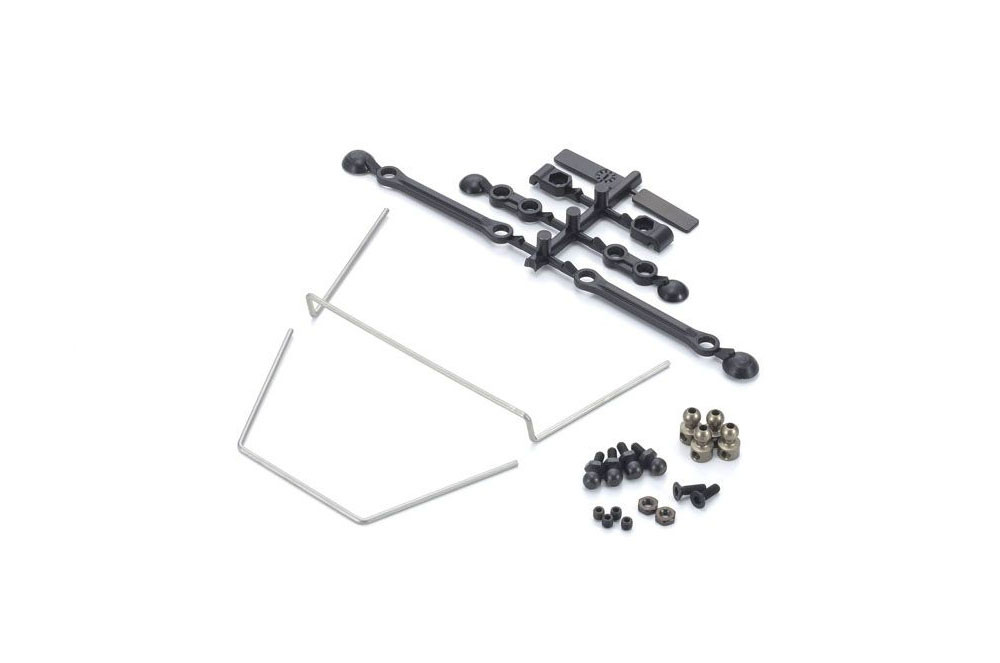

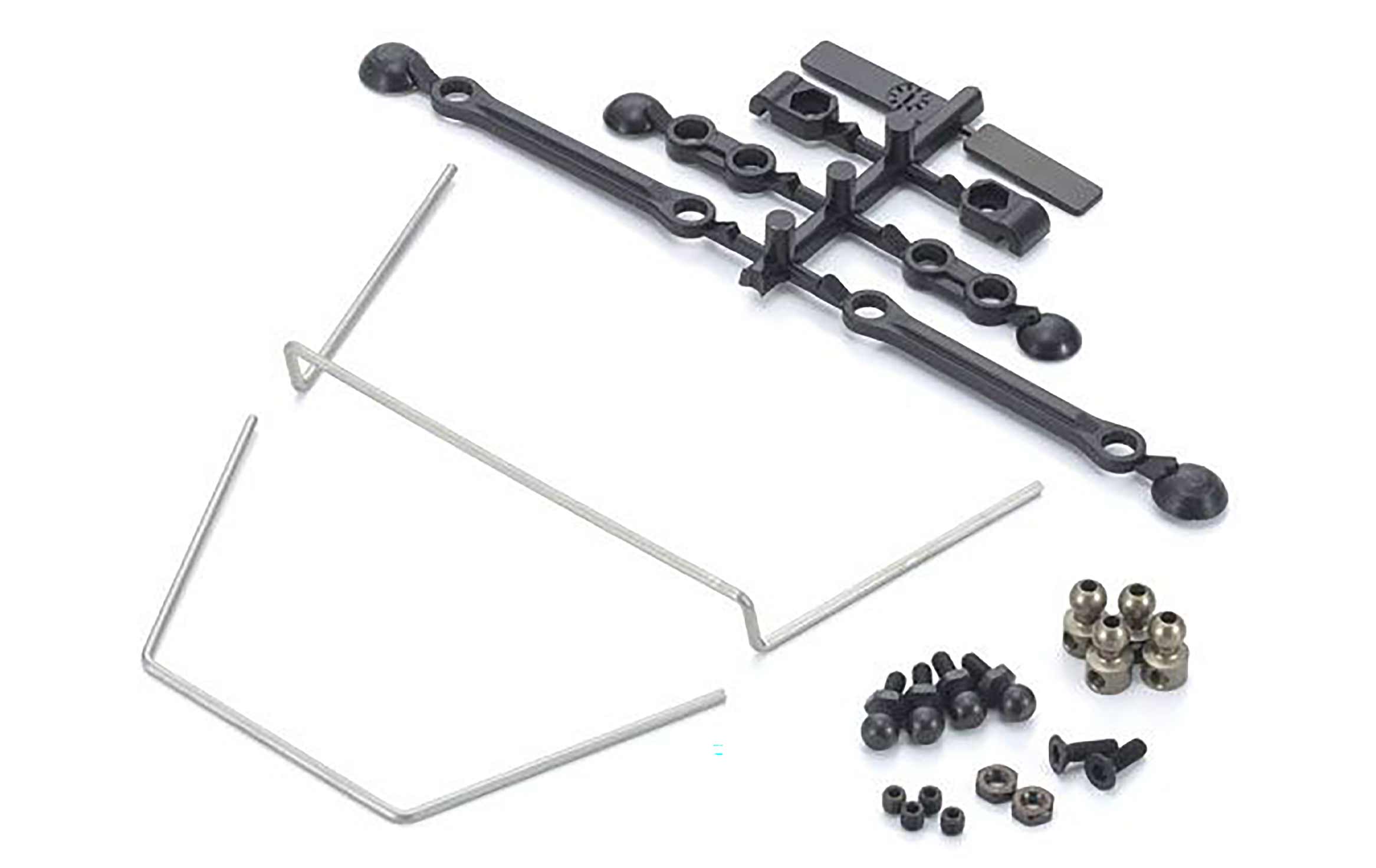

Stabilizers are equipped on front and rear to deliver sharp performance through suppression of chassis roll through corners.

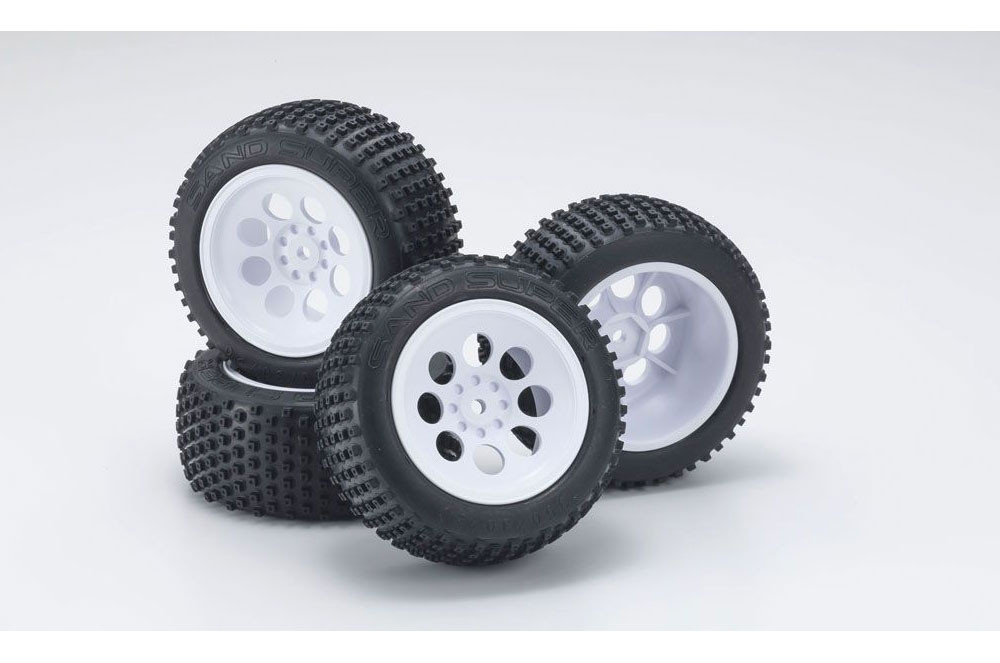

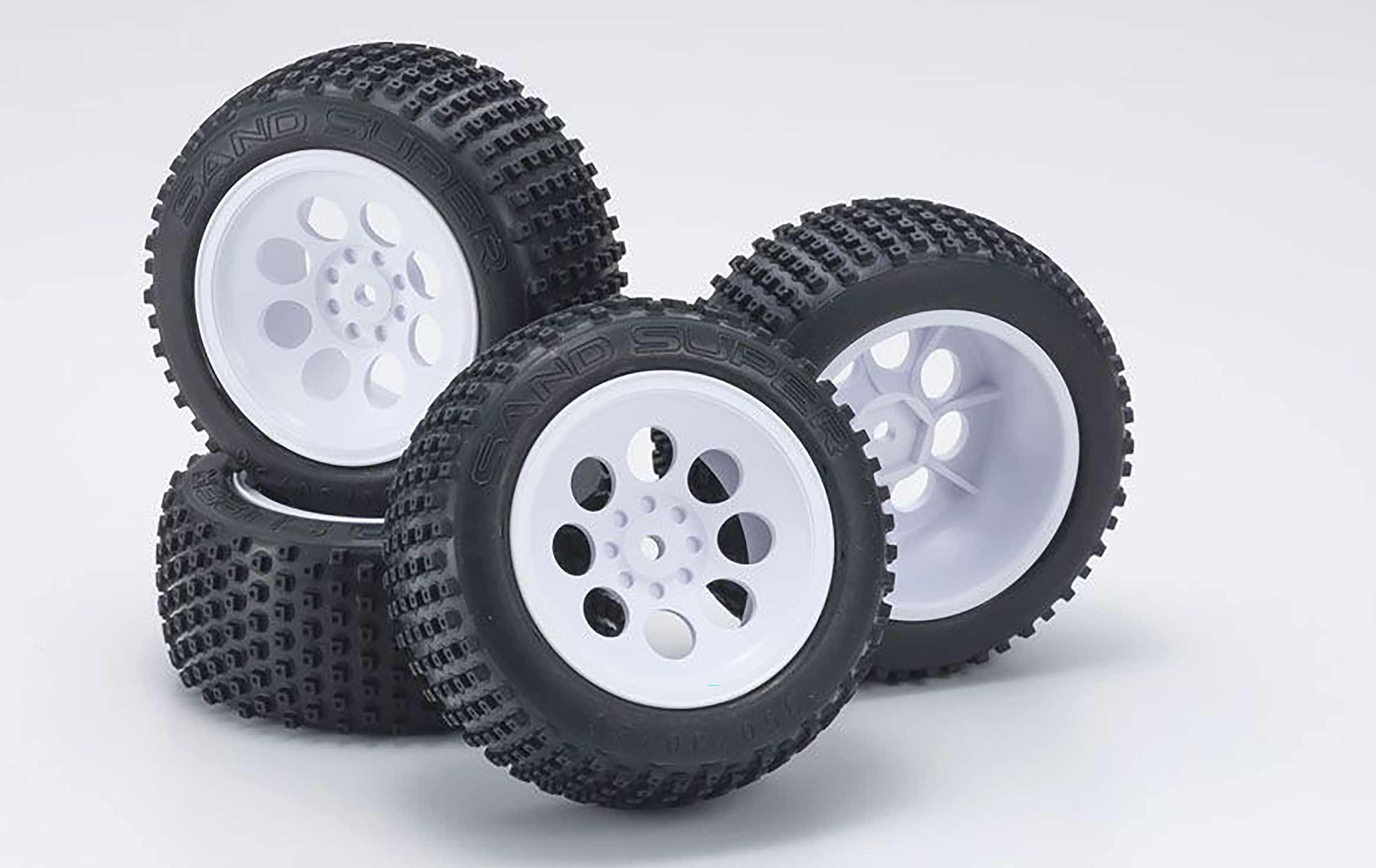

Modern block pattern tires

While still following the style of the original, the new Turbo Optima features modern block pattern tires for evolved running performance. Stylish large diameter (50mm/2-inch) wheels have evolved with a one-piece design and are included as standard.


Product Specifications

Completion Level Kit
Drivetrain 4WD
Power Type Electric
Scale 1/10
Vehicle Type Buggy
