1/10 Super Avante Kit: TD-4 (LIMITED EDITION)

Item No. TAM47481
Discontinued
Brand Logo
4.1 out of 5 Customer Rating

1/10 Super Avante Kit: TD-4 (LIMITED EDITION)

Item No. TAM47481
This Item is No Longer Available
Selected Store

Product Details

No time to paint? Want to start building the main kit as soon as you open it!? Look no further as this Limited-Edition version of the Super Avante includes a pre-painted body with a few special-colored parts!
Key Features
  • Polycarbonate Body Is Pre-Painted And Pre-Cut
  • The Main Chassis And Damper Springs Come In Yellow Color To Make This Release Unique To The Designer
  • The 4-Wheel Independent Double Wishbone Suspension System Uses CVA Oil Dampers
  • Star Dish Wheels Are Paired With Square Spike Tires
  • Choose Between High And Low Type Wing Stays To Adjust The Downforce Depending On The Road Surface
icon-box
In The Box
  • (1) 1/10 RC Super Avante Kit
icon-how-to
Needed to Complete
  • (1) 2-Channel Radio System
  • (1) Motor
  • (1) Electronic Speed Control
  • (1) Low-Profile Servo
  • (1) Battery
  • (1) Charger
1/10 Super Avante Kit: TD-4 (LIMITED EDITION)

TD4 - Low Profile, High Performance

This R/C model assembly kit creates the Super Avante, a 4WD off-road buggy that is bestowed with Tamiya's legendary Avante name. It features an exceptionally low-profile design enabled in part by its front inboard suspension, with a shaft-driven 4WD drivetrain powered by a midship motor and employing front/rear ball differentials plus full ball bearings. Its futuristic body design is the work of Kota Nezu at Znug Design, and features numerous clear sections that just add to the Super Avante's distinctly modern mood, as do the cockpit-rear buttress and the four mini fenders.

The TD4 is a shaft-driven 4WD buggy chassis which employs front inboard suspension for slim, low-profile form. It features a longitudinal battery pack position in the center and a midship transverse motor for optimum balance and improved performance. The drivetrain uses full bearings, and sealed front/rear gearboxes have built-in ball differentials. Two link rods and crank arm transmit movement of the left-side servo to the three-piece steering arm setup. 4-wheel independent double wishbone suspension utilizes CVA oil dampers. Turnbuckle shaft upper arms facilitate camber angle adjustment. Two types (high/low) of wing stays are included and star dish wheels are paired with square spike tires which offer superlative grip off-road.

Features

  • The polycarbonate body is pre-painted and pre-cut
  • The main chassis and damper springs come in yellow color to make this release unique to the designer
  • The TD4 is a shaft-driven 4WD buggy chassis which employs front inboard suspension. It features a longitudinal battery pack position in the center and a midship transverse motor for optimum balance and improved performance
  • Features full ball bearings
  • Star dish wheels are paired with square spike tires
  • Choose between high and low type wing stays to adjust the downforce depending on the road surface
  • Comes with a driver figure (not pre-painted) for extra realism, and high-torque servo saver
  • The 4-wheel independent double wishbone suspension system uses CVA oil dampers

Tamiya Super Avante Detailed Overview

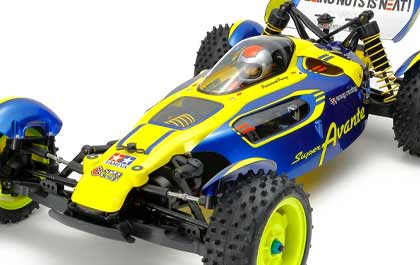

Pre-Painted Body
Pre-Painted Polycarbonate Body

The Limited Edition Super Avante features a pre-painted body only available with the limited edition kit.

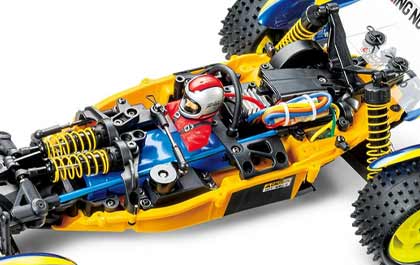

Yellow Parts
Main Chassis and Shock Springs

The kit comes with specially colored parts in yellow including the chassis and shock springs.



Suspension
Double Wishbone Suspension

The double wishbone suspension is attached to CVA oil-filled shocks to provide the best suspension handling on the track.



Wheels and Tires
Wheels and Tires

Star dish wheels are paired with square spike tires.



Driver Figure
Driver Figure

Includes a detailed driver figure for scale realism (figure is NOT pre-painted).



Wing
Adjustable Wing

Choose between high and low type wing stays to adjust the downforce of the wing depending on the road surface.



Product Specifications

Ball Bearings Full Ball Bearings
Chassis FRP Fiberglass Reinforced Plastic
Completion Level Kit
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Wheel Hex Size 12mm
Vehicle Type Buggy
Body Pre-Painted Polycarbonate
Scale 1/10
Bushing Material Metal
Charger Sold Separately
Differential Ball Pressure Plate
Receiver Sold Separately
Shock Type CVA Oil Filled
Battery Sold Separately
Gear Ratio Adjustable
Motor Size 540
Product Length 15.2362" (387 mm)
Suspension Fully Independent Double Wishbone
Speed Control Sold Separately
Wheelbase 11.1417" (283 mm)
Power Type Electric
Product Width 9.68504" (246 mm)
Radio Sold Separately
