1/10 SMT10 4WD Monster Truck Raw Builders Kit

Item No. AXI03020
Discontinued
Brand Logo
3.2 out of 5 Customer Rating

1/10 SMT10 4WD Monster Truck Raw Builders Kit

Item No. AXI03020
This Item is No Longer Available
Selected Store

Product Details

icon-box
In The Box
  • (1) Axial® SMT10™ Monster Truck RAW Builder’s Kit
  • (1) Product Manual
icon-how-to
Needed to Complete
  • (1) 2+ Channel Transmitter with receiver
  • (1) Metal Gear, Hi-Torque Steering Servo
  • (1) ESC and Motor
  • (4) Tires
  • (1) Tire Glue
  • (1) Battery
  • (1) Compatible Battery Charger
  • (1) Body
  • (1) Paint
1/10 SMT10 4WD Monster Truck Raw Builders Kit
ITEM_NAME

Introduction

Full-scale monster truck tours such as Monster Jam® fill arenas with capacity crowds eager to see world-class drivers compete in racing and freestyle events. The designers at Axial® Racing have used their crawler expertise to create the perfect platform for bashers who want to build their perfect RC scale monster beast. The 1/10 scale Monster Truck RAW Builder’s Kit is centered on the SMT10™ tube frame 4WD chassis, which was developed for maximum bashing strength and an extremely detailed appearance. It’s very similar to those used in full-size monster trucks. That’s why the chassis excels at hard-core action over grass, gravel, pavement and asphalt tracks. Start with the Monster Truck RAW Builder’s Kit, add your favorite performance electronics and scale body, wheels, and tires — and put together the powerful monster basher of your dreams!

Overview

The headlining attractions at Monster Jam® motorsport events are undeniably the large, loud monster trucks. They keep audiences roaring and riveted, whether they’re battling for the lead in traditional racing or flexing their freestyle muscles through two minutes of gravity-defying tricks and stunts. For its part, Axial® has earned legions of RC racing fans by producing crawler vehicles that keep on pounding over the toughest obstacle-strewn tracks. Axial® knows how to make models that provide almost unlimited potential to adventure and explore.

Now Axial® has turned its attention to creating a monster truck platform for bashers to make their very own, and the result is the SMT10™ Monster Truck RAW Builder’s Kit — a true-to-scale, 4-wheel drive, straight-axle RC truck that offers an ideal foundation of performance and realism.

Axial® designers went all out when creating the SMT10™ monster truck chassis and roll cage. Very similar full-size Monster Jam® truck chassis, the SMT10™ tube frame was developed for maximum strength and has an extremely realistic appearance. It provides a variety of shock mounting points for suspension tuning options, with additional mounting points on the cage and at the axle for moving the shocks to a more scale, vertical position if desired. Mated to the proven Axial® AR60™ axle, the SMT10™ chassis’ 4-link suspension soaks up any obstacles in its path.

The AX10™ transmission included with the SMT10™ Monster Truck RAW Builder’s Kit is designed to make the most of your motor’s power. Its Dual Pad slipper system features a pad on each side of the spur gear to increase surface area, resulting in improved tuning precision and holding ability. Strong 32-pitch gearing enhances performance in high-torque applications.

Experience the thrill of arena monster truck action wherever you bash with the Axial® SMT10™ Monster Truck RAW Builder’s Kit. Add your choice of body, wheels, tires and electronics and unleash your inner beast!

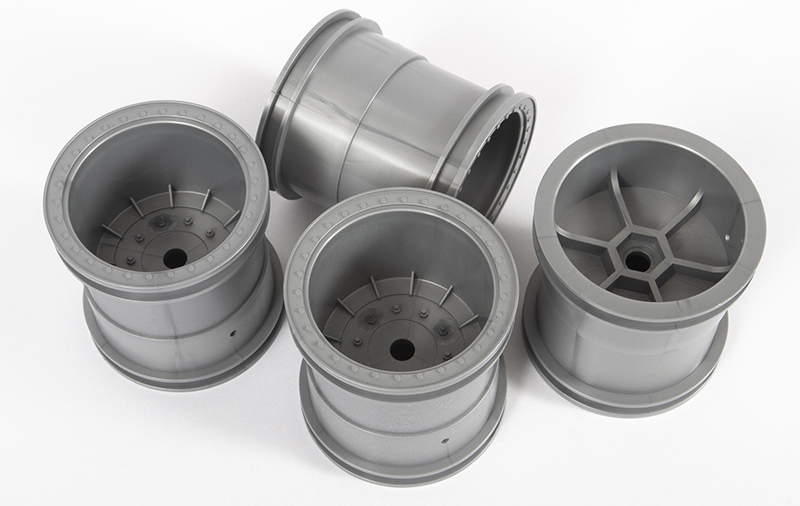

2.2 MONSTER TRUCK WHEELS INCLUDED!
2.2 MONSTER TRUCK WHEELS INCLUDED!

The 2.2 monster truck wheels are molded from high-quality nylon and secured with a solid 12mm hex mount. Breather holes improve handling by allowing air to escape and minimizing the bounce when tires impact the ground.

  • 2.2 Monster Truck Wheels (silver)
  • Molded from a blend of high quality nylon materials for strength and durability
  • Solid 12mm hex mount
NOTE: Tires sold separately

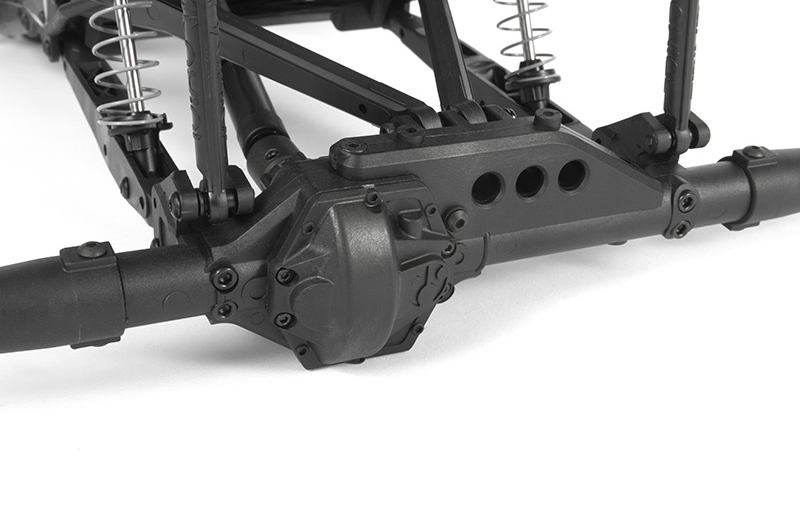

AR60 OCP-AXLE
AR60™ OCP-AXLE

AR60 OCP-Axle - The AR60 OCP-Axle™ is constructed from high strength composite material which has a low flex rate but is not as brittle as standard glass filled nylon. The combination of our axles and a true 4-link suspension gives you optimal performance for any terrain with the look of a real 1:1 vehicle.

  • Off-center pumpkin design
  • Axle tubes are reinforced with a boxed-in axle truss
  • High strength composite material
  • Updated steering knuckles for dual shear, also eliminates secondary bolt on plate
  • Updated differential cover and servo mount for new look




AX10 TRANSMISSION, ALL METAL INTERNAL GEARS
AX10 TRANSMISSION, ALL METAL INTERNAL GEARS

Updated Dual Pad slipper system with 32 Pitch gearing. New slipper design uses a pad on each side of the spur gear for added surface area. More precise tuning and holding power. Stronger 32P gearing for high torque applications. 56T Spur / 14T Pinion RTR gearing for 2S.

  • All metal internal transmission gears
  • Metal motor plate
  • 32P gearing
  • Heavy duty slipper
  • Sealed gear cover

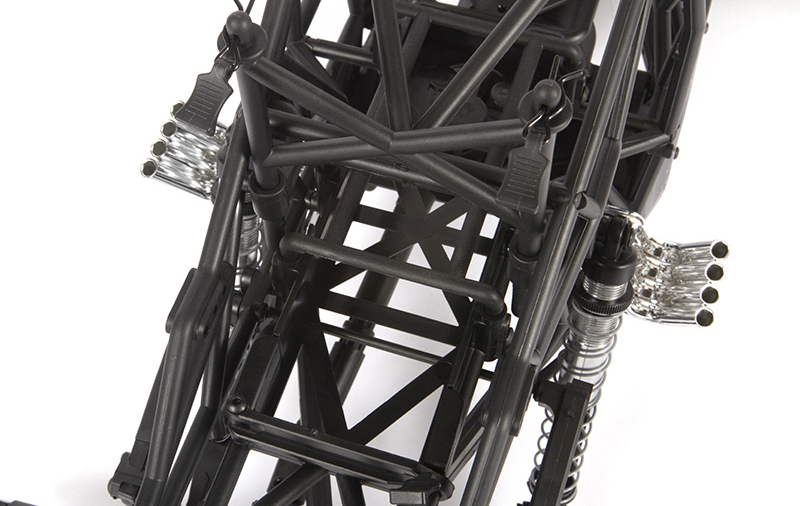

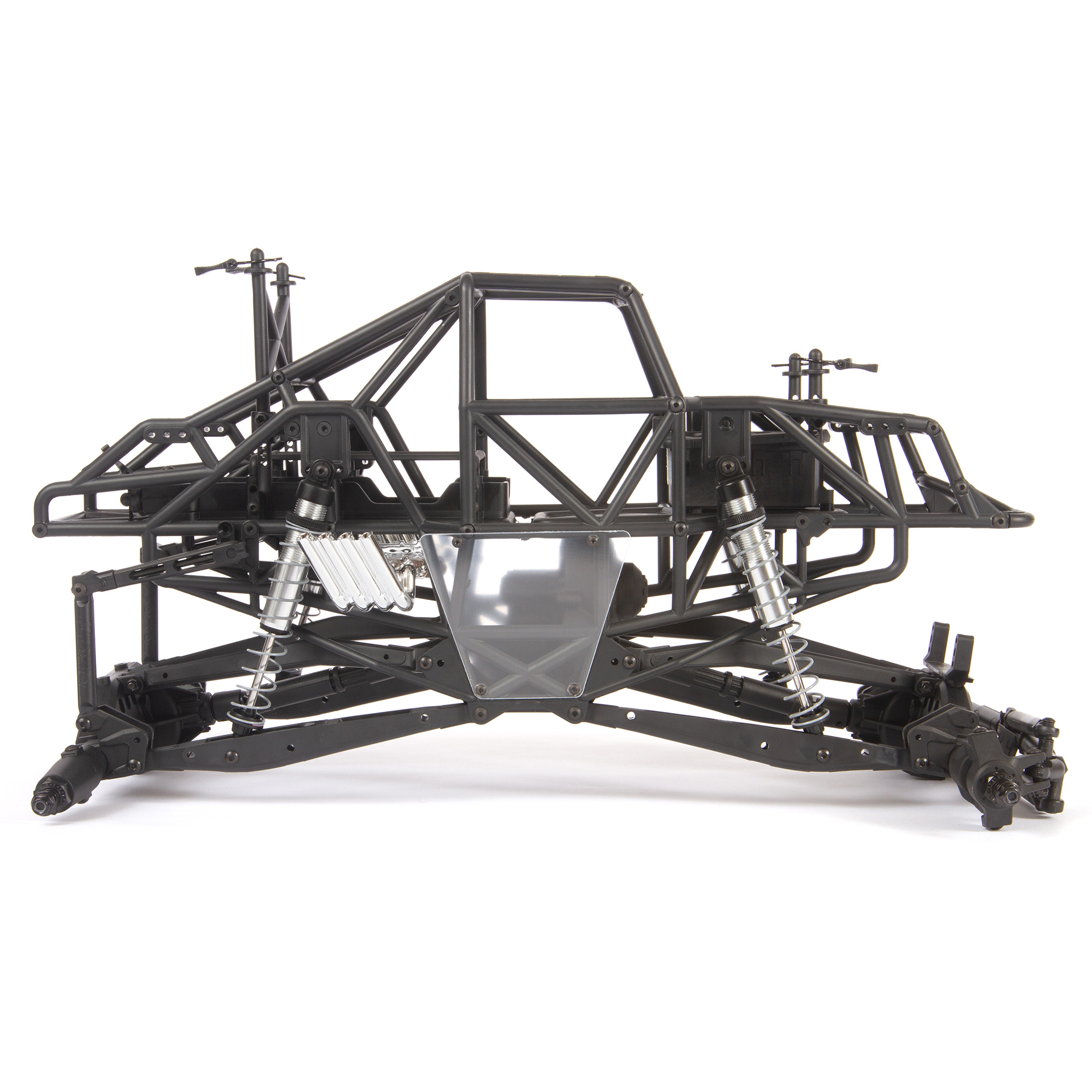

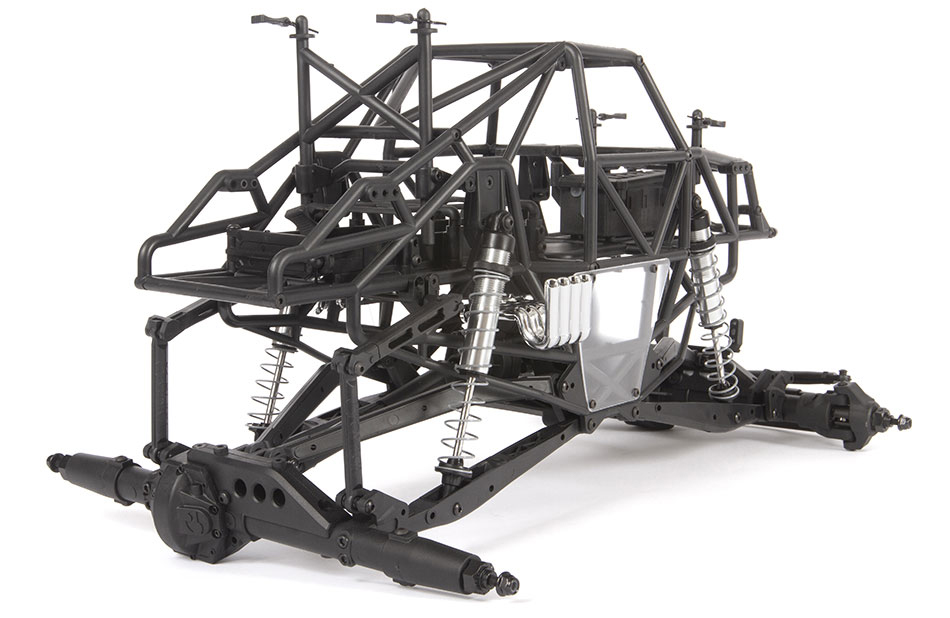

MT10 TUBE FRAME CHASSIS
SMT10™ TUBE FRAME CHASSIS

Axial went all out when designing the chassis and roll cage for the SMT10™ Monster Truck. Very similar to the modern era full size monster trucks, this chassis was developed for maximum strength and an extremely detailed appearance. The chassis offers many pivot points for suspension tuning. Scale realism and strength are achieved through triangulation of the chassis tubes, making it ready for maximum attack and hard core Monster Truck bashing.


MULTIPLE SHOCK MOUNTING POSITIONS
MULTIPLE SHOCK MOUNTING POSITIONS

We’ve included a variety of shock mounting points for additional suspension tuning options. There’s also additional mounting points on the cage and at the axle for moving your shocks to a more scale, vertical position if desired.



FEATURE_TITLE
REAR SWAYBAR FOR ADDED STABILITY

A rear sway bar is included to help keep torque twist and body lean to a minimum during acceleration. A sway bar’s main function is to control body roll, yet still allow your shocks to move vertically with the changing terrain. The SMT10™ chassis design allows you to add an optional sway bar to the front.

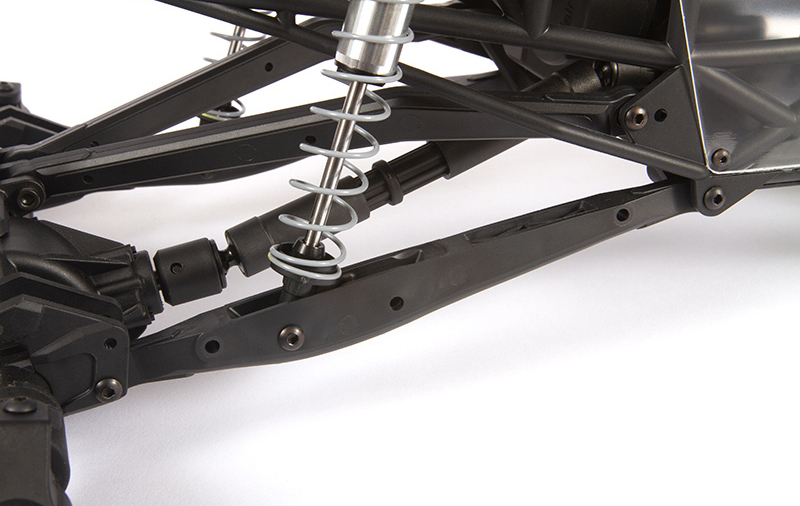

TRAILING ARM 4-LINKED SUSPENSION
TRAILING ARM 4-LINKED SUSPENSION

The SMT10™ features the proven AR60 axle with a trailing arm 4-linked rear suspension and additional shock mounting positions.

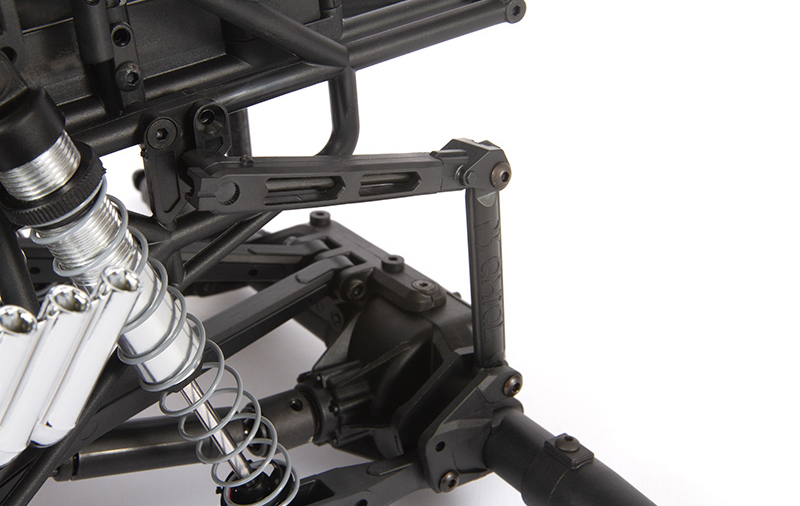

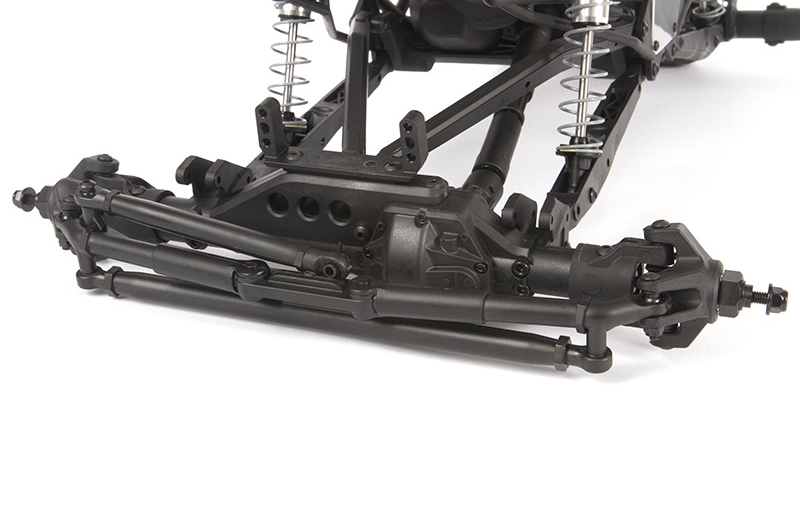

HEAVY DUTY STEERING LINKS
HEAVY DUTY STEERING LINKS

For steering, we’ve designed a heavy duty tie rod, drag link, and simulated scale hydraulic ram steering link to help get your choice of tires pointed in the right direction so you can stay on course. NOTE: Tires not included, sold separately.

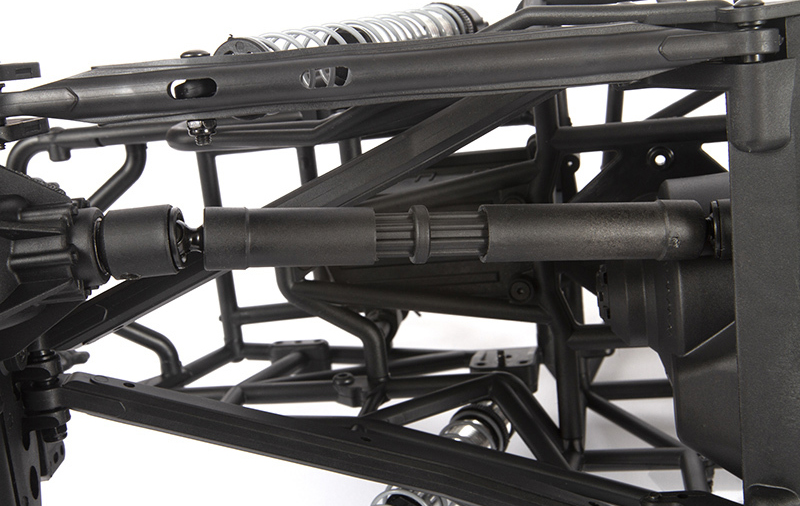

WILDBOAR™ DRIVESHAFTS
WILDBOAR™ DRIVESHAFTS

Updated design for larger diameter crosspin (2x11mm) for added strength. New center splined slider floats between each end, added material on this part reduces flex and fatigue.

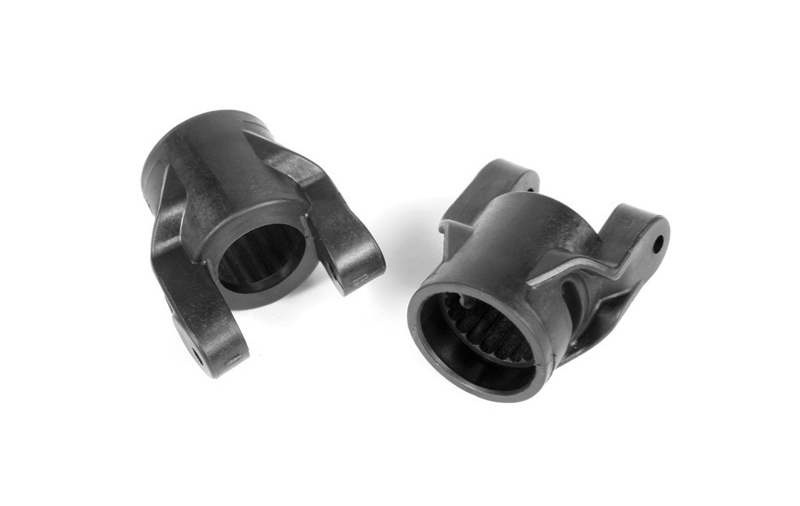

HEAVY DUTY C-HUBS
HEAVY DUTY C-HUBS

Monster trucks are known for wild, high flying action, so we’ve strengthened the front c-hubs to help take on hard impacts from jumps and extreme bashing!



EASY ACCESS BATTERY TRAY
EASY ACCESS BATTERY TRAY

The battery tray can be easily accessed at the rear of the vehicle. To install your battery, remove one pin, swing out the tray door and slide the battery pack in. The tray is fully height adjustable with four screws, making room for most standard sized 2S and 3S LiPo battery packs.



RECEIVER BOX, WATERPROOF
RECEIVER BOX, WATERPROOF

The waterproof receiver box utilizes three different silicone seals: one for the antenna, one for servo wires (includes three slots for three channels), and one acts as a gasket for the receiver box cover. No more stress when running in mud, water, or snow!

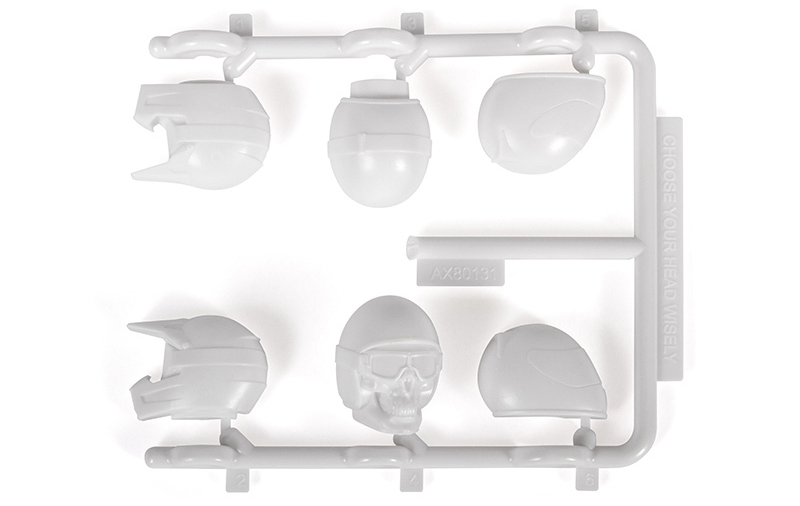

HELMET SET INCLUDED
HELMET SET INCLUDED

Three different helmets to choose from - Skully, Moto-X and Rally!

  • Styrene construction
  • Includes decals for customization
  • Paintable for custom builds

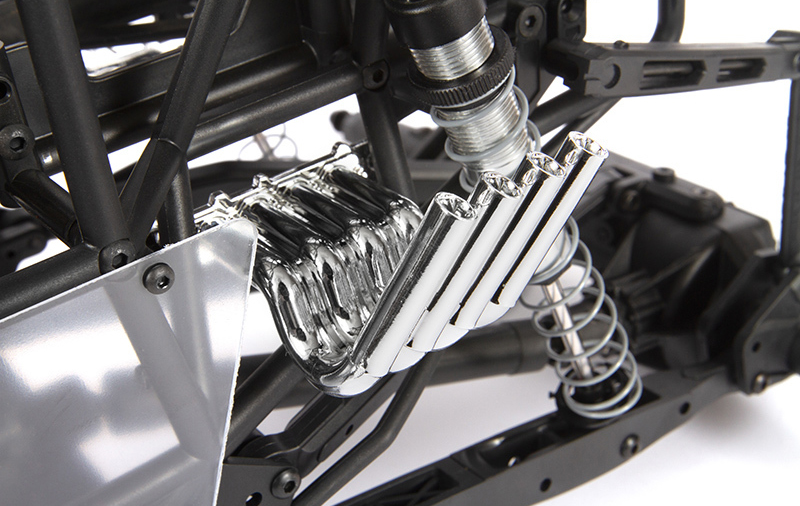

CHROME ZOOMIE STYLE HEADERS
CHROME ZOOMIE STYLE HEADERS

We've included chrome zoomie style headers for added scale realism!



Product Specifications

Approximate Assembly Time 5-7 Hours
Ball Bearings Full set
Battery Tray Dimensions L, W, H, 5.45 x 1.81 x 0.98" (138.5 x 46 x 25mm)
Body Sold Separately
Brakes Integral with ESC
Bushing Material Metal
Charger Sold Separately
Chassis Composite molded tube frame
Completion Level Kit
Differential Bevel gear
Drivetrain 4WD
Final Drive Ratio 7.6:1
Front Track 9.6 in (244mm)
Gear Pitch 32-Pitch
Ground Clearance 2.9" (74mm)
Internal Gear Ratio 2.6:1
Motor Size 550 sold separately
Pinion 14T
Power Type Electric
Product Height 10.6" (270mm)
Product Weight Approximately 6.4lbs (2.90kg) w/o battery, 7.1lbs (3.22kg) w/2S LiPo battery
Product Width 13.2" (335mm)
Rear Track 9.6 in (244mm)
Receiver Sold Separately
Scale 1/10
Servos Sold Separately
Shock Type Aluminum body oil-filled coil-over
Speed Control Sold Separately
Spur Gear 56T
Steering Type 2WS
Suspension Front and rear solid axle, rear sway bar
Tire Type 2.2 Monster Truck (sold seperatly)
Vehicle Type Monster Truck
Water-Resistant Yes
Wheel Type 2.2 Monster Truck
Wheelbase 13.9" (353mm)
