1/10 SCX10 III Base Camp 4WD Rock Crawler Builder's Kit

Item No. AXI03011
Brand Logo
3.2 out of 5 Customer Rating

1/10 SCX10 III Base Camp 4WD Rock Crawler Builder's Kit

Item No. AXI03011
$269.99
RC Club points earned on this item shown at checkout.
Select Options
7.4V 5000mAh 2S 30C Smart LiPo Hardcase Battery: IC3
AXI03011 SPMX50002S30H3
7.4V 5000mAh 2S 30C Smart LiPo Hardcase Battery: IC3
In Stock
$44.99
11.1V 5000mAh 3S 30C Smart Hardcase LiPo Battery: IC3
AXI03011 SPMX50003S30H3
11.1V 5000mAh 3S 30C Smart Hardcase LiPo Battery: IC3
In Stock
$69.99
7.4V 5000mAh 2S 30C Smart LiPo G2 Hard Case: IC3
AXI03011 SPMX52S30H3
7.4V 5000mAh 2S 30C Smart LiPo G2 Hard Case: IC3
In Stock
$44.99
7.4V 4000mAh 2S 50C Smart LiPo Battery, IC3
AXI03011 SPMX40002S50H3
7.4V 4000mAh 2S 50C Smart LiPo Battery, IC3
In Stock
$44.99
7.4V 5000mAh 2S 50C Smart Hardcase LiPo Battery: IC3
AXI03011 SPMX50002S50H3
7.4V 5000mAh 2S 50C Smart Hardcase LiPo Battery: IC3
In Stock
$49.99
7.4V 5000mAh 2S 50C Smart LiPo G2 Hard Case: IC3
AXI03011 SPMX52S50H3
7.4V 5000mAh 2S 50C Smart LiPo G2 Hard Case: IC3
In Stock
$49.99
7.4V 5000mAh 2S 100C Smart Hardcase LiPo Battery: IC3
AXI03011 SPMX50002S100H3
7.4V 5000mAh 2S 100C Smart Hardcase LiPo Battery: IC3
In Stock
$54.99
11.1V 5000mAh 3S 30C Smart G2 Hardcase LiPo Battery: IC3
AXI03011 SPMX53S30H3
11.1V 5000mAh 3S 30C Smart G2 Hardcase LiPo Battery: IC3
In Stock
$69.99
11.1V 5000mAh 3S 50C Smart Hardcase LiPo Battery: IC3
AXI03011 SPMX50003S50H3
11.1V 5000mAh 3S 50C Smart Hardcase LiPo Battery: IC3
In Stock
$74.99
11.1V 5000mAh 3S 50C Smart G2 Hardcase LiPo Battery: IC3
AXI03011 SPMX53S50H3
11.1V 5000mAh 3S 50C Smart G2 Hardcase LiPo Battery: IC3
In Stock
$64.99
11.1V 5000mAh 3S 100C Smart Hardcase LiPo Battery: IC3
AXI03011 SPMX50003S100H3
11.1V 5000mAh 3S 100C Smart Hardcase LiPo Battery: IC3
In Stock
$79.99
7.4V 5000mAh 2S 100C Smart G2 Hardcase LiPo Battery: IC3
AXI03011 SPMX52S100H3
7.4V 5000mAh 2S 100C Smart G2 Hardcase LiPo Battery: IC3
In Stock
$54.99
11.1V 5000mAh 3S 100C Smart G2 Hardcase LiPo Battery: IC3
AXI03011 SPMX53S100H3
11.1V 5000mAh 3S 100C Smart G2 Hardcase LiPo Battery: IC3
In Stock
$79.99
0 Item Selected Items Selected
S155 55W AC G2 Smart Charger
AXI03011 SPMXC2050
S155 55W AC G2 Smart Charger
In Stock
$59.99
S120 USB-C Smart Charger 1x20W
AXI03011 SPMXC1020
S120 USB-C Smart Charger 1x20W
In Stock
$19.99
S100 1x100W USB-C Smart Charger
AXI03011 SPMXC2090
S100 1x100W USB-C Smart Charger
Next Shipment June 2024
$24.99
S1100 G2 1x100W AC Smart Charger
AXI03011 SPMXC2080
S1100 G2 1x100W AC Smart Charger
In Stock
$99.99
S1200 G2 AC 1x200W Smart Charger
AXI03011 SPMXC2020
S1200 G2 AC 1x200W Smart Charger
In Stock
$149.99
S2100 G2 2x100W AC Smart Charger
AXI03011 SPMXC2000
S2100 G2 2x100W AC Smart Charger
In Stock
$179.99
S100 1x100W USB-C Smart Charger, 65W USB-C GaN Power Supply Combo
AXI03011 SPMXC2090C
S100 1x100W USB-C Smart Charger, 65W USB-C GaN Power Supply Combo
Next Shipment August 2024
$39.99
0 Item Selected Items Selected
DX3 Smart 3-Channel Transmitter with SR315 Receiver
AXI03011 SPM2340
DX3 Smart 3-Channel Transmitter with SR315 Receiver
In Stock
$99.99
DX5 Pro 5-Channel DSMR Transmitter with SR2100 Receiver
AXI03011 SPM5025
DX5 Pro 5-Channel DSMR Transmitter with SR2100 Receiver
Next Shipment July 2024
$399.99
DX5C Smart 5-Channel DSMR Transmitter with SR6100AT Receiver
AXI03011 SPM5120
DX5C Smart 5-Channel DSMR Transmitter with SR6100AT Receiver
This item is currently not available
$199.99
DX5 Pro 5-Channel DSMR Transmitter Only
AXI03011 SPMR5025
DX5 Pro 5-Channel DSMR Transmitter Only
In Stock
$329.99
SLT3 3-Channel Transmitter with SR315 Receiver
AXI03011 SPMSLT300
SLT3 3-Channel Transmitter with SR315 Receiver
In Stock
$49.99
SLT3 3-Channel SLT Transmitter with SLR300 Receiver
AXI03011 SPMSLT350
SLT3 3-Channel SLT Transmitter with SLR300 Receiver
In Stock
$64.99
0 Item Selected Items Selected
1/10 1967 Ford F-100 Clear Body 12.3" (313mm) Wheelbase Crawlers
AXI03011 PRO361300
1/10 1967 Ford F-100 Clear Body 12.3" (313mm) Wheelbase Crawlers
In Stock
$49.99
1/10 Jeep Comanche Full Bed Clear Body 12.3" (313mm) WB Crwlrs
AXI03011 PRO336200
1/10 Jeep Comanche Full Bed Clear Body 12.3" (313mm) WB Crwlrs
In Stock
$49.99
1/10 1991 Toyota 4Runner Clear Body 12.3" (313mm) Wheelbase Crawlers
AXI03011 PRO348100
1/10 1991 Toyota 4Runner Clear Body 12.3" (313mm) Wheelbase Crawlers
In Stock
$49.99
1/10 1946 Dodge Power Wagon Clear Body 12.3" (313mm) WB Crawlers
AXI03011 PRO349900
1/10 1946 Dodge Power Wagon Clear Body 12.3" (313mm) WB Crawlers
In Stock
$61.99
1/10 1946 Dodge Power Wagon Black Body 12.3" (313mm) WB Crawlers
AXI03011 PRO349918
1/10 1946 Dodge Power Wagon Black Body 12.3" (313mm) WB Crawlers
In Stock
$69.99
1/10 1978 Chevy K-10 Clear Body 12.3" (313mm) Wheelbase Crawlers
AXI03011 PRO352200
1/10 1978 Chevy K-10 Clear Body 12.3" (313mm) Wheelbase Crawlers
In Stock
$61.99
1/10 Jeep Wrangler JL Unlimitd Rubcn Clr Bdy 12.3" (313mm) WB Crwlrs
AXI03011 PRO354600
1/10 Jeep Wrangler JL Unlimitd Rubcn Clr Bdy 12.3" (313mm) WB Crwlrs
In Stock
$49.99
1/10 Cliffhanger High Performance Clear Body 12.3" (313mm) WB Crwlrs
AXI03011 PRO356600
1/10 Cliffhanger High Performance Clear Body 12.3" (313mm) WB Crwlrs
In Stock
$43.99
1/10 2021 Ford Bronco Clear Body Set 12.3" Wheelbase: Crawlers
AXI03011 PRO357000
1/10 2021 Ford Bronco Clear Body Set 12.3" Wheelbase: Crawlers
In Stock
$71.99
1/10 1972 Chevy K-10 Clear Body 12.3" Wheelbase Crawlers
AXI03011 PRO360400
1/10 1972 Chevy K-10 Clear Body 12.3" Wheelbase Crawlers
In Stock
$49.99
1/10 Comp Wagon Cab-Only Clear Body 12.3" (313mm) Wheelbase Crawlers
AXI03011 PRO360600
1/10 Comp Wagon Cab-Only Clear Body 12.3" (313mm) Wheelbase Crawlers
In Stock
$43.99
0 Item Selected Items Selected
1/10 Hyrax G8 F/R 1.9" Crawler Tires Mounted 12mm Black Impulse (2)
AXI03011 PRO1012810
1/10 Hyrax G8 F/R 1.9" Crawler Tires Mounted 12mm Black Impulse (2)
Back Order
$38.99
1/10 Hyrax Predator F/R 1.9" Mounted 12mm Blk/Slvr Impulse (2)
AXI03011 PRO1012812
1/10 Hyrax Predator F/R 1.9" Mounted 12mm Blk/Slvr Impulse (2)
In Stock
$42.99
1/10 Hyrax G8 F/R 1.9" Crawler Trs Mounted 12mm Blk/Slvr Impulse (2)
AXI03011 PRO1012813
1/10 Hyrax G8 F/R 1.9" Crawler Trs Mounted 12mm Blk/Slvr Impulse (2)
In Stock
$42.99
1/10 Interco Bogger G8 F/R 1.9" Crwlr Trs MTD 12mm Blk Impulse (2)
AXI03011 PRO1013310
1/10 Interco Bogger G8 F/R 1.9" Crwlr Trs MTD 12mm Blk Impulse (2)
In Stock
$39.99
1/10 Mickey Thompson Baja Pro X G8 F/R 1.9" MTD 12mm Blk Holcomb (2)
AXI03011 PRO1021310
1/10 Mickey Thompson Baja Pro X G8 F/R 1.9" MTD 12mm Blk Holcomb (2)
In Stock
$39.99
1/10 Interco Spr Swmpr XL G8 F/R 1.9" MTD 12mm Blk/Slvr Impulse (2)
AXI03011 PRO119713
1/10 Interco Spr Swmpr XL G8 F/R 1.9" MTD 12mm Blk/Slvr Impulse (2)
In Stock
$43.99
Servo Horn Metal, 25T: SCX10 III
AXI03011 AXI231013
Servo Horn Metal, 25T: SCX10 III
Back Order
$7.99
Stainless M6 11.4" (290mm) Wheelbase Link Set: SCX10 III
AXI03011 AXI234016
Stainless M6 11.4" (290mm) Wheelbase Link Set: SCX10 III
In Stock
$22.99
Stainless M6 305mm Wheelbase Link Set: SCX10 III
AXI03011 AXI234017
Stainless M6 305mm Wheelbase Link Set: SCX10 III
In Stock
$22.99
6-Bolt 27 8 Overdrive Gear Set
AXI03011 AXI332001
6-Bolt 27 8 Overdrive Gear Set
In Stock
$41.99
3-Port High Output LED Controller
AXI03011 AXIC1097
3-Port High Output LED Controller
In Stock
$40.99
0 Item Selected Items Selected
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

Not just an unassembled version of the RTR, the SCX10 III Base Camp Builder's Kit offers many customizing opportunities plus a dig transmission, standard axles, and other additions. It's an easy build on the bench and a solid performer on the trails.
Key Features
  • Strong, adjustable SCX10 III steel C-channel chassis
  • Standard AR45 straight axles
  • LCXU transmission with optional dig feature
  • Durable 6mm stainless steel links
  • All-metal pivot balls
icon-box
In The Box
  • (1) 1/10 SCX10 III Base Camp 4WD Rock Crawler Builders Kit
  • (1) 1/10 SCX10 III Base Camp Builders Kit Instruction Manual
icon-how-to
Needed to Complete
  • (1) Transmitter & Receiver
  • (1) Motor & Electronic Speed Control
  • (1) Steering Servo
  • (1) 12.3” WB Rock Crawler Body
  • (4) Rock Crawler Wheels & Tires
  • (1) Battery
  • (1) Charger
  • (1) Dig Servo (Optional)

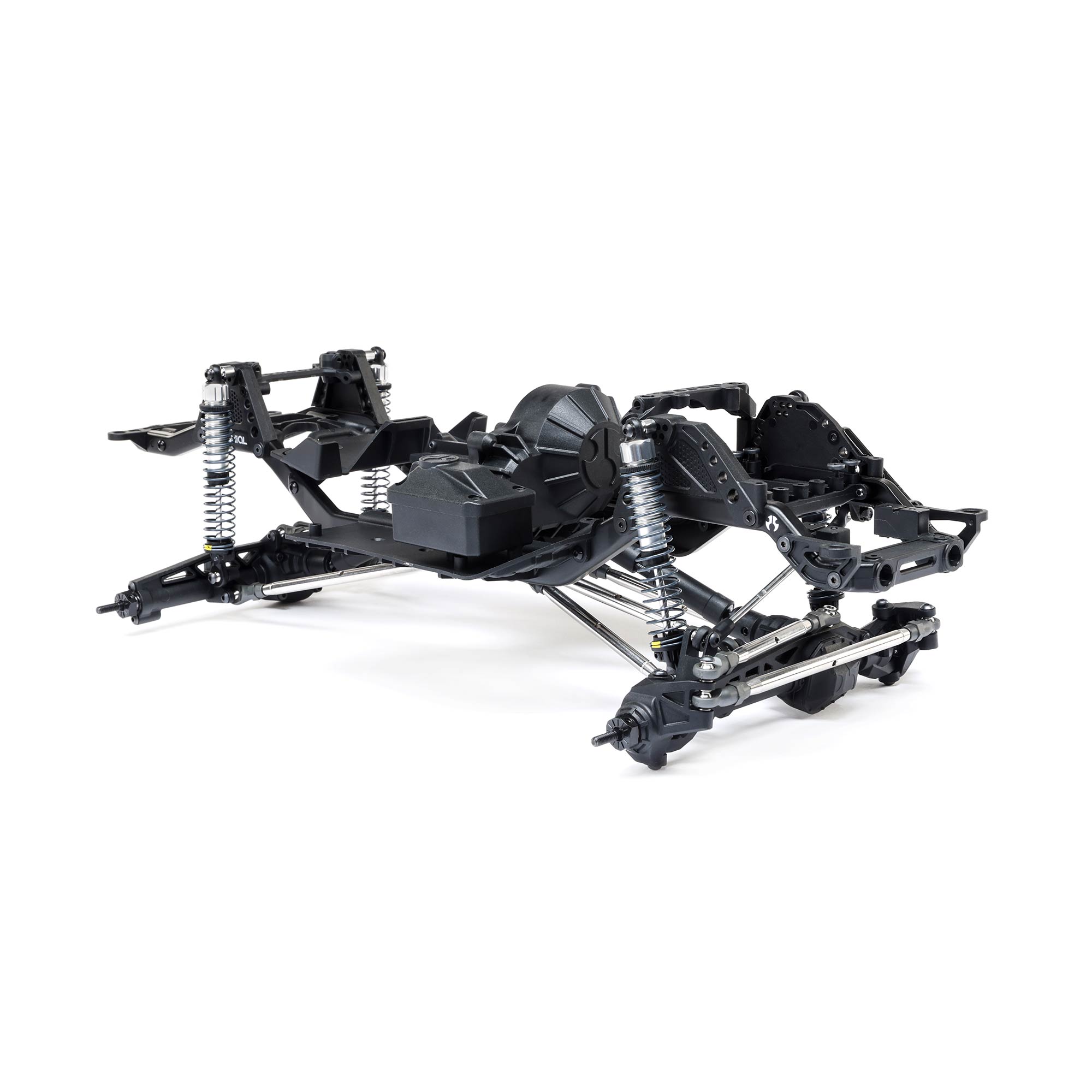

1/10 SCX10 III Base Camp 4WD Rock Crawler Builder's Kit

Features

  • Strong, adjustable SCX10 III steel C-channel chassis
  • Standard AR45 straight axles
  • LCXU transmission with optional dig feature
  • Durable 6mm stainless steel links
  • All-metal pivot balls
  • Black differential covers
  • All-metal gears
  • Tunable oil-filled shocks
  • Full ball bearings
  • Accommodates a wide variety of body styles

Overview

The SCX10 has long been the RC platform of choice for scale trail enthusiasts. In 2022 Axial introduced the SCX10 III Base Camp 4WD RTR and gave cost-conscious crawling fans the chance to enjoy its performance and realism. Now comes a new way to experience SCX10-based adventure — the SCX10 III Base Camp Builder's Kit.

Kit building is a hobby perfectly suited for Axial enthusiasts, many of whom are passionate about tinkering with and modifying their rigs. There's no better starting point for your adventure build than the Base Camp Kit. It's a classic crawling platform that carries a wealth of proven Axial quality and innovation.

Base Camp Kit advantages go well beyond the satisfaction of putting together your own rig. The assembly process makes you an expert on its engineering and a pro at maintenance and repairs. You're also able to express your individuality by choosing a body style you like and finishing it however you wish. By adding your personal preference in tires, wheels, and electronics, you create a custom crawler inside and out. Compared to buying an RTR rig that comes fully equipped, the kit ensures you won't pay for anything that you may not use.

Better still, the Base Camp Kit isn't just an unassembled version of the Axial RTR rig. It's an improved Base Camp. The transmission can be externally locked in standard 4WD, but it also has an optional, servo-actuated dig feature. Robust 6mm stainless steel links are included, as well as Standard AR45 straight axles. If you prefer portal axles, the LCXU transmission makes it easy to switch.

The Axial SCX10 III Base Camp Builder's Kit give you the perfect foundation for your adventuring — the proven SCX10 III steel C-channel chassis, an optimized suspension and steering, and a trail-tough drivetrain. When you add your choice of body, tires, wheels, and electronics, it's a rig you can truly call all your own.

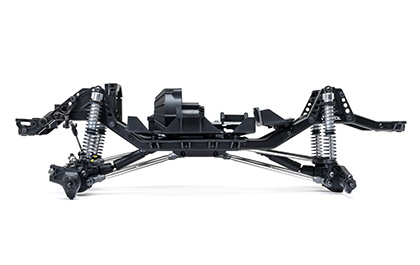

SCX10 III STEEL C-CHANNEL CHASSIS
SCX10 III STEEL C-CHANNEL CHASSIS

The Base Camp Kit's strong, realistic SCX10 III steel C-channel chassis reduces frame flexing and increases the precision of suspension movement. It also adjusts to accommodate a wide variety of body styles (optional links req.).

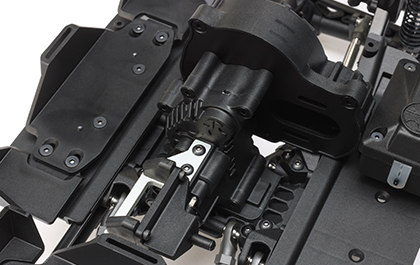

LCXU DIG TRANSMISSION
LCXU DIG TRANSMISSION

The kit's LCXU transmission can be externally locked in standard 4WD, but also has an optional, servo-actuated dig feature for improved turning and control.

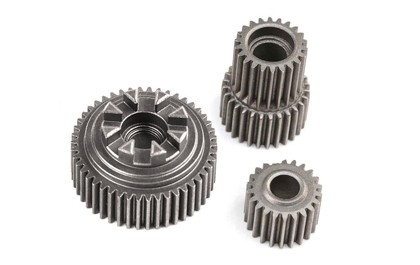

ALL-METAL GEARS
ALL-METAL GEARS

In addition to all-metal internal gears for strength and durability, the LCXU transmission also features a full set of ball bearings for a smooth, efficient ride.

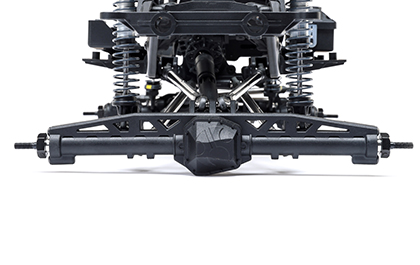

AR45 STANDARD AXLES
AR45 STANDARD AXLES

The kit includes Standard AR45 straight axles that mirror what's found under most full-size off-road vehicles. The LCXU transmission design also makes it easy to switch from standard axles to portals if desired.

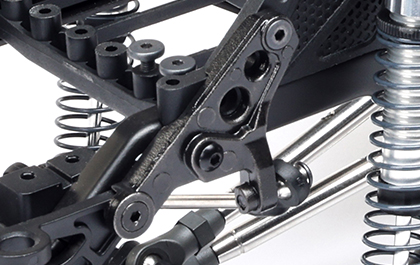

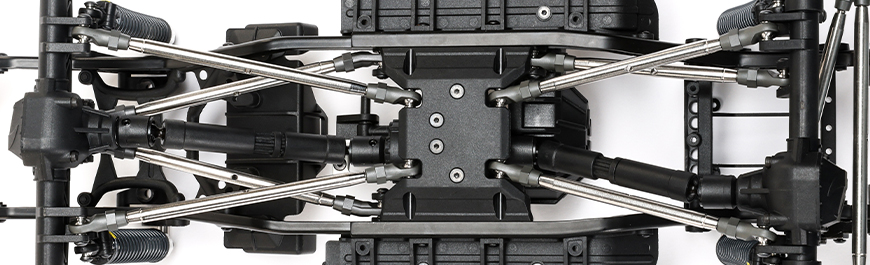

OPTIMIZED SUSPENSION
OPTIMIZED SUSPENSION

The suspension features 6mm stainless steel links and all-metal pivot balls for off-road durability. The tunable oil-filled shocks have aluminum threaded bodies and a single coilover spring.

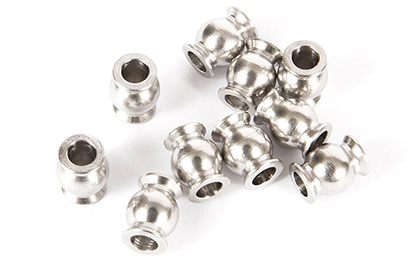

ALL-METAL PIVOT BALLS
ALL-METAL PIVOT BALLS

All pivot points are on stainless steel balls that provide durable, long-lasting performance.



METAL PANHARD MOUNT
METAL PANHARD MOUNT

Normally considered an upgrade, the metal panhard mount is included in the SCX10 III Base Camp Builder's Kit as a standard part.



Product Specifications

Body Sold Separately
Brakes Integral with ESC
Pinion 14T
Scale 1/10
Final Drive Ratio 45.6:1
Wheelbase 12.3" (312 mm)
Ball Bearings Complete Vehicle
Chassis Adjustable Steel C-channel
Completion Level Kit
Drivetrain 4WD
Wheel Hex Size 12mm
Battery Sold Separately
Ground Clearance Varies depending on tires used
Steering Type 2WS
Suspension Multi-Link Solid Axle
Product Weight Varies depending on components used
Vehicle Type Rock Crawler
Power Type Electric
Gear Pitch 32-Pitch
Charger Sold Separately
Receiver Sold Separately
Radio Sold Separately
