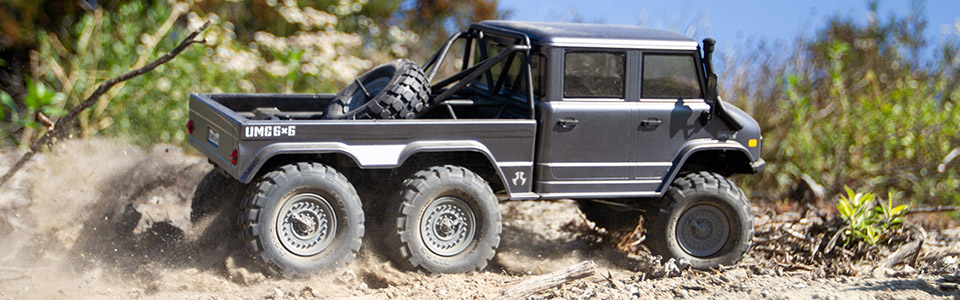

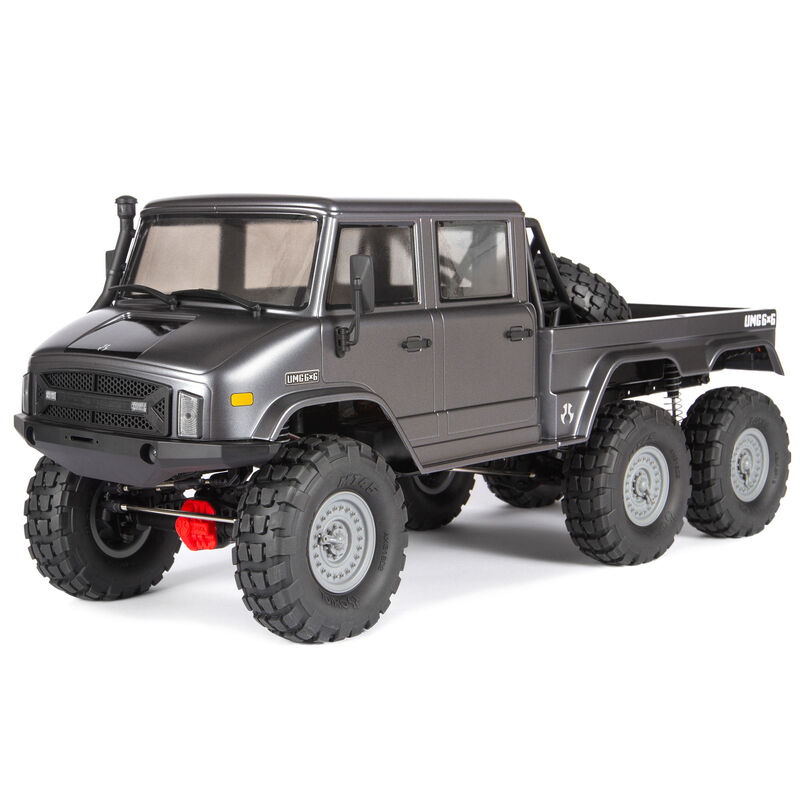

For extreme off-roading with more "Get me out of here!" grip, six wheels are better than four. See what new territory you can explore with the 1/10 scale Axial® UMG10™ 6X6 RTR. Built around the proven SCX10™ II chassis, the UMG10™ 6X6 delivers class-leading RC crawler performance in a convenient, ready-to-run package — only a battery and charger are required. The military-style body captures the look of full-size 6X6 trucks, with scale features that include 1.9 military-spec wheels and tires, a working spare, and built-in mounting positions for front and rear LED lights. The performance on dirt and gravel trails does thrilling justice to the vehicle's full-scale, all-terrain inspiration. Waterproof electronics keep the action alive over snow, mud, and more. With its durable SCX10 II metal-geared transmission, rugged AR44™ axles, full ball bearings, and more, the Axial® SCX10 II UMG10™ 6X6 lets even first-time RC drivers keep on going when the going gets tough!
- 7.4V 30+C 5000+mAh 2S Hardcase LiPo Battery with IC3™ or EC3™ Connector
- Compatible Balancing Charger
- AA Batteries (4) for Transmitter
- (1) Axial® SCX10™ II UMG10™ 6X6 RTR with:
- (1) Spektrum™ SRX200 Receiver (installed)
- (1) Axial® 35T Brushed, Water Resistant Motor (installed)
- (1) Dynamite® AE-5L ESC with IC3™ connector(installed)
- (1) Spektrum™ S605 Servo (installed)
- (1) Spektrum™ STX2 Transmitter
- (1) Product Manual
MILITARY-BASED CREW CAB BODY WITH REAR CAGE

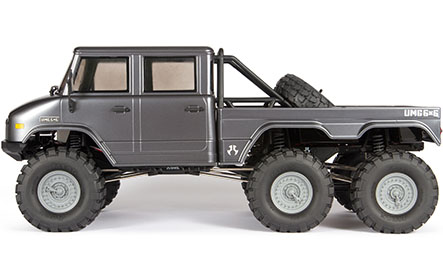

The ready-to-run Axial® SCX10™ II UMG10™ 6X6 delivers realistic performance with an authentic military feel — enhanced by this scale crew cab body with hinged rear cage for quick chassis access. The aggressive approach angle created by the vehicle's front end design enables the UMG10™ 6X6 to take on steep inclines, and the long 17.3" (439mm) wheelbase helps with agility in challenging terrain.

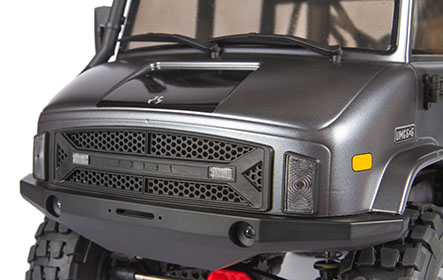

MOLDED PLASTIC GRILLE AND SCALE DETAIL
The realistic molded plastic grille features details such as a radiator, an embossed Axial® logo, two clear marker lenses, and two headlight lenses. Additional scale details can be found throughout the body for an authentic military look.

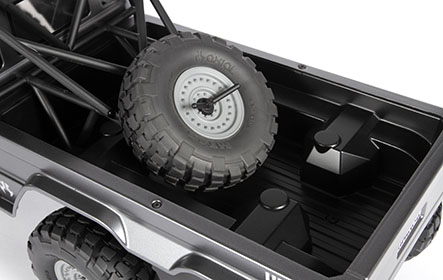

REAR CAGE HINGED BODY SYSTEM
In addition to a carrier for the spare tire, the rear cage features a hinge system that allows quick access to the chassis for maintenance. Just remove two body clips hidden under the cab and raise the body to reach the battery and other on-board components.

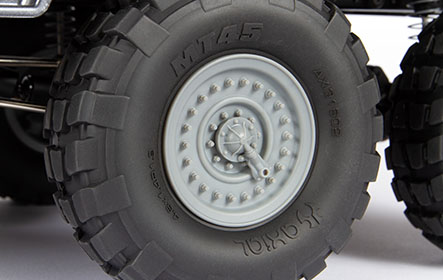

MIL-SPEC WHEELS AND TIRES
Six 1.9 MT45 tires, molded in sticky Axial® S30 compound rubber, keep the UMG10™ 6X6 crawler on course and climbing difficult terrain with ease. Their big block, symmetrical tread pattern provides plenty of grip to get over steep obstacles. The tires are mounted on injection-molded, 3-piece, MW19 beadlock wheels that offer the perfect scale look for a military build. A functional spare tire is also included.

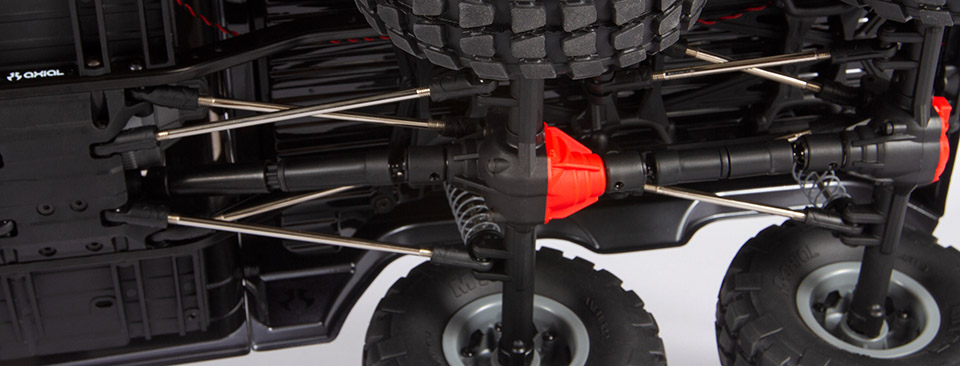

TANDEM REAR AR44 AXLES
The UMG10™ 6X6 class-leading axle performance. Tandem AR44™ rear axles with a high pinion design provide the toughness needed for rugged off-road trails. Universal joint axles, helical cut internal gears and high-quality bearings are all standard equipment. The ring gear/locker is a single-unit piece made of strong sintered metal, and the pinion is CNC cut for durability.
The AR44™ axles feature a high pinion gear set for a much lower gear ratio than most vehicles, plus a smaller pumpkin and added strength. The gear set overcomes the torque twist often associated with smaller gear sets. The axle itself retains the durability associated with the SCX10, despite being delivered in a smaller axle housing
- High pinion gears for added ground clearance and better driveshaft angles
- High pinion design increases gear surface contact for greater durability
- Larger load bearings around the gear set reduce flex and strengthen the drivetrain
- Single piece axle housing adds strength
- One-piece all-metal locker front and rear
- Small pumpkin for increased clearance and a more scale look
- Optimized gear ratio reduces torque twist
- Ring gear/locker is a single-piece unit made of strong sintered metal

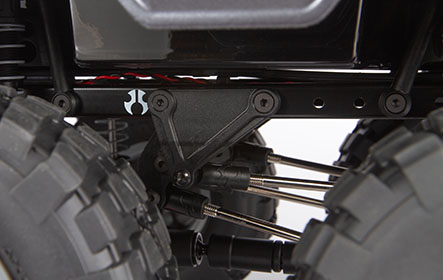

EXTENDED FRAME RAILS
The UMG10™ 6X6 includes the same frame rails from the original SCX10™ II chassis design, along with two additional steel c-channel frame rail extensions, each measuring 139mm in length. The frame rails are joined on either side by a rear link mount, which give the truck the length it needs to accommodate an additional rear axle.
LED FRONT AND REAR LIGHTS
For realism that continues when the sun goes down, outfit your UMG10™ 6X6 with lights — a total of eight mounting locations are built-in for easy LED installation. Four LED lights are included* - two white LED lights are mounted in the front bumper, and two red LED tail lights are mounted in the rear of the bed.* Additional LED lights sold separately

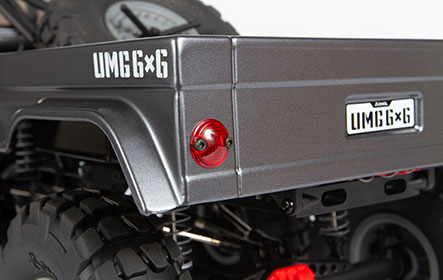

By creating the bed from two pieces rather than as a single piece, Axial® engineers have been able to give it much greater depth. Two working LED tail lights with red plastic tail light lenses are mounted in the rear of the bed.

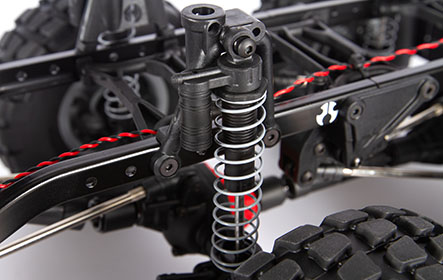

ADJUSTABLE COILOVER SHOCKS
Made to tight tolerances, the included coilover shocks feature precision-machined pistons for smooth action throughout their range of travel, delivering the crawling performance you expect from an Axial® vehicle.

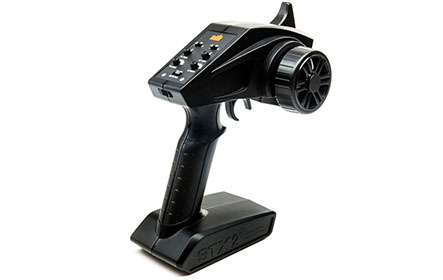

SPEKTRUM™ STX2® TRANSMITTER
The STX2 2-channel radio system offers many features of higher-end 2.4GHz radio systems like throttle/steering reversing, throttle/steering travel adjust & throttle limiting.
- Built-in 3-position throttle limiter
- Steering & throttle rate & trim adjustments with throttle and steering reversing
- FHSS 2.4GHz protocol offers extended range and interference free performance

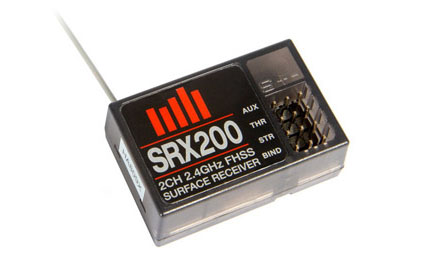

SPEKTRUM™ SRX200 RECEIVER
The SRX200 is a 2 channel 2.4GHz receiver that operates on the FHSS modulation. It is conformal coated to help prevent damage from water, dust and other elements. Features an extra-long antenna lead for easy and effective antenna placement.

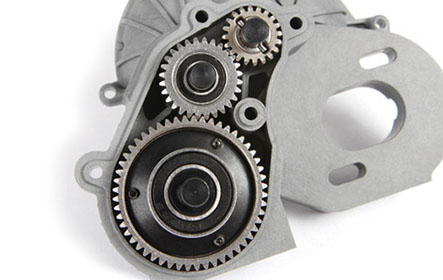

AX10™ TRANSMISSION - ALL METAL GEARS
The ultra compact transmission allows for a wide range of gearing choices. The overall ratio can be adjusted using different pinion and spur gear choices allowing super high speed or competition level crawling speed. The new transmission housing design still retains the basic function of the original transmission but in a new more scale looking case.
- Final drive ratio (FDR) 42.00 – Original SCX10 was 33.06
- All metal internal gears!
- Scale looks – silver color looks like cast aluminum
- Better mounting points at the base of the transmission – no more stripped screws!

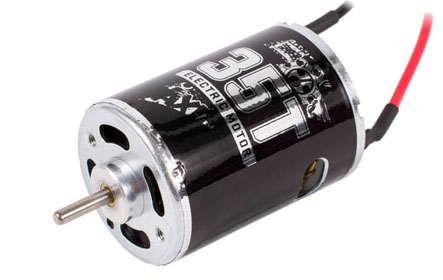

AXIAL 35T BRUSHED, WATER RESISTANT MOTOR
Providing an even balance of speed and crawling, the 35-turn brushed motor features a worry-free design with an integrated cooling fan allowing for extended periods of use. Easy operation: no tuning, no fuel, and no loud exhaust noise. Just plug 'n' go!

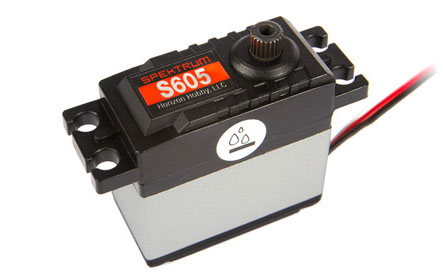

SPEKTRUM™ S605 SERVO
The Spektrum S605 servo offers 161 oz-in of steering torque, a metal case for strength, and it's waterproof for extra protection against the elements.
- Type: Analog
- Torque: 161 oz-in @ 6.0V
- Speed: .24 sec/60 degrees @ 6.0V
- Bushing Or Bearing: Bushing
- Connector Type: Z-connector
- Gear Type: Nylon
- Gear Material: Plastic

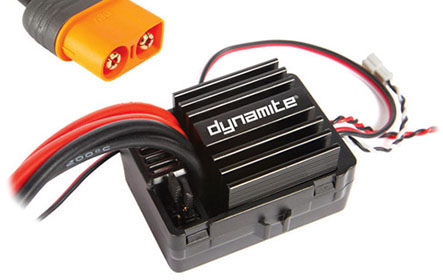

DYNAMITE® AE-5L ESC W/ DRAG BRAKE, WATERPROOF
The Dynamite AE-5L ESC is 3S LiPo capable yet easily switched "in the field" between LiPo and NiMH battery types with a simple jumper – no more complex procedures.
- LED Light controller built-in with dual LED outputs for headlights/taillights.
- Four LED lights included (two white, two red)
- Convenient IC3™ plug lead.
- Jumper 1 provides a simple plug and play choice between LiPo or NiMH.
- Jumper 2 switches Drag Brake settings.
- Waterproof design with IC3™ plug / laser etched heat sink.
|Approximate Assembly Time||No assembly required|
|Ball Bearings||Full set|
|Battery||5000mAh 30C 2S LiPo w/IC3 Connector (Sold Separately)|
|Body||Molded Polycarbonate, Trimmed and Painted, Two-Piece Bed|
|Front Track||9.1 in (230mm)|
|Ground Clearance||2.6" (66mm)|
|Max Battery Dimensions||5.5 x 1.8 x 1.0" (139 x 46 x 25mm)|
|Outer Diameter||4.6 in (117mm)|
|Product Height||9.6" (245mm)|
|Product Length||23" (584.2mm)|
|Product Weight||5.5lbs (2.5kg)|
|Product Width||9.1" (230mm)|
|Rear Track||9.1 in (230mm)|
|Servos||Spektrum S605 9KG Waterproof Chassis Mounted Metal Gear Steering Servo with Metal Servo Horn|
|Shock Type||Six Oil-Filled, Injection Molded Bodies|
|Suspension||4-link solid axle|
|Tire Compound||R35 Sticky Compound|
|Wheel Type||Injection Molded 3-Piece Beadlock|
|Wheel Width||1" (25.4mm)|
