Discontinued

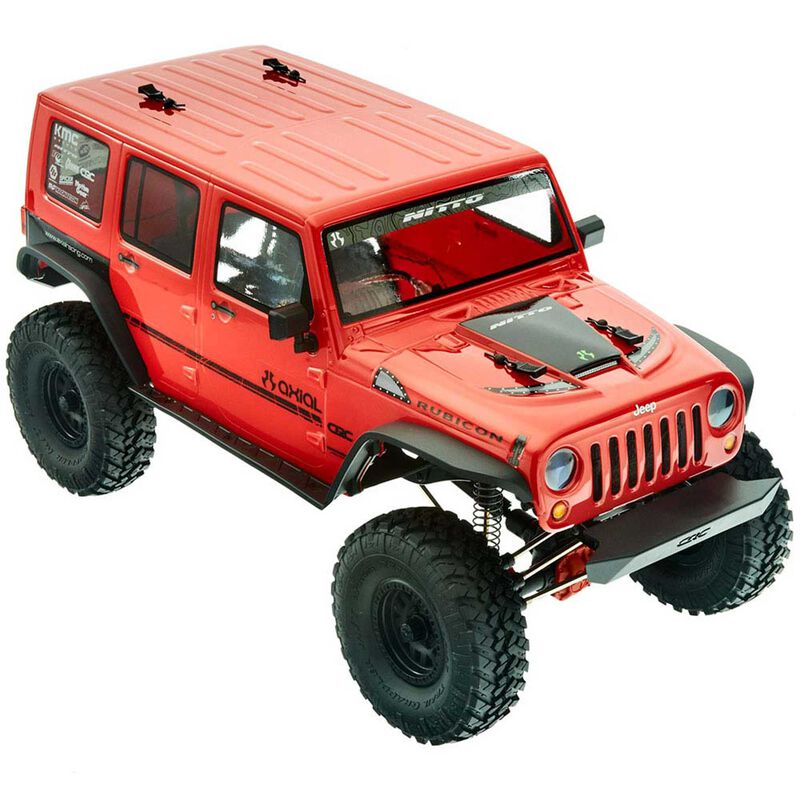

1/10 SCX10 II 2017 Jeep Wrangler Unlimited CRC 4WD Rock Crawler Brushed RTR

AXID9060

Discontinued

1/10 SCX10 II 2017 Jeep Wrangler Unlimited CRC 4WD Rock Crawler Brushed RTR

Name: 1/10 SCX10 II 2017 Jeep Wrangler Unlimited CRC 4WD Rock Crawler Brushed RTR
Brand: Axial
SKU: AXID9060
Price: 650.00 USD
Availability: Discontinued

AXID9060

This Item is No Longer Available

Product Details

Quick Links

Manuals & Support

Key Features

Chassis: Scale steel C-channel side rails with adjustable body mount, adjustable bumper mounts with swaybar mounting points, mounting points for optional 2-speed and servo winch, adjustable chassis mounted servo system
Drive: Full time 4WD locked drivetrain with WB8 HD Wild Boar driveshafts, UVJ style front driveshafts for up to 45° of steering angle, full ball bearing drivetrain
Transmission: AX10 three gear layout, metal motor plate, adjustable ratio for high speed or competition level crawling speed
Slipper Clutch: Dual pad design for added surface area, 32P gear pitch for high-torque applications
Motor: 35 turn, brush equipped, water resistant, integrated cooling fan
Radio: Tactic TTX300 3-channel SLT radio with TR325 Receiver, programmable 3rd channel for operating two speed transmission winches or lights
Steering Servo: Tactic TSX45 metal gear, water resistant, 151oz/in torque rating, dual ball bearings
ESC: AE-5L waterproof, switchable between LiPo or NiMH operation with a simple jumper, Star plug battery connector, built-in LED light controller (NOTE LED leads are not compatible with old Axial LED light strings, or third party LED light strings
Spur Gear: 56T 32-pitch, plastic construction Pinion Gear 15T 32-pitch, steel construction
LED Lights: Four white for head lights and turn signal markers, and two red lights for tail lights
Battery Tray: Easy access front mount, accomodates batteries up to 1.2 x 1.7 x 5.8" (32x44x147mm) 3S, 5000mAh
Front and Rear Axles: Hardened steel
AR44 Hi-Pinion Axle: Hypoid cut CNC metal gears, optimized gear ratio for reduced torque twist, optional gearing choices, one- piece axle housing, increased clearance, larger load rated bearings for durability, 8° kingpin axle eliminates tire scrub, single piece axle housing, one-piece all metal locker, 10° increment adjustments for knuckle carriers and straight axle adapters, optimized gear ratio; 3.75 compared to 2.92 previously, for less torque twist
Body: Painted 2017 Jeep Wrangler Unlimited CRC
Wheels: 1.9" KMC XD 229 Machete Crawl wheels, molded composite construction, black in color, 1.02" (26mm) wide, 2.12" (53.9mm) diameter, 12mm hex
Tires: 1.9" Nitto Trail Grappler M/T, S30 compound with large blocks for excellent bite in all terrain 4.7" (119.4mm) 1.9" (48.2mm) wide
Shocks: Coil over, oil filled, steel springs, white in color
Suspension: Optimized suspension geometry with integrated mounts upper and lower aluminum links, 4-link design reduces axle steer and torque twist, and guards against suspension wrap-up in high- power applications, all steel links
Steering: Proper CMS geometry using 3-link setup with panhard bar, 45° steering angle
Bumpers: Scale front and rear bumpers and rock sliders licensed by JCR Offroad, lenses in bumpers for light kit (light kit not included)

Video Overview

Needed to Complete

6-cell NiMH or 2-3S LiPo
Suitable Charger
Building and track equipment

What's in the box?

(1) RTR SCX10 II Jeep Wrangler Unlimited CRC with Oil-Filled Shocks, Wheels, Tires, Painted Body, Rock Sliders, Radio, ESC, Motor, Decals. Waterproof Receiver Box, LED Lights
(1) User Manual

Specifications

Vehicle

Length: 19.25" (489mm)
Width: 8.9" (226mm)
Height: 9.4" (223.4mm)
Wheelbase: 12.3" (312.4mm) adjustable with optional link kits sold separately
Ground Clearance: 3.0" (77mm)
Weight: 4.5lbs (2.04kg) approximately, with electronics
Optimized Gear Ratio: 3.75:1
Final Drive Ratio (FDR): 40.44, stock (33.69-54.15 with different spur/pinion gear combinations, extra spur and pinion gears must be purchased separately)

Body

Length: 17.2" (438mm)
Width: 8" (203mm)
Height: 5.5" (140mm)

Product Specifications

Manufacturer #	AX90060
Gear Pitch	32-Pitch
Servos	Tactic TSX45 Servo. Torque: 6.0V 151 oz-in, 4.8V 143 oz-in
Product Width	8.9 in (226mm)
Radio	Included
Power Type	Electric
Product Height	9.4 in (239mm)
Motor Type	Brushed
Wheelbase	12.3 in (313mm)
Product Weight	4.5 lb (2.04 kg)
Vehicle Type	Rock Crawler
Water-Resistant	Yes
Ground Clearance	3.0 in (77mm)
Motor Size	35T
Product Length	19.25 in (489mm)
Scale	1/10
Completion Level	Ready-To-Run
Drivetrain	4WD
