Product Details

Key Features
  • Saint Dragon body is pre-assembled and pre-painted in white, all that is required to finish the body is the application of stickers.
  • Features an aluminum motor mount.
  • Includes 540-type brushed motor.
icon-box
In The Box
  • (1) 1/10 Saint Dragon 4WD (2021) Kit
  • (1) HobbyWing THW 1060 Brushed ESC (2-3S)
  • (1) 540-brushed type motor
  • (1) Body stickers
  • (1) Product manual
icon-how-to
Needed to Complete
  • 2-channel radio
  • Steering servo
  • 7.2volt battery & battery charger
1/10 Saint Dragon 4WD (2021)

Features

  • Saint Dragon body is pre-assembled and pre-painted in white, all that is required to finish the body is the application of stickers.
  • Based on the same 4WD buggy chassis as Item 47457, which uses a tough bathtub frame plus front/rear gearboxes with suspension attached.
  • 4-wheel double wishbone suspension uses CVA oil shock/dampers, and a front stabilizer for a firm setup.
  • Front and rear sealed differentials use die-cast, 3-bevel type gears for superior handling feel.
  • Features an aluminum motor mount.
  • Includes 540-type brushed motor.

Overview

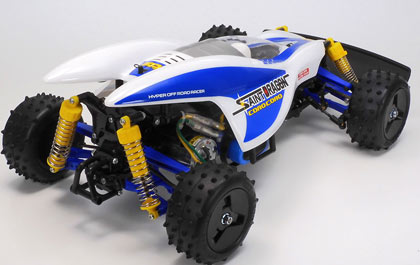

This R/C kit recreates a Tamiya popular 1980’s R/C comic car famously known as the Saint Dragon. The limited-edition recreation is mounted on the same chassis as the Fire Dragon, which is a capable 4WD off-road machine!

Efficient Shaft-Driven 4WD! The Saint Dragon (2021) chassis features a shaft-driven 4WD drivetrain married to a lightweight and tough bathtub frame that employs front and rear gearboxes with the suspension attached to them; that suspension utilizes upper "I" and lower "H" arms, and offers a ground-hugging fun drive experience. Both gearboxes house a gear differential, and are compact to ensure plentiful ground clearance. The kit also features an aluminum motor mount for superior heat dissipation.

Pre-cut Body
Pre-cut Body

The flowing, dynamic body lines are a real treat; it is pre-painted in white, and pre-cut, just requiring application of stickers.

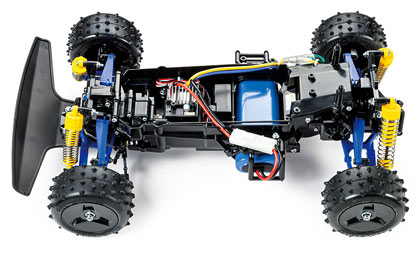

Bathtub Frame
Bathtub Frame

A durable, easy-maintenance layout employs a bathtub frame with front and rear gearboxes screw-attached to it.

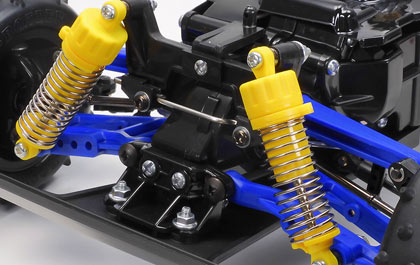

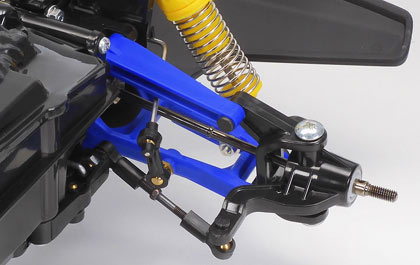

Front Suspension
Front Suspension

Double-wishbone suspension features upper "I" and lower "H" arms, and employs a front stabilizer to minimize roll when cornering.



CVA Oil Shocks
CVA Oil Shocks

CVA oil dampers give exemplary shock absorption that translates into a highly controllable drive.

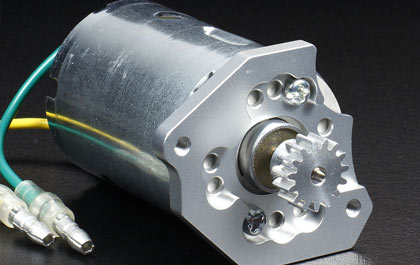

Motor Mount
Motor Mount

An aluminum motor mount not only boosts the model's rigidity, it also helps with motor heat dissipation.

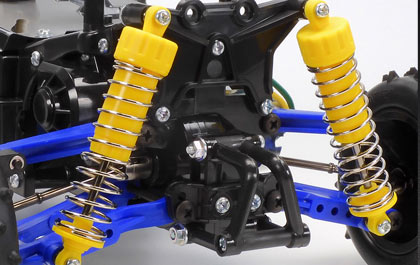

Rear Suspension
Rear Suspension

CVA oil damper-fitted rear double wishbone suspension.

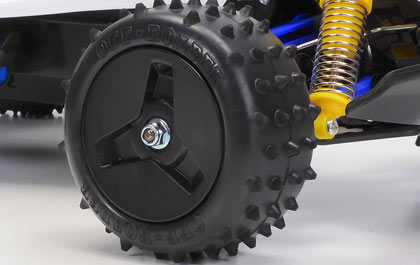

Tires & Wheels
Tires & Wheels

Dish wheels attract less mud when driving; they are paired with grippy spike tires.

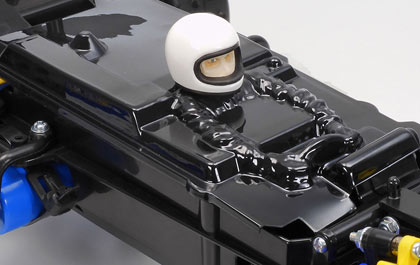

Driver Figure
Driver Figure

The polycarbonate chassis cover includes a depiction of driver arms. The helmet is a separate part.



Product Specifications

Bushing Material Plastic
Charger Sold Separately
Receiver Sold Separately
Shock Type CVA Oil Filled
Motor Type Brushed
Power Type Electric
Body Polycarbonate
Scale 1/10
Vehicle Type Buggy
Battery Sold Separately
Motor Size 540
Product Length 15.35" (390 mm)
Suspension Fully Independent Double Wishbone
Ball Bearings Plastic bushing
Chassis ABS Plastic
Completion Level Kit
Drivetrain 4WD
Product Height 5.31" (135 mm)
Product Width 9.44" (240 mm)
Radio Sold Separately
