1/10 RC10B84D 4x4 Electric Off-Road Competition Buggy Kit

Item No. ASC90051
Brand Logo
5 out of 5 Customer Rating

1/10 RC10B84D 4x4 Electric Off-Road Competition Buggy Kit

Item No. ASC90051
$619.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

The Team Associated RC10B84D is Engineered for Victory!
Key Features
  • Molded Height-Adjustable Gearboxes Front and Rear with Additional +2 Rear Gearbox for High-Grip Conditions
  • Long-Arm Suspension Geometry: improves grip and predictability in all conditions
  • Optimized Steering Bellcranks and Rack: improved bumpsteer control at all ride heights
  • Chassis Bracing: Fine tune chassis flex characteristics with upper and lower chassis bracing front and rear
  • Standard and HRC (High Roll Center) Rear Hubs Included
icon-box
In The Box
  • (1) 1/10 RC10B84D Team 4WD Electric Off Road Competition Buggy Kit
icon-how-to
Needed to Complete
  • (1) 2+ Channel Radio System
  • (1) Standard-Size Steering Servo
  • (1) 540-Size Electric Motor
  • (1) 1/10 Electronic Speed Control
  • (1) Pinion Gear
  • (4) 1/10 Buggy Wheels & Tires

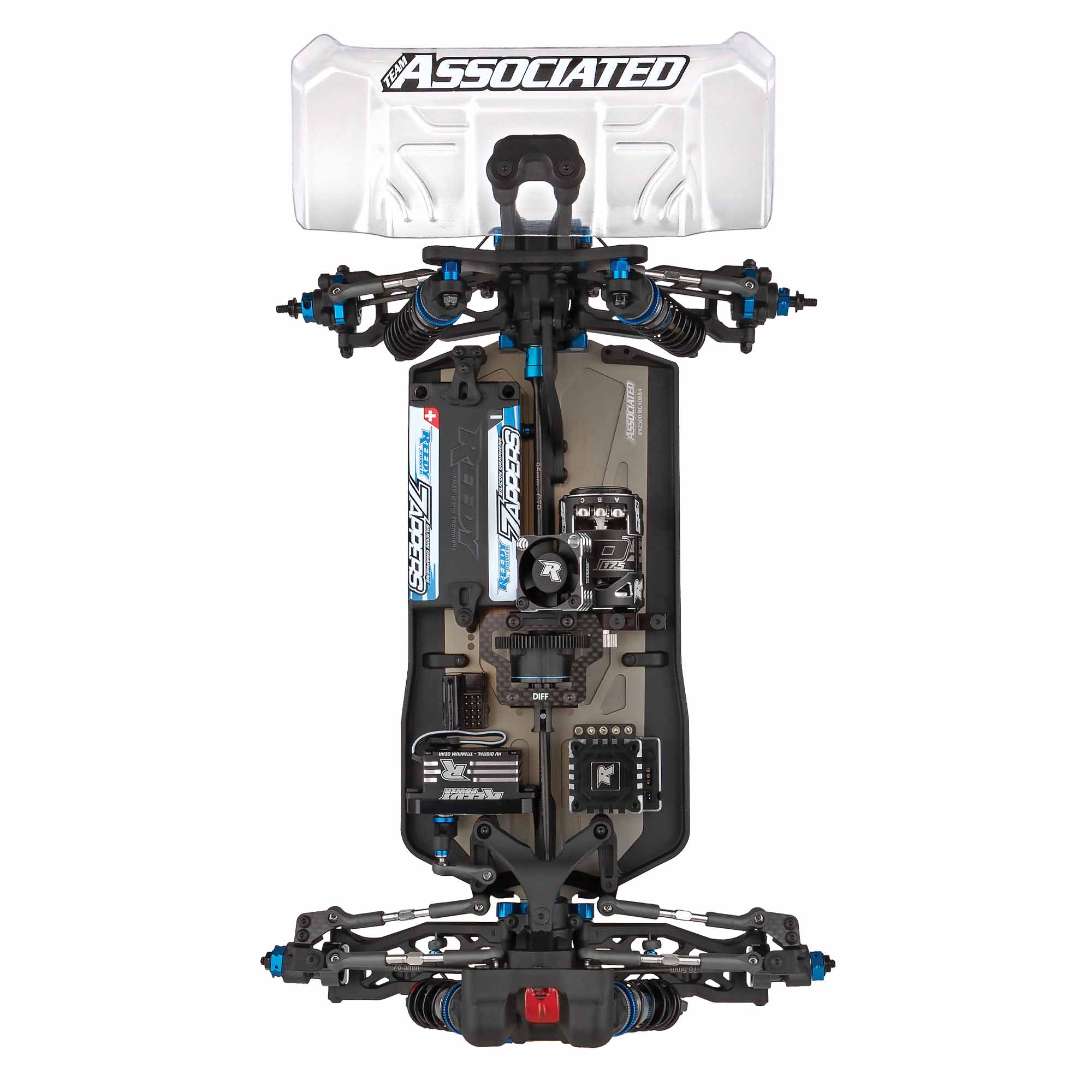

1/10 RC10B84D 4x4 Electric Off-Road Competition Buggy Kit

RC10B84D Kit

Unleash unparalleled performance with the RC10B84D, a 1/10-scale 4WD buggy engineered for precision, speed, and racetrack victories.

Designed with cutting-edge features, this competition machine delivers superior handling and control. Its molded height-adjustable gearboxes keep the weight low with a wide range of adjustability.

The long-arm suspension geometry enhances grip and predictability, while the optimized steering bellcranks and rack provide exceptional bump steer control, keeping your lines tight at every corner.

Fine-tune your setup with chassis bracing adjustments, giving you the flexibility to adapt to each track you race on. The RC10B84D allows for precise weight distribution and chassis balance, letting you push the limits with confidence.

Enhanced aerodynamics come standard with a lowprofile body and two rear wing mount heights. The RC10B84D is finished with shock tower covers, 3.5mm turnbuckles and ballcups, and 13mm big-bore shocks, providing the ultimate blend of strength, precision, and performance, the RC10B84D is your key to place top of the podium!

Features

  • Molded Height-Adjustable Gearboxes Front and Rear with Additional +2 Rear Gearbox for High-Grip Conditions
  • Long-Arm Suspension Geometry: improves grip and predictability in all conditions
  • Optimized Steering Bellcranks and Rack: improved bumpsteer control at all ride heights
  • Chassis Bracing: Fine tune chassis flex characteristics with upper and lower chassis bracing front and rear
  • Standard and HRC (High Roll Center) Rear Hubs Included
  • Insert adjustable caster block with 0, +/-1, and +/-2 degree inserts included
  • Forward and Back Motor Positions: used for further weight bias adjustment
  • Highly Adjustable Battery Holder with Thumb Tabs: allows for easy battery removal and fine tuning of weight bias
  • 2.5mm Thick Tapered 7075-T6 Aluminum Chassis with 10 Degrees of Kickup and Improved Departure Angle
  • Molded Ring and Pinion Gears Included
  • Aluminum Center-Mounted Servo Mount
  • Two heights Included for Rear Wing Mount
  • 7-inch Rear Wing
  • Low-Profile Body
  • Shock Tower Covers Front and Rear
  • 3.5mm Turnbuckles and Ballcups
  • 13mm Big-Bore Shocks

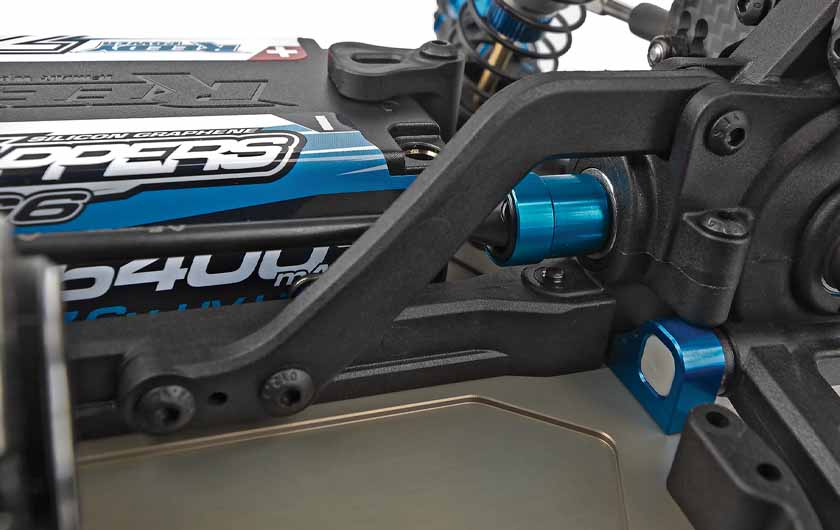

Chassis Bracing can be fine tuned
Chassis Bracing

Fine tune chassis flex characteristics with upper and lower chassis bracing front and rear.

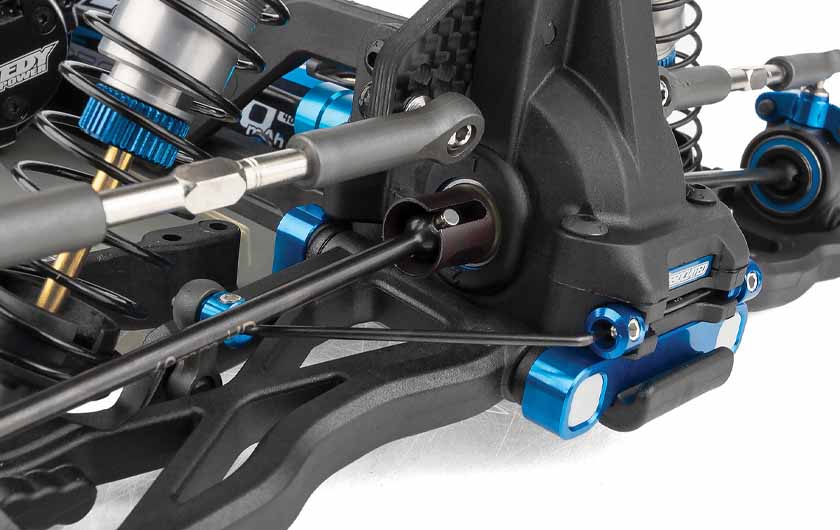

Long-Arm Suspension Geometry
Long-Arm Suspension Geometry

Improves grip and predictability in all conditions.

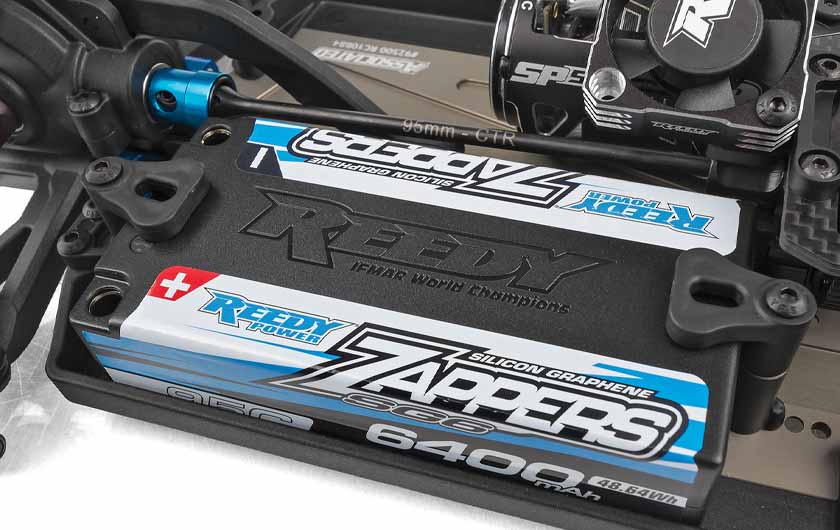

Highly Adjustable Battery Holder with Thumb Tabs
Highly Adjustable Battery Holder with Thumb Tabs

Allows for easy battery removal and fine tuning of weight bias.

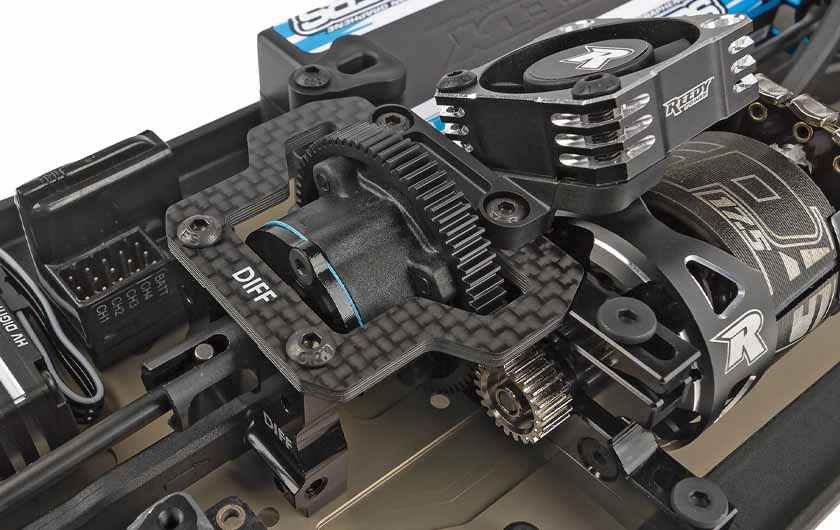

Motor position can be adjusted for weight bias
Forward and Back Motor Positions

Used for further weight bias adjustment.

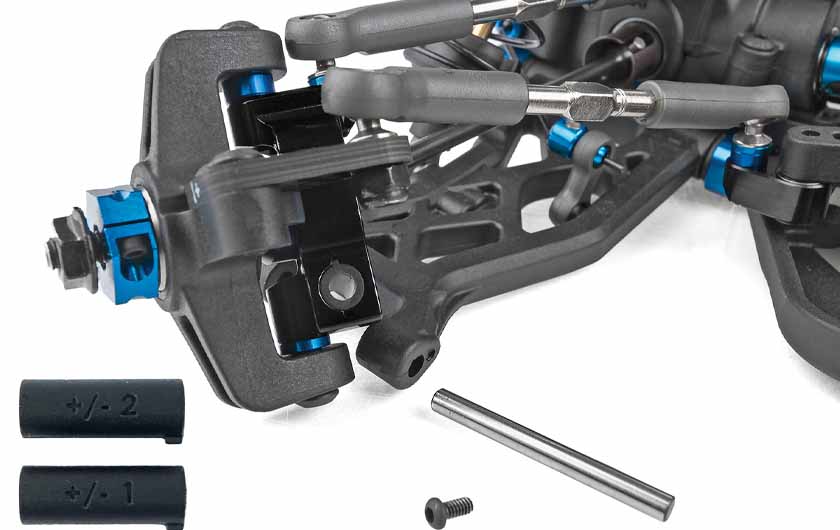

Caster blocks can be adjusted
Adjustable Caster Block

Insert adjustable caster block with 0, +/-1, and +/-2 degree inserts included.

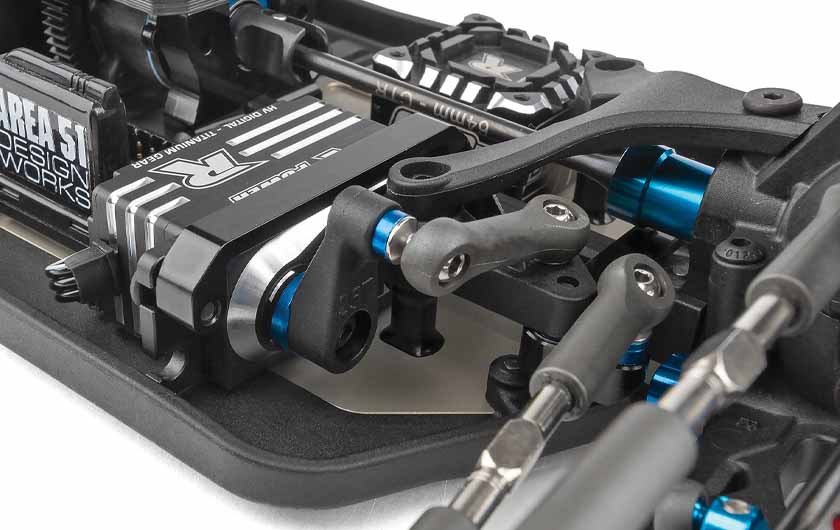

Optimized Steering Bellcranks and Rack
Optimized Steering Bellcranks and Rack

Improved bumpsteer control at all ride heights.

Product Specifications

Battery Sold Separately
Body Clear Polycarbonate
Charger Sold Separately
Completion Level Kit
Differential Gear Diffs
Drive Type Forward/Brake/Reverse
Drivetrain 4WD
Internal Gear Ratio 2.50:1
Manufacturer # 90051
Power Type Electric
Product Length 15.55" (395 mm)
Radio Sold Separately
Receiver Sold Separately
Scale 1/10
Servos Sold Separately
Shock Type 13mm Big-Bore Shocks
Speed Control Sold Separately
Suspension Independent Front and Rear
Vehicle Size Standard
Vehicle Type Buggy
