1/10 RC10B7D 2WD Buggy Team Kit

Item No. ASC90042
Backorder
Brand Logo
5 out of 5 Customer Rating

1/10 RC10B7D 2WD Buggy Team Kit

Item No. ASC90042
$389.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
Next Shipment June 2024
Selected Store

Product Details

Champions by Design!
Key Features
  • 5-Gear Laydown Transmission
  • Long-Arm Suspension Geometry
  • KPI Adjustable Steering And Caster Blocks
  • Vertical Front Outer Ballstud
  • 7075-T6 Aluminum Chassis
icon-box
In The Box
  • (1) 1/10 RC10B7D 2WD Buggy Team Kit
icon-how-to
Needed to Complete
  • (1) 540-Size Motor
  • (1) Electronic Speed Control
  • (1) Battery Charger
  • (1) 7.4V - 7.6V Shorty Battery
  • (1) 2+ Channel Radio System
  • (1) Standard-Size Steering Servo
  • (1) 1/10 Buggy Body
  • (4) 1/10 Off-Road Tires and Wheels

Introduction

Team Associated has been at the leading edge of 1:10 scale 2WD off road for the last 40 years starting with the original RC10 and are proud to introduce this next generation to the world--the RC10B7. 40 years has seen a lot of development and changes, with each generation being a step forward from the last. The RC10B7 is no exception, boasting new long-arm suspension geometry, weight-centralized electronics layout, KPI adjustable steering blocks, and increased tunability throughout the whole chassis. These innovations have increased the potential for grip and corner speed, which leads to faster lap times and an overall easier-to-drive feel than the previous generation.

Features

  • 5-gear laydown transmission with low profile motor mount moves weight of motor closer to the center of the car
  • Long-arm suspension geometry improves grip and predictability in all conditions
  • KPI adjustable steering and caster blocks allows for fine tuning steering feel. Three options are included in the kit.
  • Vertical front outer ballstud allows fine tuning of roll center, camber gain, and link length
  • Height adjustable aluminum front bulkhead allows for further tuning of front roll center
  • Standard and HRC (High Roll Center) rear hubs included
  • Highly adjustable battery holder with thumb tabs allows for easy battery removal and fine tuning of weight bias
  • 7075-T6 aluminum chassis with increased departure angle and optional weight plate pockets
  • HD 69mm CVA bones and differential outdrives for improved durability
  • Lightweight molded servo mount
  • One-piece rear wing mount improves durability
  • New 7-inch rear wing and 2.5-inch front wing
  • Low-profile body included
  • Shock tower covers front and rear
  • 3.5mm turnbuckles and ballcups

Overview

The RC10B7D is the recommended starting kit for those who plan to race on dirt, clay, and some low-grip AstroTurf® tracks. This kit comes equipped with a ball differential and an optimized setup which includes softer springs and lower pack pistons. As with previous generations, the RC10B7D and RC10B7 feature fully interchangeable parts between the two kits, which allows the user to pick and choose what configuration they want to use depending on track conditions. Both versions come with the same durability, speed, and lineage of a champion that is found in any Team Associated race platform.

RC10B7 Video Series: RC10 History

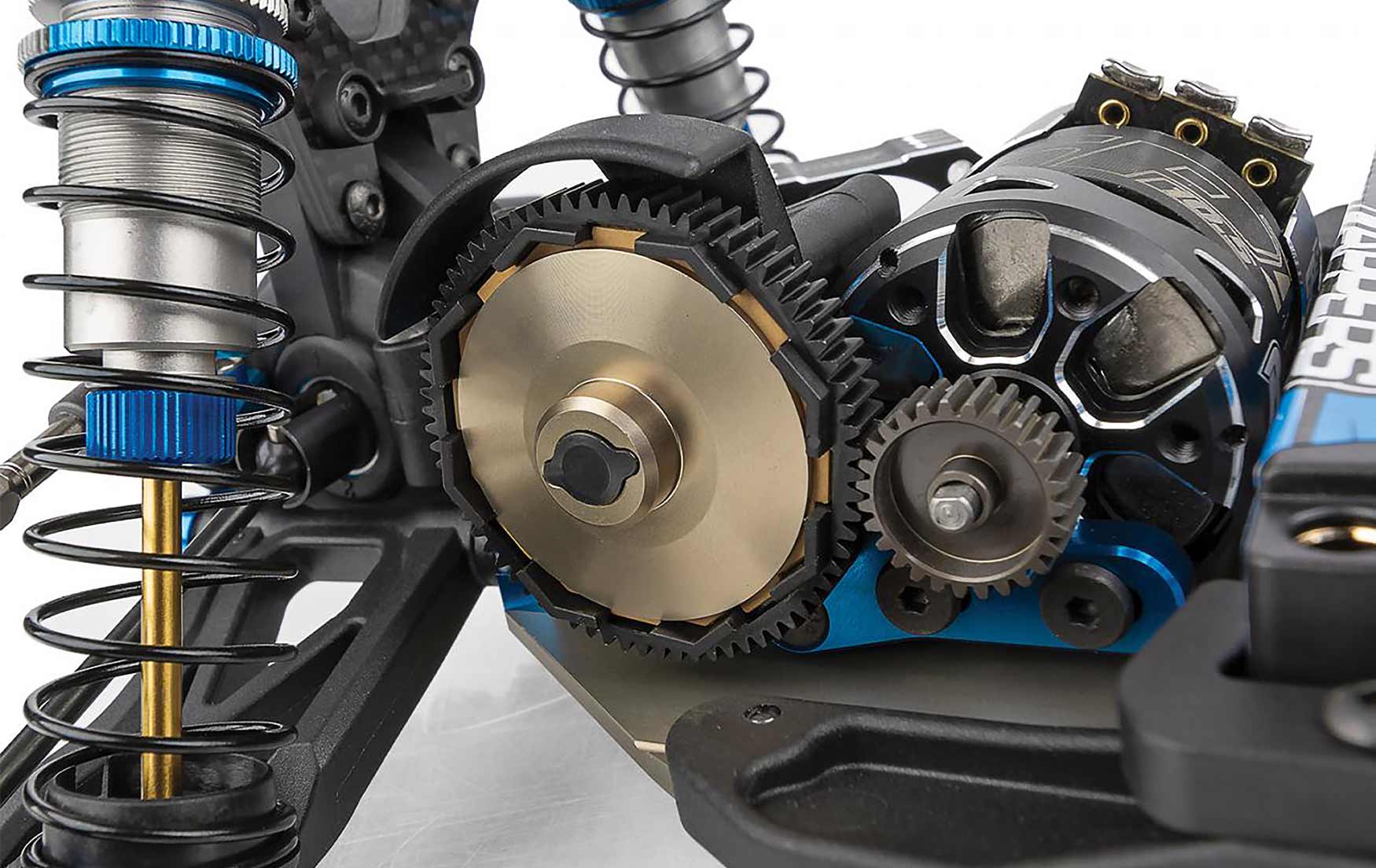

Transmission
Transmission

5-gear laydown transmission with lower profile motor mount moves weight of motor closer to center of the car.

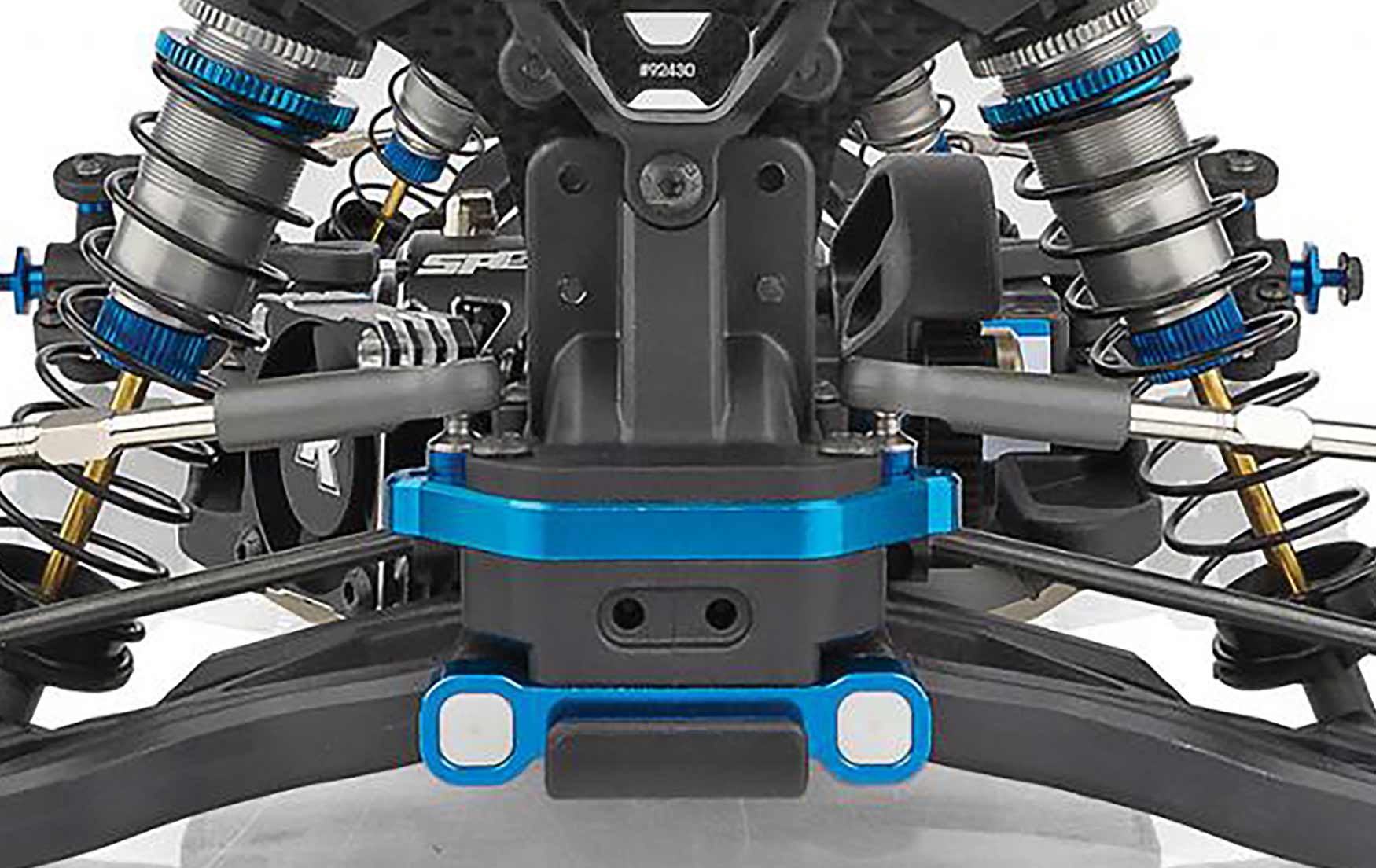

Rear Wing
Rear Wing

One-piece rear wing mount improves durabillity.

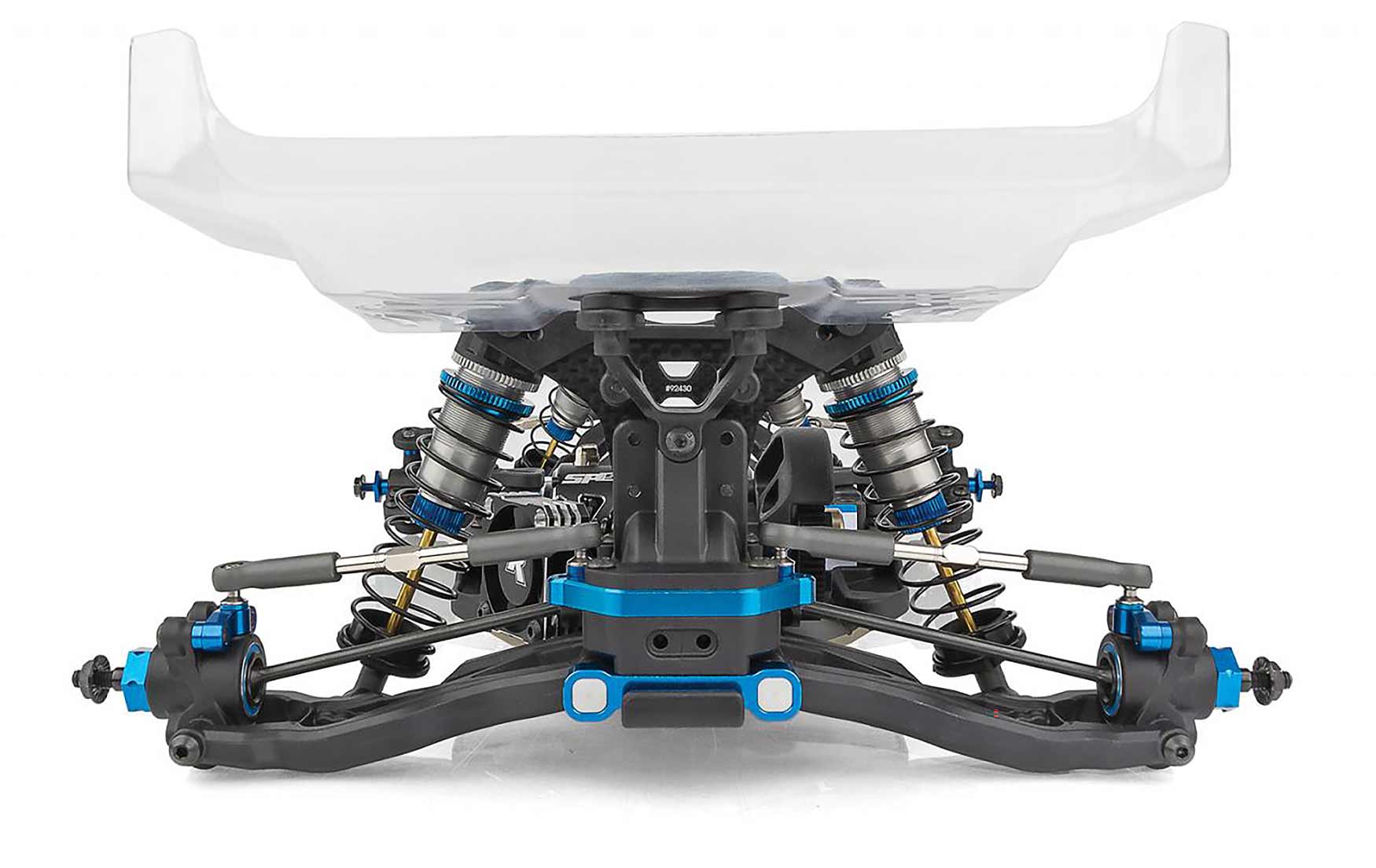

Differentials
Differentials

HD 69mm CVA bones and differential outdrives for improved durability.

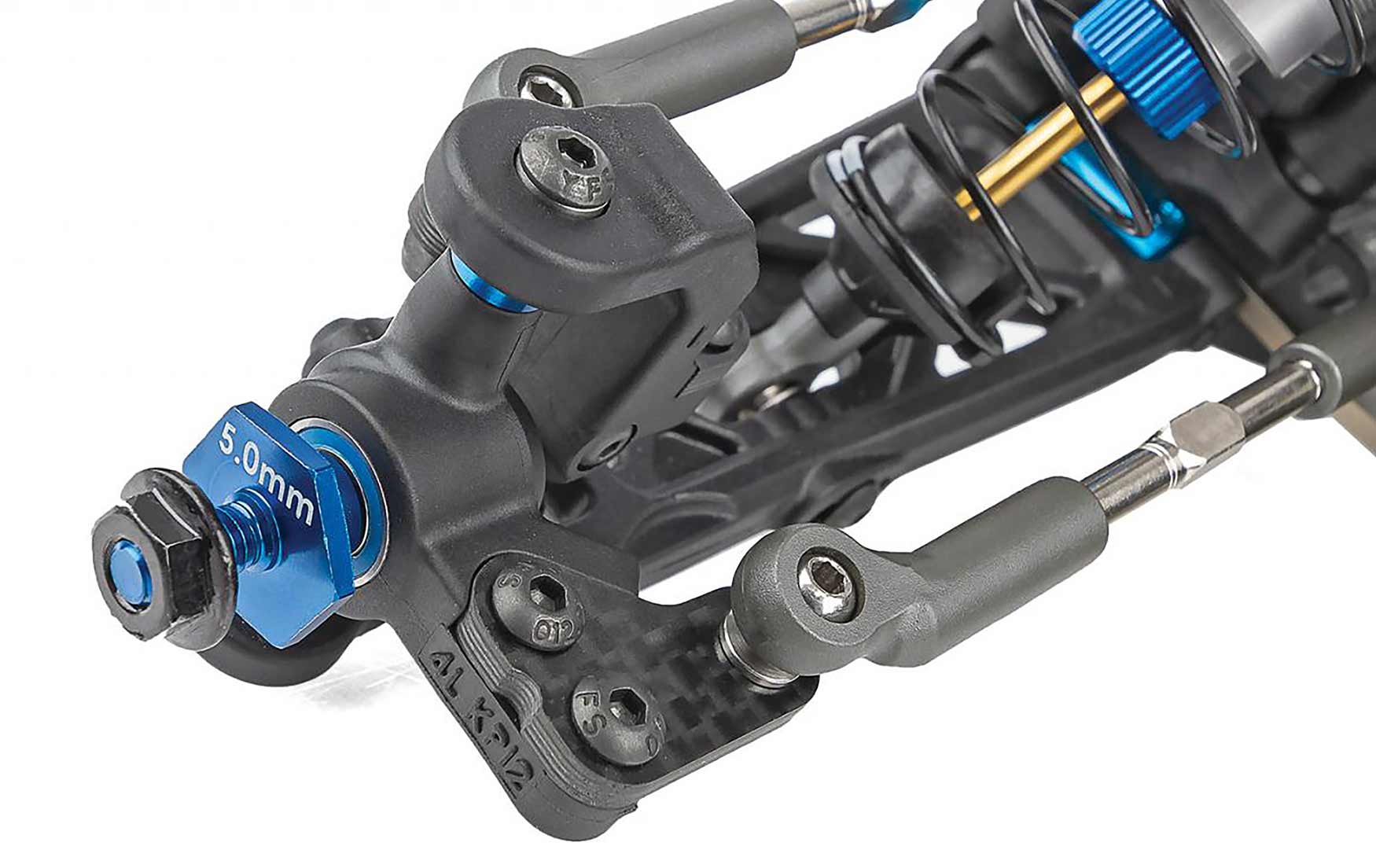

Rear Hubs
Rear Hubs

Standard and HRC (High Roll Center) rear hubs included.

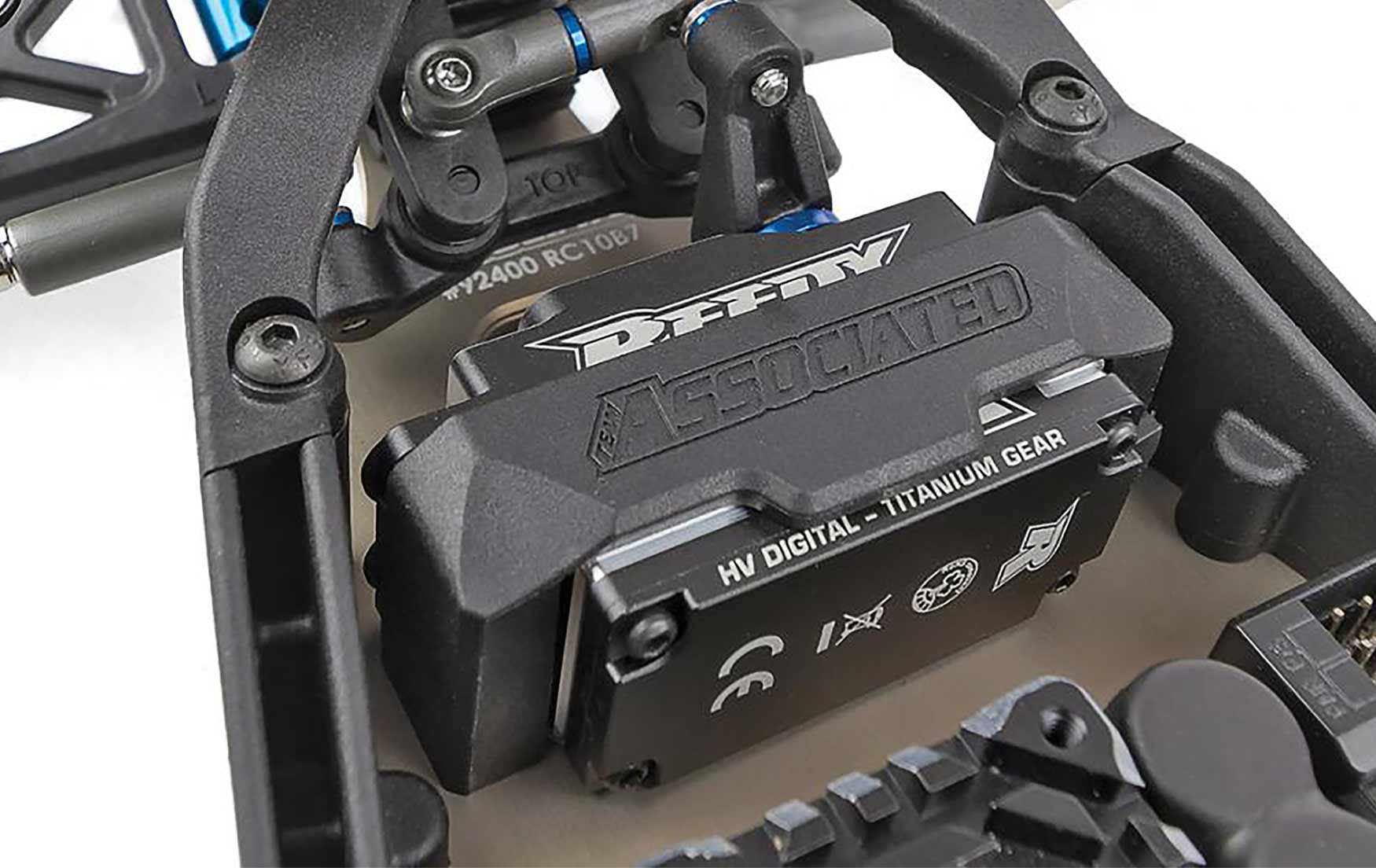

Servo Mount
Servo Mount

Lightweight molded servo mount.

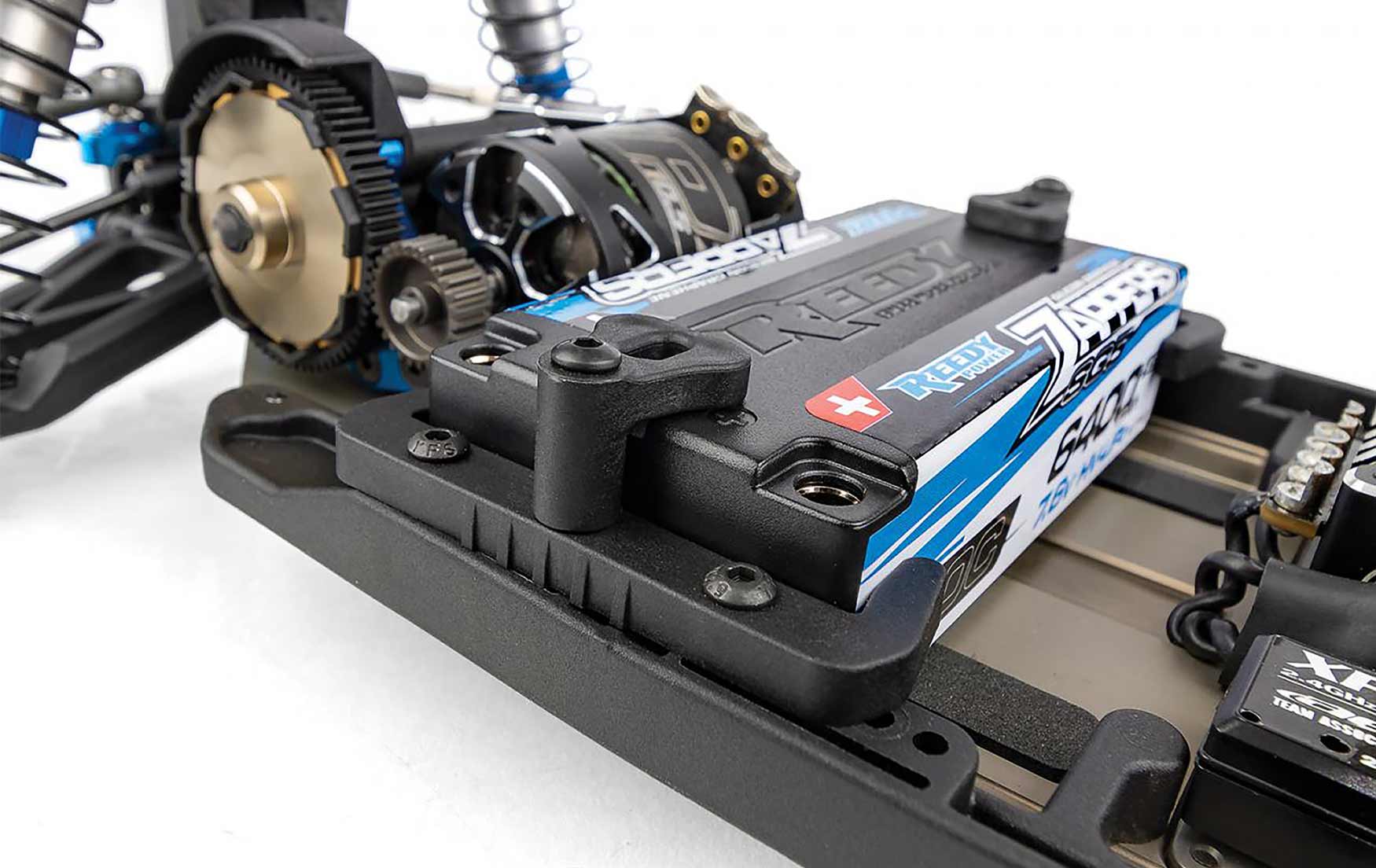

Battery Holder
Battery Holder

Highly adjustable battery holder with thumb tabs allows for easy battery removal and fine tuning of weight bias.

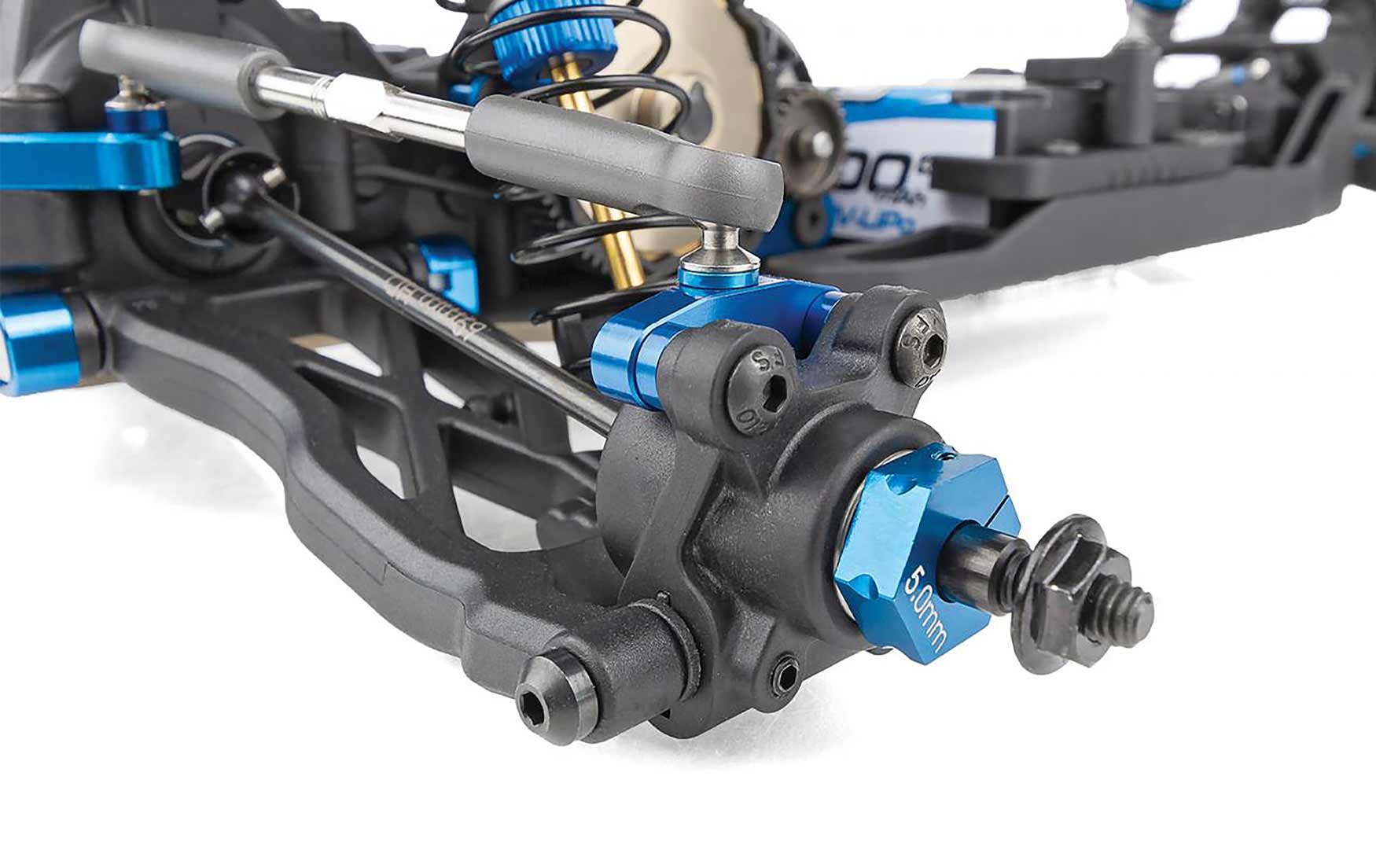

Steering
Steering

KPI adjustable steering and caster blocks allow for the tuning steering feel, Three options are included in the kit.

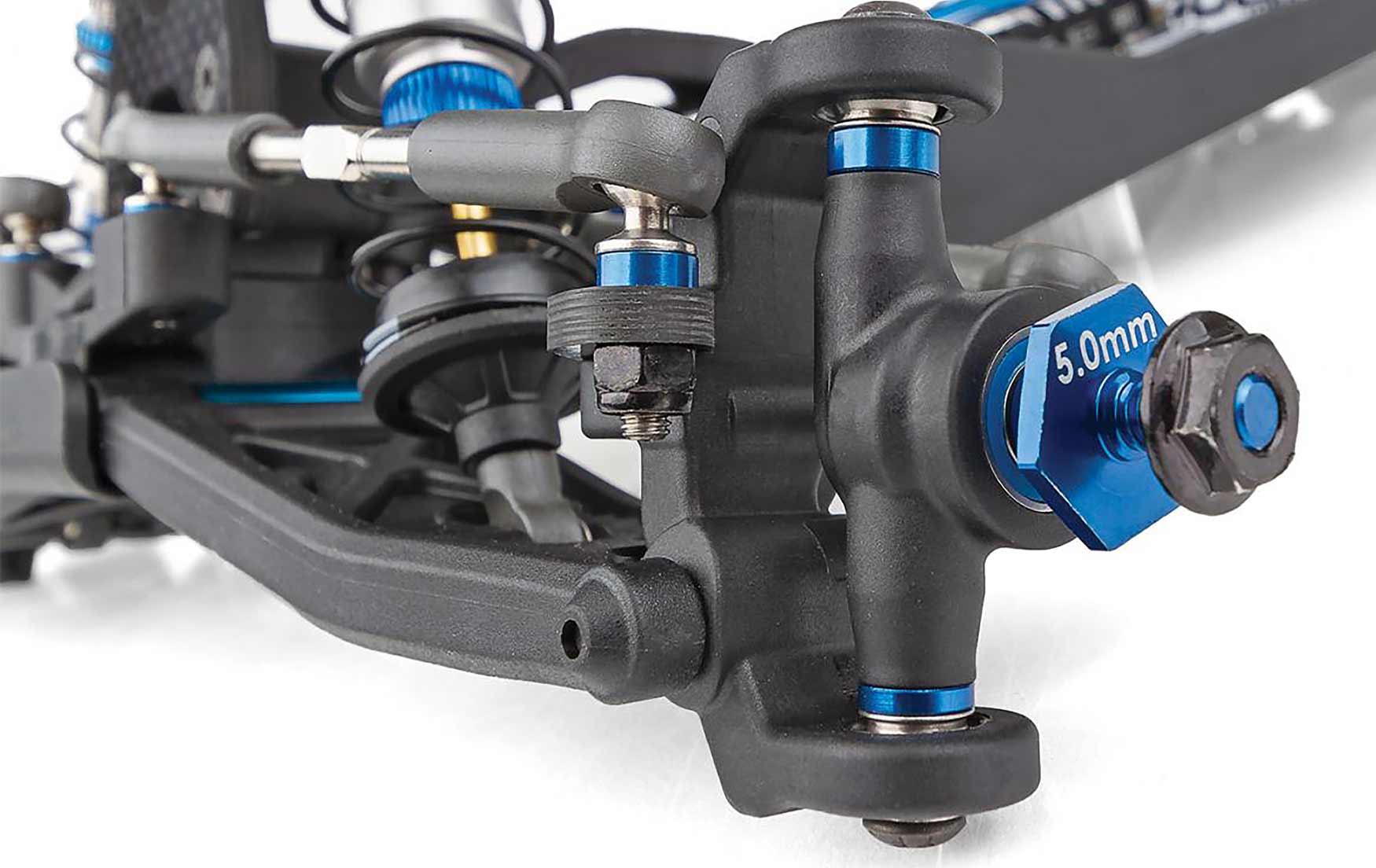

Ballstuds
Ballstuds

Vertical front outer ballstud allows fine tuning of roll center, camber gain, ans link.

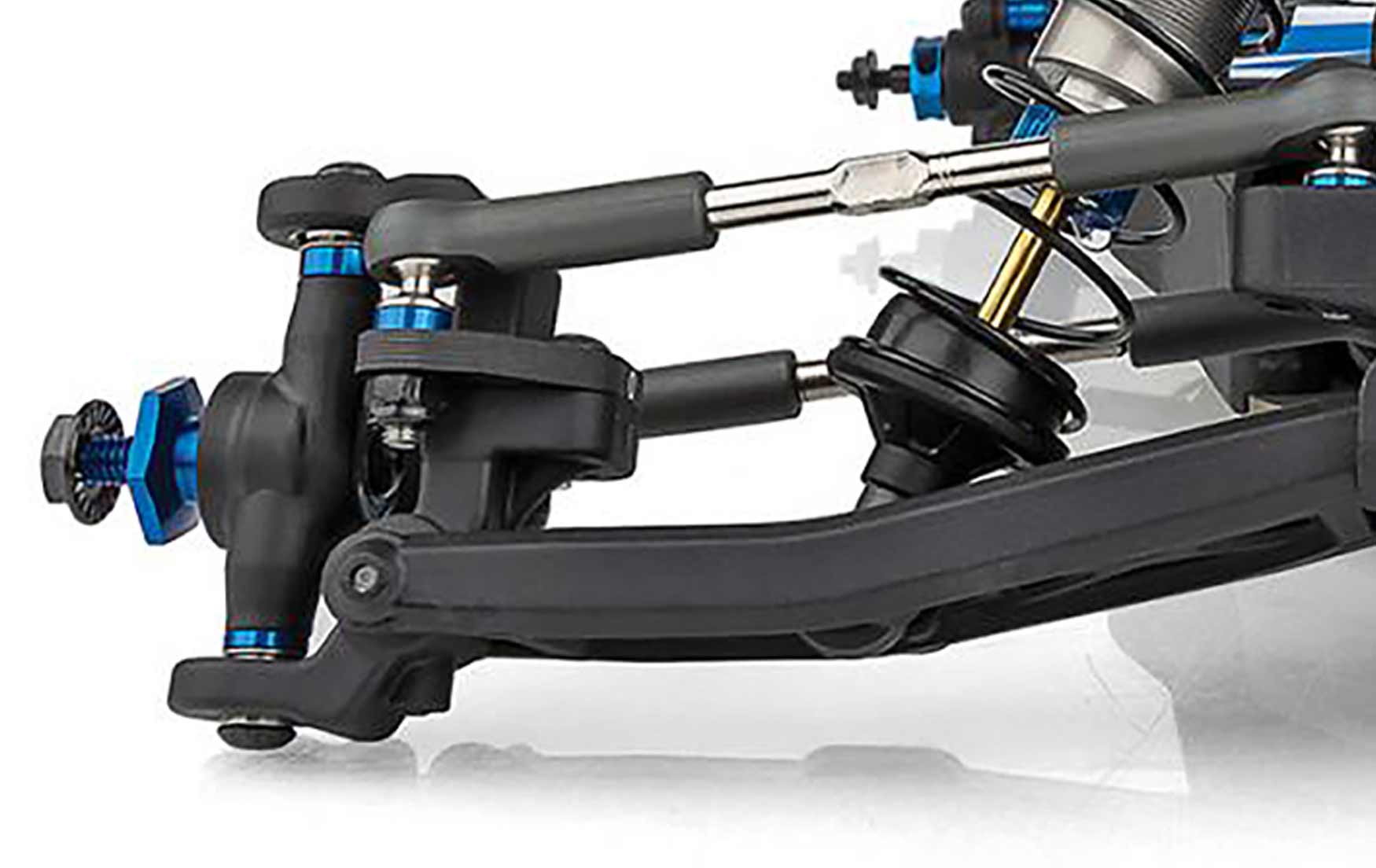

Suspension
Suspension

Long-arm suspension geometry improves grip and predictability in all conditions.

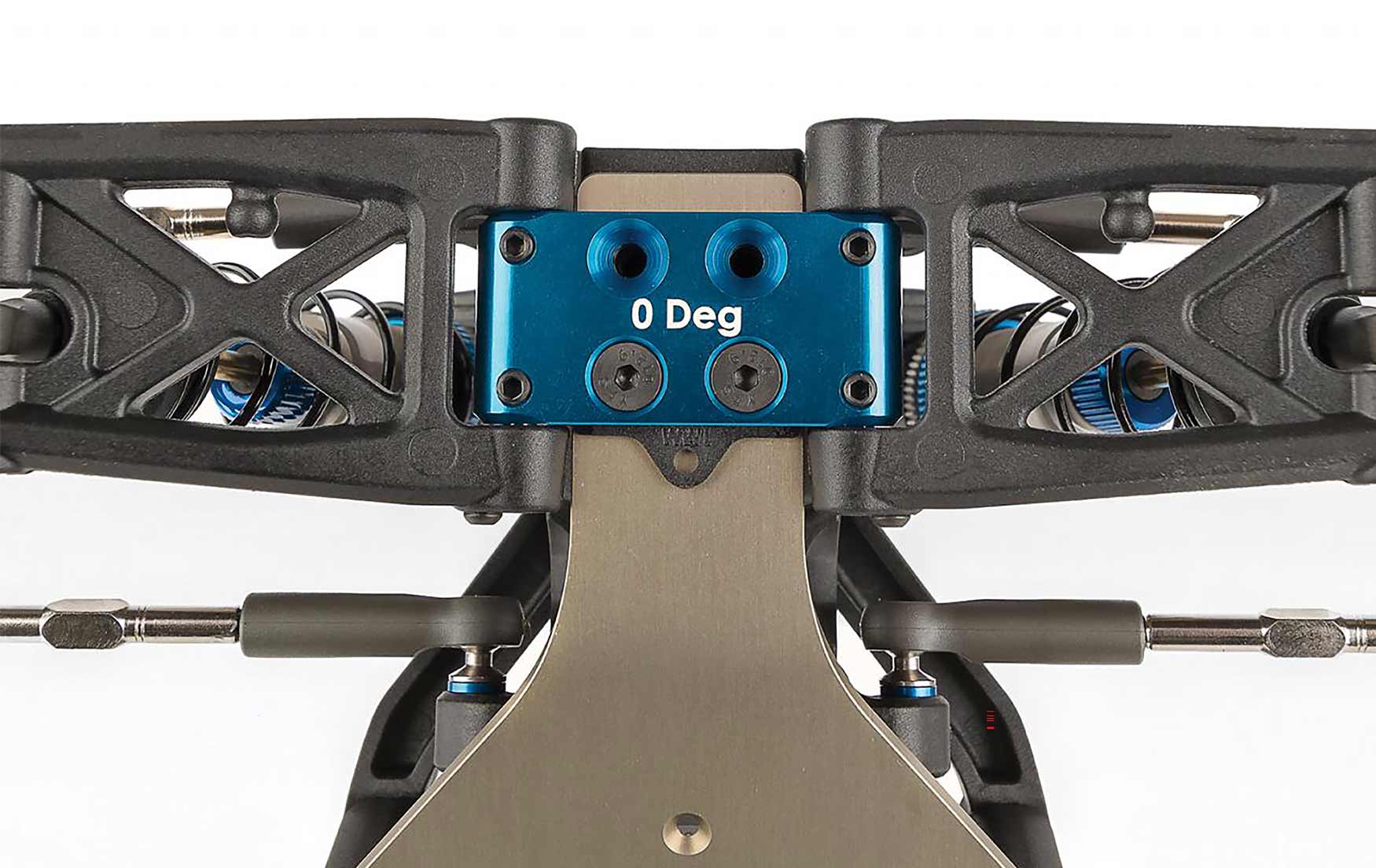

Bulkhead
Bulkhead

Height adjustable aluminum front bulkhead allows for further tuning of front roll center.



Product Specifications

Charger Sold Separately
Receiver Sold Separately
Shock Type Oil-Filled Shocks
Product Weight Varies
Vehicle Type Buggy
Power Type Electric
Servos Sold Separately
Battery Sold Separately
Internal Gear Ratio 2.60:1
Product Length 15.35" (390 mm)
Product Width Varies
Radio Sold Separately
Chassis Aluminum Plate
Body Sold Separately
Scale 1/10
Completion Level Kit
Drivetrain 2WD
Speed Control Sold Separately
