Product Details

Key Features
  • Polycarbonate, pre-painted and cut body with mount holes already pre-drilled.
  • Includes 540-brushed type motor.
  • Includes TBLE-04S ESC. Compatible with brushless motors (sensored) of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over.
icon-box
In The Box
  • (1) 1/10 R/C Top-Force Evo. 4WD Brushed Buggy Kit (2021)
  • (1) TBLE-04S ESC
  • (1) 540-brushed type motor
  • (1) Body stickers
  • (1) Product manual
icon-how-to
Needed to Complete
  • 2-channel radio
  • Steering servo
  • 7.2-7.4volt battery pack
  • Compatible charger

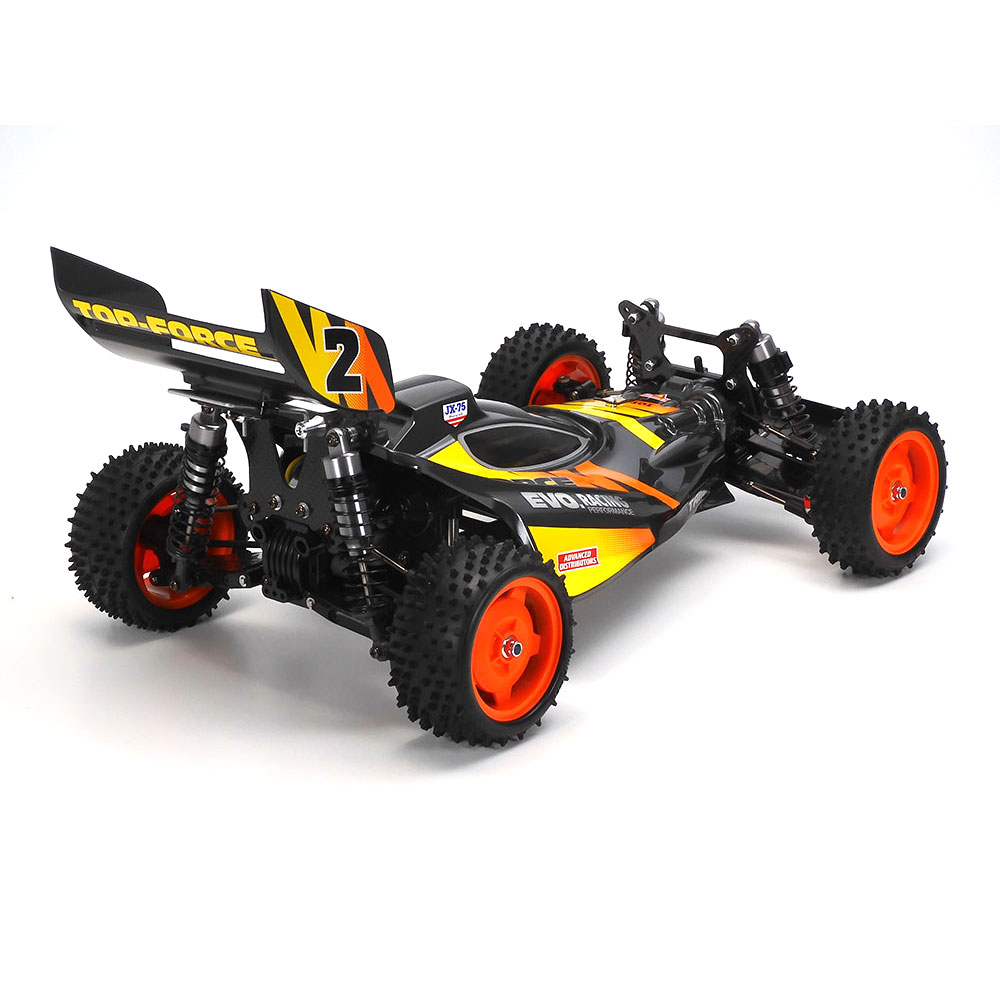

1/10 R/C Top-Force Evo. 4WD Brushed Buggy Kit (2021)

Features

  • Polycarbonate, pre-painted and cut body with mount holes already pre-drilled.
  • Features double deck frame and shock damper stays crafted in lightweight and rigid carbon fiber material.
  • The shaft-driven 4WD chassis includes aluminum front and rear ball differentials for high quality setup, as well as aluminum high-capacity shock dampers for superior shock absorption.
  • Choose between rigid and one-way counter gear options.
  • Item 53791 universal shafts are used for the front and rear. These high-precision components provide minimal speed loss, and smooth cornering.
  • Includes 540-brushed type motor.
  • Includes TBLE-04S ESC. Compatible with brushless motors (sensored) of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over.

Overview

The Top Force Evolution is back! This Limited Edition 4WD buggy re-release kit was originally the follow up buggy to the classic Top Force. The 2021 EVO consists of updated parts not seen in the original release.

Designed to possess an ultra-low center of gravity, the Top Force Evo. sports a body that is both aerodynamic and cool to look at! The Top Force Evo. features front and rear sealed gearboxes, sandwiched between 2mm carbon fiber plates for dependable durability. Transmission system features a hard propeller shaft and front/rear ball diff. Double wishbone suspension comes with 4 Aluminum shock dampers, and is designed for ultimate adjustability. New to this release comes the choice of rigid and one-way counter gears for variable set up options.

Body Design
Body Design

Features a highly refined polycarbonate body design that oozes speed; stickers are included in the kit to decorate it.



4WD Setup
4WD Setup

A 4WD setup employs a steel propeller shaft to the right of the upper deck. Drivetrain and steering linkage feature efficient ball bearings.



Front Suspension
Front Suspension

Front double wishbone suspension, which also features turnbuckle shaft upper arms for easy adjustment.



Upper and Lower Decks
Upper and Lower Decks

Upper and lower decks, plus front and rear damper stays, and battery plates are crafted in lightweight, rigid carbon fiber material.



Rear Suspension
Rear Suspension

Double-wishbone rear suspension shows off the dampers with aluminum cylinders. Universal drive shafts are employed front and rear.



Gear Cover
Gear Cover

Gear covers can be removed simply with the loosening of four screws, allowing easy access to the differentials for swift maintenance.



Tires and Wheels
Tires and Wheels

Alluring, vibrant orange color dish design wheels are paired with spike tires that ensure the Top-Force Evo. has plenty of grip.



Dust Protection
Dust protection

There is exemplary protection from dust, dirt and other potential infiltrators thanks to the kit's tough polycarbonate undercowl.



Product Specifications

Vehicle Type Buggy
Water-Resistant Yes
Product Width 9.84" (250 mm)
Radio Sold Separately
Body Pre-painted polycarbonate
Brakes Integral with ESC
Scale 1/10
Ball Bearings Full set
Chassis Carbon fiber
Completion Level Kit
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Product Height 7.48" (190 mm)
Battery Sold Separately
Product Length 15.75" (400 mm)
Suspension 4-wheel fully independent double wishbone
Speed Control Included
Motor Type Brushed
Charger Sold Separately
Differential Ball type
Receiver Sold Separately
Shock Type Aluminum body, CVA oil-filled
Wheelbase 10.62" (270 mm)
Power Type Electric
Servos Sold Separately
