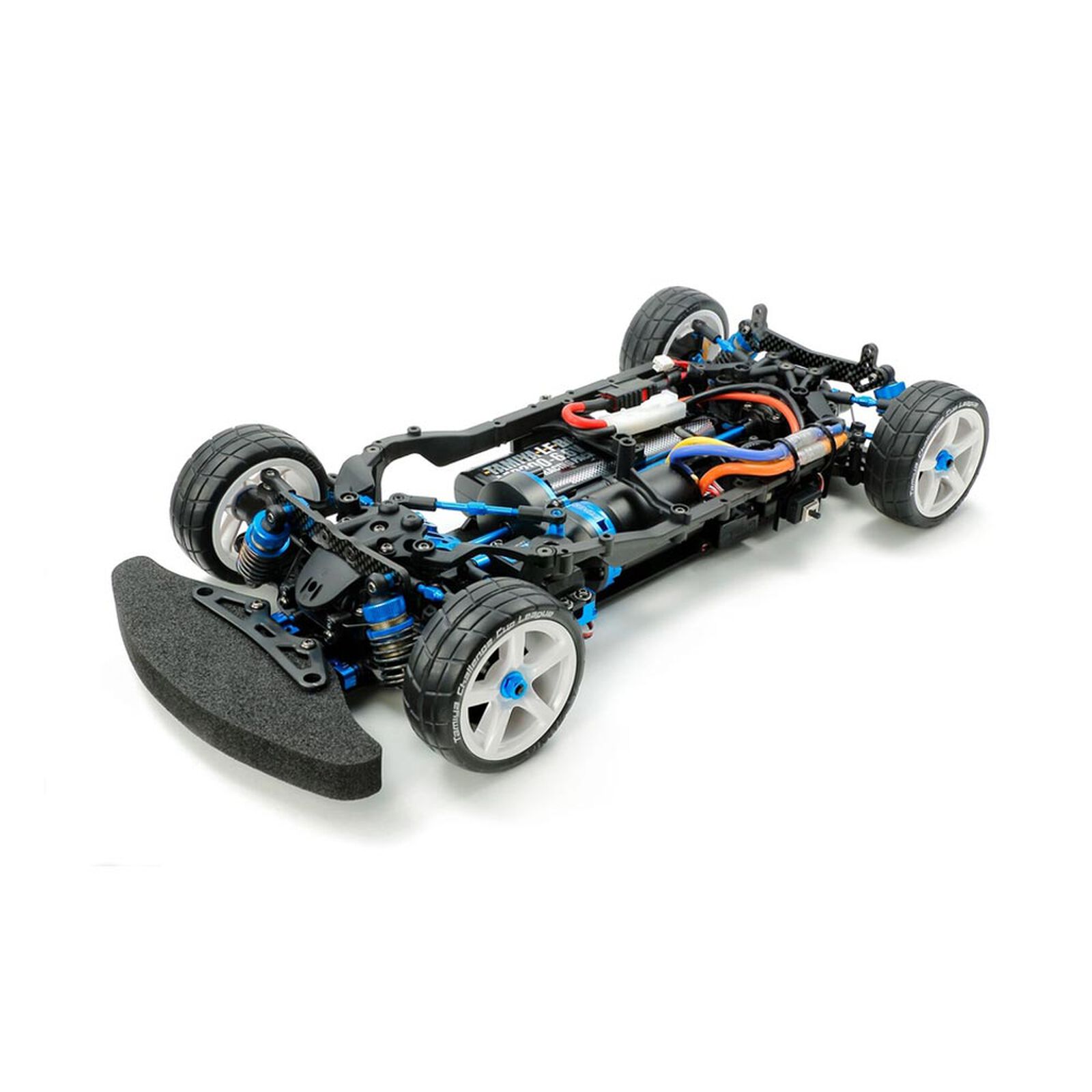

1/10 R/C TB-05R 4WD Chassis Kit

Item No. TAM47456
1/10 R/C TB-05R 4WD Chassis Kit
Discontinued
Brand Logo
3.3 out of 5 Customer Rating

1/10 R/C TB-05R 4WD Chassis Kit

Item No. TAM47456
This Item is No Longer Available
Selected Store

Product Details

The TB-05R takes the shaft-driven TB-05 PRO chassis and loads it with a bucket-load of Hop-Up Options and even some dedicated parts that make this a seriously fast car! This assembly kit creates an efficient shaft-driven 4WD chassis. Its composite structure with integrated lower deck and side frame sections facilitates a largely symmetrical design for balanced steering. Choose between 2 layouts, with a front motor position for superb stability, or a rear motor for dynamic drive. Steering linkage components are bulkhead-mounted to eliminate the effect of chassis roll. With full ball bearings, universal shafts and gear differential units, the drivetrain is as smooth as silk, as is the ride thanks to TRF dampers. Square-shaped IFMAR regulation battery packs are compatible.
Key Features
  • Dedicated aluminum motor plate has a one-piece design that positions the motor 3mm rearwards for a smoother, more intuitive drive.
  • The chassis frame is molded in carbon fiber-reinforced resin for enhanced rigidity.
  • TRF420 suspension components ensure that your model has top level handling and superior adaptability.
  • High performance TRF Super Short Big Bore Dampers come as standard equipment.
  • The model comes in a stylish and convenient carry case.
icon-box
In The Box
  • (1) 1/10 scale R/C chassis assembly kit
icon-how-to
Needed to Complete
  • Body, motor, tires, R/C equipment (transmitter, servo and ESC), battery pack and charger to complete race spec car.
Quick Links

Product Specifications

Vehicle Type On-Road
Differential Gear-Type (Oil-Filled)
Shock Type Aluminum oil filled
Ball Bearings Full Ball Bearings
Completion Level Kit
Drivetrain 4WD
Speed Control Sold Separately
Scale 1/10
Power Type Electric
Servos Sold Separately
Gear Ratio Adjustable
Suspension 4-wheel fully independent double wishbone
Radio Sold Separately
