1/10 RBX10 Ryft 4WD Rock Bouncer Kit, Gray

Item No. AXI03009
Spring Cleaning Sale!
Brand Logo
4.9 out of 5 Customer Rating

1/10 RBX10 Ryft 4WD Rock Bouncer Kit, Gray

Item No. AXI03009
$239.99 Price reduced from $399.99 to
Save $160. Good while supplies last.
Earn points on this item
Select Options
11.1V 5000mAh 3S 30C Smart Hardcase LiPo Battery: IC5
AXI03009 SPMX50003S30H5
11.1V 5000mAh 3S 30C Smart Hardcase LiPo Battery: IC5
In Stock
$69.99
14.8V 5000mAh 4S 30C Smart LiPo Hardcase LiPo Battery: IC5
AXI03009 SPMX50004S30H5
14.8V 5000mAh 4S 30C Smart LiPo Hardcase LiPo Battery: IC5
In Stock
$89.99
11.1V 5000mAh 3S 30C Smart G2 LiPo Battery: IC5
AXI03009 SPMX53S30
11.1V 5000mAh 3S 30C Smart G2 LiPo Battery: IC5
In Stock
$69.99
11.1V 5000mAh 3S 30C Smart G2 Hardcase LiPo Battery: IC5
AXI03009 SPMX53S30H5
11.1V 5000mAh 3S 30C Smart G2 Hardcase LiPo Battery: IC5
In Stock
$69.99
11.1V 5000mAh 3S 50C Smart G2 Hardcase LiPo Battery: IC5
AXI03009 SPMX53S50H5
11.1V 5000mAh 3S 50C Smart G2 Hardcase LiPo Battery: IC5
In Stock
$74.99
14.8V 5000mAh 4S 30C Smart G2 Hardcase LiPo Battery: IC5
AXI03009 SPMX54S30H5
14.8V 5000mAh 4S 30C Smart G2 Hardcase LiPo Battery: IC5
In Stock
$89.99
14.8V 5000mAh 4S 50C Smart G2 Hardcase LiPo Battery: IC5
AXI03009 SPMX54S50H5
14.8V 5000mAh 4S 50C Smart G2 Hardcase LiPo Battery: IC5
In Stock
$99.99
0 Item Selected Items Selected
Smart Powerstage Surface Bundle: 5000mAh 4S LiPo Battery / S155 Charger
AXI03009 SPMXPSS400
Smart Powerstage Surface Bundle: 5000mAh 4S LiPo Battery / S155 Charger
In Stock
$149.99
Smart Powerstage Surface Bundle: 5000mAh 3S LiPo Battery / S155 Charger
AXI03009 SPMXPSS300
Smart Powerstage Surface Bundle: 5000mAh 3S LiPo Battery / S155 Charger
In Stock
$129.99
Smart G2 Powerstage 6S Surface Bundle: 3S 5000mAh LiPo Battery (2) / S2200 G2 Charger
AXI03009 SPMXG2PS6
Smart G2 Powerstage 6S Surface Bundle: 3S 5000mAh LiPo Battery (2) / S2200 G2 Charger
In Stock
$409.99
Smart G2 Powerstage 8S Surface Bundle: 4S 5000mAh LiPo Battery (2) / S2200 G2 Charger
AXI03009 SPMXG2PS8
Smart G2 Powerstage 8S Surface Bundle: 4S 5000mAh LiPo Battery (2) / S2200 G2 Charger
In Stock
$469.99
Smart Powerstage 8S Surface Bundle: 5000mAh 4S LiPo Battery (2) / S2100 Charger
AXI03009 SPMXPS8HC
Smart Powerstage 8S Surface Bundle: 5000mAh 4S LiPo Battery (2) / S2100 Charger
In Stock
$239.99 Price reduced from $349.99 to
0 Item Selected Items Selected
S614S 15kg Steel Gear WP Servo 23T
AXI03009 SPMS614S
S614S 15kg Steel Gear WP Servo 23T
Next Shipment June 2023
$32.99
S6250 Standard Digital HV High Torque Metal Gear Waterproof Surface Servo
AXI03009 SPMSS6250
S6250 Standard Digital HV High Torque Metal Gear Waterproof Surface Servo
In Stock
$119.99
SX108 Micro Digital Metal Gear Servo
AXI03009 SPMSSX108
SX108 Micro Digital Metal Gear Servo
In Stock
$17.99
0 Item Selected Items Selected
DX5 Rugged 5-Channel DSMR Transmitter with SR515
AXI03009 SPM5200
DX5 Rugged 5-Channel DSMR Transmitter with SR515
In Stock
$279.99
DX5C Smart 5-Channel DSMR Transmitter Only
AXI03009 SPMR5115
DX5C Smart 5-Channel DSMR Transmitter Only
In Stock
$149.99
DX5 Rugged 5-Channel DSMR Transmitter Only, Green
AXI03009 SPMR5200G
DX5 Rugged 5-Channel DSMR Transmitter Only, Green
In Stock
$239.99
DX5 Rugged 5-Channel DSMR Transmitter Only, Orange
AXI03009 SPMR5200O
DX5 Rugged 5-Channel DSMR Transmitter Only, Orange
In Stock
$239.99
0 Item Selected Items Selected
Firma 130A Brushless Smart ESC, 2S-4S
AXI03009 SPMXSE1130
Firma 130A Brushless Smart ESC, 2S-4S
In Stock
$139.99
Firma 2200Kv 4-pole Brushless Motor
AXI03009 SPMXSM2700
Firma 2200Kv 4-pole Brushless Motor
Next Shipment June 2023
$59.99
Firma 150A Brushless Smart ESC, 3S-6S
AXI03009 SPMXSE1150
Firma 150A Brushless Smart ESC, 3S-6S
In Stock
$159.99
Smart ESC Programming Update Box: Avian and Firma
AXI03009 SPMXCA200
Smart ESC Programming Update Box: Avian and Firma
In Stock
$29.99
0 Item Selected Items Selected
In Stock
Selected Store

Product Details

Like real rock bouncers, the RBX10 Ryft 1/10 scale kit is designed to tackle challenging terrain at high speeds. With a 4WD transmission, robust tube chassis, 4-link suspension and more, this Axial® vehicle handles lots of abuse and loads of power.
Key Features
  • Strong tube chassis design
  • Full-time 4WD transmission
  • Solid front and rear axles with realistic metal differential covers
  • Hardened steel universal axle set
  • Long travel front and rear oil-filled shocks
icon-box
In The Box
  • (1) Axial® RBX10™ Ryft™ 1/10 4WD Kit
  • (1) Optional 2-Speed Set
  • (1) Optional Sway Bar Set
  • (1) Optional Differential Spool
  • (1) Optional Lower Link Plate Rear
  • (1) 1/10 RBX10 Ryft 4WD Kit Manual
icon-how-to
Needed to Complete
  • (1) Radio System
  • (1) Steering Servo
  • (1) ESC and Motor
  • (1) LiPo Battery and Compatible Charger
  • (1) Micro Metal Gear Servo (for 2-speed configuration)

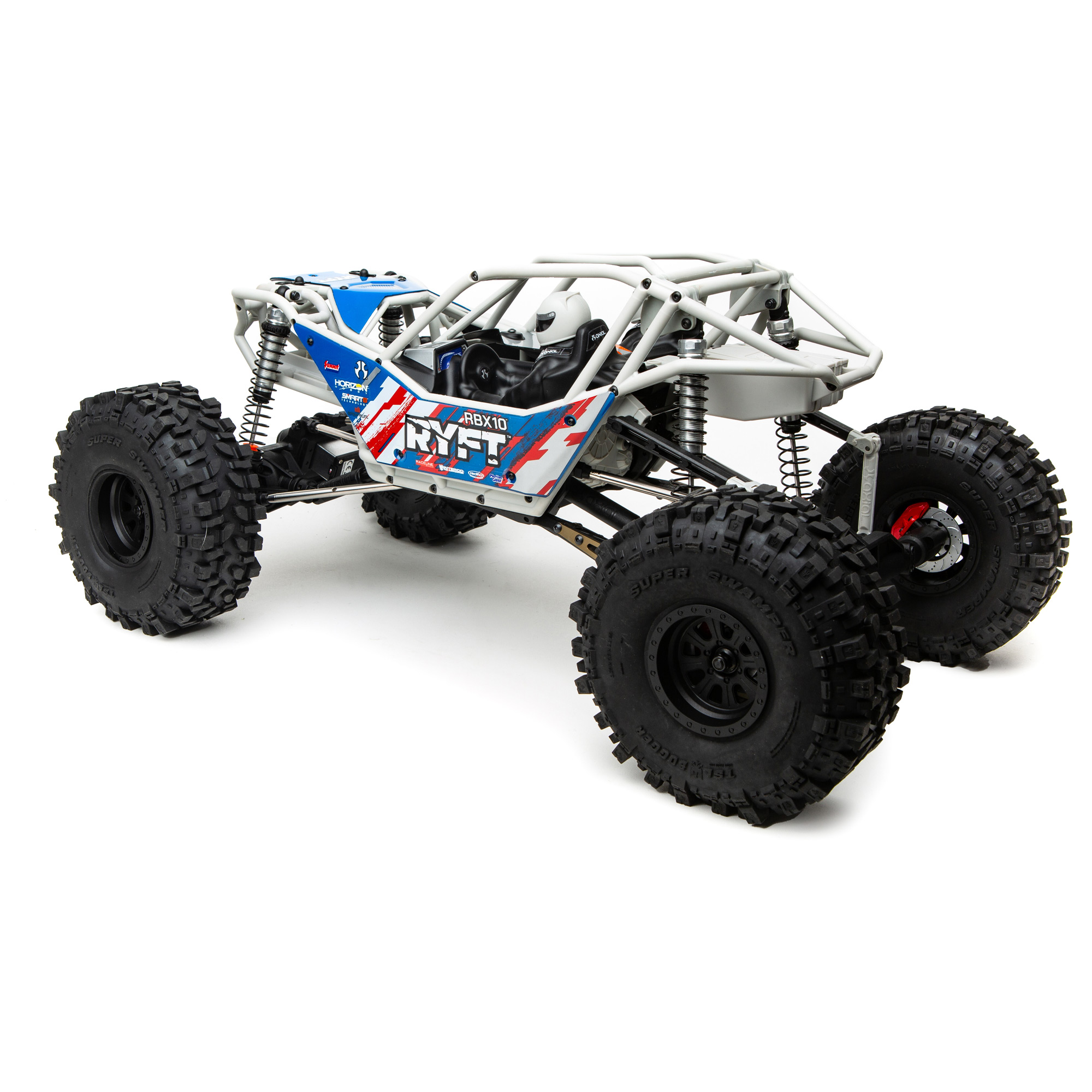

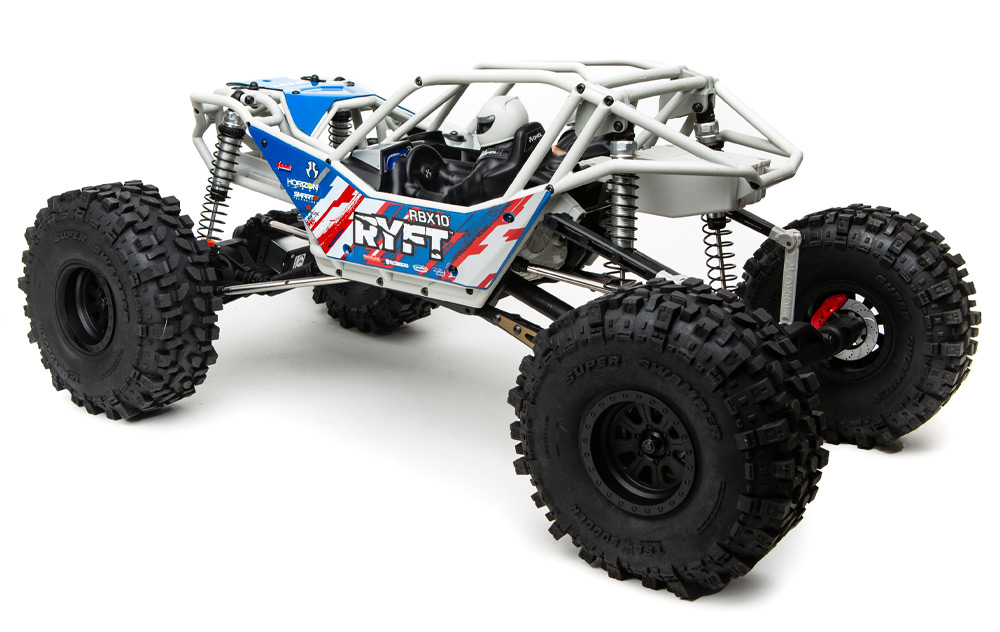

1/10 RBX10 Ryft 4WD Rock Bouncer Kit, Gray

Features

  • Strong tube chassis design
  • Full-time 4WD transmission
  • Solid front and rear axles with realistic metal differential covers
  • Hardened steel universal axle set
  • Tough, large diameter WB11 Wildboar driveshafts
  • 4-Link suspension system
  • Long travel front and rear oil-filled shocks
  • Officially licensed Raceline Monster wheels
  • Simulated disc brakes for extra realism
  • Interco Super Swamper TSL (Three Stage Lug) Bogger tires
  • Kit also includes option parts

Overview

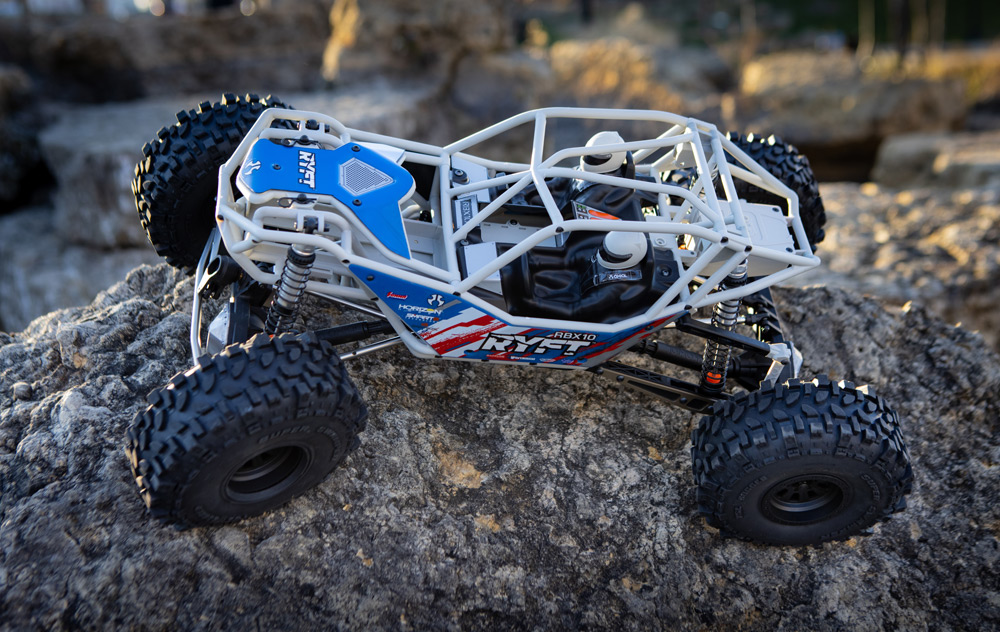

Axial® introduces another first with the 1/10 scale RBX10 Ryft 4WD, a kit that allows intermediate level RC drivers to experience the thrills of rock bouncer off-road action. Full-size rock bouncers refuse to stop — or even back down on the throttle — when facing steep climbs and massive rocks. So does the RBX10 Ryft 4WD. This ground-up new Axial® vehicle handles lots of abuse and loads of power!

The RBX10 Ryft 4WD's robust, custom tube chassis is engineered from a high-strength composite plastic that withstands the hard knocks of RC off-roading — even while moving at high speeds over difficult off-road terrain. Both the front and rear axles boast a durable one-piece, molded plastic, solid axle design and realistic metal differential covers. Officially licensed Interco TSL Super Swamper Bogger tires on Raceline Monster wheels do their part to tame wild tracks, aided by a 4-link suspension and adjustable, long travel front and rear oil shocks. These features, plus a full-time 4WD transmission, make the RBX10 Ryft an exciting vehicle to take on tough challenges at full throttle.

The Ryft kit comes with a clear body for finishing in your favorite colors, plus decals and realistic interior details. Many option parts are also included: spool/locker, rear aluminum link plates, rear sway bar, and parts for a 2-speed or single-speed transmission setup (servo not included). Build and finish the kit as you wish and complete it with your choice of radio system, motor, ESC and battery. Then, enjoy rock bouncing off-road driving over trails, dirt, gravel, rocks and more, with an RC vehicle that's engineered to take it — the Axial® RBX10 Ryft 4WD.

Video Overview

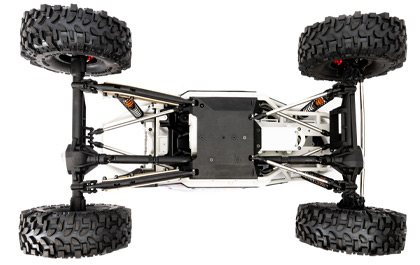

Custom Tube Chassis
Custom Tube Chassis

Axial® is known for custom tube chassis that are strong and well-designed. The Axial® RBX10 Ryft chassis is all that and much more, with the resilience to withstand the hard knocks of rock bouncing.

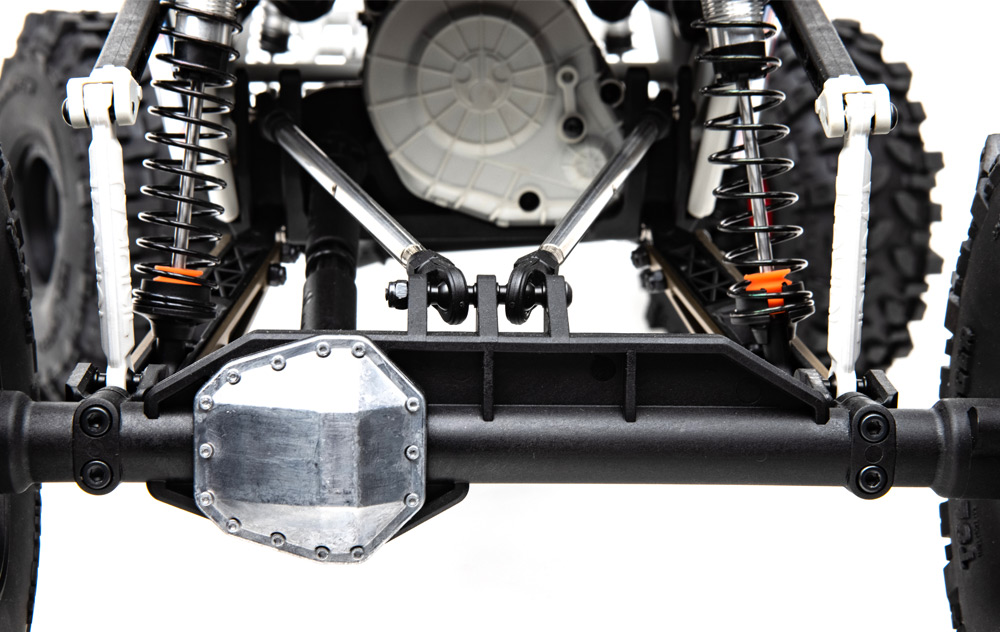

Front and Rear Solid Axles
Front and Rear Solid Axles

The RBX10 Ryft 4WD is engineered to carry a lot of power over punishing off-road tracks — as evidenced by the durable one-piece, molded plastic, solid axle design of its front and rear axles. The axles also feature realistic metal differential covers in a raw, unfinished appearance.



Universal Axle Set
Universal Axle Set

Hardened steel universal joint axles allow up to 45 degrees of steering and provide smoother action for a higher performing, efficient drivetrain.

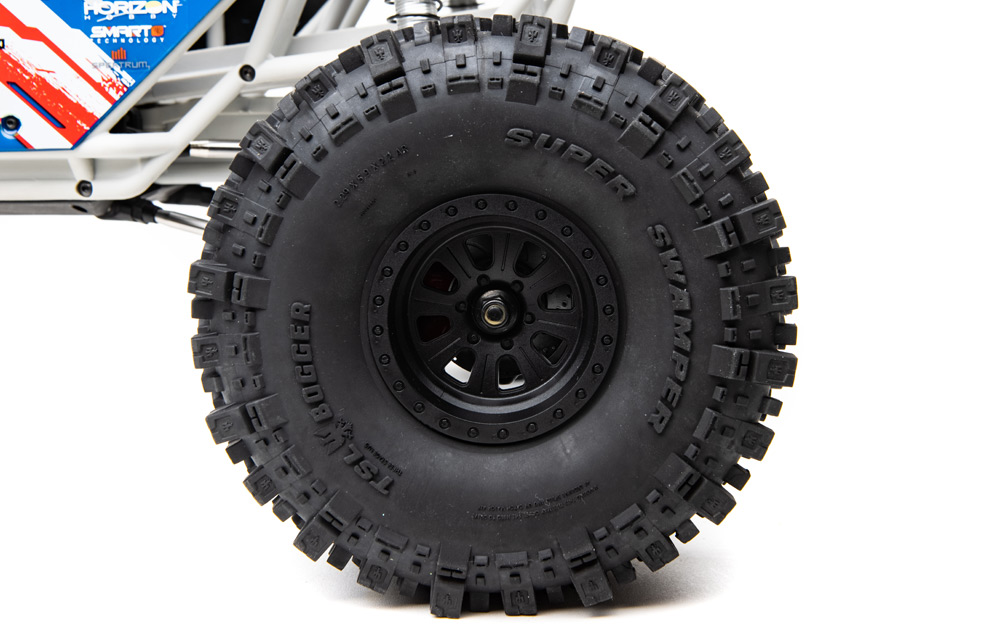

Interco Super Swamper TSL Booger Tires
Interco Super Swamper TSL Booger Tires

The Ryft 4WD's licensed replica Bogger tires feature a directional tread pattern with the patented Interco TSL lug design. The custom siping follows a pattern used by many professional competitive rock bouncers who want an aggressive tire that performs as good as it looks.

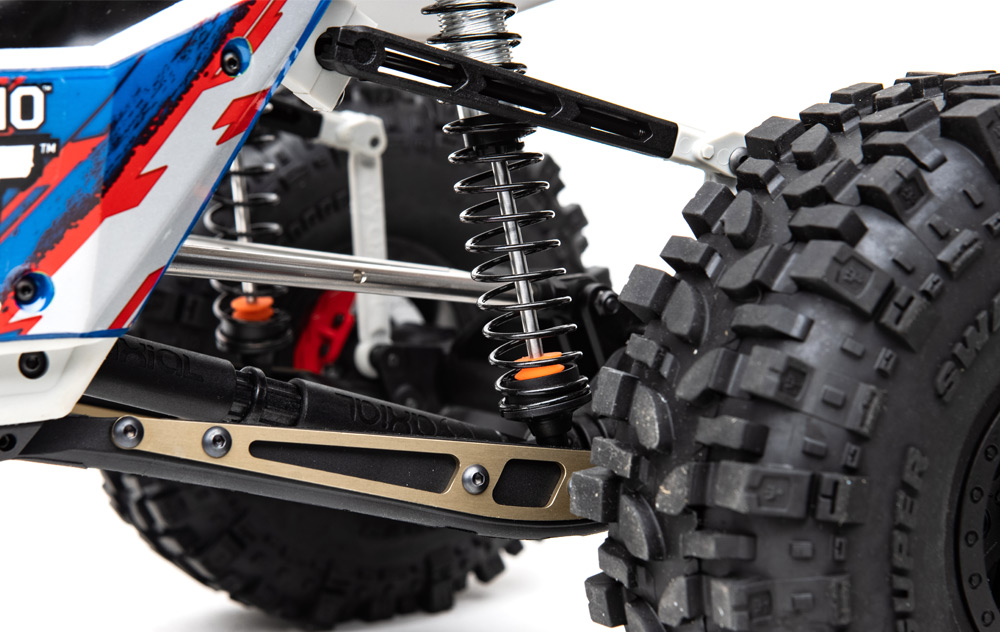

Aluminum Long Travel Shocks
Aluminum Long Travel Shocks

The oil-filled shocks feature threaded bodies and a single coilover spring, plus an aluminum shock cap and pre-load adjustment for tuning the suspension to achieve the best dampening rate. The 12mm bore size allows more fluid volume for better performance.



WB11 Wildboar<sup>™</sup> Driveshafts
WB11 Wildboar Driveshafts

The RBX10 Ryft 4WD kit includes tough, large diameter WB11 Wildboar driveshafts to handle extreme power.

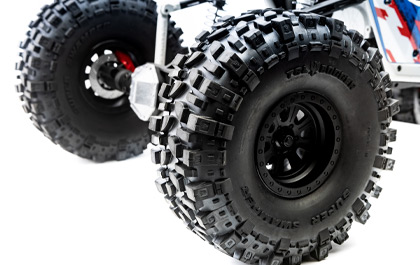

Raceline Monster Wheels
Raceline Monster Wheels

In full-size, Raceline is the most popular wheel for extreme off-road duty — with a show-quality finish and proven ability to take abuse. Officially licensed Raceline Monster wheels give the 1/10 scale Ryft authentic looks and the strength to handle anything you can dish out.

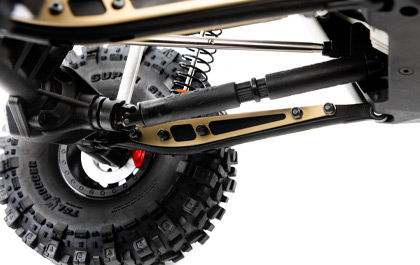

4-Link Suspension
4-Link Suspension

The suspension geometry uses a 4-link design which is optimized to reduce axle steer and to provide the proper anti-squat and roll characteristics. The 4-link system also aids against suspension wrap-up in high-power applications.



Option Parts Included
Option Parts Included

The RBX10 Ryft 4WD kit comes with parts needed to build it with a single or two-speed transmission (servo not included), as well as optional rear sway-bar, rear aluminum link plates, and spool/locker.



Product Specifications

Battery Sold Separately
Ground Clearance 3.25" (82.5mm)
Product Length 21.5" (546 mm)
Spur Gear 53T
Steering Type 2WS
Suspension Solid axle 4-link
Wheel Width 1.6 in (40.64mm)
Front Track 12.75" (323.8mm)
Product Width 12.75" (324 mm)
Radio Sold Separately
Brakes Integral with ESC (ESC not included)
Pinion 17T
Scale 1/10
Product Weight 7.26lbs (3.29kg)
Tire Tread Interco TSL Bogger
Vehicle Type Rock Racer
Water-Resistant Yes
Motor Type Brushless
Speed Control Sold Separately
Wheelbase 15.25" (387 mm)
Bushing Material Metal
Charger Sold Separately
Differential Bevel gear
Receiver Sold Separately
Shock Type Oil-filled, Front 5.11 in (130mm), Rear 5.70 in (145mm
Wheel Type Raceline Monster
Power Type Electric
Gear Pitch MOD 1
Servos Sold Separately
Ball Bearings Full set
Chassis Injection molded plastic
Completion Level Kit
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Product Height 8.75" (222 mm)
