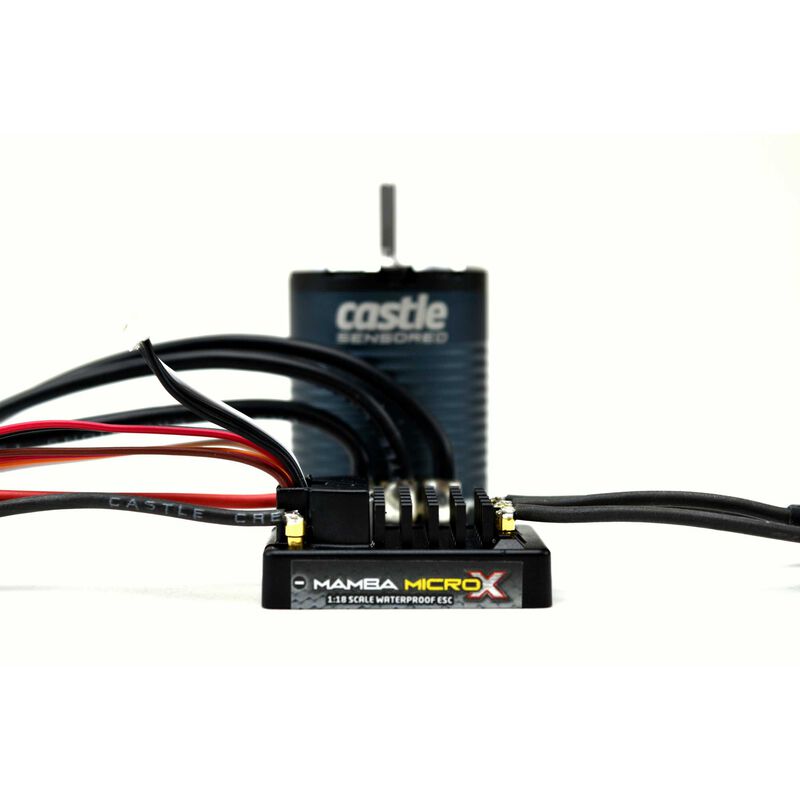

1/10 Mamba Micro X Crawler Edition ESC/1406-1900Kv Sensored Brushless Motor Combo: 4mm Bullet

Item No. CSE010016201
Discontinued
Brand Logo
5 out of 5 Customer Rating

1/10 Mamba Micro X Crawler Edition ESC/1406-1900Kv Sensored Brushless Motor Combo: 4mm Bullet

Item No. CSE010016201
This Item is No Longer Available
Selected Store

Product Details

icon-box
In The Box
  • (1) Crawler Edition Mamba Micro X w/solder posts
  • (1) 1406-1900kv sensored brushless motor
  • (1) 210mm length sensor wire (for sensored operation)
  • (1) Castle Sensor Harness adapter
  • (1) Coupon for free Castle Link USB adapter
  • (1)Driver's Ed and Quick Start Guides
  • (1) Castle decal sheet

Overview

Putting the X in Extreme! The Mamba Micro X Crawler edition is our latest offering for the crawling crowd. We have taken our new 1406 low kv crawler motors and paired it with the lightweight, small footprint Mamba Micro X ESC. This combo is ideal for low speed crawling or trail running in vehicles weighing up to 8lbs on 2s or 3s; it can also be used in slightly more aggressive setups like rock racing and extended hill climbing on vehicles up to 4lbs. If you're looking for a more aggressive setup in a heavier rig, like rock racing and extended hill climbing, we recommend you run the Mamba X ESC with the same motor. Your ESC will come with our new V2.02 firmware that has been enhanced for rock crawling and sensored operation. Use of an external BEC is recommended if running a high power or digital servo.

This SPECIAL EDITION of the Mamba Micro X includes solder posts with 16 AWG wire for the motor connection; it also includes the matching 4mm female bullets to pair with the included 1406-1900kv sensored brushless motor.

The Auxiliary Advantage. Mamba Micro X features the addition of a new, programmable Auxiliary Wire that allows you to make “on-the-go” adjustments to several settings such as torque control, and max throttle, and fine-tune the performance of your ESC right from the transmitter using an auxiliary channel on the receiver. The AUX wire function is disabled by default but is programmable via Castle Link. Once you have programmed the functionality of the AUX wire, that setting can then be adjusted on-the-go from a compatible transmitter. Try out the brand new Crawler Mode for incredible versatility!

Telemetry Capability The Mamba Micro X is telemetry ready, which means owners of Futaba T4PX or 7PX Transmitters will be able to purchase the Castle Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the “unknown” parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.

Product Specifications

Motor Design Inrunner
Motor Type Brushless
Connector Type 4mm Bullet
Programmable Yes
