Brand Logo
5 out of 5 Customer Rating

1/10 Mad Van Fazer Mk2 FZ02L-BT Brushless 4x4 Monster Truck RTR, Gold

Item No. KYO34491T2
Brand Logo
5 out of 5 Customer Rating

1/10 Mad Van Fazer Mk2 FZ02L-BT Brushless 4x4 Monster Truck RTR, Gold

Item No. KYO34491T2
$279.99
RC Club points earned on this item shown at checkout.
Select Options
7.4V 3300mAh 2S 30C Reedy WolfPack LiPo Battery: T-Plug
KYO34491T2 ASC751
7.4V 3300mAh 2S 30C Reedy WolfPack LiPo Battery: T-Plug
In Stock
$30.99
7.4V 4000mAh 2S 35C Reedy WolfPack LiPo Battery: T-Plug
KYO34491T2 ASC752
7.4V 4000mAh 2S 35C Reedy WolfPack LiPo Battery: T-Plug
In Stock
$42.99
7.4V 5000mAh 2S 30C Reaction 2.0 Hardcase LiPo Battery: Deans
KYO34491T2 DYNB5023HD
7.4V 5000mAh 2S 30C Reaction 2.0 Hardcase LiPo Battery: Deans
This item is currently not available
$56.99
7.4V 5000mAh 2S 50C Reaction 2.0 Hardcase LiPo Battery: Deans
KYO34491T2 DYNB5025HD
7.4V 5000mAh 2S 50C Reaction 2.0 Hardcase LiPo Battery: Deans
In Stock
$57.99
7.4V 5300mAh 2S 60C Hardcase LiPo Battery: Deans
KYO34491T2 GEA53002S60D21
7.4V 5300mAh 2S 60C Hardcase LiPo Battery: Deans
This item is currently not available
$45.99
0 Item Selected Items Selected
Reedy 324-S Compact Balance Charger
KYO34491T2 ASC27201
Reedy 324-S Compact Balance Charger
In Stock
$35.99
Reedy 1416-C2L Dual AC/DC Comp Balance Charger
KYO34491T2 ASC27203
Reedy 1416-C2L Dual AC/DC Comp Balance Charger
In Stock
$187.99
Imars III PRO 10A Smart Balance RC Battery Charger
KYO34491T2 GEA100WMPRO
Imars III PRO 10A Smart Balance RC Battery Charger
In Stock
$59.99
RDX2 Mini AC Balance Charger
KYO34491T2 HRC44299
RDX2 Mini AC Balance Charger
In Stock
$84.99
RDX2 Pro High-Power, 260W, Dual Port AC/DC Charger
KYO34491T2 HRC44301
RDX2 Pro High-Power, 260W, Dual Port AC/DC Charger
In Stock
$149.99
0 Item Selected Items Selected
SW4 12.6V 2A BEC WP SL ESC and 1410-3800Kv Sensored Motor Combo
KYO34491T2 CSE010016405
SW4 12.6V 2A BEC WP SL ESC and 1410-3800Kv Sensored Motor Combo
In Stock
$154.95
Sidewinder 4 Brushless ESC / 1410-3800Kv  Motor Combo
KYO34491T2 CSE010016406
Sidewinder 4 Brushless ESC / 1410-3800Kv Motor Combo
In Stock
$159.95
1/10 Copperhead 1410-3800Kv Sensored Brushless ESC/Motor Combo
KYO34491T2 CSE10016610
1/10 Copperhead 1410-3800Kv Sensored Brushless ESC/Motor Combo
In Stock
$209.95
1/10 QuicRun Fusion PRO Brushless Motor/ESC 2-in-1 Combo, 2300Kv
KYO34491T2 HWI30120402
1/10 QuicRun Fusion PRO Brushless Motor/ESC 2-in-1 Combo, 2300Kv
In Stock
$149.99
EZRUN MAX10 G2 140A ESC & 3665SD G3 MOT 2400KV Brushless Combo
KYO34491T2 HWI38020343
EZRUN MAX10 G2 140A ESC & 3665SD G3 MOT 2400KV Brushless Combo
Back Order
$172.99
EZRUN MAX10 G2 140A ESC & 3665SD G3 MOT 3200KV Brushless Combo
KYO34491T2 HWI38020344
EZRUN MAX10 G2 140A ESC & 3665SD G3 MOT 3200KV Brushless Combo
Back Order
$172.99
EZRUN MAX10 G2 140A ESC & 3665SD G3 MOT 4000KV Brushless Combo
KYO34491T2 HWI38020345
EZRUN MAX10 G2 140A ESC & 3665SD G3 MOT 4000KV Brushless Combo
In Stock
$172.99
EZRUN MAX10 G2 80A ESC & 3652SD G3 MOT 4100KV Brushless Combo
KYO34491T2 HWI38020347
EZRUN MAX10 G2 80A ESC & 3652SD G3 MOT 4100KV Brushless Combo
In Stock
$129.99
Firma Brushless Motor / ESC 2-in-1 Combo, 6000Kv
KYO34491T2 SPMXSEM0501
Firma Brushless Motor / ESC 2-in-1 Combo, 6000Kv
In Stock
$82.99
Firma 85A Brushless Smart ESC / 3300Kv Sensorless Motor Combo
KYO34491T2 SPMXSEMC01
Firma 85A Brushless Smart ESC / 3300Kv Sensorless Motor Combo
In Stock
$104.99
Firma 85A Brushless Smart ESC / 4000Kv Sensorless Motor Combo
KYO34491T2 SPMXSEMC02
Firma 85A Brushless Smart ESC / 4000Kv Sensorless Motor Combo
In Stock
$104.99
Firma 130A Brushless Smart ESC / 1900Kv Sensorless Motor Combo
KYO34491T2 SPMXSEMC04
Firma 130A Brushless Smart ESC / 1900Kv Sensorless Motor Combo
In Stock
$189.99
0 Item Selected Items Selected
4PM 4-Channel T-FHSS SR Transmitter With R334SBS Receiver
KYO34491T2 FUT010043873
4PM 4-Channel T-FHSS SR Transmitter With R334SBS Receiver
Back Order
$269.99
3PRKA 3-Channel FHSS Transmitter With R203GF Receiver
KYO34491T2 FUTK3100
3PRKA 3-Channel FHSS Transmitter With R203GF Receiver
Next Shipment June 2024
$94.99
3PV 3-Channel T-FHSS Telemetry Transmitter With R304SB Receiver
KYO34491T2 FUTK3200
3PV 3-Channel T-FHSS Telemetry Transmitter With R304SB Receiver
In Stock
$179.99
3PV 3-Channel FHSS Transmitter With R203GF Receiver
KYO34491T2 FUTK3201
3PV 3-Channel FHSS Transmitter With R203GF Receiver
In Stock
$149.99
DX3 Smart 3-Channel Transmitter with SR315 Receiver
KYO34491T2 SPM2340
DX3 Smart 3-Channel Transmitter with SR315 Receiver
In Stock
$99.99
DX5 Pro 5-Channel DSMR Transmitter with SR2100 Receiver
KYO34491T2 SPM5025
DX5 Pro 5-Channel DSMR Transmitter with SR2100 Receiver
Next Shipment July 2024
$399.99
DX5C Smart 5-Channel DSMR Transmitter with SR6100AT Receiver
KYO34491T2 SPM5120
DX5C Smart 5-Channel DSMR Transmitter with SR6100AT Receiver
This item is currently not available
$199.99
SLT3 3-Channel Transmitter with SR315 Receiver
KYO34491T2 SPMSLT300
SLT3 3-Channel Transmitter with SR315 Receiver
In Stock
$49.99
SLT3 3-Channel SLT Transmitter with SLR300 Receiver
KYO34491T2 SPMSLT350
SLT3 3-Channel SLT Transmitter with SLR300 Receiver
In Stock
$64.99
TTX300 3-Channel SLT Transmitter with TR325 Micro Receiver
KYO34491T2 TACJ0300
TTX300 3-Channel SLT Transmitter with TR325 Micro Receiver
This item is currently not available
$39.99
0 Item Selected Items Selected
HS-311 Standard Analog Sport Servo
KYO34491T2 HRC31311S
HS-311 Standard Analog Sport Servo
In Stock
$13.49
HS-646WP Standard Digital Waterproof Metal Gear Servo
KYO34491T2 HRC32646W
HS-646WP Standard Digital Waterproof Metal Gear Servo
In Stock
$49.99
HS-5496MH Standard Digital HV Metal Gear Servo
KYO34491T2 HRC35496S
HS-5496MH Standard Digital HV Metal Gear Servo
In Stock
$39.99
HS-5565MH Standard Digital HV High Speed Metal Gear Servo
KYO34491T2 HRC35565S
HS-5565MH Standard Digital HV High Speed Metal Gear Servo
In Stock
$72.99
HS-5625MG Standard Digital High Speed Metal Gear Servo
KYO34491T2 HRC35625S
HS-5625MG Standard Digital High Speed Metal Gear Servo
In Stock
$45.99
D625MW Standard Digital High Speed Metal Gear Servo
KYO34491T2 HRC36625
D625MW Standard Digital High Speed Metal Gear Servo
In Stock
$39.99
S602 Standard Digital Surface Servo
KYO34491T2 SPMS602
S602 Standard Digital Surface Servo
In Stock
$40.99
S605 Standard Analog Waterproof 9KG 23T Surface Servo
KYO34491T2 SPMS605
S605 Standard Analog Waterproof 9KG 23T Surface Servo
Next Shipment July 2024
$24.99
S614 Waterproof Metal Gear Surface Servo, 23T
KYO34491T2 SPMS614
S614 Waterproof Metal Gear Surface Servo, 23T
In Stock
$26.99
S6170 Standard Digital Surface Servo
KYO34491T2 SPMSS6170
S6170 Standard Digital Surface Servo
In Stock
$31.99
S6240 Standard Digital High Speed Waterproof Metal Gear Surface Servo
KYO34491T2 SPMSS6240
S6240 Standard Digital High Speed Waterproof Metal Gear Surface Servo
In Stock
$89.99
S6260 Standard Digital HV High Speed Metal Gear Surface Servo
KYO34491T2 SPMSS6260
S6260 Standard Digital HV High Speed Metal Gear Surface Servo
In Stock
$119.99
T130 Standard Digital HV High Torque High Speed Metal Gear Servo
KYO34491T2 TEKTT1502
T130 Standard Digital HV High Torque High Speed Metal Gear Servo
In Stock
$169.99
T360 Standard Digital HV High Speed Metal Gear Servo
KYO34491T2 TEKTT1506
T360 Standard Digital HV High Speed Metal Gear Servo
In Stock
$169.99
0 Item Selected Items Selected
In Stock
Selected Store

Product Details

Brushless motor tech adds boost for even more speed! Enjoy the enhanced power and scale looks of the new generation MAD VAN!
Key Features
  • Pre-Assembled Chassis Is Sold As a Readyset
  • Robust Construction Of The Full-Time 4WD
  • Full Ball Bearing Specifications
  • Compatible With A Wide Range Of Optional Parts
  • Includes American-Style Van Body
icon-box
In The Box
  • (1) 1/10 FAZER Mk2 Mad Van
  • (1) Syncro KT-231P+ Transmitter
  • (1) Spanner
  • (1) 1/10 FAZER Mk2 Mad Van Manual
icon-how-to
Needed to Complete
  • (4) AA Batteries for Transmitter
  • (1) 7.2V - 7.4V Battery
  • (1) Battery Charger
1/10 Mad Van Fazer Mk2 FZ02L-BT Brushless 4x4 Monster Truck RTR, Gold

Overview

Enhanced scale features of the American street van styled FAZER Mk2 MAD VAN combine with a 50% increase in maximum speed with the change to brushless motor power in this 1/10 scale VE model. In place of the conventional G14L brushed motor, the new model combines the powerful TORX 10E brushless motor with BRAINZ 10 speed controller to lift the maximum speed from 40km/h to 60km/h. To manage the extra power and RPM, gears have been reinforced and reduction ratio optimized on the FZ02L-BT chassis base, which now incorporates the previously optional aluminum HD center shaft L. In addition to chassis improvements, the body styling has also received a 3-D enhancement with molded resin grille and lights replacing decals, and a roof guard has been added to protect the body from rollovers. With elevated performance and appearance, you can experience the exhilaration of running wild at high speed with the MAD VAN VE.

Features

  • Pre-assembled chassis is sold as a Readyset including installed R/C system and pistol-grip transmitter. Battery for the chassis and charger are sold separately.
  • Includes Syncro KT-231P+ pistol-grip transmitter with various custom setting adjustments.
  • Robust construction of the full-time 4WD FZ02L-BT chassis is tough enough to handle the hard punishment of rough-road bashing.
  • A strap type battery mount enables compatibility with various battery sizes and shapes.
  • Full ball bearing specifications improve drive efficiency and durability.
  • Compatible with a wide range of optional parts for the existing FAZER Mk2 for further tuning and performance improvement.
  • Includes American-style van body that has been enhanced with an even greater level of scale detail.
  • Detailed body with plastic parts.
  • Equipped with Front and Rear light buckets compatible with optional No. 97054-4CR LED Light unit which is sold separately.By installing the LED light unit, improves scale realism for body shell.

Video Overview



FAZER Mk2 Chassis
FAZER Mk2 Chassis

FAZER Mk2 sets the standard for Kyosho 1/10 EP car chassis. A bathtub type frame realizes an optimal combination of rigidity with moderate flex and incorporates the proven reliability of shaft-type 4WD together with sealed front and rear gearboxes to handle the punishment of off-road driving.

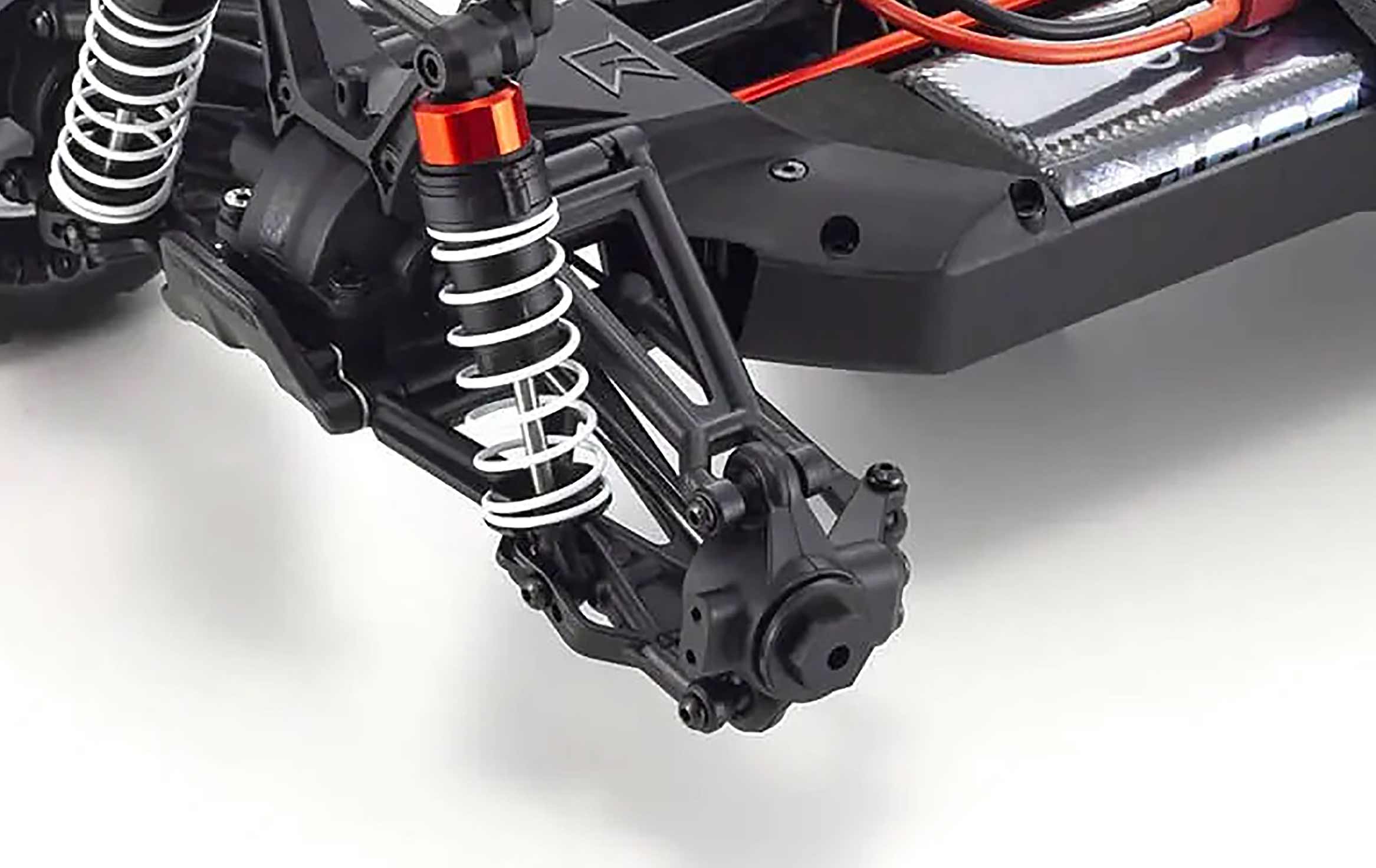

Suspension
Suspension

Long-type upper and lower suspension arms equipped with oil shocks for front and rear provide a sufficient stroke and secure damping force. Ball-connected left-right interchangeable steering knuckles realize smooth operation and crash resistance.

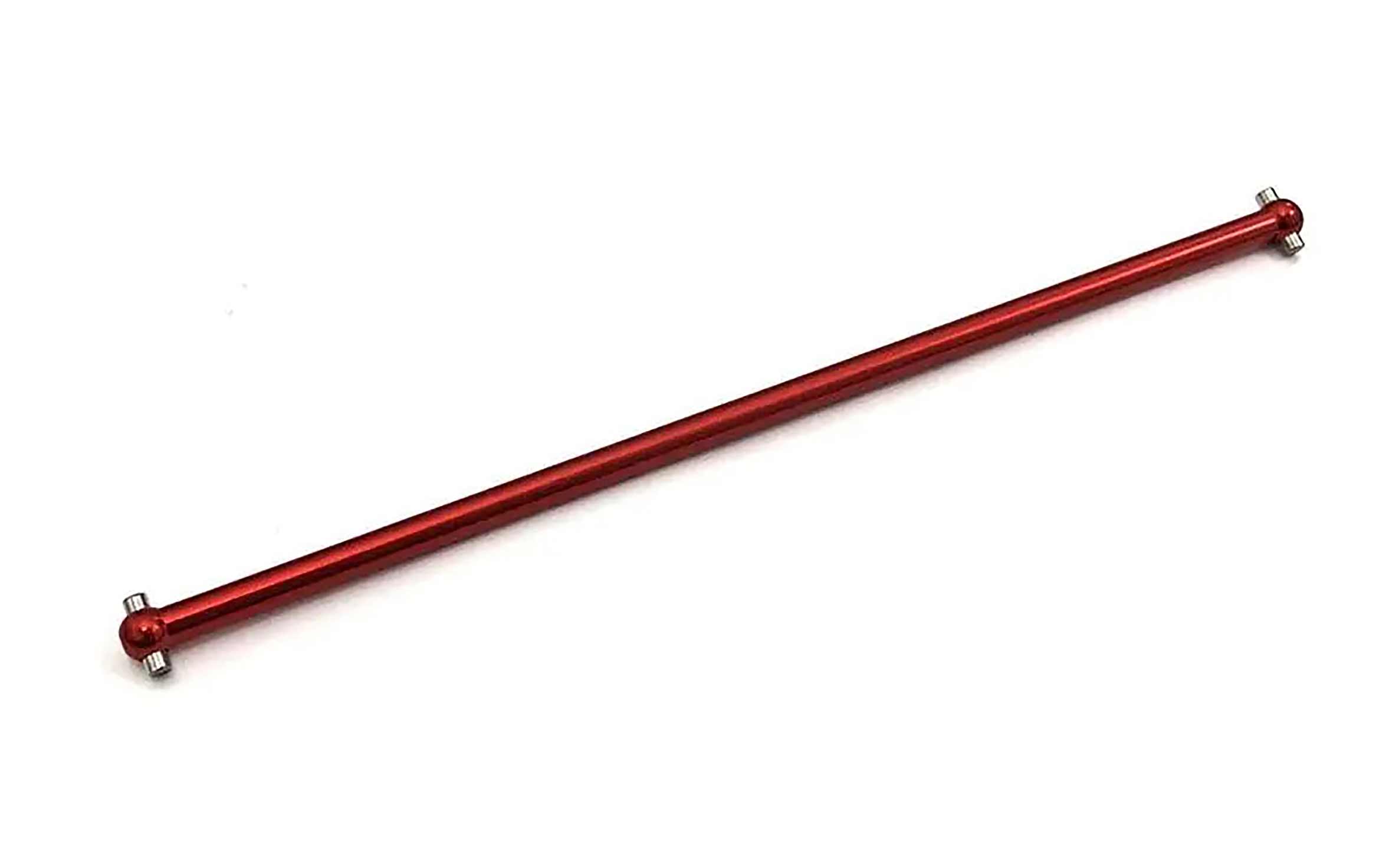

Drive Shaft
Drive Shaft

Optional aluminum HD center shaft (No. FAW210) is standard equipment to support the power of brushless motor and realizes smooth rotation.

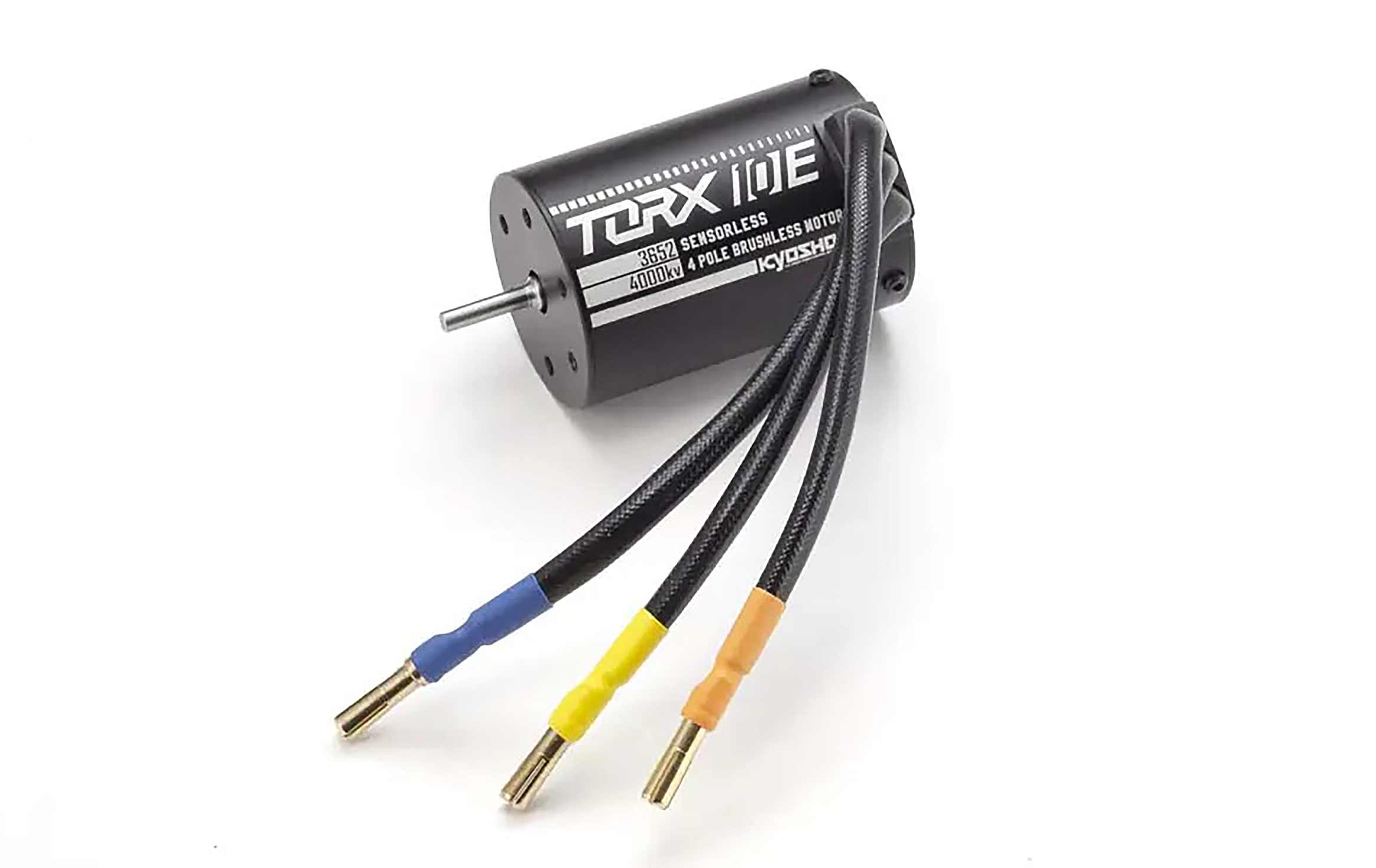

TORX 10E Motor
TORX 10E Motor

The TORX 10E brushless motor generates enough power for wheelies with the big body and tires. Sealed motorcase prevents dirt and dust from getting into the motor and gearbox.



BRAINZ 10 ESC
BRAINZ 10 ESC

Includes BRAINZ 10 speed controller equipped with cooling fan, for brushless motors. Able to be programmed for specific purposes.

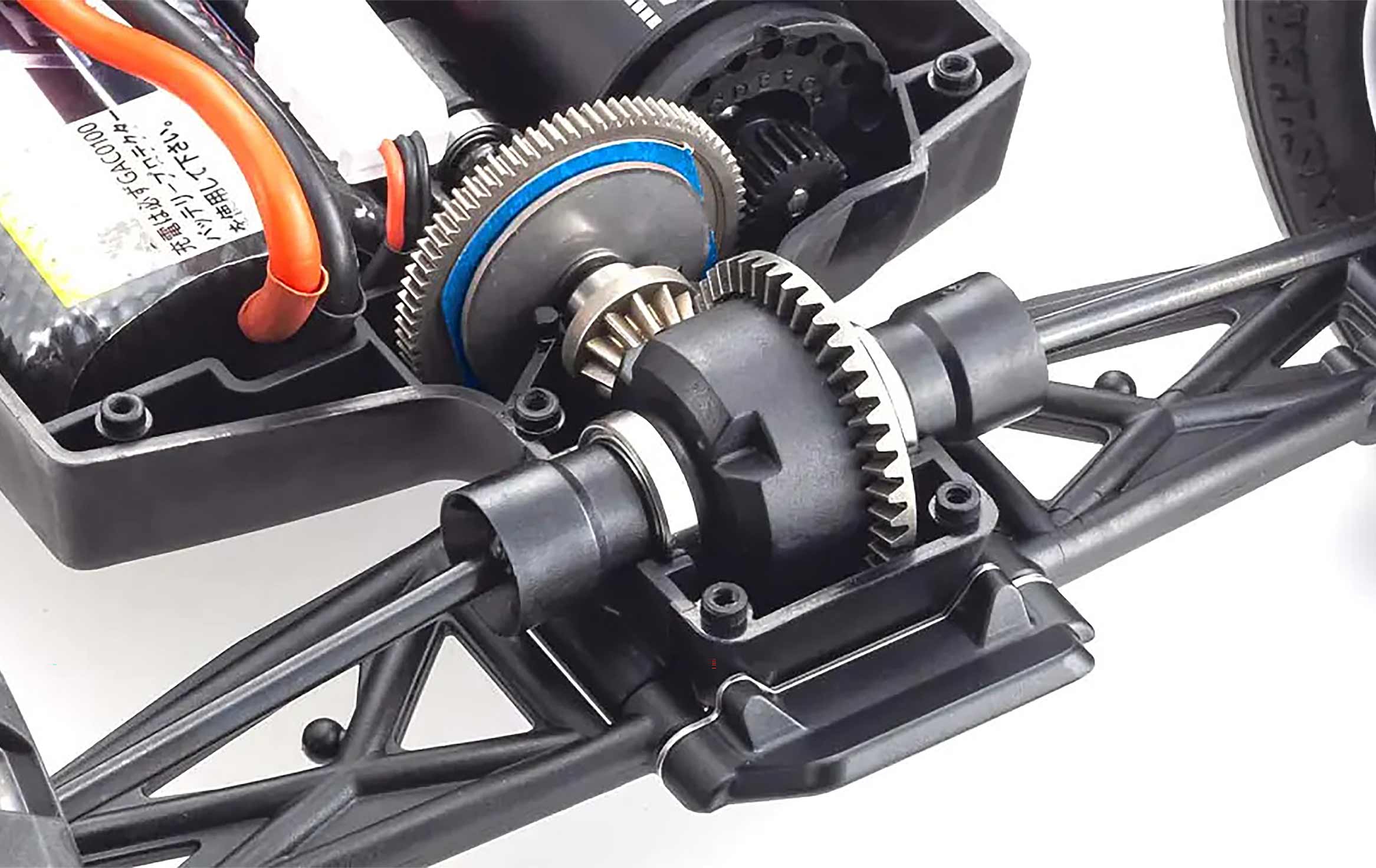

Metal Gears
Metal Gears

Gearbox incorporates high-strength sintered metal gears. In addition to new material, the final gear ratio has been changed to fully utilize the power of the brushless motor. The machined steel pinion gear has also been strengthened.

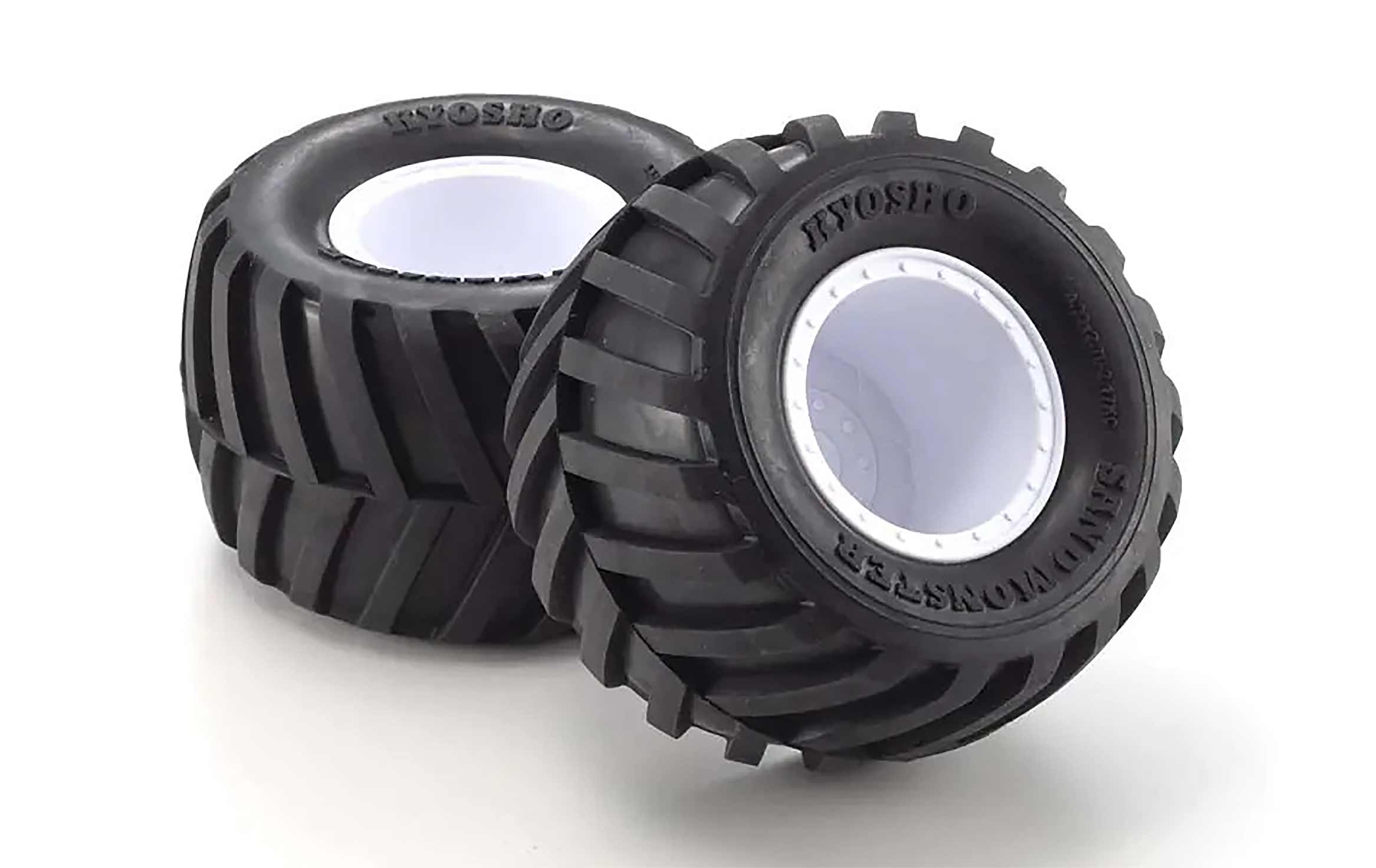

Wheels and Tires
Wheels and Tires

Large diameter tires produce high grip on any road surface. The kit comes with pre-glued wheels so you can hit the ground running. To match the new-look chassis, wheels have been changed to white and match nicely with the body.



Wheelie Bar
Wheelie Bar

VE model features a wheelie bar to prevent flipping over when doing wheelies. With the power of the brushless motor, the dynamic acceleration lifts the front wheels and the chassis can run on its rear wheels (wheelie).



80's Van Style
80's Van Style

Separate molded parts such as the bumper, grille and side mirrors enhance the scale feel of this 1970’s and 80’s American van motif. A roof guard is also installed.Extra decal sheet is included to customize body.



Product Specifications

Approximate Assembly Time No Assembly Needed
Scale 1/10
Power Type Electric
Servos Included
Front Track 250mm (9.84 in)
Vehicle Size Standard
Product Width 12.7165" (323 mm)
Radio Included
Ball Bearings Full Ball Bearings
Chassis Fazer Mk2
Completion Level Ready-To-Run
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Product Height 7.75591" (197 mm)
Motor Type Brushless
Rear Track 250mm (9.84 in)
Speed Control Included
Wheelbase 10.7874" (274 mm)
Charger Sold Separately
Differential Gear Diffs
Receiver Included
Shock Type Oil-Filled Shocks
Battery Sold Separately
Connector Type Deans
Gear Ratio 11.803:1
Product Length 18.1102" (460 mm)
Steering Type 2WS
Product Weight 2180g (76.90 in)
Vehicle Type Monster Truck
