Product Details

The Tamiya M-08 Chassis platform gets a performance boost with this Limited-Edition release. The M-08R Chassis Kit employs various kinds of option parts such as a ball differential, for the rear gearbox, and TRF (Tamiya Racing Factory) precision oil dampers to get ready for club races!
Key Features
  • The TA06 Rear Ball Differential Set (Item 54306) utilizes twelve 3/32-inch balls to give superb stability
  • Includes carbon fiber components such as battery holders and body mount base
  • M-08 Concept reinforced gearbox parts give sturdier gearbox and steering setups, for more efficient drive and improved steering feel
  • Comes with the dedicated chassis weight (20g)
  • M-07 Concept reinforced suspension parts featuring carbon fiber-reinforced resin allow superior cornering ability
icon-box
In The Box
  • (1) 1/10 RC M-08R Chassis Kit
icon-how-to
Needed to Complete
  • (1) 2-Channel Radio System
  • (1) Motor
  • (1) Electronic Speed Control
  • (1) Standard Steering Servo
  • (1) Battery
  • (1) Charger
  • (1) Polycarbonate Body
  • (1) Set of Wheels and Tires
1/10 M-08R Chassis Kit (LIMITED EDITION)

M-08R Chassis

This assembly kit creates the M-08 Concept high performance R/C chassis, which employs a midship motor, rear-wheel drive layout for superior rear traction, plus a main frame split into front and rear sections that allow 3 different wheelbase selections. Smooth 4-wheel double wishbone suspension utilizes CVA oil dampers and long suspension arms for ground hugging performance, and front caster with a pairing of 0-degree suspension mount and 2-degree hub carrier. An oil-filled gear differential provides smooth drive, while motor and gearbox are positioned to ensure powerful drive under acceleration.

Features

  • The TA06 Rear Ball Differential Set utilizes twelve 3/32-inch balls to give superb stability.
  • Includes carbon fiber components such as battery holders and body mount base.

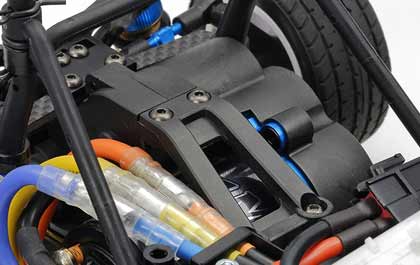

  • M-08 Concept Reinforced Gearbox parts give sturdier gearbox and steering setups, for more efficient drive and improved steering feel.
  • Comes with the dedicated chassis weight (20g).
  • Features hex head screws.
  • M-07 Concept Reinforced Suspension Arms featuring carbon fiber-reinforced resin allow superior cornering ability.
  • Durable, lightweight aluminum turnbuckle shafts allow adjustment of length without removing adjusters.
  • Includes a blue anodized finish version of the TRF Super Short Big Bore Dampers.
  • The 1.3mm diameter damper pistons give smooth oil flow and facilitate more flexible suspension.

TAMIYA M-08 CONCEPT



TAMIYA M08 BUILD

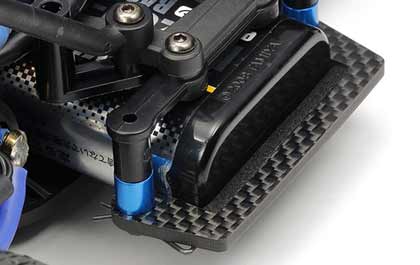

Carbon Fiber Parts
Carbon Fiber Parts

Includes carbon fiber components such as battery holders and body mount base.

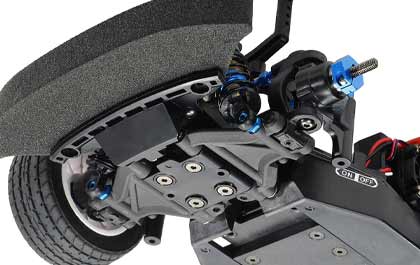

Carbon Reinforced Suspension
Carbon Reinforced Suspension

M-07 Concept Reinforced Suspension Arms featuring carbon fiber-reinforced resin allow superior cornering ability.

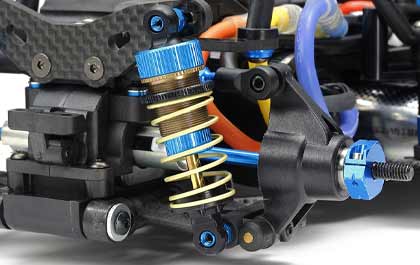

Big Bore Shocks
Big Bore Shocks

Includes a blue anodized finish version of the TRF Super Short Big Bore Dampers.



FEATURE_TITLE
Rear Ball Differential

The TA06 Rear Ball Differential Set utilizes twelve 3/32-inch balls to give superb stability.

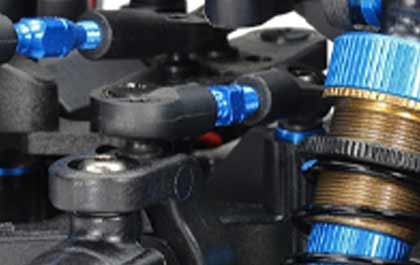

Turnbuckles
Turnbuckles

Durable, lightweight aluminum turnbuckle shafts allow adjustment of length without removing adjusters.



Product Specifications

Bushing Material Metal
Charger Sold Separately
Differential Ball Pressure Plate
Receiver Sold Separately
Shock Type Aluminum Oil Filled
Power Type Electric
Servos Sold Separately
Radio Sold Separately
Scale 1/10
Ball Bearings Full Ball Bearings
Chassis FRP Fiberglass Reinforced Plastic
Completion Level Kit
Drivetrain 2WD
Drive Type Forward/Brake/Reverse
Speed Control Sold Separately
Battery Sold Separately
Gear Ratio Adjustable
Motor Size 540
Suspension Fully Independent Double Wishbone
Vehicle Type On-Road
