1/10 Lazer Dirt Cross 4x4 Off-Road Racing Electric Buggy Kit

Item No. KYO34321
Backorder
Brand Logo
4.7 out of 5 Customer Rating

1/10 Lazer Dirt Cross 4x4 Off-Road Racing Electric Buggy Kit

Item No. KYO34321
$259.99
RC Club points earned on this item shown at checkout.
Next Shipment July 2024
Selected Store

Product Details

Feel the unique power and control of 4WD next-gen basic buggy built on a pure racing base.
Key Features
  • Proven And Reliable Shaft-Driven 4WD System
  • Body Is Designed With a Classic Rear Cabin Style
  • Gearboxes Are Equipped With Gear Differentials
  • H-Pin Tires Provide Stable Grip
  • Spoke Wheels Recreate That Real Racing Buggy Style
icon-box
In The Box
  • (1) 1/10 LAZER Dirt Cross 4WD Buggy
icon-how-to
Needed to Complete
  • (1) 2+ Channel Radio System
  • (1) Standard-Size Steering Servo
  • (1) 540-Size Motor
  • (1) Electronic Speed Control
  • (1) 7.2V - 7.4V Battery
  • (1) Battery Charger
1/10 Lazer Dirt Cross 4x4 Off-Road Racing Electric Buggy Kit

Overview

In the long and distinguished history of 1/10 EP (electric) R/C racing buggies, there are two types based on different drive systems. Rear 2WD models are typically easier to assemble and maintain and exhibit nimble driving characteristics; and then there are the equally popular 4WD models, which use drive force to all four wheels for superior traction on low-grip roads compared to 2WD. For drivers considering a step up from entry-level models, we are proud to introduce the Lazer SB Dirt Cross 4WD, which is a cost-optimized version of the competition-level ZX-5 that has continued to evolve performance and control as the cutting-edge of Kyosho’s worldwide 4WD EP buggy racing campaigns. While the suspension and driven system are retained from the proven Lazer ZX-5, the Dirt Cross does much more than reduce costs; it is designed to appeal to a new generation of R/C racers. While retaining its basic shape, the main chassis has been updated and optimized for the latest battery and motor systems. However, the body has been completely redesigned with a rear positioned cabin (instead of the usual forward-cabin of racing models), driver figure, and spoke wheels for a classic retro buggy style. As the Dirt Cross is based on a purebred race model, performance is guaranteed. Combining the most comprehensive fit out at a great value price, all the fun and performance off-road R/C has to deliver is perfectly optimized into this mid-range 4WD buggy.

Features

  • Optimal price : performance ratio is realized in this standard EP 4WD buggy based on a high performance racing buggy.
  • Equipped with proven and reliable shaft-driven 4WD system.
  • Body is designed with a classic rear cabin style. Also includes rear wing and driver figure.
  • Front and rear gearboxes are equipped with gear differential, ensuring reliable operational stability over long periods. Can also be replaced with an optional ball differential.
  • Features high rigidity and lightweight resin main chassis. In addition to various shaped standard batteries, short-type LiPo batteries can also be installed.
  • H-pin tires provide stable grip on a wide range of road surfaces.
  • Spoke wheels recreate that real racing buggy style with a retro look to match the body.
  • Full bearing specifications are standard and greatly increase drive system efficiency.
  • Compatible with various optional parts and shock springs from the Lazer series.
  • Race-proven double wishbone front and rear suspension provides exceptional running stability. Oil shocks are height adjustable.
Chassis
Chassis

The simple chassis of the Dirt Cross delivers its high performance on all fields of action, from flat dirt to off-road racing circuits. The shaft drive 4WD at its core is based on the Lazer ZX-5, which competes at the highest levels around the world including the world championships.

Body
Body

The body positions the cabin near the rear in traditional racing buggy style to create fresh impressions with new drivers and a sense of nostalgia for those with more years behind the controls.

Driver

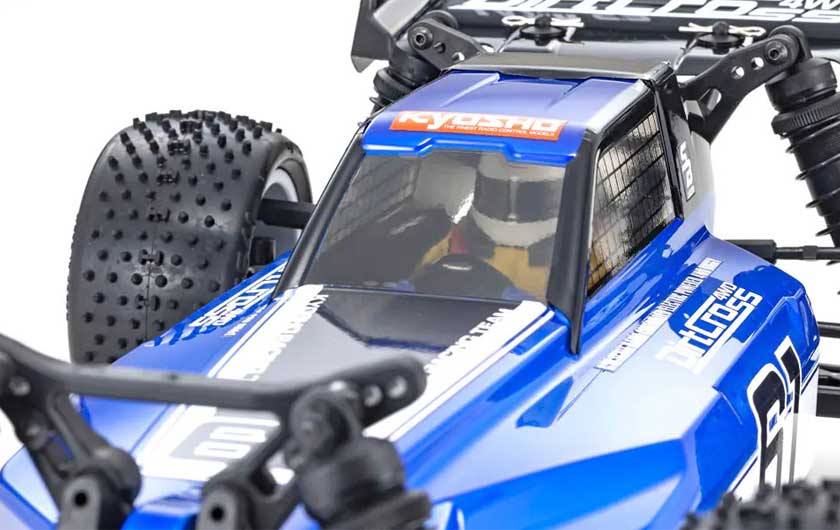

Driver Figure

The driver figure used to be standard in Kyosho R/C buggies in earlier times and has been revived in this model to increase the sense of realism. The driver figure can also be attached to the 2WD Dirt Master.

Cover

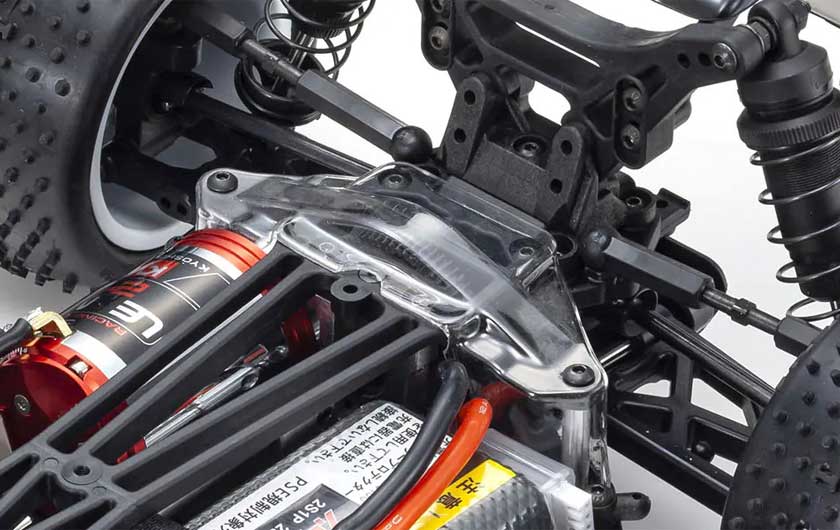

Gear Cover

Polycarbonate gear cover protects the spur and pinion gear when driving on surfaces with gravel and stones. The gear cover can be easily attached and detached with screws.

Batteries
Battery Compatability

Compatible with most mainstream R/C car batteries available. The battery is secured with a hook-and-loop fastener belt, so various battery sizes and shapes can be secured in place.

Shocks
Oil Shocks

Resin oil shocks equipped on front and rear suspensions soak up the bumps from the road surface. Dial adjustment of spring tension makes it easy to change chassis height setting.

Tires

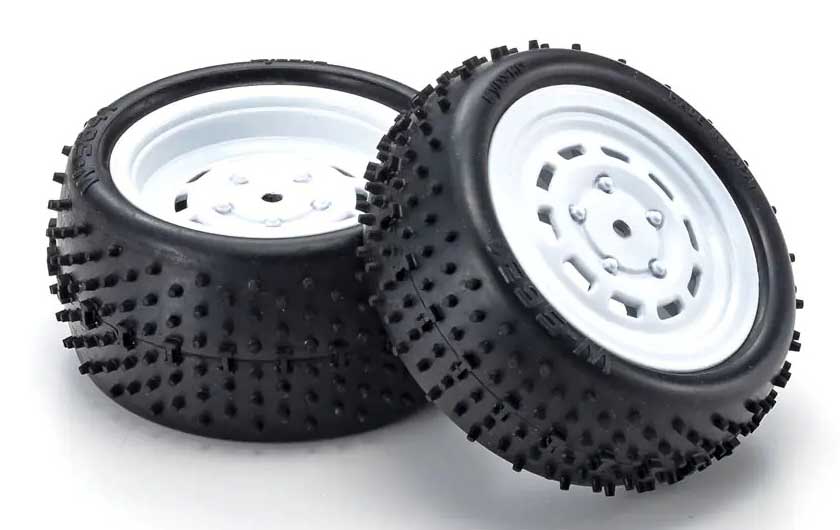

Tires

H-pattern pin tires are equipped on front and rear to provide reliable grip on any surface. Spoke wheels recreate that retro style to match the body form.

Drive

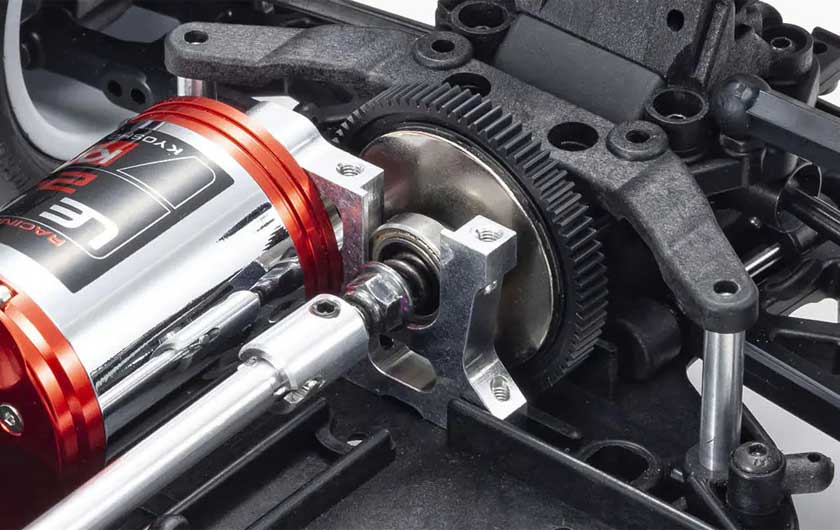

Slipper Clutch

Slipper clutch protects the gears and drive system from excessive loads. Tension settings of the slipper clutch can be adjusted to change driving characteristics.

Suspension
Suspension

Front and rear suspension upper arms and steering rod use turnbuckles so simply turn to adjust rod length and change camber angle and toe angle settings.

Product Specifications

Manufacturer # 34321
Power Type Electric
Servos Sold Separately
Charger Sold Separately
Differential Gear Diffs
Receiver Sold Separately
Shock Type Oil Shocks
Front Track 8.22" (209mm)
Vehicle Size Standard
Product Width 9.64" (245 mm)
Radio Sold Separately
Battery Sold Separately
Gear Ratio 8.13:1
Motor Size 540
Product Length 15.55" (395 mm)
Suspension Independent Suspension
Body Polycarbonate Body
Scale 1/10
Chassis Plastic Chassis
Completion Level Kit
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Product Height 4.92" (125 mm)
Product Weight 51.14 oz (1450g)
Vehicle Type Buggy
Rear Track 7.91" (201mm)
Speed Control Sold Separately
Wheelbase 10.55" (268 mm)
