Product Details

Hugely popular monster truck now in unassembled kit form!
Key Features
  • Kit Is Approximately 30% Pre-Assembled
  • Wagon-Style ULTRA SCALE BODY
  • Shaft-Type 4WD Chassis
  • Full Ball Bearing Specifications
  • High-Grip 2.8-Inch Tires And Wheels
icon-box
In The Box
  • (1) 1/10 KB10 Mad Wagon Kit
icon-how-to
Needed to Complete
  • (1) 2+ Channel Radio System
  • (1) Standard-Size Steering Servo
  • (1) 540 - 550 Size Motor
  • (1) Electronic Speed Control
  • (1) 7.2V - 7.4V Battery
  • (1) Battery Charger
1/10 KB10 Mad Wagon 4x4 Electric Monster Truck Kit

Overview

First released in 2022, the popularity of the 1/10 scale EP Mad Wagon monster truck was built on its massive power and speeds of 75km/h that were made easy to enjoy with its fully assembled ReadySet form. Now released as an unassembled kit, users gain a deeper understanding of the vehicle structure and insight into tuning and maintenance. However, complex components that are difficult to assemble such as front, center and rear gearboxes, are pre-built so assembly can be complete in a relatively short time, even for people with limited R/C car experience. This is not simply a kit form of the existing pre-assembled ReadySet and includes some features unique to this unassembled kit version. Various parts that were previously only available as optional upgrades are now included as standard, so a tuned-up model is created just by assembling the kit version, but realized at a much lower price (than purchasing the upgrades separately). Also, the kit version allows choice of entry-level to competition-grade R/C systems including transmitter and receiver as well as suitable batteries. With styling inspired by a 1980’s era station wagon, the unpainted ‘ultra-scale body’ boasts exceptional detail and includes plated parts such as bumpers and grille which don’t need painting. Graphics on the new decal set recreate true scale realism even if the body is painted in a single color, but of course you can enjoy designing your own color scheme or recreating an existing design. The power and speed of the Mad Wagon can be enjoyed on any surface from rough terrain to paved roads using your preferred R/C system and power source.

Features

  • Chassis kit is approximately 30% pre-assembled.
  • Required for operation: R/C system, speed controller, motor, and battery.
  • Brushless motor with diameter of 36 mm and length of 60mm to 68mm recommended.
  • New generation KB-10 chassis is designed as a platform for various R/C categories including off-road models.
  • Lightweight main chassis equipped with many optional upgrade parts as standard provides excellent value.
  • Includes wagon-style ULTRA SCALE BODY. Separate parts for the body and decals are unique to this kit version.
  • Body features light buckets which are compatible with optional LED light unit.
  • Shaft-type 4WD chassis with a proven double wishbone suspension delivers exceptional driving performance.
  • Full ball bearing (22 pieces) specifications delivers excellent drive efficiency from each component.
  • Telescoping resin universal shaft reduces drive loss and prevents shafts coming loose in contact.
  • Equipped with high-grip 2.8-inch tires and wheels. General-purpose 2.8-inch tires and wheels for 1/10 scale can also be installed.
  • Change from the standard gears for a wide range of reduction ratios, including for on-road driving.
  • Equipped with a wheelie bar at the rear of the machine that prevents flipping under hard acceleration.
Aluminum Chassis
Aluminum Chassis

Robust structure of the aluminum main chassis with resin subframe is the same as the Readyset, but the driving performance of the kit version is improved with the inclusion of various optional parts as standard.

Polycarbonate Body
Polycarbonate Body

The kit includes 1.2mm thick PC body with chrome plated headlights, grill and bumper. Also includes the special decal sheet. Customize your body to your style!

Differentials
Differentials

Includes pre-built front, center and rear gearboxes with the drive shafts temporarily assembled on the main chassis, which is 20g lighter than the standard Readyset version. Diff gears are designed for use with diff oil (sold separately) of your preferred hardness.

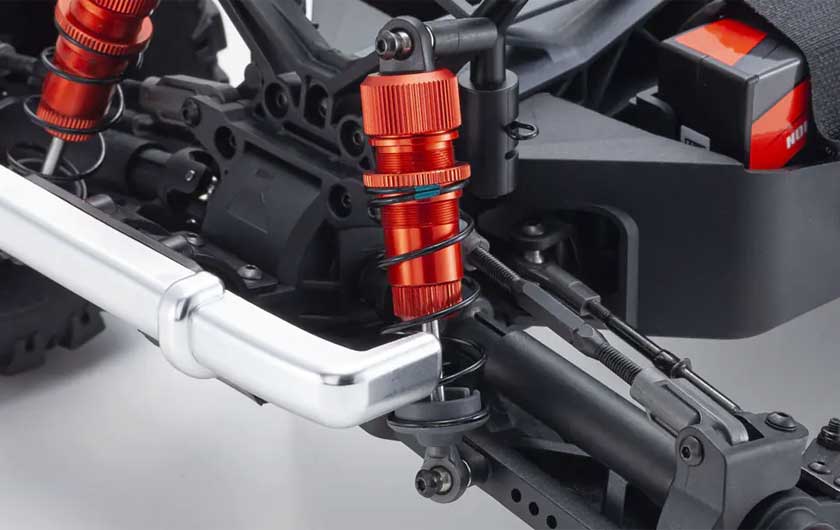

Oil Shocks
Oil Shocks

Standard equipment includes aluminum oil shocks (shock absorbers) that are normally sold as optional parts. High precision and resistant to temperature changes, it deliver superior suspension stability even when crossing large gaps. Dial-type ride height adjustment makes it easy to adjust the ride height.

Upper Arms
Upper Arms

Turnbuckle upper arms with positive and reverse thread on both ends replace the fixed length upper arms included in the Readyset version. Camber angle can now be changed freely, expanding the range of settings.

Diff Gears
Diff Gears

Front and rear diff gears are equipped with machined steel bevel and ring gears as standard (previously optional) to provide the high strength and durability that easily handles the power of brushless motors.

Motor Mount
Motor Mount

High-performance aluminum HD motor mount with improved heat dissipation performance over the standard plastic injection molded product for Readyset. Reduces motor power down due to heat and its high rigidity prevents pinion and spur gears from damage.

Slipper Clutch
Slipper Clutch

Slipper clutch which protects the drive system, has been made of aluminum. The reduces weight of rotating parts compared to the standard clutch in the Readyset, allowing for sharper acceleration. In addition, the fins help to dissipate heat efficiently.

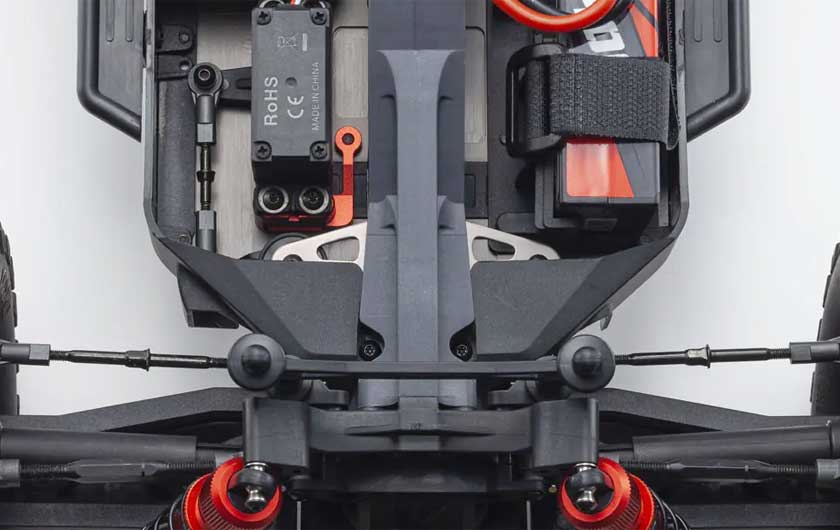

Steering
Steering

Aluminum HD servo mount demonstrates high retention rigidity and precise steering response. Included as standard in the kit and anodized in Kyosho’s signature red color.

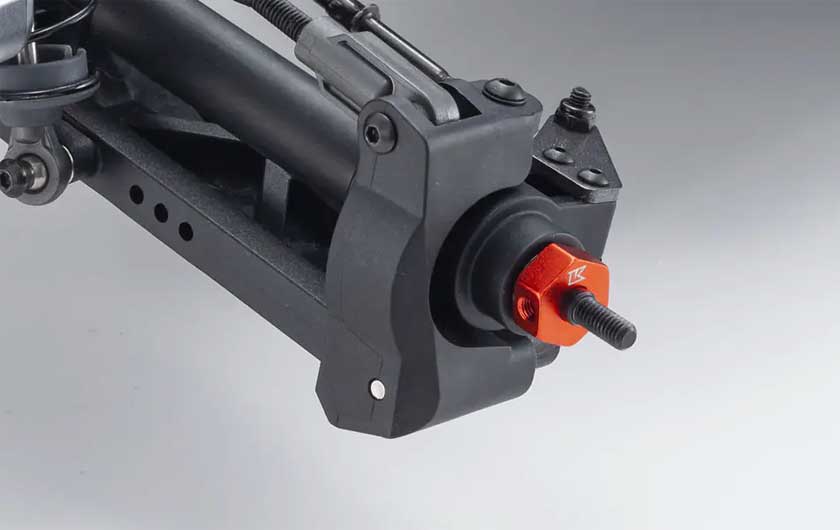

Wheel Hubs
Wheel Hubs

Equipped with aluminum HD wheel hubs in place of the standard plastic wheel hubs in the Readyset. Increased precision and rigidity deliver efficient power transfer to the wheels.

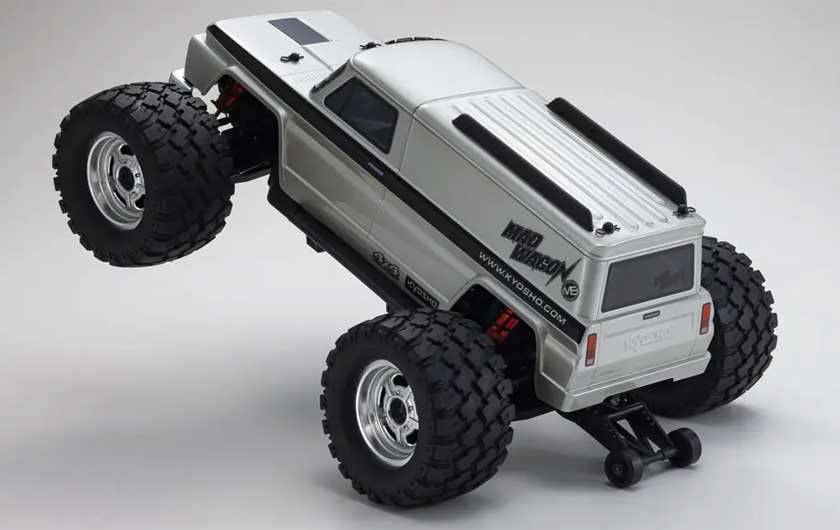

Wheelie Bar
Wheelie Bar

Features a wheelie bar that prevents the vehicle from flipping when the front tires are up high. Not only does it enable stable wheelie driving, but it also adds an exterior style element.

Product Specifications

Manufacturer # 34702
Product Weight 127.33 oz (3,610g)
Vehicle Type Monster Truck
Battery Sold Separately
Gear Ratio 15.22:1
Product Length 18.58" (472 mm)
Suspension Independent Suspension
Rear Track 10.94" (278mm)
Speed Control Sold Separately
Wheelbase 11.61" (295 mm)
Power Type Electric
Servos Sold Separately
Ball Bearings Full Ball Bearings
Completion Level Kit
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Body Pre-painted Polycarbonate
Scale 1/10
Front Track 10.94" (278mm)
Product Width 13.77" (350 mm)
Radio Sold Separately
Charger Sold Separately
Receiver Sold Separately
Shock Type Oil Shocks
Product Height 7.79" (198 mm)
