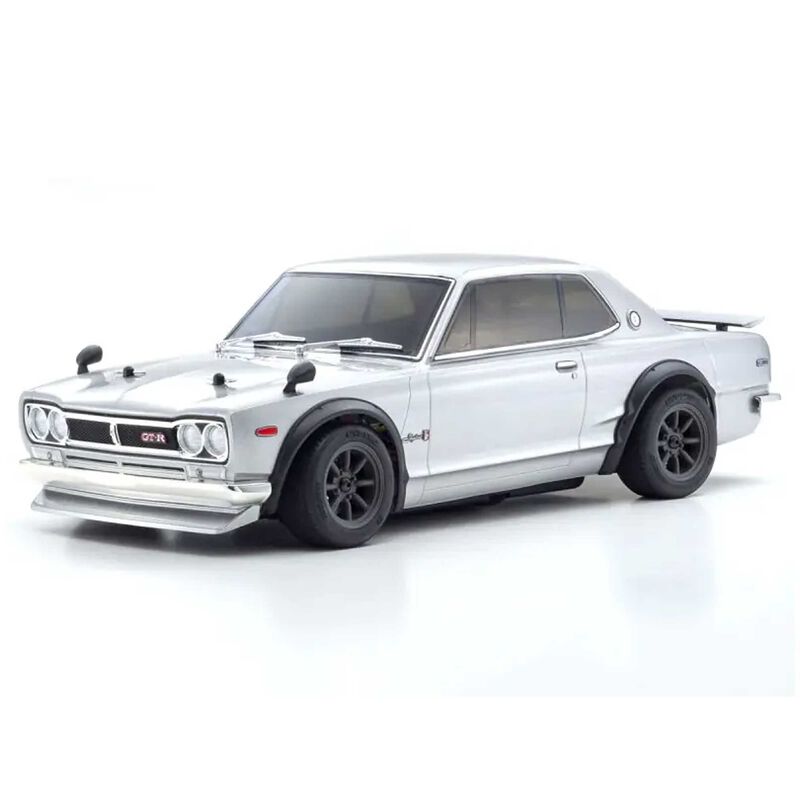

1/10 Fazer Mk2 Nissan Skyline 2000 GT-R 4x4 Electric Touring RTR, Silver

Item No. KYO34425T1C
Discontinued
Brand Logo
5 out of 5 Customer Rating

1/10 Fazer Mk2 Nissan Skyline 2000 GT-R 4x4 Electric Touring RTR, Silver

Item No. KYO34425T1C
This Item is No Longer Available
Selected Store

Product Details

For the pure enjoyment of R/C car driving, the combination of a beautifully reproduced car body with the FAZER series chassis can’t be beaten.
Key Features
  • "Ultra Scale Body” Replicates The Fine Details Of The Actual Body Of The Car
  • Equipped With Vintage Touring Car Tires And Watanabe Type Wheels
  • Full Ball Bearings That Reduce Drive Loss Equipped Throughout The Drive System
  • Shaft Driven Full-Time 4WD Touring Chassis
  • Equipped With A Plated Dummy Brake Disc And A Painted Brake Caliper
icon-box
In The Box
  • (1) 1/10 Kyosho Fazer Mk2 Skyline GT-R
  • (1) Syncro KT-231P+ Transmitter
  • (1) 1/10 Kyosho Fazer Mk2 Skyline GT-R Manual
icon-how-to
Needed to Complete
  • (4) AA Batteries For Transmitter
  • (1) 7.2v - 7.4v Battery
  • (1) Battery Charger
1/10 Fazer Mk2 Nissan Skyline 2000 GT-R 4x4 Electric Touring RTR, Silver

Overview

Kyosho has taken its standard touring car chassis and given it a full model makeover that has evolved performance to a new level. A simplified design with fewer parts has improved maintenance efficiency and reduced weight while core strength and rigidity has been increased through new materials and ribbing and stiffeners on front and rear. In addition, the symmetrical chassis design synergizes excellent front-rear balance through the suspension with responsive control, irrespective of power source. Featuring front and rear gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance allows drivers to unleash the full potential of the chassis. Brake disc wheel hubs with two different offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width body styles and allows the wheelbase to be adjusted to 270mm by replacing some parts (sold separately) for compatibility with other 1/10 scale body styles, in addition the body included. The Readyset package comes fully assembled and includes everything except charger and battery for the chassis, and batteries for the transmitter.

Features

  • “Ultra Scale Body” replicates the fine details of the actual body of the car. Kyosho took a step further in scale realism
  • Equipped with vintage touring car (VTC) tires and Watanabe type wheels designed to match the Hakosuka GT-R
  • The separately sold LED light unit (97054) can be attached to the front and rear light buckets, making it even more scaled
  • Factory-assembled Readyset package only requires 4 x AA alkaline batteries for the transmitter, and battery with charger for the chassis
  • Full ball bearings that reduce drive loss equipped throughout the drive system
  • Sealed differential and transmission deliver reliable performance, even on dusty parking lot surfaces
  • Shaft driven full-time 4WD touring chassis
  • Equipped with a plated dummy brake disc and a painted brake caliper to improve the sense of scale
  • Uses buttonhead hex screws in each part. Reliable tightening torque can be applied, and maintenance is possible with even fewer tools
  • Since the motor mount has mounting holes according to the pinion gear, troublesome backlash adjustment is unnecessary. Supports from 29T to 37T
  • Performance can be further enhanced by installing various optional parts

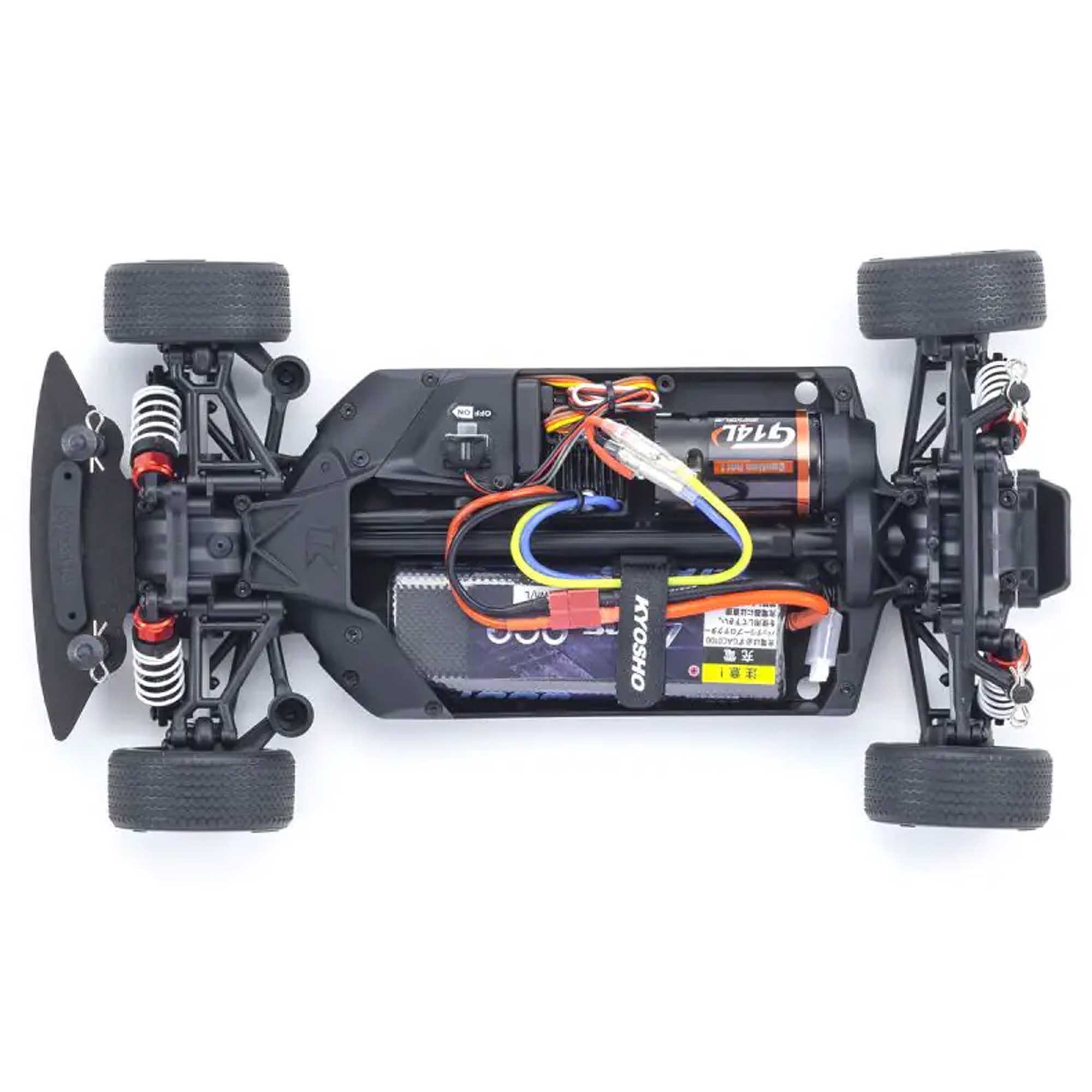

Chassis
Fazer Chassis

The Fazer completely realizes low center of gravity with its simple, functional design. Featuring an integrated gearbox that optimizes torsional rigidity of the main chassis, the nylon material reduces weight while improving impact resistance. Each key component has been reinforced in this simple design without upper deck.



Easy Disassembly
Easy Disassembly

Features a reduced number and variety of screws and parts, and consolidation of frequently used screws into the same size. Most screws are flat head screws that can be removed with a 2.0mm hex wrench for easy disassembly.



Front Suspension
Front Suspension

Handling factors such as bump steer and scrub radius are optimized on front suspension. Simple ball-connected steering knuckle promises reliable control movement. Interchangeable on both front and rear left-right hub carriers optimize spare parts utilization and improve maintenance efficiency.



Wheel Hubs
Wheel Hubs

Includes choice of two offset brake disc wheel hubs with dummy calipers (for visual styling) that provide compatibility with 190mm and 200mm body widths.



Oil Filled Shocks
Oil Filled Shocks

Equipped with an oil shocks as standard equipment. Change the vehicle height by changing the length of the damper end according to the vehicle type.



Easy Gear Ratio Settings
Easy Gear Ratio Settings

Standard spur and pinion gear setting is 68T and 32T, but 9 pinion gear settings can be used from 29T – 37T to produce a wide range of gear ratio settings. The new fixed gear mesh motor mount has holes for use with each different pinion gears. Just simply mount the motor directly to the hole locations corresponding to the pinion gear. No gear mesh adjustment is necessary.



Scale Details
Scale Details

Body style is all about scale and detail. Injection molded accessory parts such front and rear fenders combined with a chrome bumper and grille, and the replica GT-R emblem puts one the finishing touches.



Tires and Wheels
Authentic Tires and Wheels

Vintage Touring Car (VTC) tires and the custom 8-Spoke Watanabe Wheels for the Hakosuka GT-R are the perfect match for this vintage car.



Product Specifications

Battery Sold Separately
Charger Sold Separately
Completion Level Ready-To-Run
Drive Type Forward/Brake/Reverse
Drivetrain 4WD
Gear Ratio 6.54:1
Manufacturer # 34425T1C
Motor Type Brushed
Power Type Electric
Product Height 5.35433" (136 mm)
Product Length 17.7165" (450 mm)
Product Weight 1650g
Product Width 7.67717" (195 mm)
Radio Included
Receiver Included
Scale 1/10
Servos Included
Shock Type Oil Filled
Speed Control Included
Vehicle Type Touring Car
Wheelbase 10.2362" (260 mm)
