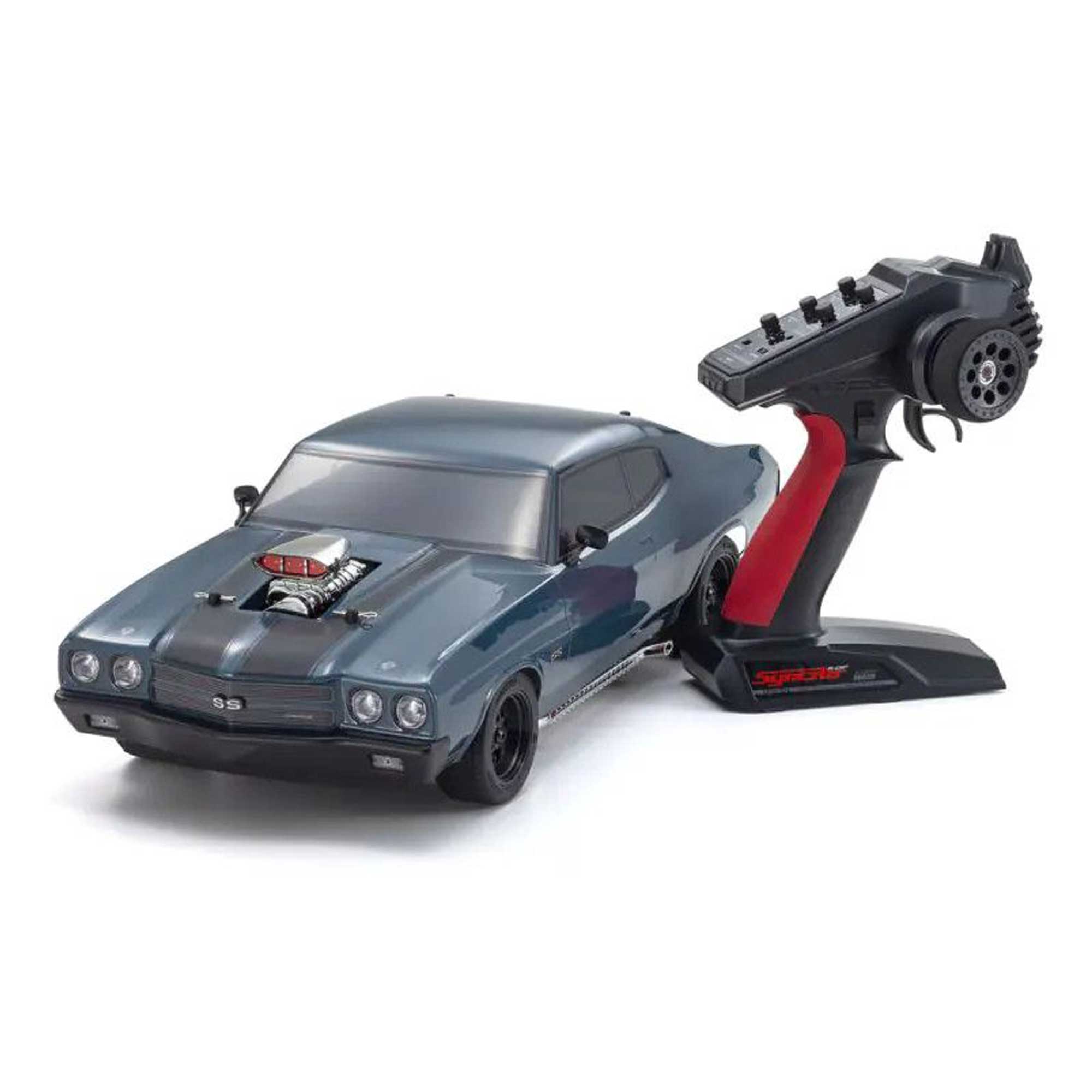

1/10 Fazer Mk2 Brushless 1970 Chevelle Supercharger AWD Touring RTR, Dark Blue

Item No. KYO34494T1
Backorder
Brand Logo
4.1 out of 5 Customer Rating

1/10 Fazer Mk2 Brushless 1970 Chevelle Supercharger AWD Touring RTR, Dark Blue

Item No. KYO34494T1
$349.99
RC Club points earned on this item shown at checkout.
Back Order
Selected Store

Product Details

Even more speed with brushless motorization! With its muscular body and supercharger, this machine makes a visual statement to back up its powerful performance!
Key Features
  • Equipped With High-Power TORX 10E Motor
  • Waterproof BRAINZ 10 V2 60A ESC
  • Equipped With Vintage Touring Car (VTC) Tires
  • KS4031-06W Steering Servo
  • Full Ball Bearing Specifications
icon-box
In The Box
  • (1) 1/10 Fazer Mk2 Brushless 1970 Chevelle Supercharger AWD Touring RTR
  • (1) Syncro KT-231P+ Transmitter
  • (1) 1/10 Fazer Mk2 Brushless 1970 Chevelle Supercharger AWD Touring RTR Manual
icon-how-to
Needed to Complete
  • (4) AA Batteries for Transmitter
  • (1) 7.2V - 7.4V Battery
  • (1) Battery Charger
1/10 Fazer Mk2 Brushless 1970 Chevelle Supercharger AWD Touring RTR, Dark Blue

Introduction

Designed and built for the pure enjoyment of R/C car driving, the FAZER Mk2 welcomes this brushless motor addition to the series. Powering up from the conventional G14L brushed motor to the TORX 10E brushless motor, the 1.6 x speed boost delivers 65km/h (up from about 40 km/h) backed up by the newly incorporated BRAINZ 10 V2 speed controller, sintered pinion gear and aluminum HD center shaft (previously an optional upgrade) to support the extra power and higher RPMs. This fully upgraded version of the VE specifications boasts an ultra-scale 1970 Chevy® Chevelle® body, with a Kyosho designed supercharger, and features light buckets that can be equipped with front and rear LEDs. Kyosho’s original dark blue color with a matte racing stripe of this machine and this ‘1970 Chevy® Chevelle®’ is packaged as a pre-built Readyset, so its easy even for beginners to enjoy without delay. Just use your own battery, battery charger and transmitter batteries to experience the first brushless motor-powered model in the VE series!

Features

  • Equipped with the familiar supercharger and original side exhaust, enhancing the overall scale appearance.
  • Front and rear light buckets that can accommodate LED lights are offered in a chrome finish to enhance the realism.
  • Elevate the scale finish by installing 97054 LED light unit series (sold separately) in the front and rear light buckets.
  • Equipped with high-power TORX 10E motor. In addition, sintered pinion gear (32T) is equipped as standard to reliably transmit the full force from the motor.
  • Waterproof BRAINZ 10 V2 60A ESC with cooling fan provides stable power without heat loss.
  • Equipped with vintage touring car (VTC) tires with compound optimized for brushless performance, and new color Rostyle-type wheel design to match the classic style of the Dodge Charger.
  • Aluminum center shaft prevents twist and delivers high-RPM drive. Shaft-driven full-time 4WD touring chassis provides easy handling and is a joy to drive for anyone.
  • Includes advanced functioning KS4031-06W steering servo as standard.
  • Factory-completed Readyset only requires 4 x AA batteries for the transmitter as well as a charger and battery for the chassis.
  • Full ball bearing specifications reduce drive loss in all drive components.
  • Sealed differential and transmission realize excellent reliability, even in dusty parking lots.
  • Equipped with a plated dummy brake disc and painted brake caliper for an elevated sense of scale.
  • Uses hexagonal button screws throughout. Allows secure tightening torque to be applied and maintenance with fewer tools.
  • Motor mount has mounting holes according to pinion gear, eliminating the need for tricky backlash adjustment. Supports pinions from 29T to 37T.
  • Wide range of optional parts are available to further boost driving performance.
Drivetrain
Drivetrain

HD center shaft is equipped as standard to prevent twisting and support high-speed performance. The simple and functional main chassis uses lightweight impact-resistant nylon to reduce weight and an integrated gearbox that optimizes torsional rigidity to deliver a low center of gravity. The simple upper-deckless design realizes strength through each component and section.



Steering Servo
Steering Servo

Equipped with the advanced functionality of the KS4031-06W steering servo. The front suspension optimizes bump steer and scrub radius for improved handling and features interchangeable front left and front right ball-connected steering knuckles that deliver smooth operation and high crash resistance.



Motor
Motor

High-powered TORX 10E brushless motor. The sealed motor case prevents foreign objects from entering the motor and gearbox.



Electronic Speed Control
Electronic Speed Control

BRAINZ 10 V2 speed controller with cooling fan for brushless motors. Program settings can be changed to suit different conditions and it’s also waterproof so you can even run through the rain or small puddles.

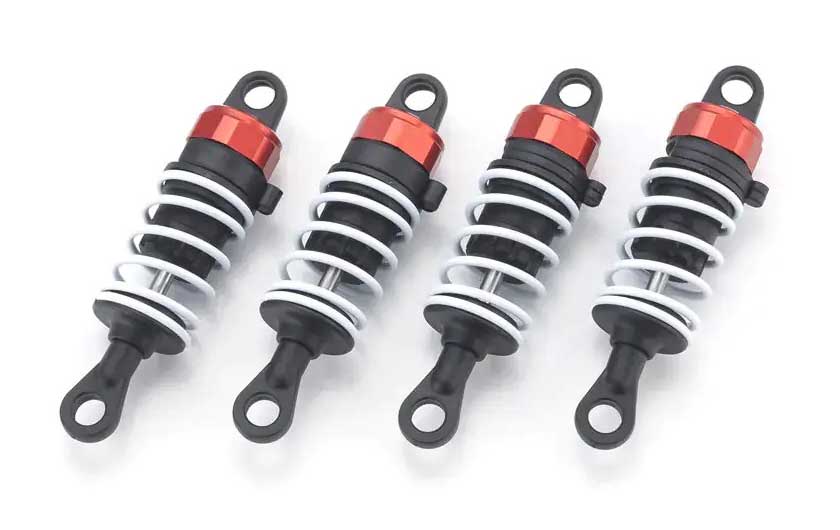

Oil Shocks
Oil Shocks

Equipped with oil shocks as standard. Vehicle height can be adjusted by changing the included ball ends and spring spacers according to the vehicle type and setting.



Gearing
Gearing

Sintered 32T pinion gear is equipped as standard for reliable transfer of the high-powered force from the brushless motor. 68T and 32T are standard settings for spur gears and pinion gears respectively, however a total of 9 pinion gear variations from 29T to 37T are available to suit various motors for a wide range of gear ratio settings. In addition, set positioning of the motor according to the number of teeth of the pinion gear reduces problems with backlash adjustment.



Wheels and Tires
Wheels and Tires

Features VTA tires with compound optimized for brushless motor performance in combination with Rostyle type wheels.

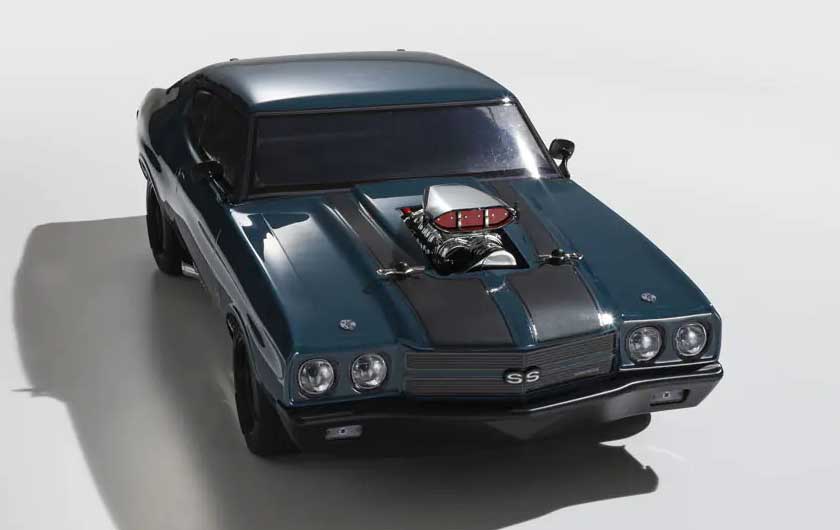

Ultra Scale Body
Ultra Scale Body

The gleaming engine head of Kyosho’s intimidating original supercharger and side mufflers perfectly compliment the elegant body lines of this classic 1970’s American V8 muscle car.

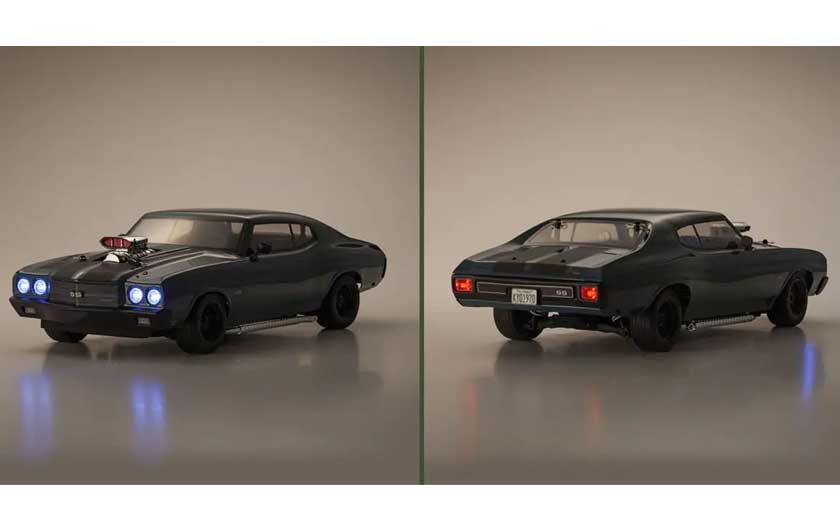

Optional LEDs
Optional LEDs

Front and rear light buckets are compatible with the 97054 LED light unit series (sold separately).



Product Specifications

Manufacturer # 34494T1
Charger Sold Separately
Differential Gear Diffs
Receiver Included
Shock Type Oil Shocks
Body Pre-Painted Polycarbonate
Scale 1/10
Front Track 6.57" (167mm)
Vehicle Size Standard
Product Width 8.18" (208 mm)
Radio Included
Motor Type Brushless
Rear Track 6.57" (167mm)
Speed Control Included
Wheelbase 10.78" (274 mm)
Battery Sold Separately
Gear Ratio 6.54:1
Product Length 19.29" (490 mm)
Suspension Independent Suspension
Ball Bearings Full Ball Bearings
Chassis Fazer Mk2
Completion Level Ready-To-Run
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Product Height 5.43" (138 mm)
Product Weight 59.26 oz (1680g)
Vehicle Type On-Road
Water-Resistant Yes
Power Type Electric
Servos Included
