1/10 COPPERHEAD, 16.8V, Sensored, Waterproof, ESC, Internal BEC

Item No. CSE10016600
Brand Logo
5 out of 5 Customer Rating

1/10 COPPERHEAD, 16.8V, Sensored, Waterproof, ESC, Internal BEC

Item No. CSE10016600
$129.95
RC Club points earned on this item shown at checkout.
In Stock
Selected Store

Product Details

Key Features
  • Waterproof design, potted in durable injection molded case
  • Data Logging
  • Fully programmable
  • CRYO-DRIVE™ technology
  • SMARTSENSE™
  • Dual use fan guard
icon-box
In The Box
  • (1) COPPERHEAD 10, 16.8V, WP Sensored ESC

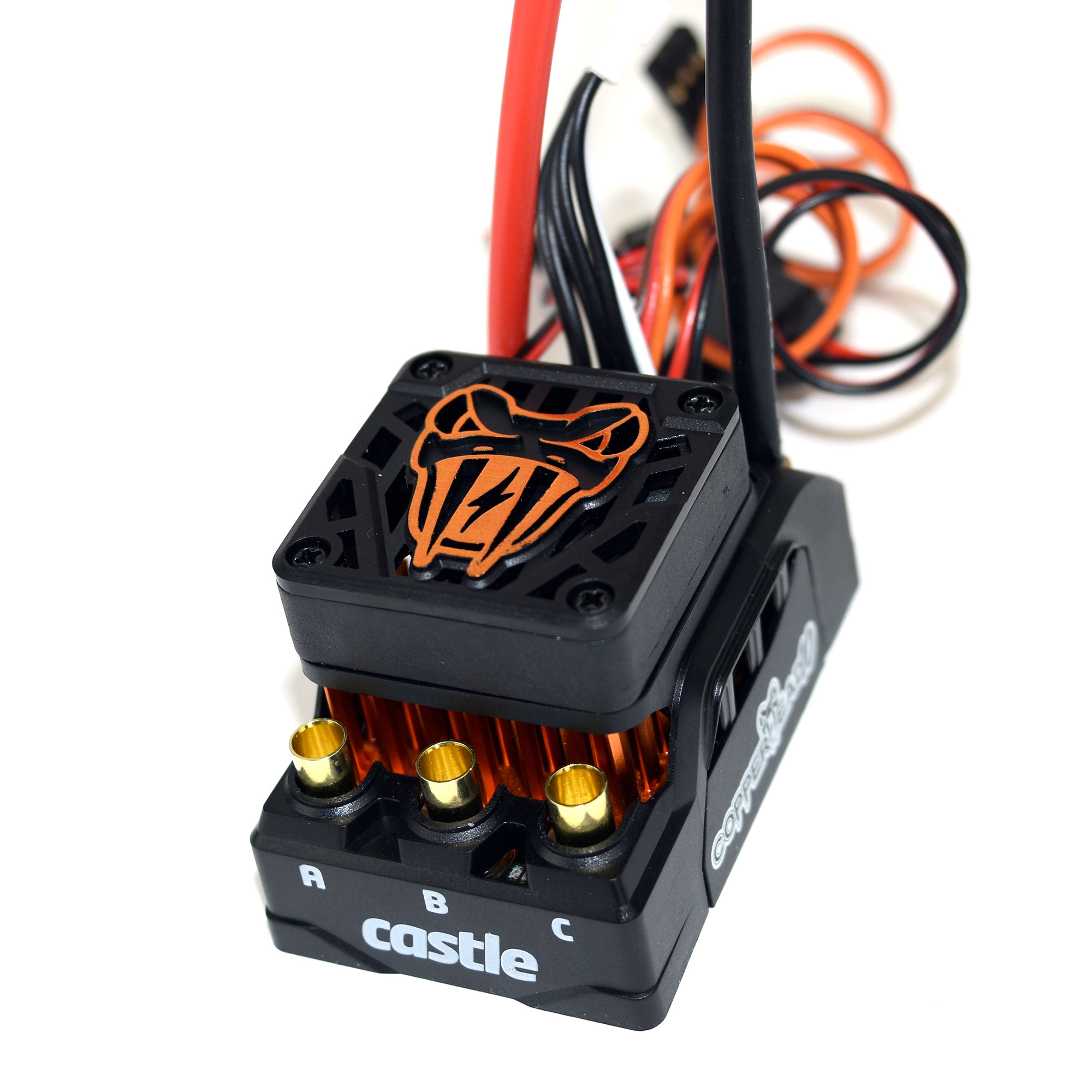

1/10 COPPERHEAD, 16.8V, Sensored, Waterproof, ESC, Internal BEC

Introduction

The Copperhead 10 is a completely new design which rounds out our 1:10 scale offerings, positioned between the SIDEWINDER 4 as the entry-level upgrade and the MAMBA X as the extreme performance option. The COPPERHEAD 10 includes CRYO-DRIVEā„¢ technology, sensored motor support and data logging with Castleā€™s signature reliability and performance. Whether crawling the trails, bashing in the backyard or ripping up corners, COPPERHEAD 10ā€™s versatility will appeal to a wide variety of 1:10 scale enthusiasts.

Features

  • Designed for 2s-4s use in 10th scale vehicles
  • CRYO-DRIVEā„¢ technology
  • DATA LOGGING LITE
  • SMARTSENSEā„¢ Technology
  • Features an internal BEC to supply power to many of todayā€™s high-torque servos
  • Dual-use fan guard
  • Application specific motor combos

Overview

CRYO-DRIVEā„¢: CRYO-DRIVEā„¢ technology minimizes the amount of time the ESCā€™s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs. COOLER TEMPS mean LONGER RUNS and MORE POWER in a COPPERHEAD 10 setup.

DATA LOGGING LITE: Battery Voltage, Battery Ripple, Controller Temperature, Motor RPM and Motor Temperature data points can be captured, downloaded and analyzed via Castle Link software. While not a full version of Data Logging capabilities that the MAMBA X EXTREME 1:10 SCALE ESC has, these critical parameters are excellent sources of information for maximizing performance and battery life of the COPPERHEAD 10.

SMARTSENSEā„¢ TECHNOLOGY: SMARTSENSE uses the motorā€™s sensors at startup to provide cog-free starts, excellent torque and low-speed drivability. Once the motor is turning, the ESC seamlessly transitions to Castleā€™s ultra-efficient sensorless mode with electronic timing to advance timing automatically for peak performance in all driving conditions. (Requires use of Castle brushless motor to utilize)

INTERNAL BEC (Battery Eliminator Circuit): COPPERHEAD 10 features a selectable 5.5V or 7.5V (6A peak) internal BEC to supply power to many of todayā€™s high-torque servos, without requiring the use of an external BEC.

Dual use fan guard: For crawler setups or others that do not require an ESC cooling fan, the fan is easily removed with four screws and the fan guard with the cool COPPERHEAD logo simply clicks back into place on the top of the ESC. It keeps the COPPERHEAD 10 looking mean and provides an extra measure of protection.

Product Specifications

BEC Type Internal
Connector Type 4mm Bullet
Product Length 2.19" (56 mm)
Motor Output Lead 4.0mm female bullets for motor connection
Product Height 1.33" (34 mm)
Product Width 1.39" (35 mm)
Brakes Proportional
Programmable Yes
Voltage 16.8V
BEC No
BEC Voltage 5.5V or 7.5V (6A peak)
Input Voltage 2-4S LiPo
Forward Yes
Reverse Yes
Application RC vehicles weighing up to 6.5 lbs
Product Weight 2.50oz (70.9g)
Water-Resistant Yes
