Brand Logo
3.7 out of 5 Customer Rating

1/10 1971 Datsun 240Z Fazer Mk2 FZ02 Brushed 4x4 On-Road Touring RTR, White

Item No. KYO34427T1
Brand Logo
3.7 out of 5 Customer Rating

1/10 1971 Datsun 240Z Fazer Mk2 FZ02 Brushed 4x4 On-Road Touring RTR, White

Item No. KYO34427T1
$245.99
RC Club points earned on this item shown at checkout.
Select Options
7.4V 3300mAh 2S 30C Reedy WolfPack LiPo Battery: T-Plug
KYO34427T1 ASC751
7.4V 3300mAh 2S 30C Reedy WolfPack LiPo Battery: T-Plug
In Stock
$30.99
7.4V 4000mAh 2S 35C Reedy WolfPack LiPo Battery: T-Plug
KYO34427T1 ASC752
7.4V 4000mAh 2S 35C Reedy WolfPack LiPo Battery: T-Plug
In Stock
$42.99
7.4V 5000mAh 2S 30C Reaction 2.0 Hardcase LiPo Battery: Deans
KYO34427T1 DYNB5023HD
7.4V 5000mAh 2S 30C Reaction 2.0 Hardcase LiPo Battery: Deans
This item is currently not available
$56.99
7.4V 5000mAh 2S 50C Reaction 2.0 Hardcase LiPo Battery: Deans
KYO34427T1 DYNB5025HD
7.4V 5000mAh 2S 50C Reaction 2.0 Hardcase LiPo Battery: Deans
In Stock
$57.99
7.4V 5300mAh 2S 60C Hardcase LiPo Battery: Deans
KYO34427T1 GEA53002S60D21
7.4V 5300mAh 2S 60C Hardcase LiPo Battery: Deans
This item is currently not available
$45.99
0 Item Selected Items Selected
Reedy 324-S Compact Balance Charger
KYO34427T1 ASC27201
Reedy 324-S Compact Balance Charger
In Stock
$35.99
Reedy 1416-C2L Dual AC/DC Comp Balance Charger
KYO34427T1 ASC27203
Reedy 1416-C2L Dual AC/DC Comp Balance Charger
In Stock
$187.99
Imars III PRO 10A Smart Balance RC Battery Charger
KYO34427T1 GEA100WMPRO
Imars III PRO 10A Smart Balance RC Battery Charger
In Stock
$59.99
RDX2 Mini AC Balance Charger
KYO34427T1 HRC44299
RDX2 Mini AC Balance Charger
In Stock
$84.99
RDX2 Pro High-Power, 260W, Dual Port AC/DC Charger
KYO34427T1 HRC44301
RDX2 Pro High-Power, 260W, Dual Port AC/DC Charger
In Stock
$149.99
0 Item Selected Items Selected
SW4 12.6V 2A BEC WP SL ESC and 1410-3800Kv Sensored Motor Combo
KYO34427T1 CSE010016405
SW4 12.6V 2A BEC WP SL ESC and 1410-3800Kv Sensored Motor Combo
In Stock
$154.95
Sidewinder 4 Brushless ESC / 1410-3800Kv  Motor Combo
KYO34427T1 CSE010016406
Sidewinder 4 Brushless ESC / 1410-3800Kv Motor Combo
In Stock
$159.95
1/10 Copperhead 1410-3800Kv Sensored Brushless ESC/Motor Combo
KYO34427T1 CSE10016610
1/10 Copperhead 1410-3800Kv Sensored Brushless ESC/Motor Combo
In Stock
$209.95
1/10 QuicRun Fusion PRO Brushless Motor/ESC 2-in-1 Combo, 2300Kv
KYO34427T1 HWI30120402
1/10 QuicRun Fusion PRO Brushless Motor/ESC 2-in-1 Combo, 2300Kv
In Stock
$149.99
EZRUN MAX10 G2 140A ESC & 3665SD G3 MOT 2400KV Brushless Combo
KYO34427T1 HWI38020343
EZRUN MAX10 G2 140A ESC & 3665SD G3 MOT 2400KV Brushless Combo
Back Order
$172.99
EZRUN MAX10 G2 140A ESC & 3665SD G3 MOT 3200KV Brushless Combo
KYO34427T1 HWI38020344
EZRUN MAX10 G2 140A ESC & 3665SD G3 MOT 3200KV Brushless Combo
Back Order
$172.99
EZRUN MAX10 G2 140A ESC & 3665SD G3 MOT 4000KV Brushless Combo
KYO34427T1 HWI38020345
EZRUN MAX10 G2 140A ESC & 3665SD G3 MOT 4000KV Brushless Combo
In Stock
$172.99
EZRUN MAX10 G2 80A ESC & 3652SD G3 MOT 4100KV Brushless Combo
KYO34427T1 HWI38020347
EZRUN MAX10 G2 80A ESC & 3652SD G3 MOT 4100KV Brushless Combo
In Stock
$129.99
Firma Brushless Motor / ESC 2-in-1 Combo, 6000Kv
KYO34427T1 SPMXSEM0501
Firma Brushless Motor / ESC 2-in-1 Combo, 6000Kv
In Stock
$82.99
Firma 85A Brushless Smart ESC / 3300Kv Sensorless Motor Combo
KYO34427T1 SPMXSEMC01
Firma 85A Brushless Smart ESC / 3300Kv Sensorless Motor Combo
In Stock
$104.99
Firma 85A Brushless Smart ESC / 4000Kv Sensorless Motor Combo
KYO34427T1 SPMXSEMC02
Firma 85A Brushless Smart ESC / 4000Kv Sensorless Motor Combo
In Stock
$104.99
Firma 130A Brushless Smart ESC / 1900Kv Sensorless Motor Combo
KYO34427T1 SPMXSEMC04
Firma 130A Brushless Smart ESC / 1900Kv Sensorless Motor Combo
In Stock
$189.99
0 Item Selected Items Selected
4PM 4-Channel T-FHSS SR Transmitter With R334SBS Receiver
KYO34427T1 FUT010043873
4PM 4-Channel T-FHSS SR Transmitter With R334SBS Receiver
Back Order
$269.99
3PRKA 3-Channel FHSS Transmitter With R203GF Receiver
KYO34427T1 FUTK3100
3PRKA 3-Channel FHSS Transmitter With R203GF Receiver
Next Shipment June 2024
$94.99
3PV 3-Channel T-FHSS Telemetry Transmitter With R304SB Receiver
KYO34427T1 FUTK3200
3PV 3-Channel T-FHSS Telemetry Transmitter With R304SB Receiver
In Stock
$179.99
3PV 3-Channel FHSS Transmitter With R203GF Receiver
KYO34427T1 FUTK3201
3PV 3-Channel FHSS Transmitter With R203GF Receiver
In Stock
$149.99
DX3 Smart 3-Channel Transmitter with SR315 Receiver
KYO34427T1 SPM2340
DX3 Smart 3-Channel Transmitter with SR315 Receiver
In Stock
$99.99
DX5 Pro 5-Channel DSMR Transmitter with SR2100 Receiver
KYO34427T1 SPM5025
DX5 Pro 5-Channel DSMR Transmitter with SR2100 Receiver
In Stock
$399.99
DX5C Smart 5-Channel DSMR Transmitter with SR6100AT Receiver
KYO34427T1 SPM5120
DX5C Smart 5-Channel DSMR Transmitter with SR6100AT Receiver
In Stock
$199.99
DX5 Rugged 5-Channel DSMR Transmitter with SR515
KYO34427T1 SPM5200
DX5 Rugged 5-Channel DSMR Transmitter with SR515
In Stock
$279.99
SLT3 3-Channel Transmitter with SR315 Receiver
KYO34427T1 SPMSLT300
SLT3 3-Channel Transmitter with SR315 Receiver
In Stock
$49.99
SLT3 3-Channel SLT Transmitter with SLR300 Receiver
KYO34427T1 SPMSLT350
SLT3 3-Channel SLT Transmitter with SLR300 Receiver
In Stock
$64.99
TTX300 3-Channel SLT Transmitter with TR325 Micro Receiver
KYO34427T1 TACJ0300
TTX300 3-Channel SLT Transmitter with TR325 Micro Receiver
This item is currently not available
$39.99
0 Item Selected Items Selected
HS-311 Standard Analog Sport Servo
KYO34427T1 HRC31311S
HS-311 Standard Analog Sport Servo
In Stock
$13.49
HS-646WP Standard Digital Waterproof Metal Gear Servo
KYO34427T1 HRC32646W
HS-646WP Standard Digital Waterproof Metal Gear Servo
In Stock
$49.99
HS-5496MH Standard Digital HV Metal Gear Servo
KYO34427T1 HRC35496S
HS-5496MH Standard Digital HV Metal Gear Servo
In Stock
$39.99
HS-5565MH Standard Digital HV High Speed Metal Gear Servo
KYO34427T1 HRC35565S
HS-5565MH Standard Digital HV High Speed Metal Gear Servo
In Stock
$72.99
HS-5625MG Standard Digital High Speed Metal Gear Servo
KYO34427T1 HRC35625S
HS-5625MG Standard Digital High Speed Metal Gear Servo
In Stock
$45.99
D625MW Standard Digital High Speed Metal Gear Servo
KYO34427T1 HRC36625
D625MW Standard Digital High Speed Metal Gear Servo
In Stock
$39.99
S602 Standard Digital Surface Servo
KYO34427T1 SPMS602
S602 Standard Digital Surface Servo
In Stock
$40.99
S605 Standard Analog Waterproof 9KG 23T Surface Servo
KYO34427T1 SPMS605
S605 Standard Analog Waterproof 9KG 23T Surface Servo
Next Shipment July 2024
$24.99
S614 Waterproof Metal Gear Surface Servo, 23T
KYO34427T1 SPMS614
S614 Waterproof Metal Gear Surface Servo, 23T
In Stock
$26.99
S6170 Standard Digital Surface Servo
KYO34427T1 SPMSS6170
S6170 Standard Digital Surface Servo
In Stock
$31.99
S6240 Standard Digital High Speed Waterproof Metal Gear Surface Servo
KYO34427T1 SPMSS6240
S6240 Standard Digital High Speed Waterproof Metal Gear Surface Servo
In Stock
$89.99
S6260 Standard Digital HV High Speed Metal Gear Surface Servo
KYO34427T1 SPMSS6260
S6260 Standard Digital HV High Speed Metal Gear Surface Servo
In Stock
$119.99
T130 Standard Digital HV High Torque High Speed Metal Gear Servo
KYO34427T1 TEKTT1502
T130 Standard Digital HV High Torque High Speed Metal Gear Servo
In Stock
$169.99
T360 Standard Digital HV High Speed Metal Gear Servo
KYO34427T1 TEKTT1506
T360 Standard Digital HV High Speed Metal Gear Servo
In Stock
$169.99
0 Item Selected Items Selected
In Stock
Selected Store

Product Details

Now driving R/C is even more fun! FZ02 chassis with realistic racing car body!
Key Features
  • “Ultra Scale Body” Peplicates The Fine Details
  • Equipped With Vintage Touring Car (VTC) Tires
  • Factory-Assembled Readyset Package
  • Sealed Differential And Transmission
  • Full Ball Bearings That Reduce Drive Loss
icon-box
In The Box
  • (1) Fazer Mk2 1971 240Z
  • (1) Syncro KT-231P+ Transmitter
  • (1) Hexagonal Wrench
  • (1) Spanner
  • (1) Set of Setting Change Parts
icon-how-to
Needed to Complete
  • (4) AA Batteries for Transmitter
  • (1) 7.2V - 7.4V Battery
  • (1) Battery Charger
1/10 1971 Datsun 240Z Fazer Mk2 FZ02 Brushed 4x4 On-Road Touring RTR, White

Introduction

For the pure enjoyment of R/C car driving, the combination of a beautifully reproduced car body with the FAZER series chassis can’t be beaten. Kyosho has taken its standard touring car chassis and given it a full model makeover that has evolved performance to a new level. A simplified design with fewer parts has improved maintenance efficiency and reduced weight while core strength and rigidity has been increased through new materials and ribbing and stiffeners on front and rear. In addition, the symmetrical chassis design synergizes excellent front-rear balance through the suspension with responsive control, irrespective of power source. Featuring front and rear gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance allows drivers to unleash the full potential of the chassis. Brake disc wheel hubs with two different offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width body styles and allows the wheelbase to be adjusted to 270mm by replacing some parts (sold separately) for compatibility with other 1/10 scale body styles, in addition the body included. The Readyset package comes fully assembled and includes everything except charger and battery for the chassis, and batteries for the transmitter.

Features

  • “Ultra Scale Body” replicates the fine details of the actual body of the car. Kyosho took a step further in scale realism.
  • Equipped with vintage touring car (VTC) tires and Watanabe wheels designed to match vintage J-spec cars.
  • The separately sold LED light unit (97054) can be attached to the front and rear light buckets, making it even more scaled.
  • Factory-assembled Readyset package only requires 4 x AA alkaline batteries for the transmitter, and battery with charger for the chassis.
  • Full ball bearings that reduce drive loss equipped throughout the drive system.
  • Features KS202W steering servo.
  • Sealed differential and transmission deliver reliable performance, even on dusty parking lot surfaces.
  • Shaft drive full-time 4WD touring chassis(FZ02).
  • Equipped with a plated dummy brake disc and a painted brake caliper to improve the sense of scale.
  • Uses button screws with hexagonal holes in each part. Reliable tightening torque can be applied, and maintenance is possible with even fewer tools.
  • Since the motor mount has mounting holes according to the pinion gear, troublesome backlash adjustment is unnecessary. Supports from 29T to 37T.
  • Performance can be further enhanced by installing various optional parts.

Fazer Mk2 1971 240Z



Advanced Design
Advanced Design

Completely realizes low center of gravity with its simple, functional design. Featuring an integrated gearbox that optimizes torsional rigidity of the main chassis, the nylon material reduces weight while improving impact resistance. Each key component has been reinforced in this simple design without upper deck.

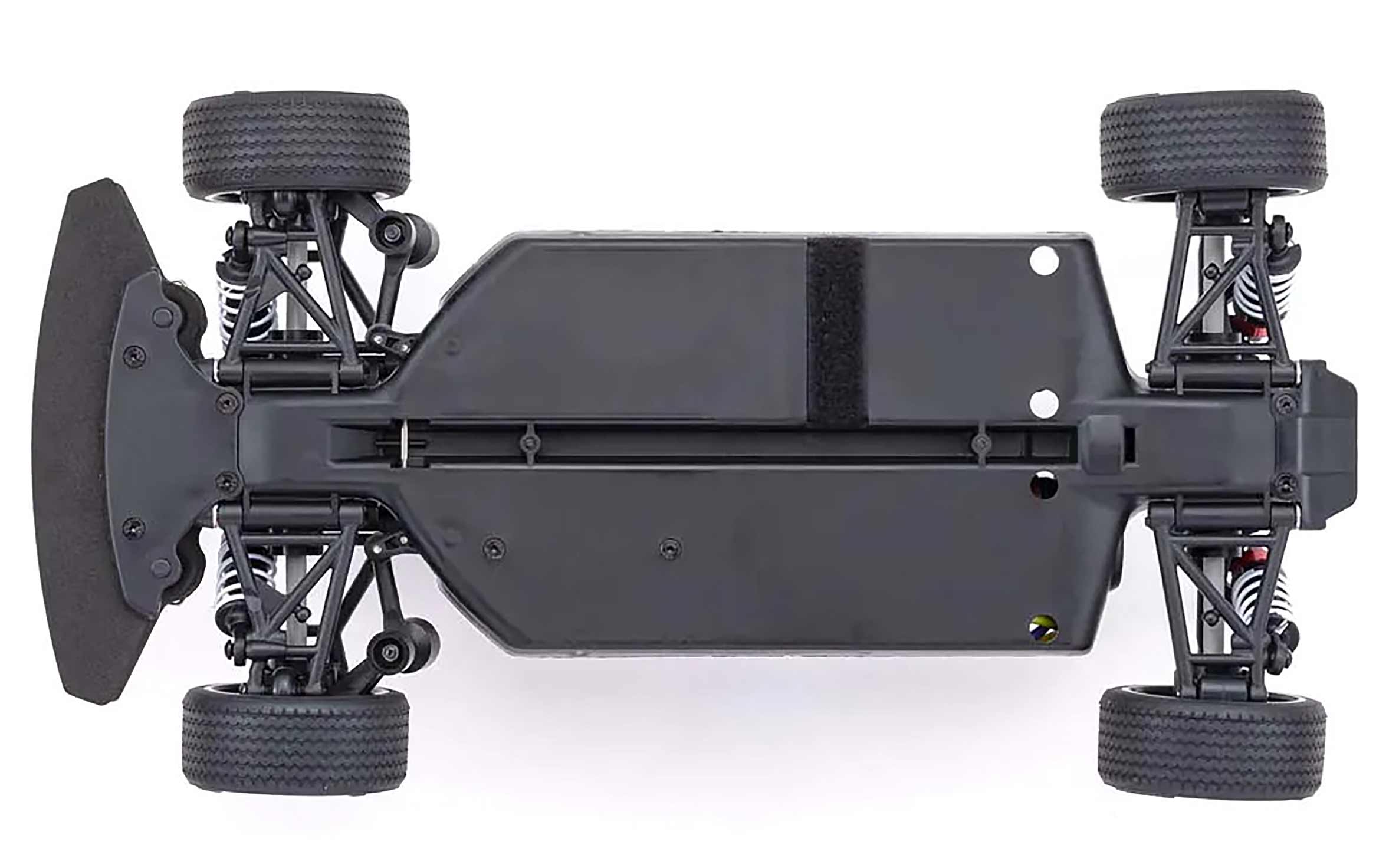

Reduced Parts
Reduced Parts

Features a reduced number and variety of screws and parts, and consolidation of frequently used screws into the same size. Most screws are flat head screws that can be removed with a 2.0mm hex wrench for easy disassembly.

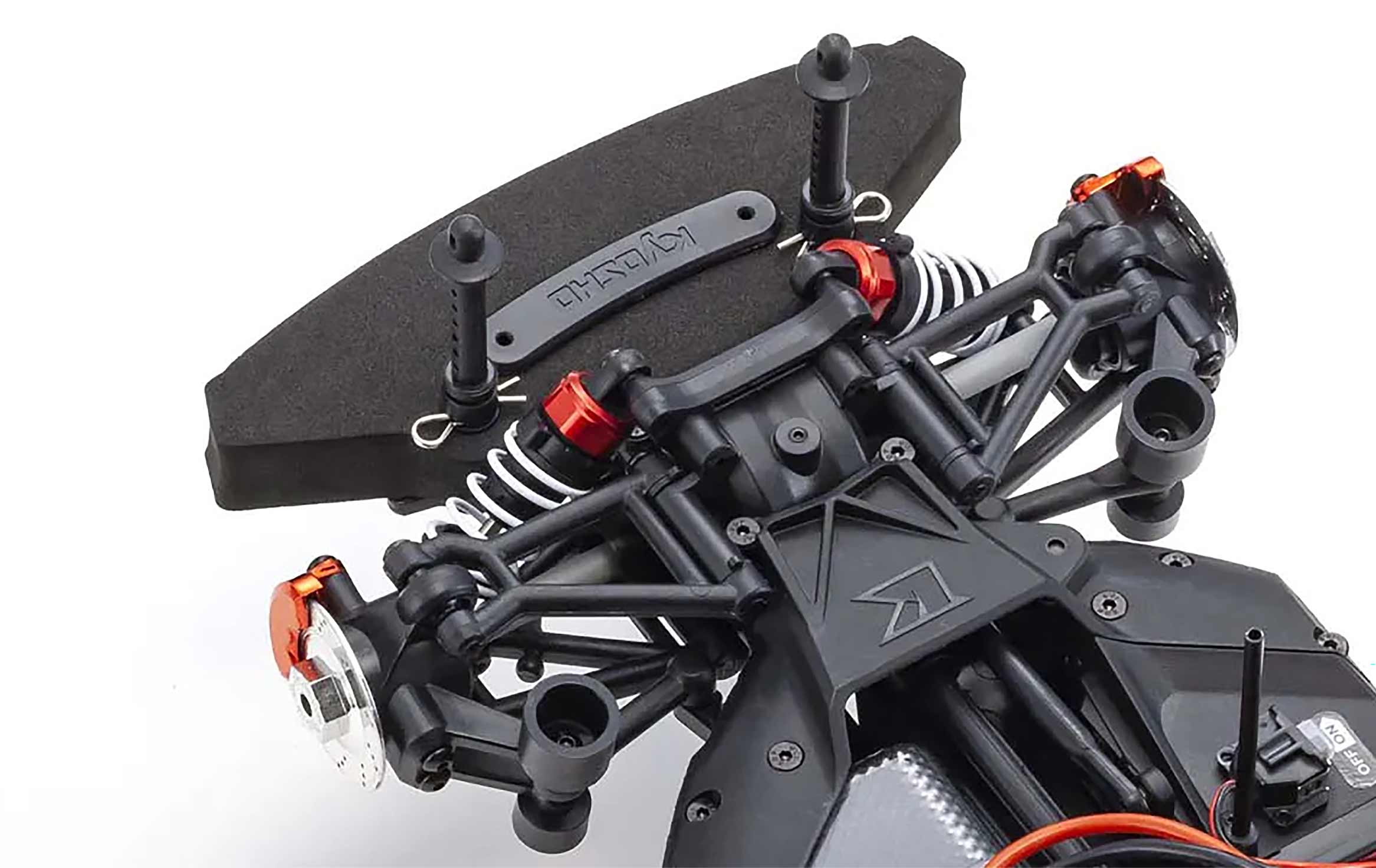

Handling Factors
Handling Factors

Handling factors such as bump steer and scrub radius are optimized on front suspension. Simple ball-connected steering knuckle provides reliable control movement. Interchangeable on both front and rear left-right hub carriers optimize spare parts utilization and improve maintenance efficiency.



Brake Discs
Brake Discs

Includes choice of two offset brake disc wheel hubs with dummy calipers (for visual styling) that provide compatibility with 190mm and 200mm body widths.

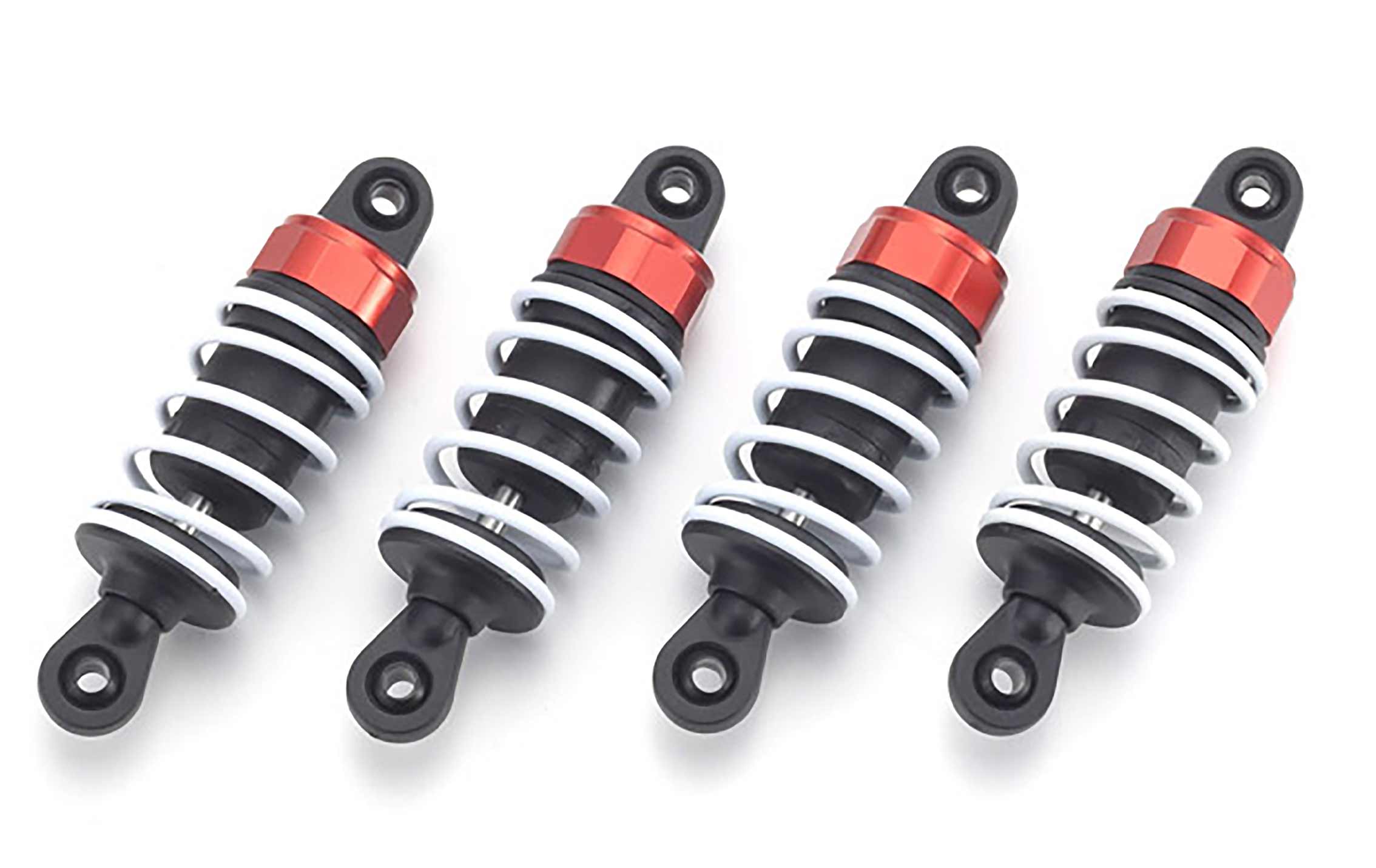

Oil Shocks
Oil Shocks

Equipped with oil filled shocks as standard equipment. Change the vehicle height by adding included clip spacers.

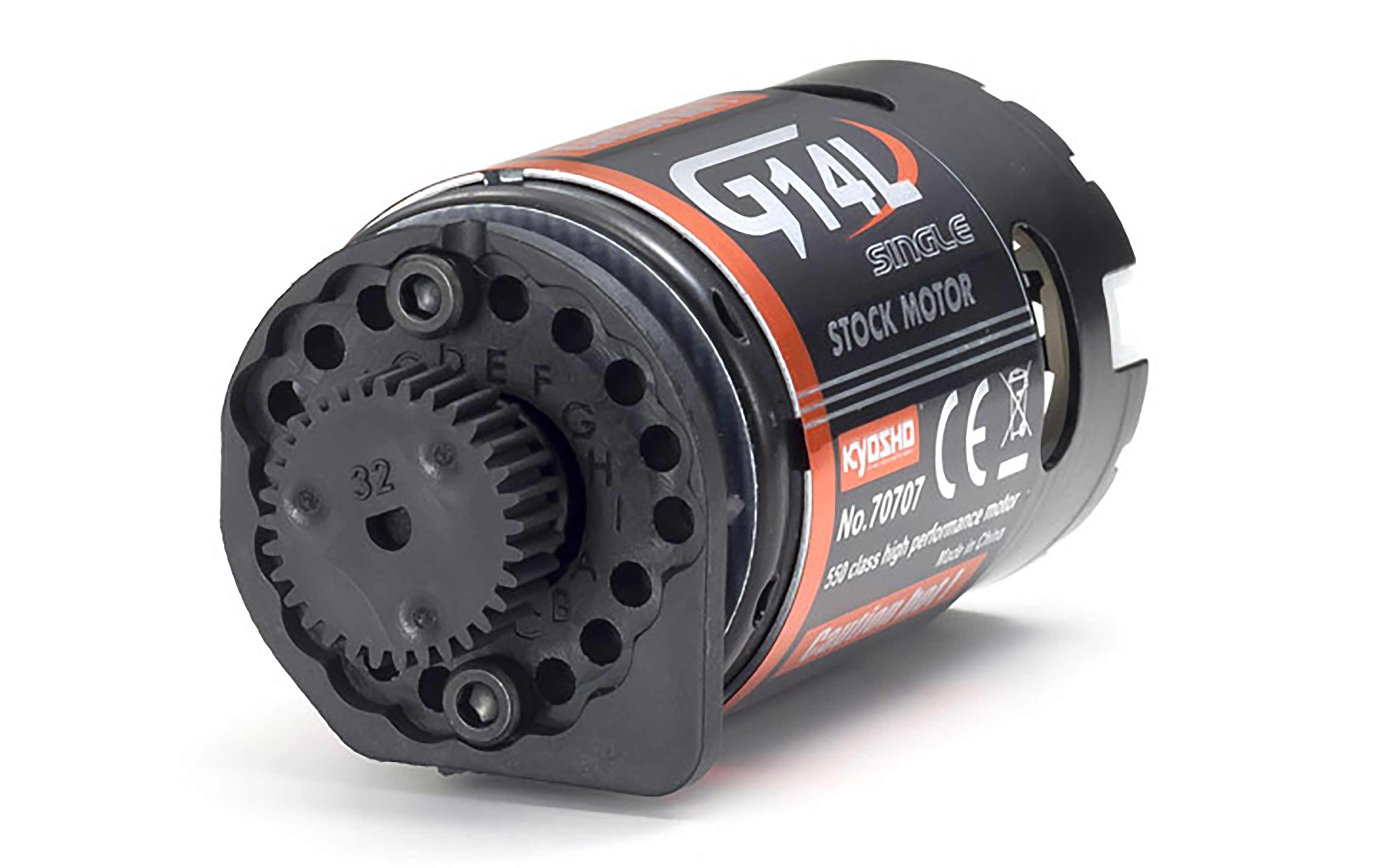

Gear Settings
Gear Settings

Standard spur and pinion gear setting is 68T and 32T, but 9 pinion gear settings can be used from 29T – 37T to produce a wide range of gear ratio settings. The new fixed gear mesh motor mount has holes for use with each different pinion gears. Just simply mount the motor directly to the hole locations corresponding to the pinion gear. No gear mesh adjustment is necessary.



DATSUN Z
DATSUN Z

Nissan’s sports car ‘Z’ is so pertly pretty it was released under the name ‘Fairlady’ in Japan. Known as the DATSUN Z in North America, this tuned version of the 1971 model lets its high performance and power shine with over fenders and spoilers on front and rear.

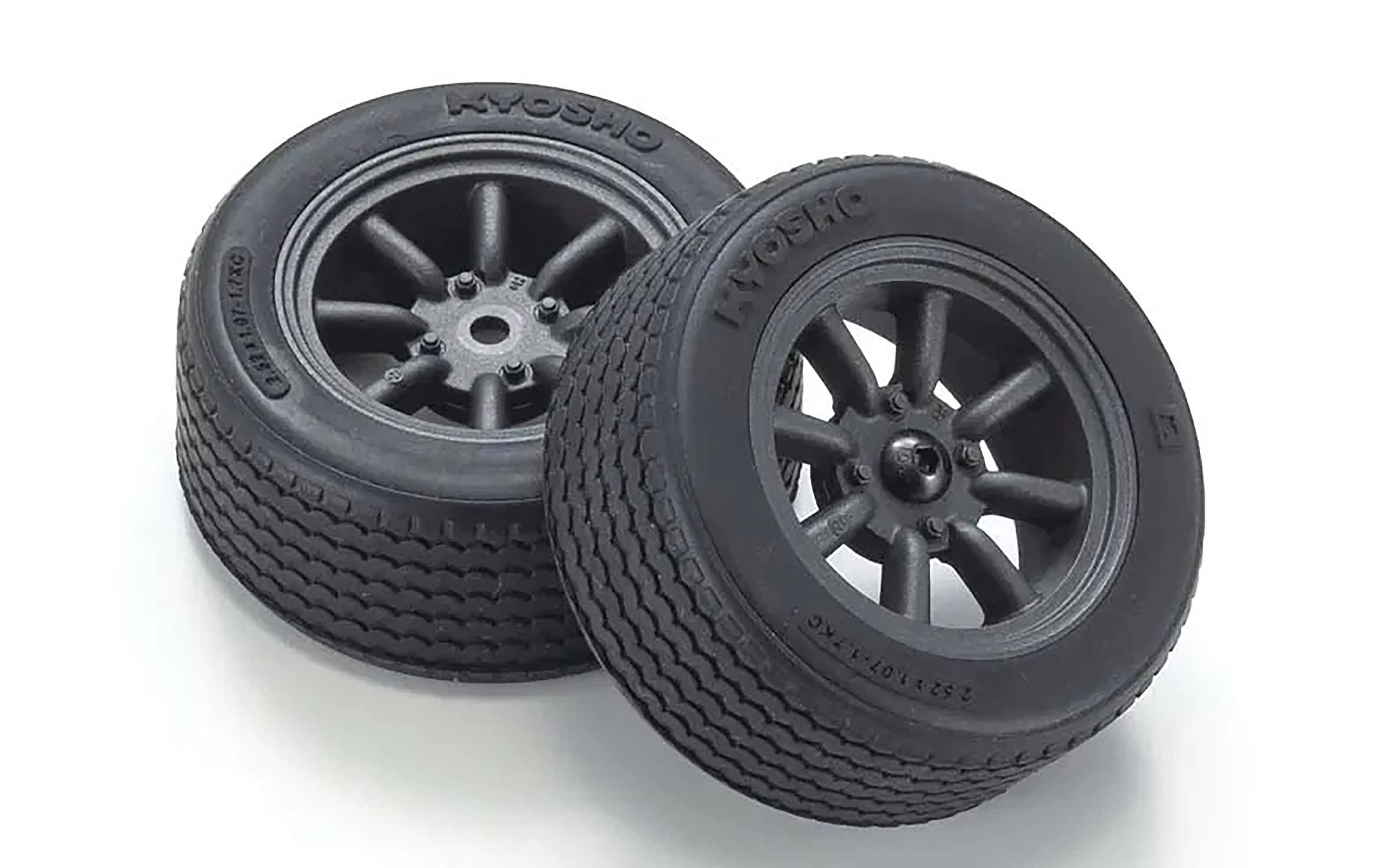

Touring Car Tires
Touring Car Tires

Vintage Touring Car (VTC) tires and the custom 8-Spoke Watanabe Wheels are the perfect match for this vintage car.



Optional Lights
Optional Lights

Front and rear light buckets compatible with the separately sold 97054 LED light unit series. By installing the LED light unit, it transforms into a body full of real car feeling.



Product Specifications

Product Weight 1650g
Battery Sold Separately
Gear Ratio 6.54:1
Motor Size G14L Motor
Product Length 18.189" (462 mm)
Steering Type 2WS
Suspension Independent
Ball Bearings Full Ball Bearings
Chassis Plastic Chassis
Completion Level Ready-To-Run
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Product Height 5.35433" (136 mm)
Motor Type Brushed
Rear Track 167mm
Speed Control Included
Charger Sold Separately
Differential Gear Diffs
Receiver Included
Front Track 167mm
Vehicle Size Standard
Product Width 7.87402" (200 mm)
Radio Included
Vehicle Type Touring Car
Body Pre-Painted Polycarbonate
Scale 1/10
Power Type Electric
Servos Included
