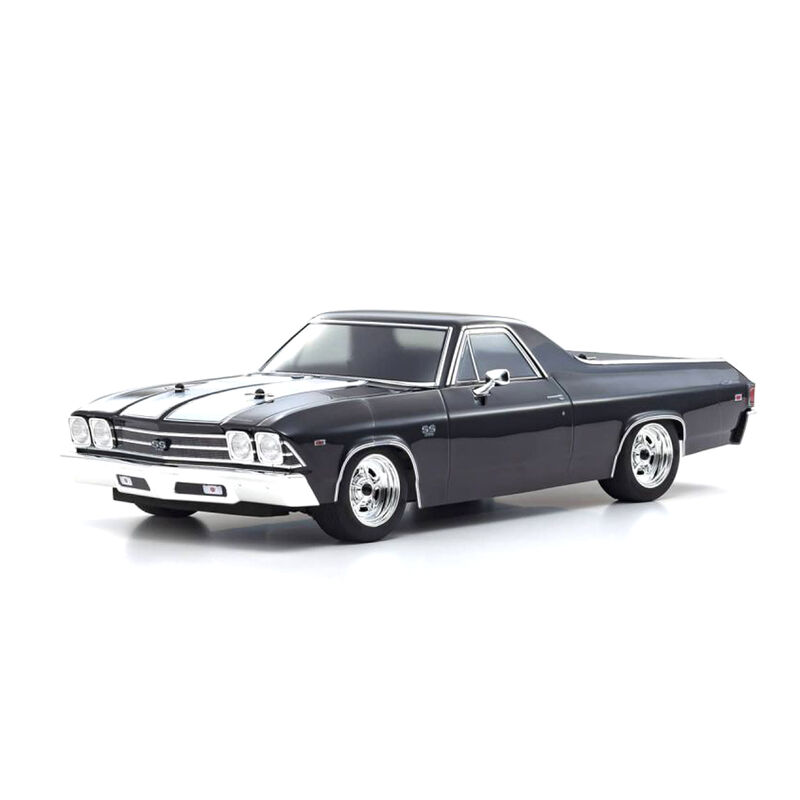

1/10 1969 Chevy El Camino Fazer Mk2 FZ02L Brushed 4x4 On-Road Touring RTR, Tuxedo Black

Item No. KYO34419T1
Brand Logo
4.8 out of 5 Customer Rating

1/10 1969 Chevy El Camino Fazer Mk2 FZ02L Brushed 4x4 On-Road Touring RTR, Tuxedo Black

Item No. KYO34419T1
$239.99
RC Club points earned on this item shown at checkout.
Select Options
7.4V 3300mAh 2S 30C Reedy WolfPack LiPo Battery: T-Plug
KYO34419T1 ASC751
7.4V 3300mAh 2S 30C Reedy WolfPack LiPo Battery: T-Plug
In Stock
$30.99
7.4V 4000mAh 2S 35C Reedy WolfPack LiPo Battery: T-Plug
KYO34419T1 ASC752
7.4V 4000mAh 2S 35C Reedy WolfPack LiPo Battery: T-Plug
Next Shipment February 2025
$42.99
0 Item Selected Items Selected
Reedy 324-S Compact Balance Charger
KYO34419T1 ASC27201
Reedy 324-S Compact Balance Charger
Next Shipment February 2025
$35.99
Reedy 1416-C2L Dual AC/DC Comp Balance Charger
KYO34419T1 ASC27203
Reedy 1416-C2L Dual AC/DC Comp Balance Charger
In Stock
$187.99
Imars III PRO 10A Smart Balance RC Battery Charger
KYO34419T1 GEA100WMPRO
Imars III PRO 10A Smart Balance RC Battery Charger
In Stock
$59.99
RDX2 Mini AC Balance Charger
KYO34419T1 HRC44299
RDX2 Mini AC Balance Charger
In Stock
$84.99
0 Item Selected Items Selected
SW4 12.6V 2A BEC WP SL ESC and 1410-3800Kv Sensored Motor Combo
KYO34419T1 CSE010016405
SW4 12.6V 2A BEC WP SL ESC and 1410-3800Kv Sensored Motor Combo
In Stock
$154.95
Sidewinder 4 Brushless ESC / 1410-3800Kv  Motor Combo
KYO34419T1 CSE010016406
Sidewinder 4 Brushless ESC / 1410-3800Kv Motor Combo
In Stock
$159.95
1/10 Copperhead 1410-3800Kv Sensored Brushless ESC/Motor Combo
KYO34419T1 CSE10016610
1/10 Copperhead 1410-3800Kv Sensored Brushless ESC/Motor Combo
In Stock
$209.95
1/10 QuicRun Fusion PRO Brushless Motor/ESC 2-in-1 Combo, 2300Kv
KYO34419T1 HWI30120402
1/10 QuicRun Fusion PRO Brushless Motor/ESC 2-in-1 Combo, 2300Kv
In Stock
$149.99
Firma Brushless Motor / ESC 2-in-1 Combo, 6000Kv
KYO34419T1 SPMXSEM0501
Firma Brushless Motor / ESC 2-in-1 Combo, 6000Kv
In Stock
$82.99
Firma 85A Brushless Smart ESC / 3300Kv Sensorless Motor Combo
KYO34419T1 SPMXSEMC01
Firma 85A Brushless Smart ESC / 3300Kv Sensorless Motor Combo
In Stock
$104.99
Firma 85A Brushless Smart ESC / 4000Kv Sensorless Motor Combo
KYO34419T1 SPMXSEMC02
Firma 85A Brushless Smart ESC / 4000Kv Sensorless Motor Combo
In Stock
$104.99
Firma 130A Brushless Smart ESC / 1900Kv Sensorless Motor Combo
KYO34419T1 SPMXSEMC04
Firma 130A Brushless Smart ESC / 1900Kv Sensorless Motor Combo
In Stock
$189.99
0 Item Selected Items Selected
3PRKA 3-Channel FHSS Transmitter With R203GF Receiver
KYO34419T1 FUTK3100
3PRKA 3-Channel FHSS Transmitter With R203GF Receiver
In Stock
$94.99
3PV 3-Channel T-FHSS Telemetry Transmitter With R304SB Receiver
KYO34419T1 FUTK3200
3PV 3-Channel T-FHSS Telemetry Transmitter With R304SB Receiver
In Stock
$179.99
3PV 3-Channel FHSS Transmitter With R203GF Receiver
KYO34419T1 FUTK3201
3PV 3-Channel FHSS Transmitter With R203GF Receiver
Next Shipment February 2025
$119.99 Price reduced from $149.99 to
DX3 Smart 3-Channel Transmitter with SR315 Receiver
KYO34419T1 SPM2340
DX3 Smart 3-Channel Transmitter with SR315 Receiver
In Stock
$99.99
DX5 Pro 5-Channel DSMR Transmitter with SR2100 Receiver
KYO34419T1 SPM5025
DX5 Pro 5-Channel DSMR Transmitter with SR2100 Receiver
In Stock
$399.99
SLT3 3-Channel Transmitter with SR315 Receiver
KYO34419T1 SPMSLT300
SLT3 3-Channel Transmitter with SR315 Receiver
In Stock
$64.99
SLT3 3-Channel SLT Transmitter with SLR300 Receiver
KYO34419T1 SPMSLT350
SLT3 3-Channel SLT Transmitter with SLR300 Receiver
Next Shipment March 2025
$49.99
0 Item Selected Items Selected
HS-311 Standard Analog Sport Servo
KYO34419T1 HRC31311S
HS-311 Standard Analog Sport Servo
In Stock
$13.49
HS-646WP Standard Digital Waterproof Metal Gear Servo
KYO34419T1 HRC32646W
HS-646WP Standard Digital Waterproof Metal Gear Servo
In Stock
$49.99
HS-5496MH Standard Digital HV Metal Gear Servo
KYO34419T1 HRC35496S
HS-5496MH Standard Digital HV Metal Gear Servo
In Stock
$39.99
HS-5565MH Standard Digital HV High Speed Metal Gear Servo
KYO34419T1 HRC35565S
HS-5565MH Standard Digital HV High Speed Metal Gear Servo
In Stock
$72.99
HS-5625MG Standard Digital High Speed Metal Gear Servo
KYO34419T1 HRC35625S
HS-5625MG Standard Digital High Speed Metal Gear Servo
Next Shipment Date Unknown
$45.99
D625MW Standard Digital High Speed Metal Gear Servo
KYO34419T1 HRC36625
D625MW Standard Digital High Speed Metal Gear Servo
In Stock
$39.99
S602 Standard Digital Surface Servo
KYO34419T1 SPMS602
S602 Standard Digital Surface Servo
In Stock
$40.99
S605 Standard Analog Waterproof 9KG 23T Surface Servo
KYO34419T1 SPMS605
S605 Standard Analog Waterproof 9KG 23T Surface Servo
Next Shipment May 2025
$24.99
S614 Waterproof Metal Gear Surface Servo, 23T
KYO34419T1 SPMS614
S614 Waterproof Metal Gear Surface Servo, 23T
Next Shipment Date Unknown
$26.99
S6170 Standard Digital Surface Servo
KYO34419T1 SPMSS6170
S6170 Standard Digital Surface Servo
In Stock
$31.99
S6240 Standard Digital High Speed Waterproof Metal Gear Surface Servo
KYO34419T1 SPMSS6240
S6240 Standard Digital High Speed Waterproof Metal Gear Surface Servo
In Stock
$89.99
S6260 Standard Digital HV High Speed Metal Gear Surface Servo
KYO34419T1 SPMSS6260
S6260 Standard Digital HV High Speed Metal Gear Surface Servo
In Stock
$119.99
T130 Standard Digital HV High Torque High Speed Metal Gear Servo
KYO34419T1 TEKTT1502
T130 Standard Digital HV High Torque High Speed Metal Gear Servo
In Stock
$169.99
0 Item Selected Items Selected
Next Shipment May 2025
Selected Store

Product Details

For the pure enjoyment of R/C car driving, the combination of a beautifully reproduced car body with the FAZER series chassis can’t be beaten.
Key Features
  • Ultra Scale Body
  • Designed With Fewer Parts
  • Front & Rear Gear Differentials
  • Full Ball Bearing Specs
  • Comes Fully Assembled
icon-box
In The Box
  • (1) 1/10 Fazer Mk2 1969 Chevy El Camino
  • (1) Syncro KT-231P+ Transmitter
  • (1) Hexagonal Wrench
  • (1) Spanner
  • (1) Setting Change Parts Set
icon-how-to
Needed to Complete
  • (4) AA Batteries for Transmitter
  • (1) 7.2V - 7.4V Battery
  • (1) Battery Charger
1/10 1969 Chevy El Camino Fazer Mk2 FZ02L Brushed 4x4 On-Road Touring RTR, Tuxedo Black

Overview

Kyosho has taken its standard touring car chassis and given it a full model makeover that has evolved performance to a new level. A simplified design with fewer parts has improved maintenance efficiency and reduced weight while core strength and rigidity has been increased through new materials and ribbing and stiffeners on front and rear. In addition, the symmetrical chassis design synergizes excellent front-rear balance through the suspension with responsive control, irrespective of power source. Featuring slipper clutch, front & rear gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance allows drivers to unleash the full potential of the chassis. Brake disc wheel hubs with two different offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width body styles and allows the wheelbase to be adjusted to 260mm by replacing some parts (sold separately) for compatibility with other 1/10 scale body styles, in addition the body included. The Readyset package comes fully assembled and includes everything except charger and battery for the chassis, and batteries for the transmitter.

Features

  • “Ultra Scale Body” replicates the fine details of the actual body of the car. Kyosho took a step further in scale realism.
  • Design shaft drive full-time 4WD touring chassis(FZ02).
  • Factory-assembled Readyset package only requires 4 x AA alkaline batteries for the transmitter, and battery with charger for the chassis.
  • Equipped with 2-bevel grease-filled gear diffs on front and rear.
  • Large size dog bones and cup joints realize superior reliability and durability.
  • Belt mounting battery compartment allows various battery types to be used.
  • Full ball bearings that reduce drive loss equipped throughout the drive system.
  • Features KS202W waterproof steering servo.
  • Includes completely finished body with color scheme and decals applied.
  • Sealed differential and transmission deliver reliable performance, even on dusty parking lot surfaces.
  • Performance can be further enhanced by installing various optional parts.

Video Overview



Video Overview

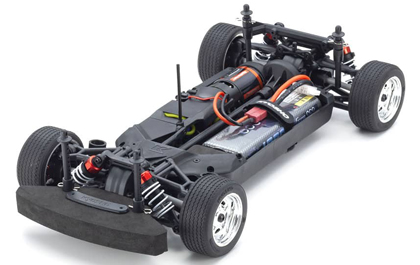

Chassis
Chassis

Chassis realizes low center of gravity with its simple, functional design. Featuring an integrated gearbox that optimizes torsional rigidity of the main chassis, the nylon material reduces weight while improving impact resistance. Each key component has been reinforced in this simple design without upper deck.

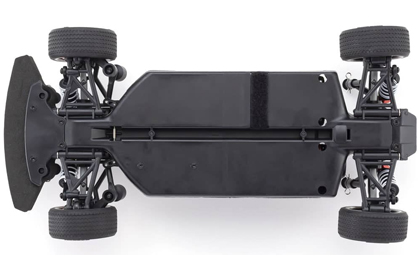

Reduced Screws
Reduced Screws

Features a reduced number and variety of screws and parts, and consolidation of frequently used screws into the same size. Most screws are flat head screws that can be removed with a 2.0mm hex wrench for easy disassembly.

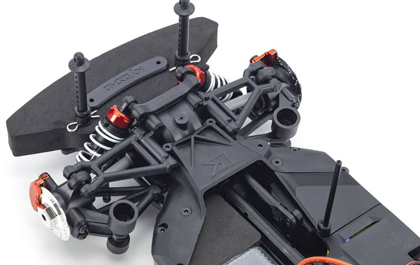

Front Suspension
Front suspension

Handling factors such as bump steer and scrub radius are optimized on front suspension. Simple ball-connected steering knuckle promises reliable control movement. Interchangeable on both front and rear left-right hub carriers optimize spare parts utilization and improve maintenance efficiency.

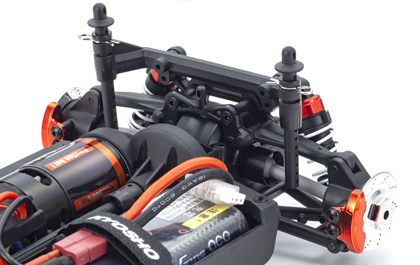

Body Widths
Body Widths

Includes choice of two offset brake disc wheel hubs with dummy calipers (for visual styling) that provide compatibility with 190mm and 200mm body widths.

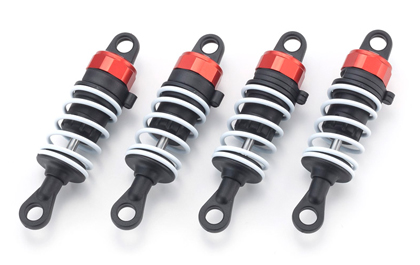

Oil Shocks
Oil Shocks

Oil shocks mark an evolutionary step up from previous models Oil shock is newly designed. Optimal front-rear geometry and balance simultaneously delivers both light handling and precise control.

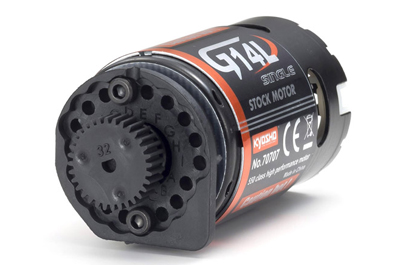

Motor Mount
Motor Mount

Standard spur and pinion gear setting is 68T and 32T, but 9 pinion gear settings can be used from 29T – 37T to produce a wide range of gear ratio settings. The new fixed gear mesh motor mount has holes for use with each different pinion gears. Just simply mount the motor directly to the hole locations corresponding to the pinion gear. No gear mesh adjustment is necessary.

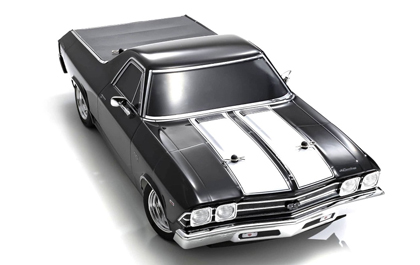

Body
Body

Proudly wearing America’s famous Chevrolet badge, the jet-black body of the 1969 model fuses strength and sophisticated style in the 3rd generation of this distinctive coupe utility pickup truck.

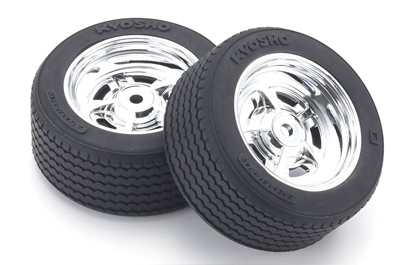

Tires and Wheels
Tires and Wheels

Vintage Touring Car (VTC) tires and Rostyle type wheels to match vintage car style.

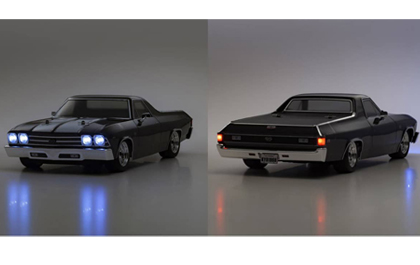

LED Lights
LED Lights

Front and rear light buckets compatible with the separately sold 97054 LED light unit series. By installing the LED light unit, it transforms into a body full of real car feeling.



Product Specifications

Battery Sold Separately
Brakes Integral with ESC
Charger Sold Separately
Completion Level Ready-To-Run
Connector Type Deans
Drive Type Forward/Brake/Reverse
Drivetrain 4WD
Motor Type Brushed
Power Type Electric
Product Length 19.96" (507 mm)
Product Weight 58.20 oz (1650 g)
Product Width 8.26" (210 mm)
Radio Included
Receiver Included
Scale 1/10
Servos Included
Speed Control Included
Vehicle Type On-Road
Wheelbase 10.78" (274 mm)
