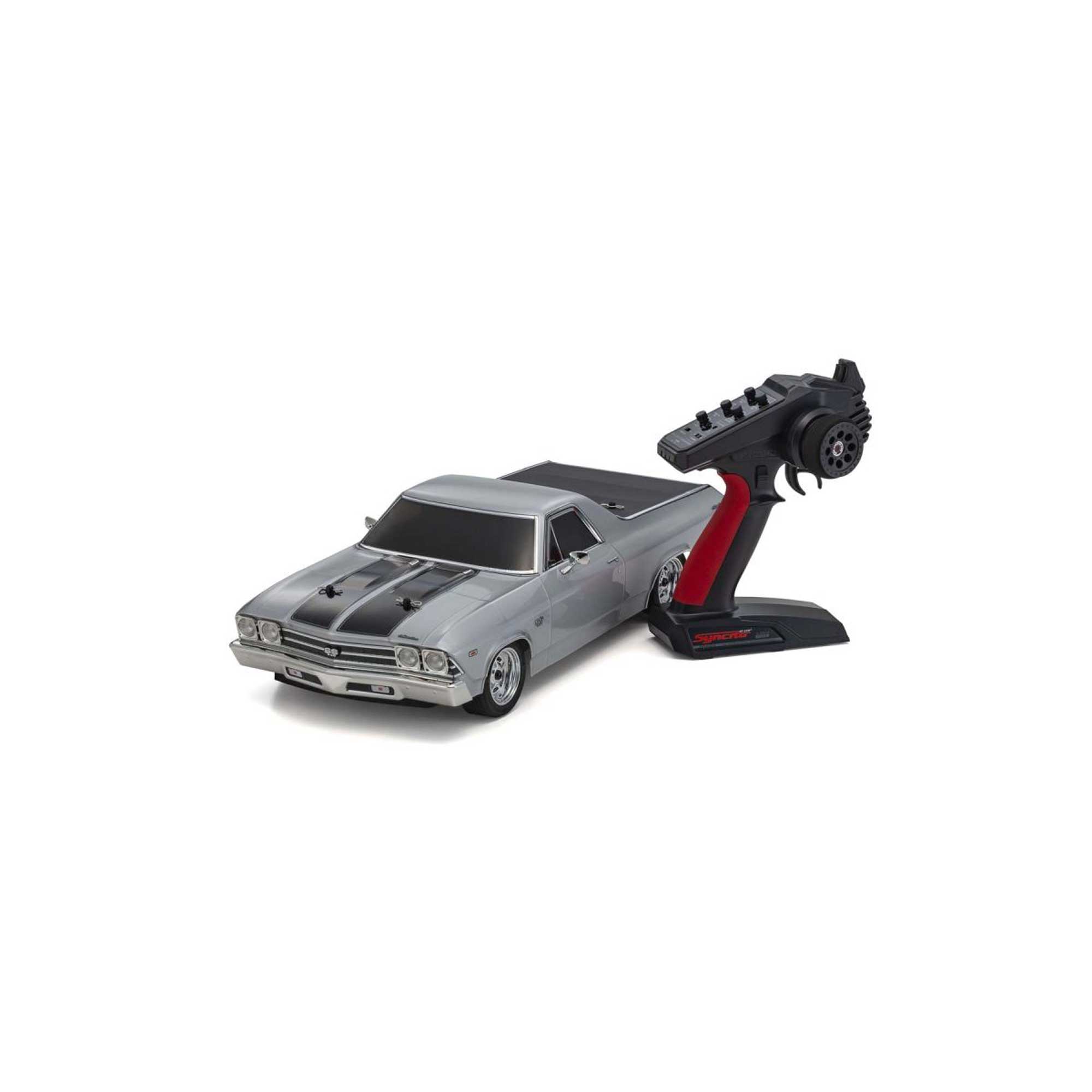

1/10 1969 Chevy El Camino Fazer Mk2 FZ02L Brushed 4x4 On-Road Touring RTR, Cortez Silver

Item No. KYO34419T2
Brand Logo
5 out of 5 Customer Rating

1/10 1969 Chevy El Camino Fazer Mk2 FZ02L Brushed 4x4 On-Road Touring RTR, Cortez Silver

Item No. KYO34419T2
$245.99
RC Club points earned on this item shown at checkout.
In Stock
Selected Store

Product Details

Now driving R/C is even more fun with a newly designed FZ02L chassis with realistic racing car body!
Key Features
  • “Ultra Scale Body” Replicates The Fine Details Of The Actual Body Of The Car
  • Full-Time 4WD Touring Chassis
  • Equipped With 2-Bevel Grease-Filled Gear Diffs
  • Large Size Dog Bones And Cup Joints
  • Includes Completely Finished Body With Color Scheme And Decals Applied
icon-box
In The Box
  • (1) Fazer Mk2 1969 Chevy El Camino
  • (1) Syncro KT-231P+ Transmitter
  • (1) Hexagonal Wrench
  • (1) Instruction Manual
icon-how-to
Needed to Complete
  • (4) AA Batteries for Transmitter
  • (1) 7.2V - 7.4V Battery
  • (1) Battery Charger
1/10 1969 Chevy El Camino Fazer Mk2 FZ02L Brushed 4x4 On-Road Touring RTR, Cortez Silver

Introduction

For the pure enjoyment of R/C car driving, the combination of a beautifully reproduced car body with the FAZER series chassis can’t be beaten.

Features

  • “Ultra Scale Body” replicates the fine details of the actual body of the car. Kyosho took a step further in scale realism.
  • New design shaft drive full-time 4WD touring chassis.
  • Factory-assembled Readyset package only requires 4 x AA alkaline batteries for the transmitter, and battery with charger for the chassis.
  • Equipped with 2-bevel grease-filled gear diffs on front and rear.
  • Large size dog bones and cup joints realize superior reliability and durability.
  • Belt mounting battery compartment allows various battery types to be used.
  • Features KS202W waterproof steering servo.
  • Includes completely finished body with color scheme and decals applied.
  • Sealed differential and transmission deliver reliable performance, even on dusty parking lot surfaces.
  • Performance can be further enhanced by installing various optional parts.
  • Full ball bearings that reduce drive loss equipped throughout the drive system.

Overview

Kyosho has taken its standard touring car chassis and given it a full model makeover that has evolved performance to a new level. A simplified design with fewer parts has improved maintenance efficiency and reduced weight while core strength and rigidity has been increased through new materials and ribbing and stiffeners on front and rear. In addition, the symmetrical chassis design synergizes excellent front-rear balance through the suspension with responsive control, irrespective of power source.

Featuring front and rear gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance allows drivers to unleash the full potential of the chassis.

Brake disc wheel hubs with two different offsets provide compatibility with 190mm and 200mm width body styles and allows the wheelbase to be adjusted to 260mm by replacing some parts for compatibility with other 1/10 scale body styles, in addition the body included.

The Readyset package comes fully assembled and includes everything except charger and battery for the chassis, and batteries for the transmitter.

Chassis
FAZER Mk2 FZ02L Chassis

Completely new chassis realizes low center of gravity with its simple, functional design. Featuring an integrated gearbox that optimizes torsional rigidity of the main chassis, the nylon material reduces weight while improving impact resistance. Each key component has been reinforced in this simple design without upper deck.



Standardized Hardware
Standardized Hardware

Features a reduced number and variety of screws and parts, and consolidation of frequently used screws into the same size. Most screws are flat head screws that can be removed with a 2.0mm hex wrench for easy disassembly.



Front Suspension
Front Suspension

Handling factors such as bump steer and scrub radius are optimized on front suspension. Simple ball-connected steering knuckle promises reliable control movement. Interchangeable on both front and rear left-right hub carriers optimize spare parts utilization and improve maintenance efficiency.



Detail Parts
Detail Parts

Includes choice of two offset brake disc wheel hubs with dummy calipers (for visual styling) that provide compatibility with 190mm and 200mm body widths.



Oil Shocks
Oil Shocks

Oil shocks mark an evolutionary step up from previous models Oil shock is newly designed. Optimal front-rear geometry and balance simultaneously delivers both light handling and precise control.

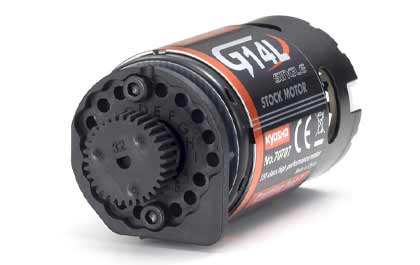

Adjustable Gear Ratio
Adjustable Gear Ratio

Standard spur and pinion gear setting is 68T and 32T, but 9 pinion gear settings can be used from 29T – 37T to produce a wide range of gear ratio settings. The new fixed gear mesh motor mount has holes for use with each different pinion gears. Just simply mount the motor directly to the hole locations corresponding to the pinion gear. No gear mesh adjustment is necessary.

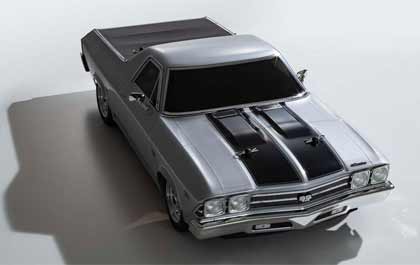

Chevrolet Badging
Chevrolet Badging

Proudly wearing America’s famous Chevrolet badge, the silver body of the 1969 model fuses strength and sophisticated style in the 3rd generation of this distinctive coupe utility pickup truck.

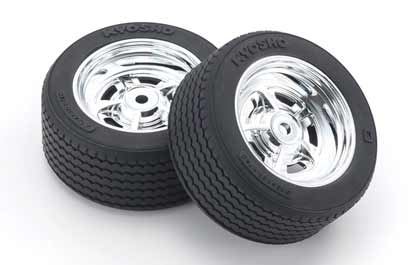

Wheels and Tires
Wheels and Tires

Vintage Touring Car (VTC) tires and Rostyle type wheels to match vintage car style.



Product Specifications

Vehicle Type On-Road
Water-Resistant No
Motor Type Brushed
Speed Control Included
Wheelbase 10.7874" (274 mm)
Body Pre-Painted Polycarbonate
Scale 1/10
Vehicle Size Standard
Product Width 8.26772" (210 mm)
Radio Included
Power Type Electric
Servos Included
Battery Sold Separately
Gear Ratio 6.54: 1
Motor Size 540-Size
Product Length 19.6063" (498 mm)
Steering Type 2WS
Charger Sold Separately
Differential Bevel Gear Diffs
Ball Bearings Full Ball Bearings
Chassis FAZER Mk2 FZ02L
Completion Level Ready-To-Run
Drivetrain AWD
Drive Type Forward/Brake/Reverse
Make Chevy
Product Height 5.35433" (136 mm)
Receiver Included
