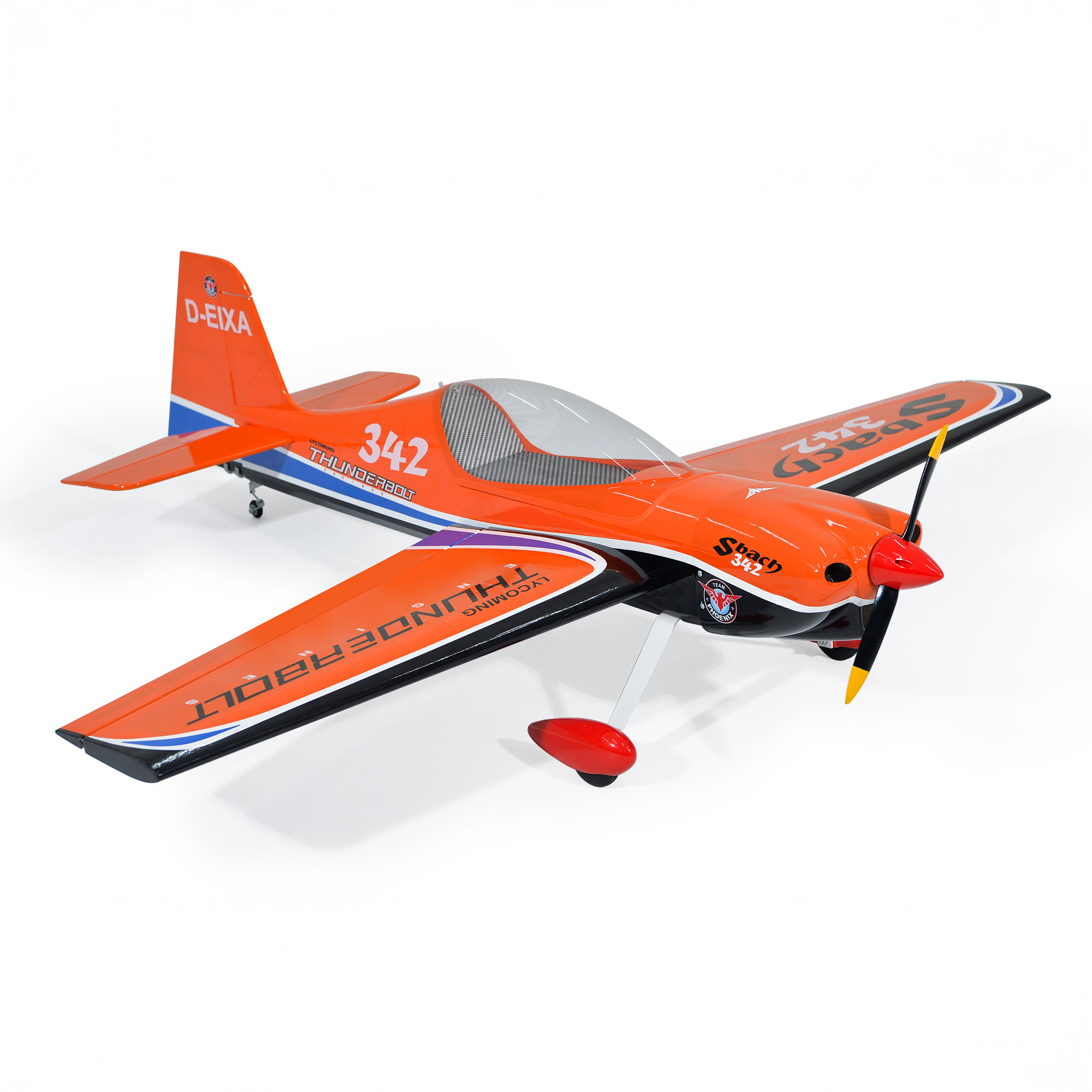

Phoenix Model Sbach 342 Aerobat .46-.55 GP/EP ARF 55.3"

Tower Stock# PMMA1355  •  Manufacturer Stock# PH096
  • Thumbnail 1 (see larger view)
  • Thumbnail 2 (see larger view)
Money Saving Combos
Money Saving Combos
Regularly Purchased Together
Although customers also purchased these, compatibility is not guaranteed. Click an item for product details.

Notes from our tech department:
This is the Radio Controlled, Glow or Electric Powered,
Almost Ready to Fly S-Bach Aerobatic Airplane from Phoenix Models.
For Intermediate Flyers.


Construction: All wood laser cut
Wing: Bolt-on two-piece with aluminum wing tube
Aileron Control: Dual servo
Covering: Hangar 9 UltraCote, color scheme is orange
and black with blue and white accents
Canopy: Clear, removable for easy access to electronics, painted
pilot bust
Spinner: Red plastic 2.3" (58mm)
Engine Mount: Two-piece composite
Motor Mount: Plywood
Landing Gear: Main, prebent aluminum, spring wire tail gear
2.5" (65mm) diameter main wheels, 1" (25.4mm) diameter tail wheel
Fuel Tank: Approximately 10oz (295cc)


ARF S-Bach Aerobatic Airplane with Fuel Tank, Motor Mount, Engine
Mount, Landing Gear, Spinner, Pilot Bust and Instructions


Radio: 4-channel with five servos
Glow Power;
Engine: .46-.55 cu in (7.5-9.0cc) 2-stroke
.52 cu in (8.5cc) 4-stroke
Receiver Battery: 4.8-6V / 800-1200mAh NiMH
Glow fuel, prop, glow starter,

Electric Power;
Brushless Motor: .46-.55 outrunner
ESC: 50-70A brushless compatible
Battery: 4000-5000mAh LiPo battery
Battery Charger: Compatible with selected battery
Prop to match selected motor

Building and field equipment


Wingspan: 55.3" (1405mm)
Length: 55.3" (1405mm)
Flying Weight: 6 - 6.6lbs (2.8 - 3kg)
Wing Loading: 23.27oz sq/ft (71g sq/dm)
Airfoil: NACA
Center of Gravity: 3.9 - 3.9" 95 - 100mm back from the leading edge
of the wing at the fuselage
Control Throws
Ailerons: Low: 10mm up/down, 10% expo
High: 12mm up/down, 10% expo
Elevators: Low: 10mm up/down, 12% expo
High: 12mm up/down, 12% expo
Rudder: Low: 25mm right/left, 15% expo
High: 40mm right/left, 15% expo


If a replacement fuel tank is needed the Sullivan 10oz Rectangular
Tank can be used, SULQ1428. Some trimming and modification may be

Following are the colors of Hangar 9 UltraCote used, and order
number for 6' rolls:
White, HANQ1122
Grey, HANQ1139
Deep Blue, HANQ1127
Orange, HANQ1132
Black, HANQ1129

jxs 05/19/14
