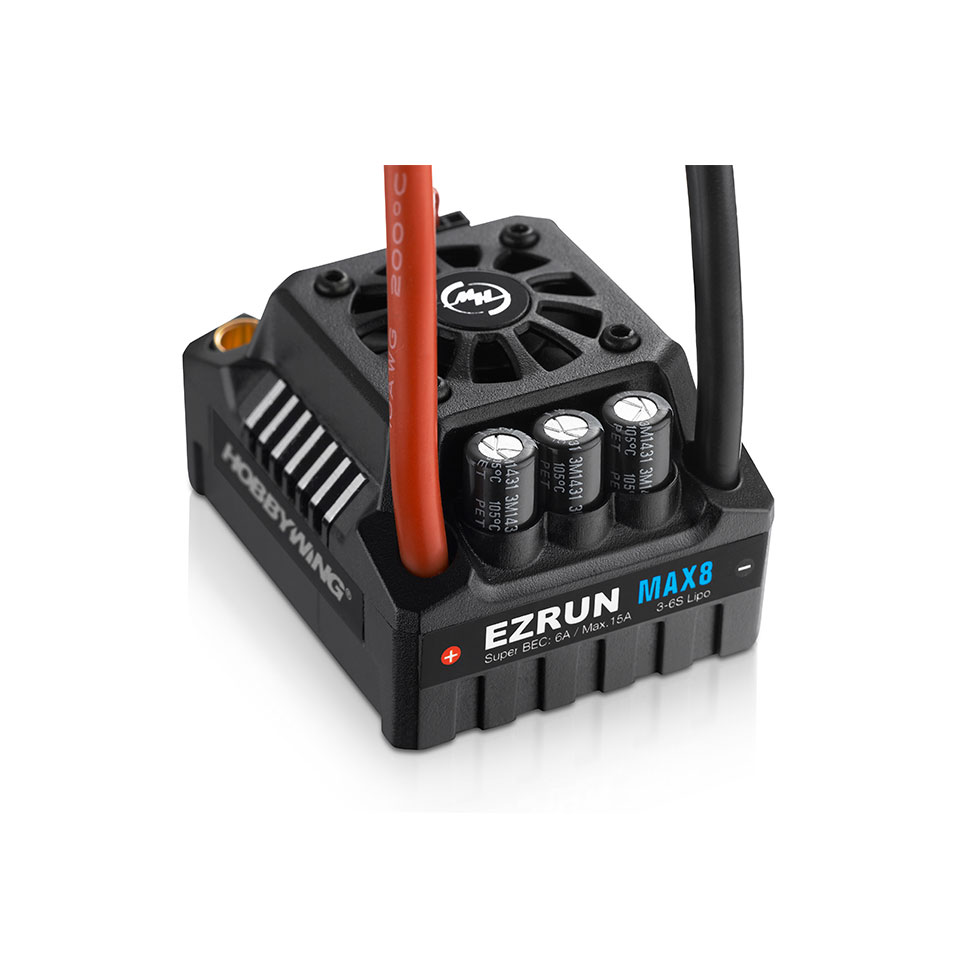

Product Details

Reliable hardware combined with advanced software allows the ESC to not only provide extremely high output but also protect itself timely from damages caused by overload. It significantly reduces the possibility of getting damaged by heavy load and improves the reliability and durability.

In The Box
  • 1 x Ezrun Max ESC
  • 1 x Ezrun Max LED Program Card
  • Supportive accessories (double side tape, etc)
  • Ezrun MAX8 ESC now comes with an upgraded XT90 (male) plug with no additional cost.
$

Features

  • ESC is compatible with sensorless brushless motors and sensored brushless motors (only in sensorless mode).
  • Fully waterproof design for all weather conditions.
  • Super internal switch-mode BEC with switchable voltage of 6V/7.4V and a cont ./peak current of 6A/15A for easily driving big torque servos and high voltage servos.
  • Highly reliable electronic switch avoids troubles which may happen to traditional mechanical switch due to dirt, water, dash and etc.
  • Separate programming port to easily connect the LED program card or the LCD program box to the ESC.
  • Proportional brake with 9 levels of maximum brake force and 9 levels of drag brake force.
  • 5 levels of acceleration/punch from soft to aggressive for different vehicles, tires and tracks.
  • Capacitor Protection´╝ÜInnovative Capacitor Protection effectively protects capacitors from exploding and causing irreversible damage to the ESC because of overload.
  • Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, overload protection, and fail safe (throttle signal loss protection).
  • Advanced programming via portable LED program card or multifunction LCD program box.
  • Firmware upgrade via HOBBYWING multifunction LCD program box (item sold separately).

Product Specifications

Specs

Auto Cutoff Yes
BEC Yes
BEC Continous Current 6A
BEC Type Switch mode
BEC Voltage 6V/7.4V
Brakes Programmable
Connector Type XT-90
Maximum Burst Current 950A
Maximum Continuous Current 150A
Motor Limit 4S LiPo Kv <3000 (4274 size motor), 6S LiPo Kv <2400 (4274 size motor)
Product Height 1.4" (36 mm)
Product Length 2.35" (60 mm)
Product Weight 6.12oz (173.5g)
Product Width 1.88" (48 mm)
Programmable Yes
Reverse Yes
Water-Resistant Yes
