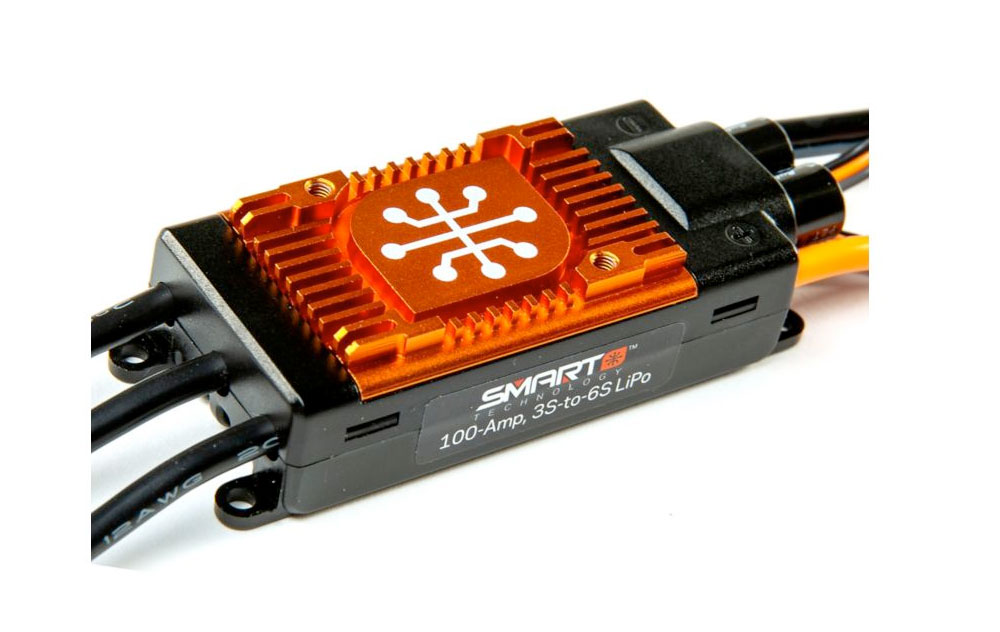

Spektrum Avian Smart 100 Amp ESC included

This Combo includes a Spektrum Avian Smart 100 amp ESC that is ready to transmit Smart Battery and ESC data straight to your Spektrum Transmitter all over one wire. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM. The Avian ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output for a locked in and active throttle response. It also offers the ability to setup a fixed RPM governor when programmed with the Spektrum Smart ESC Programmer Box.

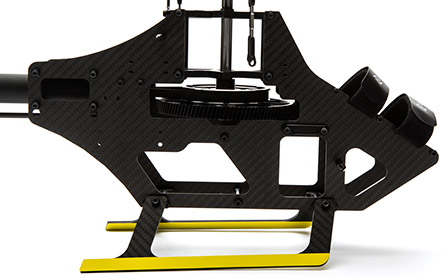

Frame

• All metal and carbon fiber construction
• 2mm carbon fiber frame, 3mm carbon fiber landing gear, 2.5mm tail box/fin
• Painted carbon fiber skids and tail for easy visibility
• Painted fiberglass canopy
• Aluminum battery tray with (2) oversized battery straps
• Aluminum bearing and servo block with Optimized Servo Geometry

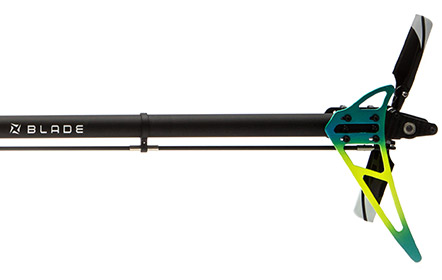

Tail

• Oversized 25mm tail boom eliminating the need for boom supports
• 6mm wide belt-driven tail with adjustable belt tension
• 5mm high-strength steel tail shaft paired with metal bell crank, hub and grips
• Full carbon fiber and aluminum tail box with large aluminum pulley
• 5mm carbon fiber tail pushrod for precise tail control
• Hidden tail servo for a sleek look

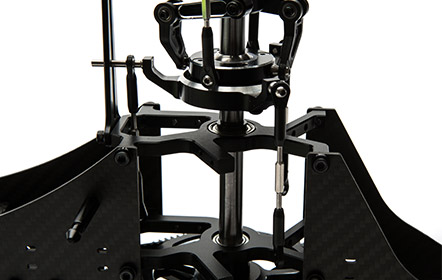

Mechanics

• 480mm (main) and 85mm (tail) carbon fiber blades
• Black anodized aluminum swashplate
• Aluminum blade grips with CNC zero pitch indicator
• High-strength steel 10mm main shaft and 8mm spindle
• Efficient helical main gear paired with a steel pinion to reduce noise

Electronics/Power System

• Accepts 6s 3700-5000 mAh LiPos
• Accepts 40-43mm brushless outrunner motor (1300Kv – 1400Kv)
• Accepts 90 Amp ESC
• Accepts Standard sized servos for cyclic and tail
• Aluminum battery tray with (2) oversized battery straps
• Accepts popular flybarless control systems and receivers
