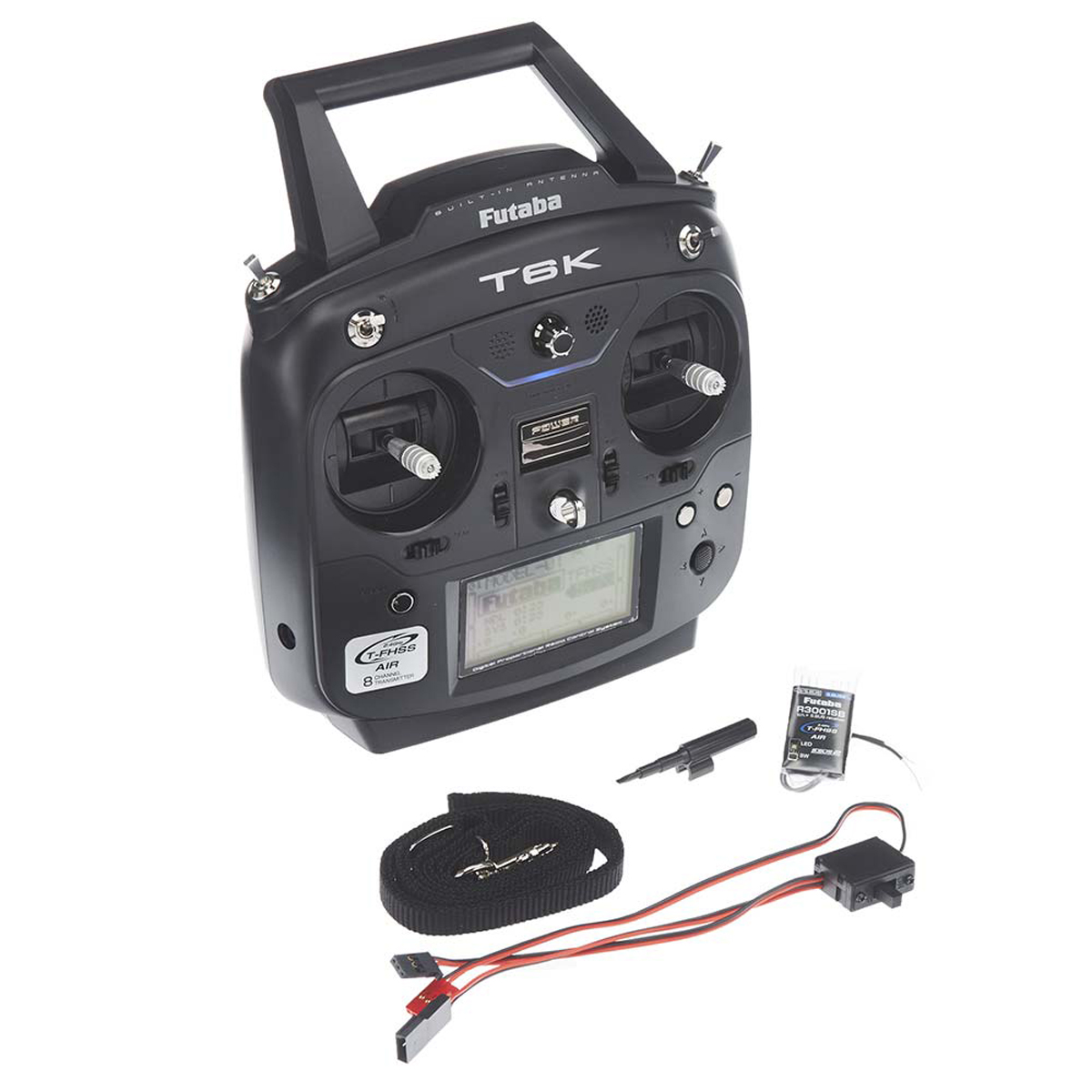

6K V2 8-Channel FPV T-FHSS System

Item No. FUTK6111
Brand Logo
5 out of 5 Customer Rating

6K V2 8-Channel FPV T-FHSS System

Item No. FUTK6111
$249.99
In Stock
Selected Store

Product Details

$

Perfect for drone pilots!

To get the most radio for your money, check out the 6K — an easy-to-program flight system with versatile functions that include telemetry, S.Bus/S.Bus2 compatibility and 30 model memory. It’s a solid value, 8-channel system with additional telemetry functions, expanded multicopter flight modes and much more. Plus, it comes loaded with the powerful R3001SB TFHSS Receiver—light, rugged, and perfect for drone pilots.

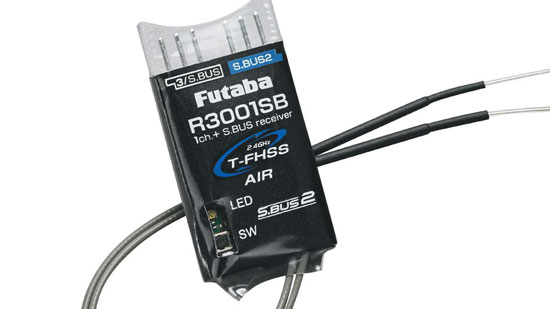

Futaba R3001SB T-FHSS SBus Full Range Drone Receiver
The R3001SB receiver is very versatile, compact, and rugged. Telemetry compatible, channel mode switching, high voltage, dual antenna diversity, SBus and SBus-2 ports. It can use up to 18 channels through SBus or SBus-2 ports.


Futaba 6K 8-Channel Air Computer System w/ R3001SB TFHSS Receiver

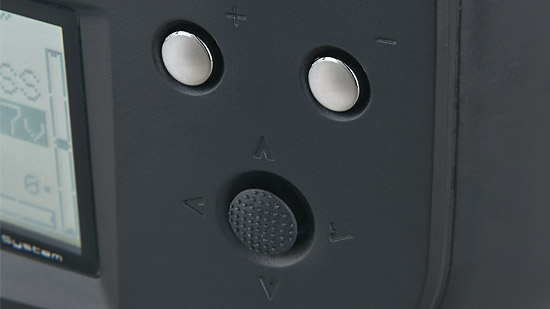

 - Navigation
Program navigation is easy and intuitive with the jog dial, +/- pads and end pad.
Futaba 6K 8-Channel Air Computer System w/ R3001SB TFHSS Receiver

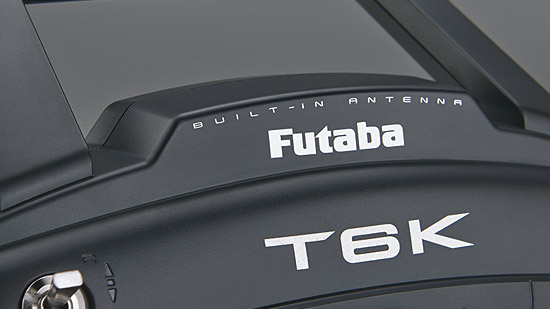

 - Antenna
The 6K is a full-range system. Its antenna is inside the transmitter case for safety and convenient handling.
Futaba 6K 8-Channel Air Computer System w/ R3001SB TFHSS Receiver

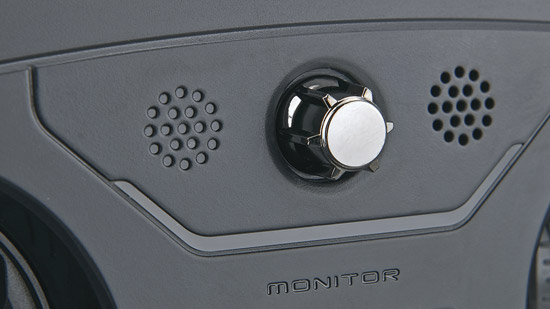

 - Dial
This variable rate dial can be programmed for a variety of functions. A speaker provides audible alerts and cues for navigating the programming menus.
Futaba 6K 8-Channel Air Computer System w/ R3001SB TFHSS Receiver

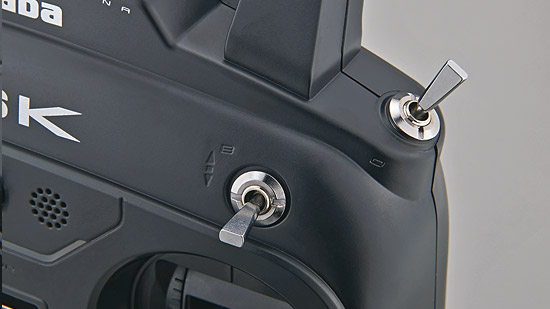

 - Switches
Four assignable switches (three 3-position and one 2-position) offer maximum flexibility.
Futaba 6K 8-Channel Air Computer System w/ R3001SB TFHSS Receiver
 - Programming
6K Version 2.01 multicopter programming has been expanded with five Priority and nine Matrix flight conditions.
Futaba 6K 8-Channel Air Computer System w/ R3001SB TFHSS Receiver

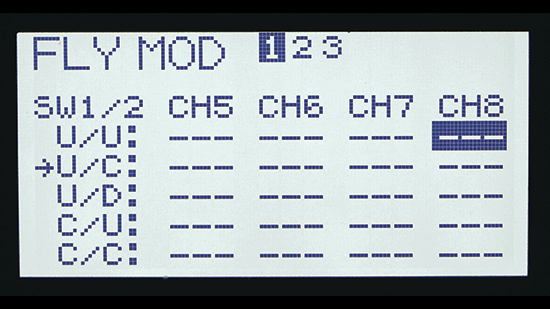

 - Flight Conditions
The nine Matrix flight conditions can be used to set up a tilt camera by assigning nine settings to two 3-position switches.
Futaba External Voltage Telemetry Sensor
Futaba SBS-01C Current Telemetry Sensor
Using an SBS-01V External Voltage Telemetry Sensor and SBS-01C Current Telemetry Sensor, the 6K collects real time telemetry data for motor current, battery voltage and capacity. (not included)
System Features
  • Airplane, Helicopter, Glider and Multicopter programming.
  • S-FHSS/T-FHSS selectable.
  • Telemetry system (T-FHSS) with data speech (via earphones) function for monitoring receiver battery voltage, external voltage, temperature, RPM, altitude and variometer, current, capacity and voltage.
  • Built-in antenna (Full Range).
  • S.Bus/S.Bus2 servo setting functions programmable through the transmitter.
  • Preset vibration alarms.
  • 30 model memory.
  • 8-character model/user naming.
  • Programmable mixes (3-normal, 1-curve) for airplanes, helicopters, gliders and multi-rotors.
  • Digital trims with variable step settings.
  • Adjustable stick length and tension.
  • Changeable switch/VR position and AUX channel function.
  • Throttle position warning.
  • Backlit 128x64 DOT LCD screen with adjustable display contrast.
  • Software updateable through the CIU-2 or CIU-3 interface units.
  • Screen Lock.
  • Earphone/S.Bus/Trainer jacks.
  • Assignable switches (three 3-position, one 2-position).
  • Range Check.
  • Program navigation bay with jog dial, +/- pads and end pad.
  • Data reset.
  • Model copy.
  • Selectable model type.
  • Fail Safe.
  • End Points.
  • Trim/Trim Resets/Trim Steps.
  • Sub Trim.
  • Servo Reversing.
  • Parameter functions.
  • Servo monitor/Test.
  • Wireless model data transfer (to other T6K transmitters).
  • Timer-System and Model (Up/Down/Down-Stop/THR Integrate) w/Vibration Alert.
  • Trainer system.
  • Power Saver.


    Airplane Functions
  • Wing Type (5-wing, 2-tail).
  • Throttle Cut.
  • Dual Rate/Expo.
  • Throttle Curve.
  • Idle down.
  • Gyro.
  • Aileron differential.
  • V-Tail.
  • Camber.
  • Air Brake.
  • Elevator-to-Flap mixing.
  • Flap-to-Elevator mixing.
  • Elevon mixing.
Heli Functions
  • Swash type (6).
  • Condition Select.
  • Throttle Cut.
  • Dual Rate/Expo.
  • Trim Offset.
  • Delay.
  • Gyro mixing.
  • Swash AFR.
  • Swash mixing.
  • Throttle Curve (5-point).
  • Pitch Curve (5-point).
  • Pitch-to-Rudder mixing.
  • Throttle Hold.
  • Hovering throttle.
  • Hovering pitch.
    Glider Functions
  • Wing Type (5-Wing, 2-Tail).
  • Condition select.
  • Dual Rate/Expo.
  • Motor switch.
  • Gyro.
  • Aileron Differential.
  • V-tail.
  • Butterfly mixing.
  • Trim mixing.
  • Elevator-to-Camber mixing.
  • Camber mixing.
  • Aileron-to-Camber mixing.
Multicopter Functions
  • Flight Mode (Priority Flight Conditions and Matrix Flight Conditions).
  • Center alarm.
  • Dual Rate/Expo.
  • Throttle Curve.
  • Throttle Delay.
  • Gyro.
Six Languages
  • English.
  • German.
  • French.
  • Spanish.
  • Italian.
  • Dutch.
