18MZH WC 18-Channel Heli Computer Radio System

Item No. FUTK9541
Brand Logo
3.6 out of 5 Customer Rating

18MZH WC 18-Channel Heli Computer Radio System

Item No. FUTK9541
$2,499.99
Free financing available through Easy Pay Learn More
In Stock
Selected Store

Product Details

Key Features
  • Channels: 16 proportional, 2 switched.
  • Compatible with: FASSTest, FASST, S-FHSS and T-FHSS protocols, Futaba HV (High-Voltage) receivers, All Futaba telemetry sensors
  • 92MB internal memory.
  • Expandable model memory.
  • 32-character user naming.
In The Box
  • (1) 18MZ-WC Transmitter
  • (1) R7008 Receiver
  • (1) Lithium Polymer Battery and AC Adapter
  • (1) Switch Harness
  • (1) Tool Box (includes special jig for adjustment)
  • (1) Neck Strap
  • (1) Transmitter Case

Top-of-the-line technology. Optimized for telemetry.

Its performance features are every bit as impressive as its looks - which means the 18MZ WC is a radio that stands out in every way imaginable. The transmitter's gleaming black chrome finish is a real eye-catcher, and updated software takes telemetry to new heights. After Christophe Paysant Le-Roux won the 2015 F3A World Championships using an 18MZ, he collaborated with Futaba engineers to design the 18MZ WC. The World Champion version can also be used with FASSTest, FASST and S-FHSS equipment - and it's compatible with T-FHSS protocol and all Futaba T-FHSS receivers.
  • Channels: 16 proportional, 2 switched.
  • Compatible with: FASSTest, FASST, S-FHSS and T-FHSS protocols, Futaba HV (High-Voltage) receivers, All Futaba telemetry sensors
  • 92MB internal memory.
  • Expandable model memory.
  • 32-character user naming.
  • 32-character model naming.
  • Airplane, helicopter, glider and motor glider programming.
  • 3 assignable rotary knobs.
  • 4 assignable slider switches (2/side).
  • 5 assignable three-position switches.
  • 2 assignable two-position switches.
  • 1 assignable momentary two-position switch.
  • Dual, high-speed processors.
  • Earphone jack.
  • 0.3 megapixel camera.
  • Audio & Video players.
  • Built-in microphone.
  • Programming tools for S.Bus servos & gyros.
  • Easy Link ID touch screen.
  • Comfortable rubber grips on the sides and back.
  • Slick calibration, plus tension and angle adjustments.
  • Quad bearing gimbals.
  • Quick model select.
  • Servo monitor (neutral and moving tests).
  • 2 up/down timers.
  • Integral timer system.
  • Model timer.
  • 4 vibration warning options (battery, condition, trim mix 1 & 2).
  • Programmable trainer system.
  • Servo speed adjust.
  • Trim mix.
  • Programmable logic switches.
  • User menu.
  • Sub-trim (240 steps; channels 1-16).
  • Servo reversing (all channels).
  • Fail-Safe (all channels).
  • Battery fail-safe (all linear channels).
  • Endpoint Adjustment (all channels).
  • Trim (adjustable step, rate & mode).
  • Flight conditions.
  • AFR.
  • AFR curve mode (6).
  • AFR curve point number (15).

Helicopter Programming Features

  • 8 flight conditions.
  • 5 factory-programmed mixes:
    • Swash mixing
    • Throttle mixing
    • Pitch to needle mixing
    • Pitch to rudder mixing
    • Fuel mixture
  • 10 programmable mixes.
  • 8 swash plate types.
    • Plus:
    • Pitch/throttle curves (17-point)
    • Pitch/throttle curve modes (6)
    • Acceleration
    • Throttle hold
    • Gyro sense
    • Flybarless support
    • Governor
    • Condition hold
    • Hovering pitch
    • Hover throttle
    • High/low pitch
    • Swash AFR
    • Swash setting (mixing rate, plus linkage & speed compensation)
    • Swash ring
    • Throttle limiter
    • Idle down

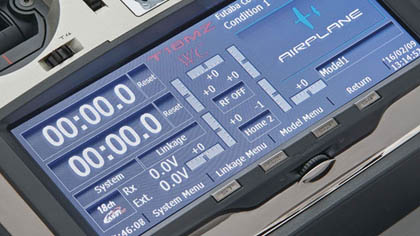

Futaba 18MZH WC 18-Channel Computer Heli Radio System - Touch Screen
Data and graphics are sharp and easy to read on the 6' diagonal full-color HVGA touch screen.

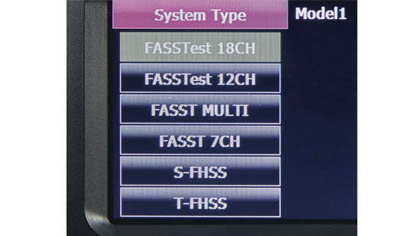

Futaba 18MZH WC 18-Channel Computer Heli Radio System - Protocols
The 18MZ WC offers quick access to all four protocols: FASST, FASSTest, S-FHSS and T-FHSS.

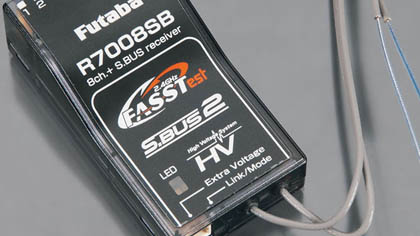

Futaba 18MZH WC 18-Channel Computer Heli Radio System - Receiver
With the high-voltage R7008SB receiver, your servo and channel choices are wide open. Use up to 8 channels with standard PWM outputs, or up to 18 channels (16 proportional + 2 switched).

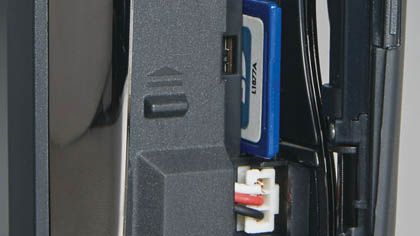

Futaba 18MZH WC 18-Channel Computer Heli Radio System - Memory Card
In this compartment is a slot for inserting digital memory cards, giving you virtually unlimited memory capacity. It's compatible with standard 32MG-2GB or high-capacity 4GB-32GB cards.

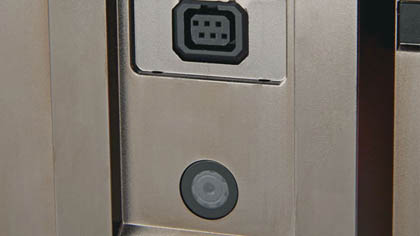

Futaba 18MZH WC 18-Channel Computer Heli Radio System - Digital Camera
Below the trainer port is a built-in 0.3 megapixel digital camera for taking aircraft ID pictures.

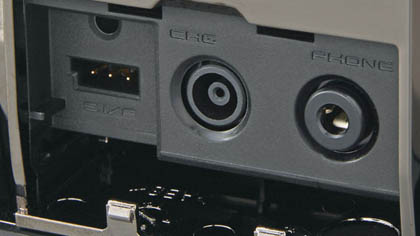

Futaba 18MZH WC 18-Channel Computer Heli Radio System - Jacks
Jacks for S.Bus servo programming, transmitter charging and the earphone are located on the back panel for easy access.

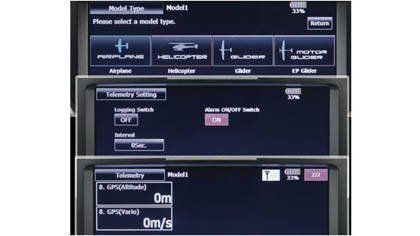

Futaba 18MZH WC 18-Channel Computer Heli Radio System - Data
A wealth of information - including critical telemetry data - is at your fingertips.

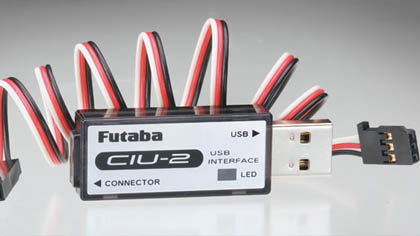

Futaba 18MZH WC 18-Channel Computer Heli Radio System - CIU-2 PC interface
Program S.Bus and S.Bus2 functions such as travel, end point, offset and more, using the free download and CIU-2 PC interface (available separately).
