Discontinued
Brand Logo
4.1 out of 5 Customer Rating

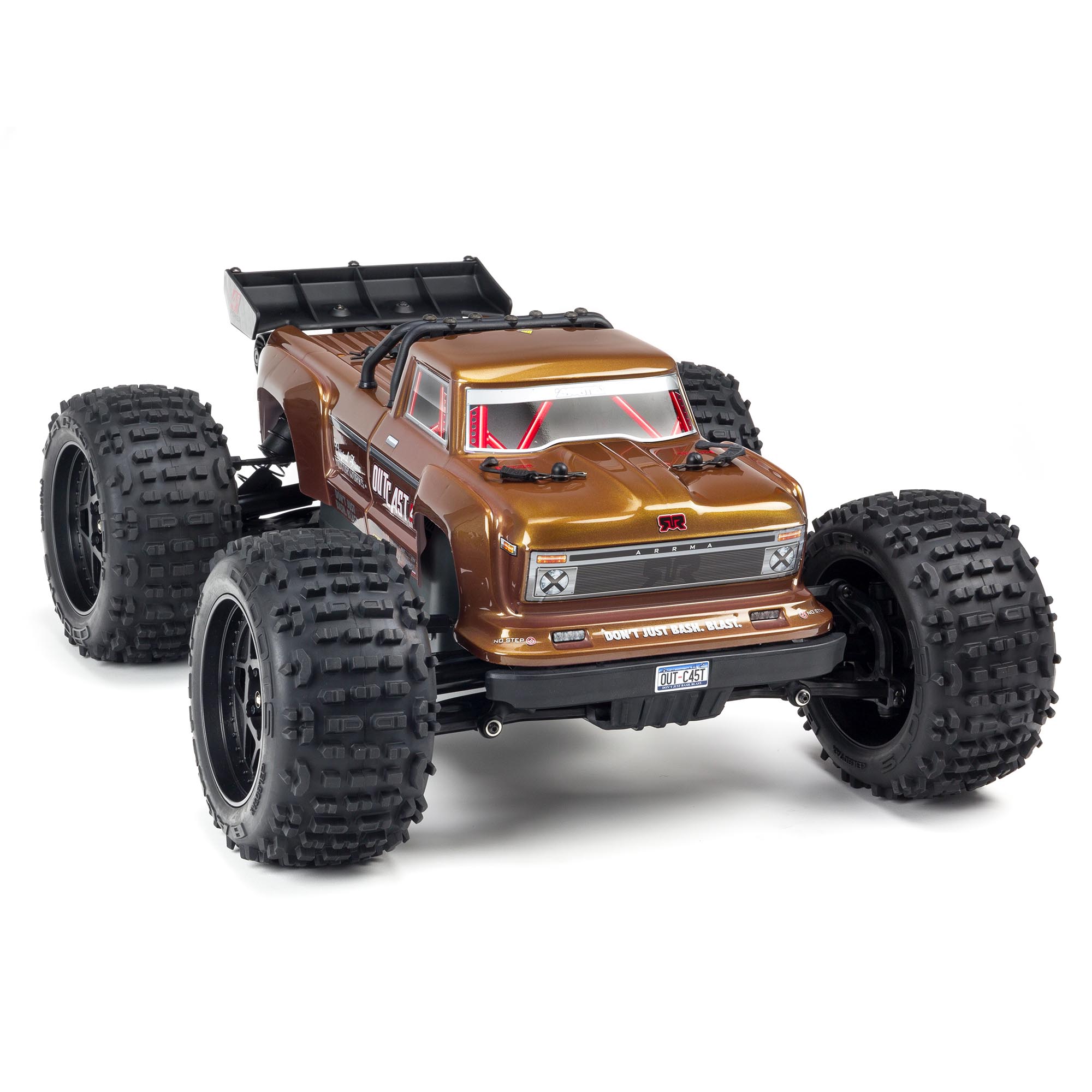

1/10 OUTCAST 4WD 4S BLX Brushless Stunt Truck with Spektrum RTR, Bronze

Item No. ARA102692
Discontinued
Brand Logo
4.1 out of 5 Customer Rating

1/10 OUTCAST 4WD 4S BLX Brushless Stunt Truck with Spektrum RTR, Bronze

Item No. ARA102692
This Item is No Longer Available
Selected Store
1/10 OUTCAST 4X4 4S V2 BLX Stunt Truck RTR
1/10 OUTCAST 4X4 4S V2 BLX Stunt Truck RTR
ARA4410V2
View Alternate Product Details

Product Details

The OUTCAST™ 4X4 4S BLX joins the ARRMA® brushless lineup as the perfect middle ground between 3S BLX vehicles and all-out 6S BLX machines. It delivers affordable, no-holds-barred stunt performance for brushed bashers looking to upgrade and anyone who wants ARRMA® toughness and 50+ mph speed!
Key Features
  • Spektrum™ STX2® 2.4GHz Radio System
  • ADS-15M waterproof, metal gear servo
  • 2400Kv Brushless motor with large heatsink
  • 2-year limited warranty
icon-box
In The Box
  • (1) ARRMA OUTCAST™ 4x4 4S BLX Vehicle with
  • (1) ARRMA® ADS-15M Metal Gear Servo (installed)
  • (1) ARRMA® 4S-capable BLX120 Electronic Speed Control (installed)
  • (1) ARRMA® 4S-capable BLX3668 Brushless Motor (installed)
  • (1) Spektrum STX2® Transmitter and SRX200 Receiver
  • (1) Product Manual
icon-how-to
Needed to Complete
  • (1) 3S-4S or (2) 2S LiPo batteries with EC5™ or IC5™ connector
  • (1) Compatible Battery Charger
  • (4) AA batteries for Transmitter
1/10 OUTCAST 4WD 4S BLX Brushless Stunt Truck with Spektrum RTR, Bronze
OUTCAST™ 4X4 4S BLX

Features

  • ARRMA® speed and toughness
  • 4S-capable BLX120 Brushless Power System for 50+ mph speed
  • Performance approaching the OUTCAST™ 6S BLX 4X4
  • Spektrum™ STX2® 2.4GHz Radio System
  • 2-Channel SRX200 waterproof receiver *
  • Built-in 3-position throttle limiter
  • Extended range and interference-free performance
  • Throttle/steering reversing
  • Throttle/steering travel adjust
  • Throttle limiting
  • ADS-15M waterproof metal gear servo *
  • 2400Kv Brushless motor with large heatsink
  • BLX120 ESC with dual EC5™ battery connectors for two 2S LiPo packs
  • Lengthened suspension arms and driveshaft for wider track than 3S BLX vehicles
  • Center chassis brace for maximum durability
  • Metal spur gear and castellated slipper pads
  • Enlarged front and rear hubs for added strength
  • Durable 17mm hexes
  • 16mm Big Bore shocks with molded-in shock rod end and top-loading spring
  • Front and rear gearboxes with metal internal differential gears
  • New wing, wing mounts, and bumpers
  • New body mounts
  • Low-profile BACKFLIP tires
  • ADS-15M metal gear servo
  • 2-year limited warranty
    * For details on waterproof standards, please refer to the product instruction manuals

Overview

At home on trails, over muddy courses, and at skate parks and race tracks, the OUTCAST™ 4X4 4S BLX shares the low, lean look of its 6S BLX forerunner in a scaled-down size. Power comes from the ARRMA® 4S-capable BLX120 brushless system – which features a 2400Kv brushless motor and ESC fitted with dual EC5™ connectors for using two 2S LiPo battery packs. Differential gears inside the front and rear gearboxes are made of durable metal.

Building from the successful 4X4 3S BLX platform, ARRMA® designers stretched the track width for the OUTCAST™ 4X4 4S BLX by widening the suspension and drive shafts. A center brace added along the length of the chassis provides maximum durability and can be removed in just four quick steps when it's time to perform maintenance. The molded 16mm Big Bore shocks include top-loading springs and molded-in shock rod ends to prevent spring loss. The large, tough wheels hubs and durable 17mm wheel hexes hold standard 3.8" wheels, outfitted with low-profile BACKFLIP tires. The wing and bumpers follow the look of the OUTCAST™ 6S BLX, with new wing and body mounts.

The ready-to-run package comes complete with a Spektrum™ STX2® 2.4GHz radio with SRX200 waterproof receiver and an ARRMA® ADS-15M metal gear servo. Add your choice of battery, charger, and "AA" transmitter batteries, and start making your own RC mayhem!

Video Overview



FEATURE_TITLE
BRACE YOURSELF

Center brace for maximum durability

FEATURE_TITLE
PROTECTIVE ROLL-HOOP

For avoiding high-speed roof scrapes



FEATURE_TITLE
16MM BIG BORE SHOCKS

To land those huge jumps

FEATURE_TITLE
REAR BUMPER & WHEELIE BAR

For 90 degree stunt action



FEATURE_TITLE
ARRMA POWER MODULE

Consists of motor, motor plate, slipper clutch assembly, and gear cover

FEATURE_TITLE
ARRMA ELECTRONICS MODULE

Ultra-compact ESC, servo, and receiver packaging



FEATURE_TITLE
TOUGH STUNT TIRES

All black truck wheels & dBoots® Back-Flip LP all-terrain tire design

FEATURE_TITLE
INTEGRATED STUNT WING

For maximum stability on land and in the air



FEATURE_TITLE
ARRMA DIFFERENTIAL MODULE

Each assembled differential unit is housed in ARRMA's innovative 'yoke' design

FEATURE_TITLE
METAL SPUR GEAR

Comes together with castellated slipper pads



FEATURE_TITLE
BLX120 ESC
  • Waterproof and dust proof design *
  • 120A, 4S LiPo ready (2S, 3S and 4S hardcase LiPo compatible)
  • Fitted with reliable EC5™ battery connector
  • Integrated fan for reduced heat during extreme running
  • Gold 4mm bullet connector for motor wires
  • Low voltage cut off and thermal overload protection
  • User programmable punch and brake settings
    * For details on waterproof standards, please refer to the product instruction manuals
FEATURE_TITLE
BLX3668 BRUSHLESS MOTOR
  • 2400kV brushless motor
  • 120A, 4S LiPo ready (2 x 2S, 3S and 4S hardcase LiPo compatible)
  • Beautifully etched aluminium can
  • 4-pole construction for smooth and consistent power
  • Gold 4mm bullet connectors for reliable and efficient connection to ESC
  • Finned motor can for increased heat dissipation
  • Super strong 5mm shaft



FEATURE_TITLE
SPEKTRUM STX2® SRX200 TRANSMITTER
  • Precision steering wheel, perfect control in all conditions
  • Easily adjustable trim dials for personalized handling set-up
  • Lightweight and ergonomic design for long bashing sessions
  • Fully waterproof and dustproof ARRMA radio box *
  • 2 channel radio system
  • 2.4GHz technology
    * For details on waterproof standards, please refer to the product instruction manuals
FEATURE_TITLE
ADS-15M SERVO
  • Strong metal gears used throughout
  • Waterproof and dustproof case *
  • 25 tooth output spline
  • Torque: 195 oz-in (14 kg-cm) @6V
  • Speed: 0.16sec/60degree @6V
  • Dimensions: 40x38x20mm (Industry standard size)
    * For details on waterproof standards, please refer to the product instruction manuals



Product Specifications

Bushing Material Metal
Charger Sold Separately
Differential Oil-filled metal gear
Max Battery Dimensions 6.14 x 2.00 x 1.89" (156 x 51 x 48mm)
Rear Shock Spring Rate 0.7N/mm
Shock Type Oil-filled, coil over spring
Wheel Type MT
Outer Diameter 6.06 in (154mm)
Power System 4S
Product Width 15.83" (402mm)
Radio Included
Battery One 3S, two 2S or one 4S hardcase LiPo battery (sold separately)
Ground Clearance 2.52" (64mm)
Internal Gear Ratio 2.85:1
Motor Size 3668
Product Length 19.17" (487mm)
Spur Gear 57T
Suspension Independent
Ball Bearings Transmission only
Chassis Molded composite
Completion Level Ready-To-Run
Drivetrain 4WD
Front Shock Spring Rate 0.8N/mm
Product Height 8.43" (214mm)
Top Speed 50+
Wheel Hex Size 17mm
Approximate Assembly Time No assembly required
Body Trimmed and painted molded polycarbonate
Pinion 13T
Scale 1/10
Final Drive Ratio 12.48
Wheelbase 11.3" (287mm)
Product Weight 8.25lbs (3.75kg)
Tire Tread Backflip
Vehicle Type Stunt Truck
Water-Resistant Yes
Power Type Electric
Gear Pitch 0.8 Module
Servos Metal gear steering servo
