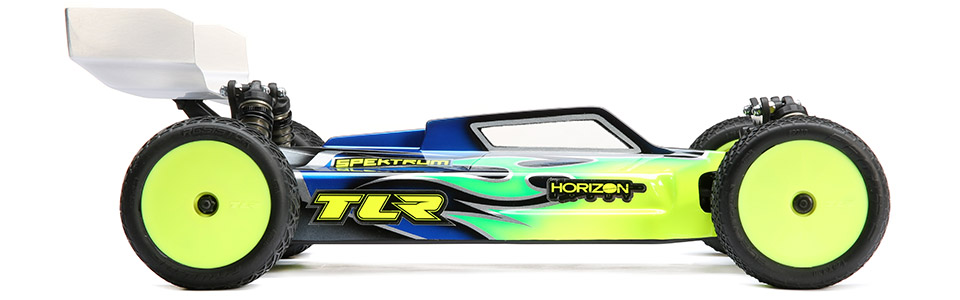

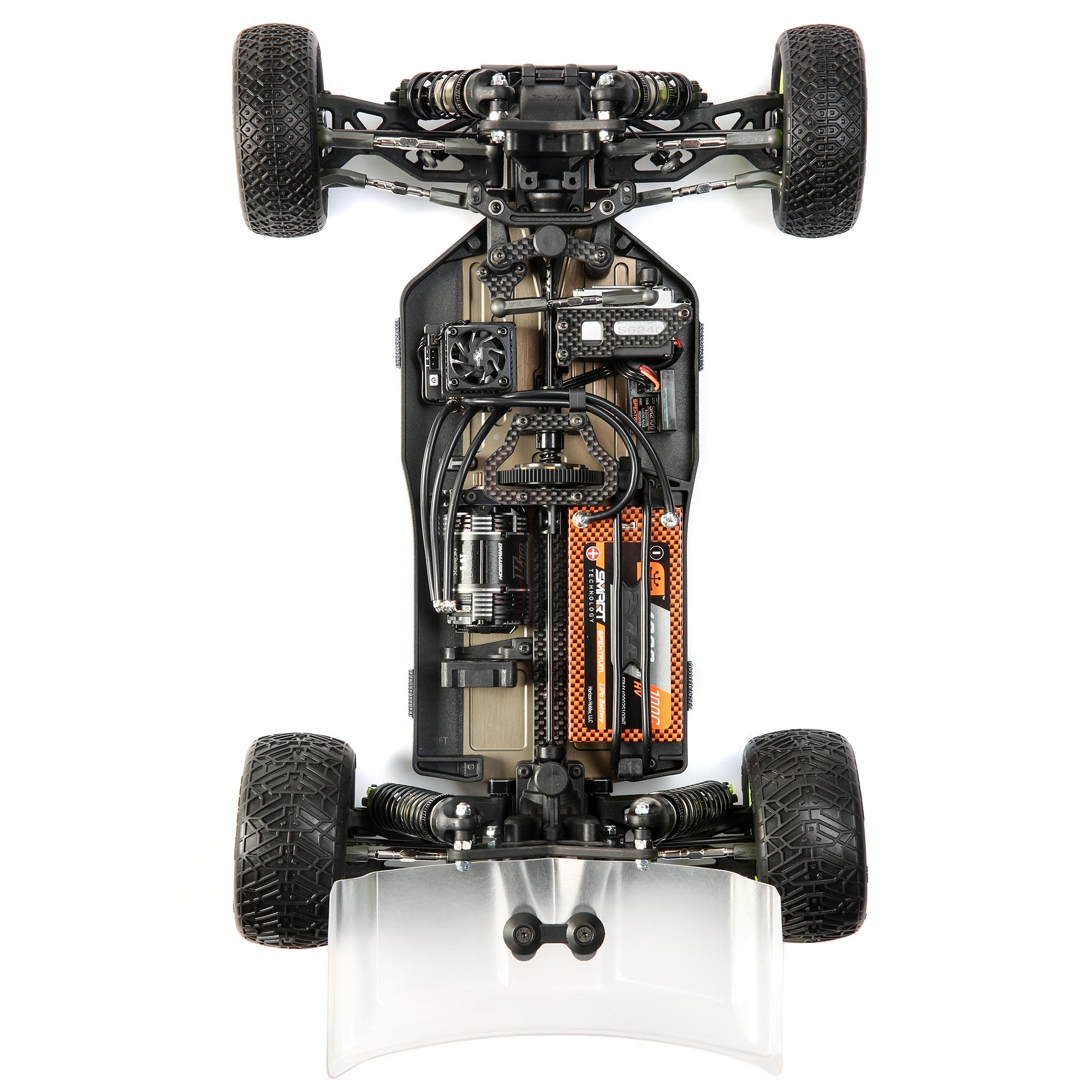

TLR® customers have been asking for it and now it's finally here! 40 years in the making, the all-new Team Losi Racing® 22X-4™ Race Kit is the shaft driven 4WD buggy racers have dreamt about. Taking a completely different approach to a TLR 4WD buggy, the R&D team has developed an all-new platform from the ground up. Switching to the more reliable and versatile shaft drive design, the 22X-4 is much lighter and has improved driving characteristics while also being significantly easier to build and maintain. The 22X-4 has a combination of features second-to-none including full adjustable suspension, 2.5 milled aluminum chassis, floating servo mount, adjustable motor and battery position, carbon fiber throughout, and so much more. Designed to dominate right out of the box, the 22X-4 Race Kit is performance-oriented and podium ready.
Taking a completely different approach to a TLR 4WD buggy, the R&D team developed an all-new platform from the ground up. Switching to the more reliable and versatile shaft drive design, the 22X-4 is much lighter and has far improved driving characteristics while also being significantly easier to build and maintain.
Taking suspension tuning to a new level, the 22X-4 has adjustments for front and rear axle height, rear axle pin position, inner front and rear hinge pin position in all directions, nearly unlimited rear camber link positions, shock mounting positions, and much more. The 22X-4 can be dialed in for any surface, grip level, or driving style.

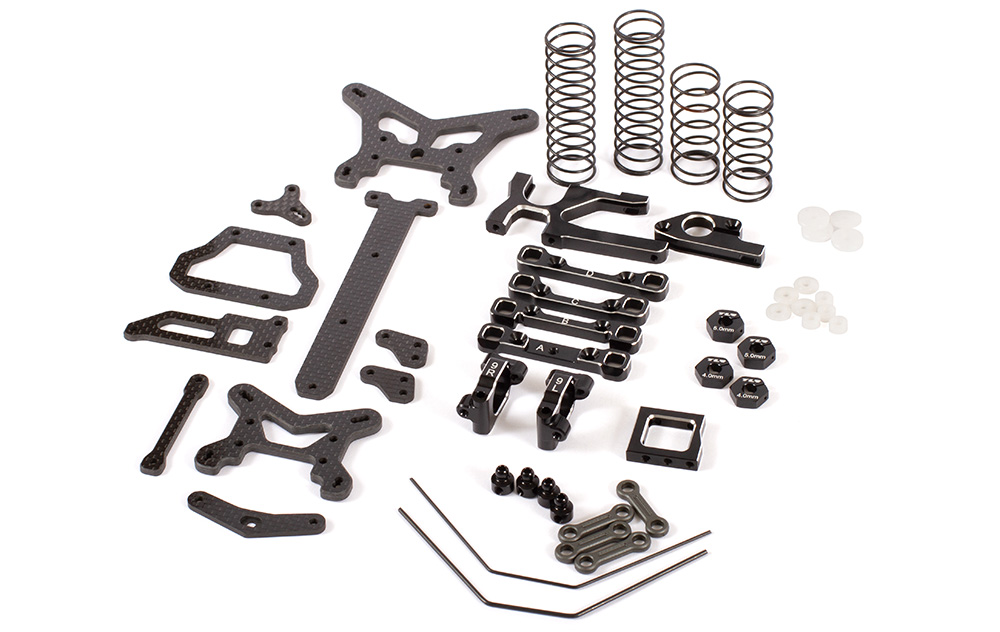

The 22X-4 includes a healthy list of included premium parts: Aluminum Ball Stud Washers throughout, Aluminum Clamping Hexes, Adjustable Aluminum Suspension Mounts, Carbon Fiber Plates, Full Machined Shock Internals, TLR Low Frequency Springs, Aluminum Motor Mount, and Sway Bars.

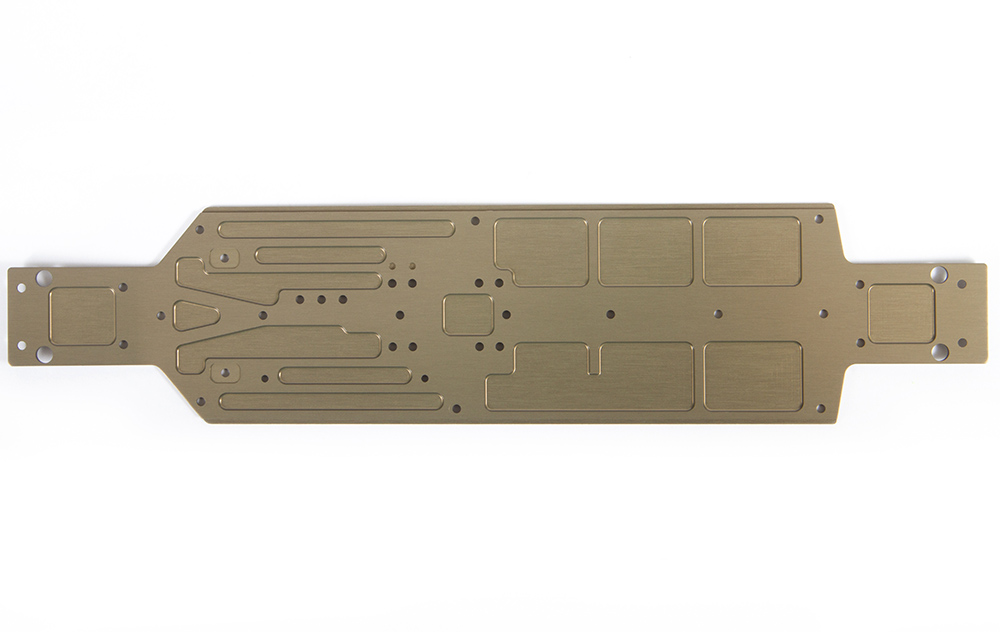

Maximizing the flex characteristics for all surfaces, the 2.5mm thick chassis with heavy pocketing gives the correct amount of flex and rigidity for smooth corning, optimized balance, and bounce-free landings.

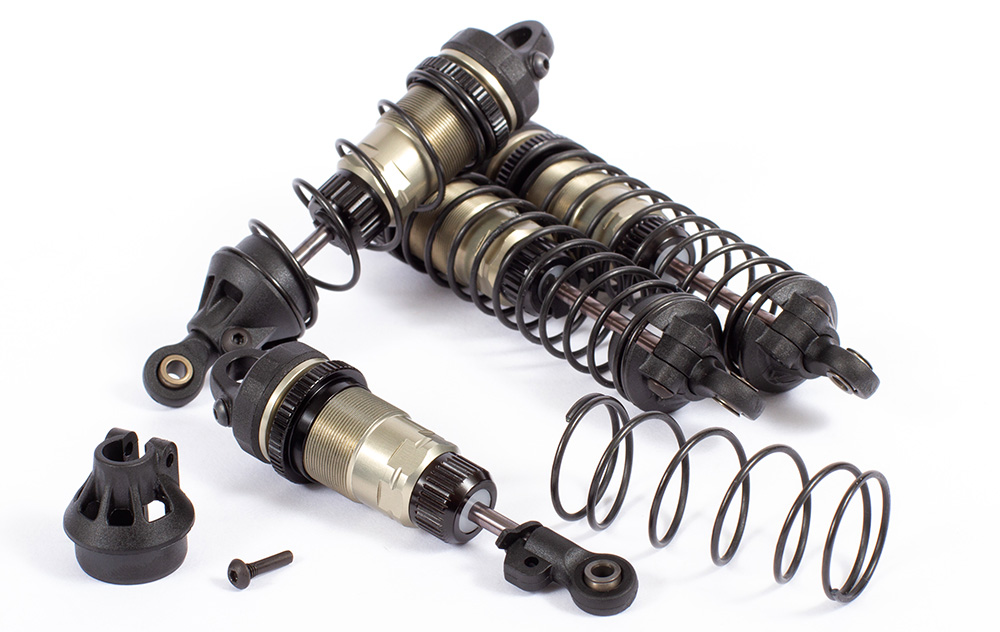

G3 12mm Big Bore Shocks: The G3 shocks give the 22X-4 the plush handling and consistent, leak-free bleed with some ease of use improvements. No more e-clips as the pistons are now secured by screws, new shock caps and shock bodies increase the spring collar height by 3mm to accommodate lower ride heights, new eyelets and spring cups provide -3mm, 0mm and +4mm spring cup off-sets and paired with all new eyelets will never pop off with the screw in feature. The new eyelets are also made in two lengths that allow racers to switch between normal and +3mm rear axle height without needing to change stroke or up-travel, and work with revised shock balls that finally slide into the front arms smoothly and easily.

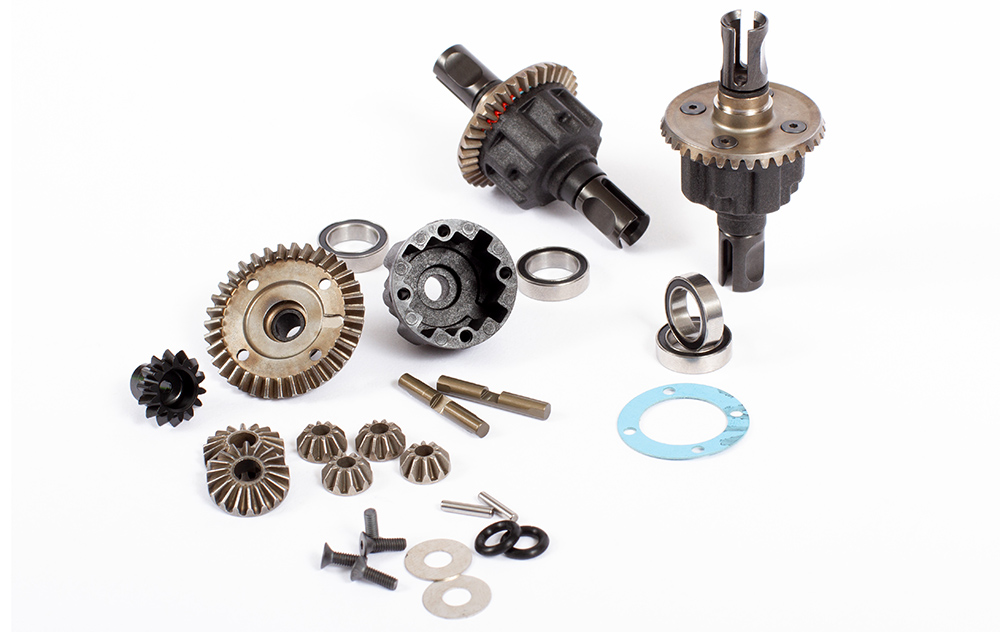

Designed to be light and durable, the 22X-4 is designed with large volume bevel gear diffs for the ultimate in performance and durability. The kit includes all metal diff internals with hard anodized aluminum cross pins. Not to leave spec racers behind, composite diff internal gears as well as composite ring and pinion options are available separately.

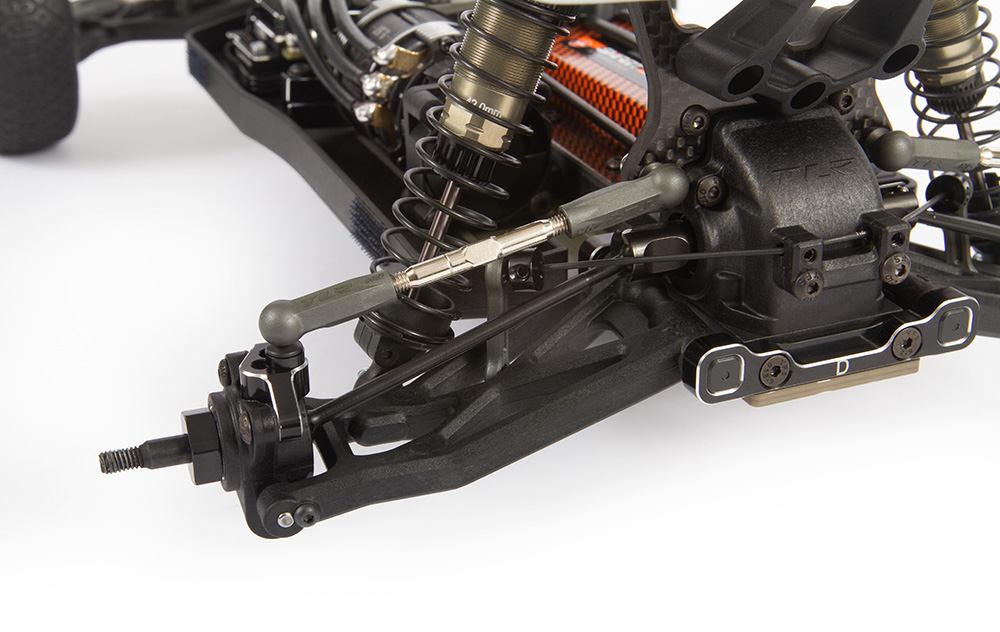

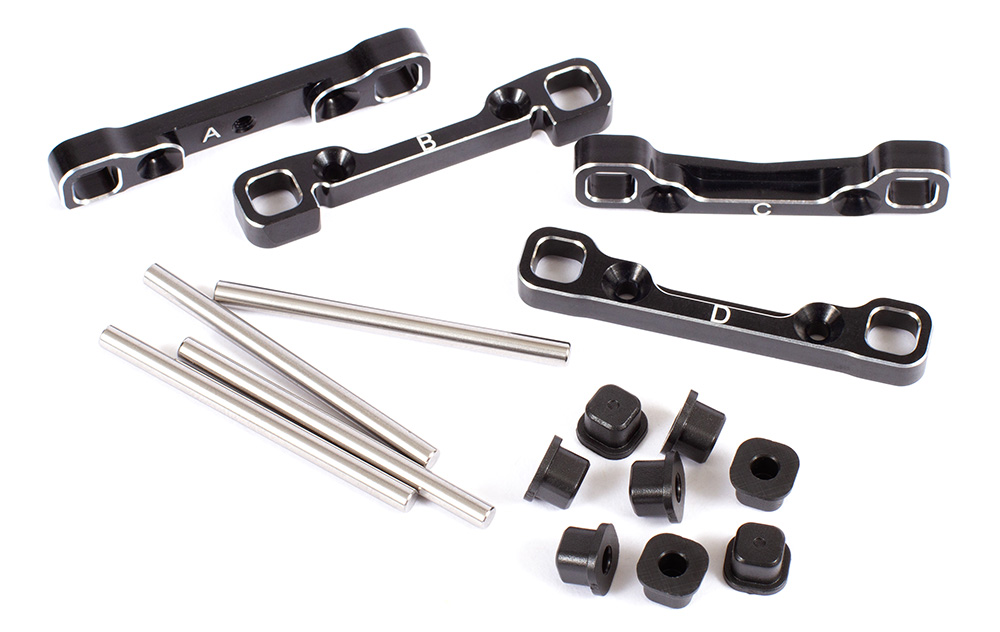

Included front and rear, adjustable inner pivots give multiple adjustments for anti-squat, kick up, toe, sweep, pivot width, and roll center. This gives the 22X-4 the window needed to get it dialed in for any driver, any track, and any surface.

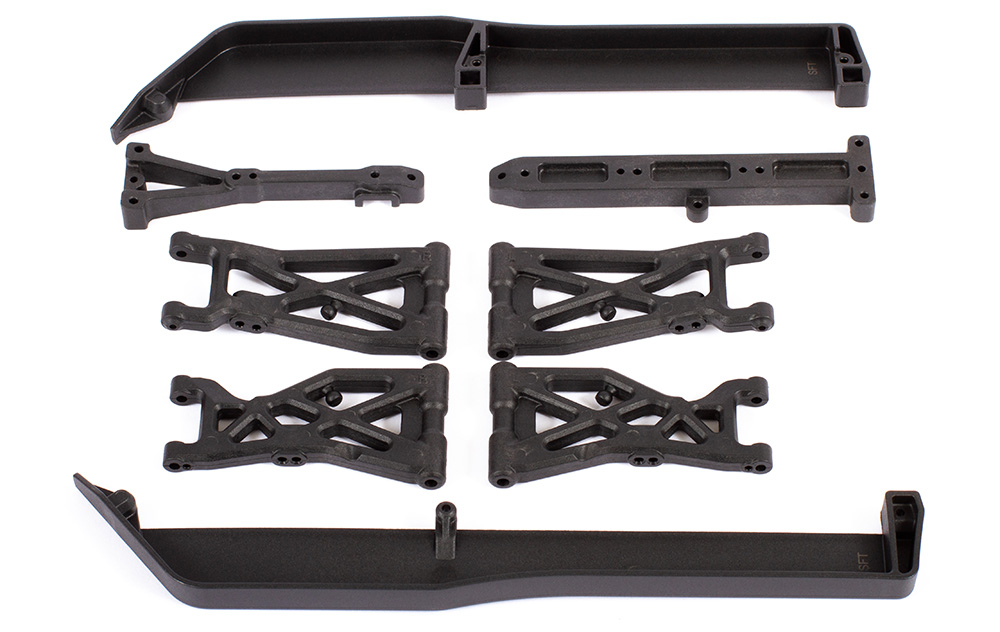

The balance and consistency of the 22X-4 can be tuned using different composite materials in key parts throughout the vehicle. The kit included the parts the race team prefers: Standard front and rear suspension arms along with soft mud guards.

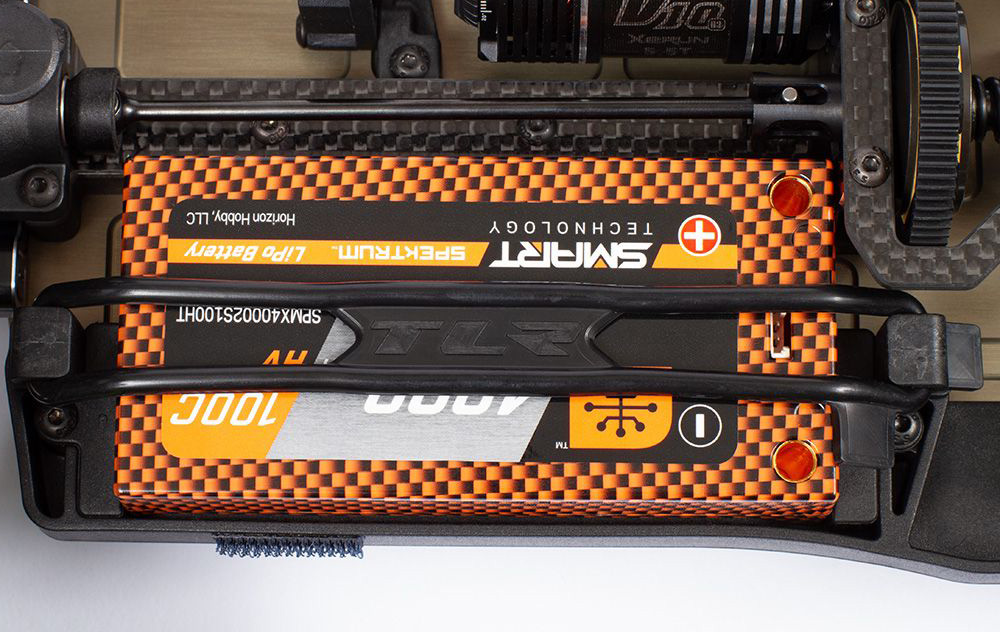

The 22X-4 borrows from the 22 5.0's versatile and easy to use battery hold down system. With a similar elastomer band, the battery strap hooks into the chassis front and rear allowing for different height batteries to be installed without hassle. Battery position is controlled with secured, easy to adjust battery stops both front and rear.

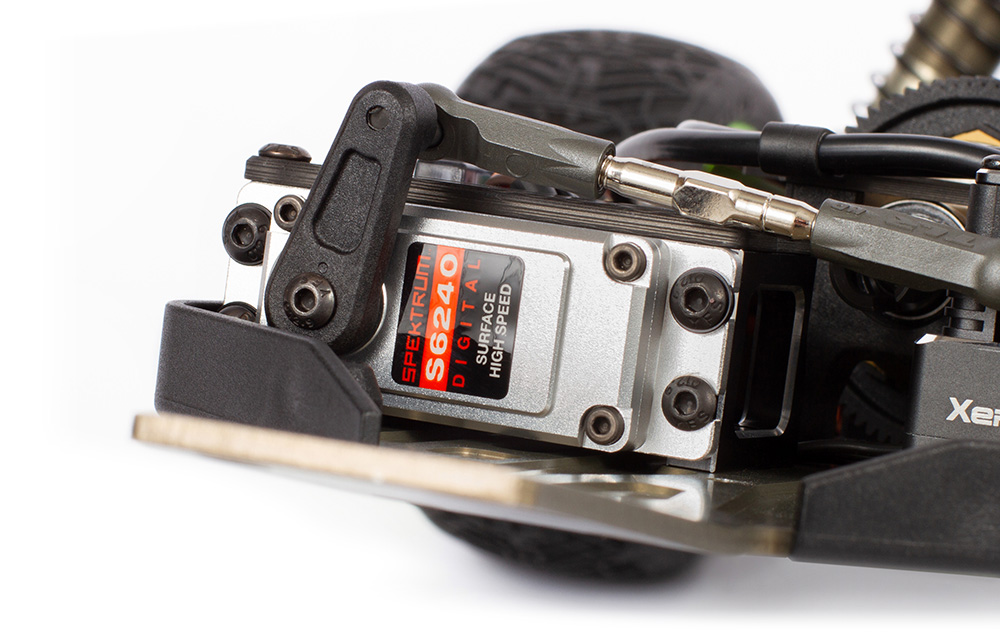

To keep the servo mount from affecting the chassis flex, the servo is mounted hanging above the chassis. The mount only secures to the chassis plate near the chassis centerline, then uses rigid 2.5mm carbon fiber to support the weight and leverage of the servo to optimize steering performance and chassis flex.

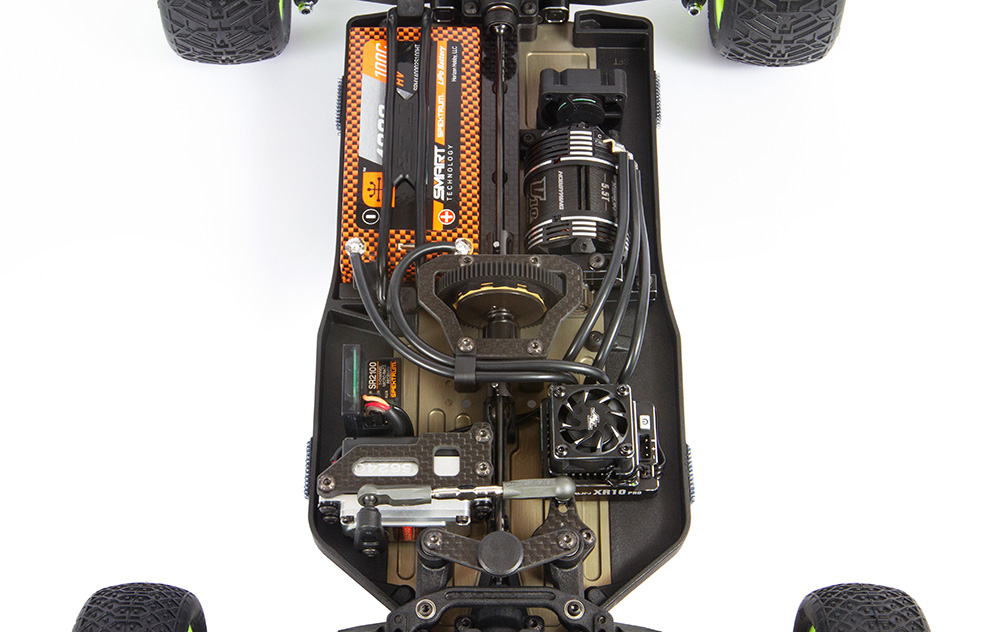

The 22X-4 allows for the center slipper and motor mount assembly to be mounted in either front or rear positions, with 7mm of adjustment between them. The battery also has an additional 9mm of adjustment for solid changes to front/rear weight balance without the need to increase the static weight.

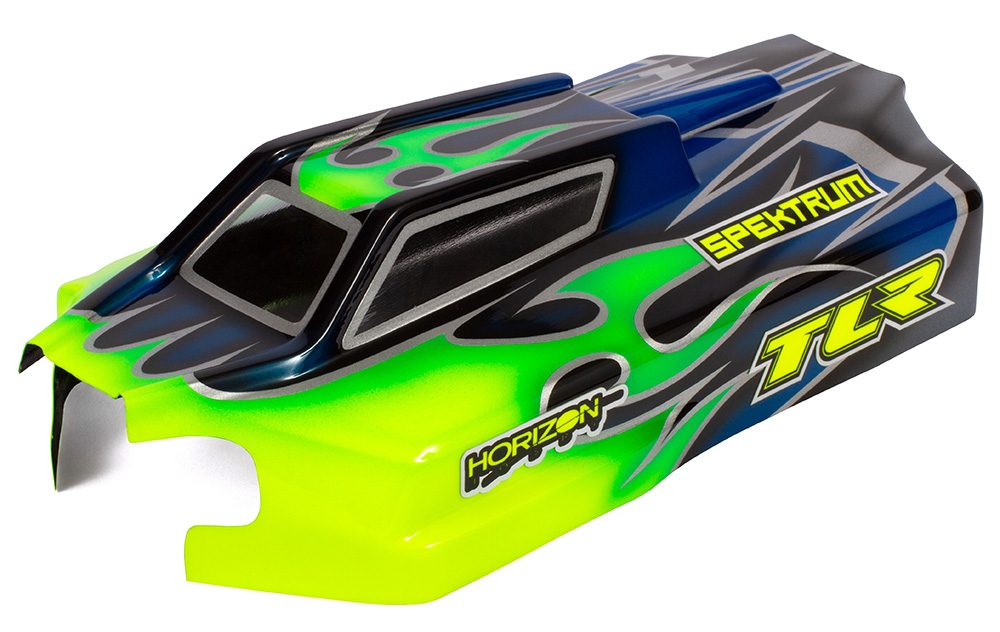

Sleek and stylish, the 22X-4 body design is the perfect match to the chassis. It looks sleek and fast, is nice and low but provides excellent balance and stability - the best of all worlds.

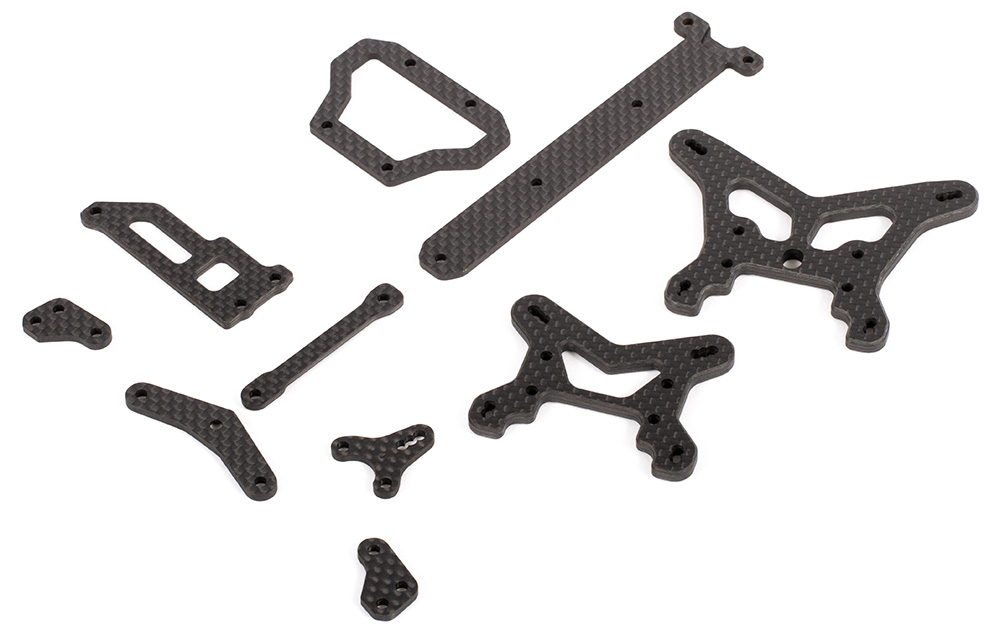

Carbon fiber is extremely light and very rigid, given its great strength to weight ratio. It is optimal for many parts of an r/c car, and the 22X-4 has it in all the key spots: Front Shock Tower, Rear Shock Tower, Center Diff Mount, Front Chassis Brace, Rear Chassis Brace, Front Steering Mount and Servo Mount.

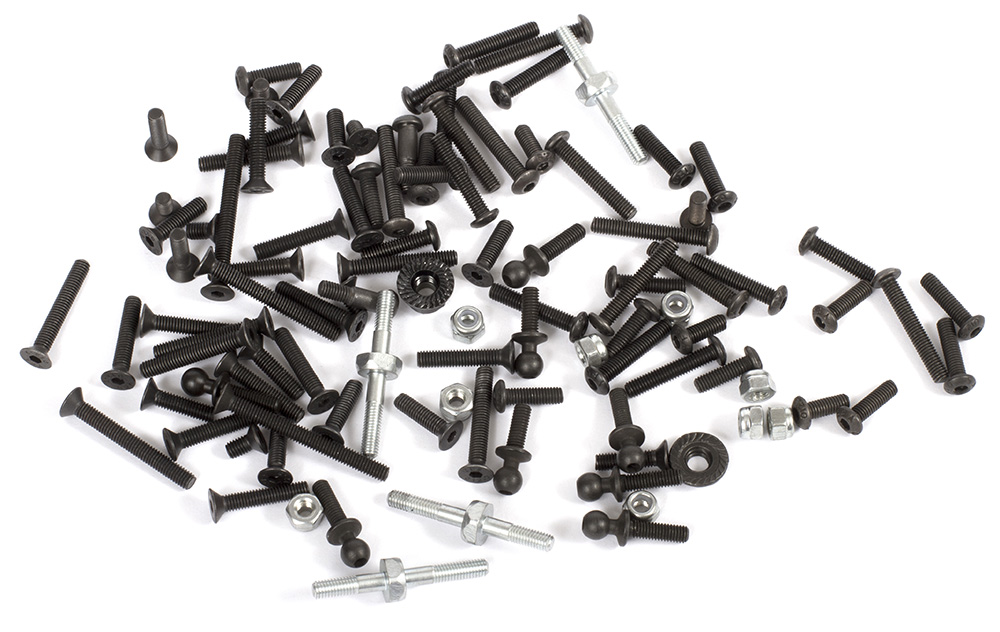

Using all metric hardware make it easy to find replacement screws, nuts and washers, and helps to limit the number to tools required in the toolbox.

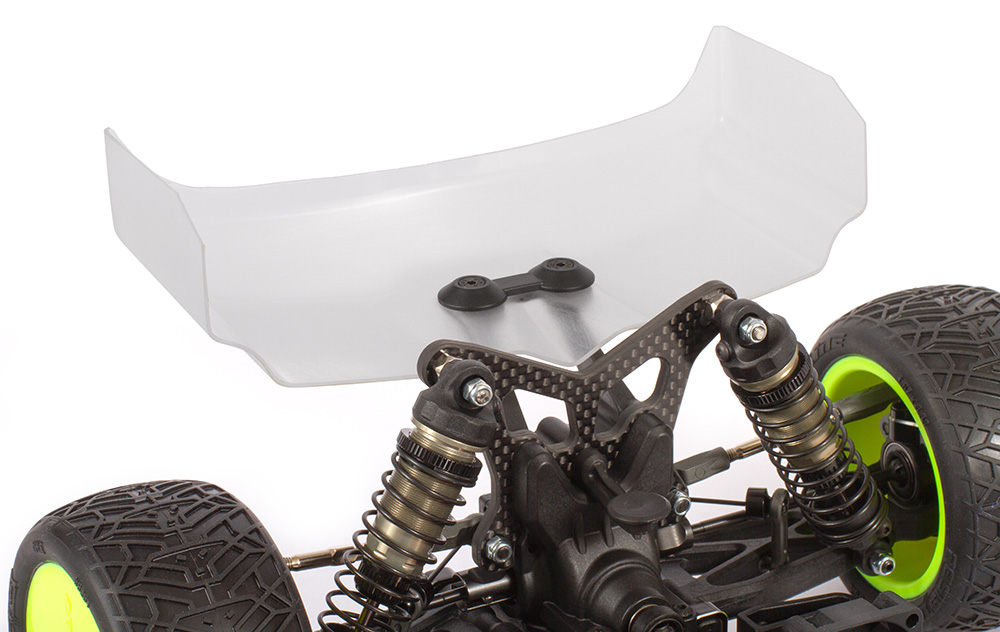

Pulled from ultra-durable 1.2mm polycarbonate, the TLR 6.5" rear wing isn't new for the 22X-4. Instead, this wing has proven itself as the longest lasting and most stable rear wing available for 1/10 buggies over the past several years - and it comes in this kit.

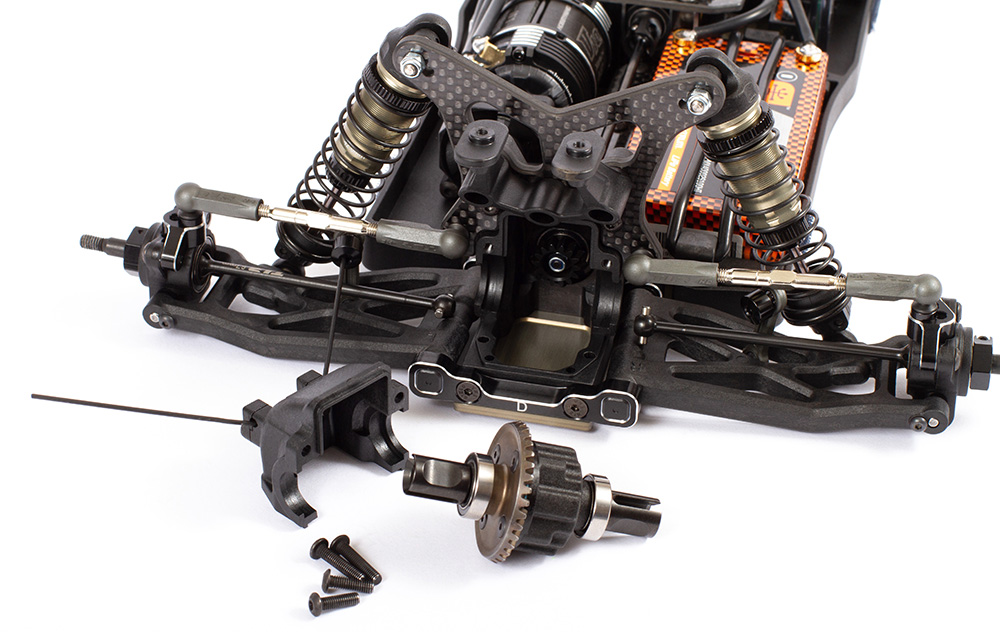

Designed to be user-friendly, the 22X-4 allows the front and rear diffs to both be removed by only removing four screws, and loosening one set screw. The diffs come out in less than a minute, and back in just as quickly.

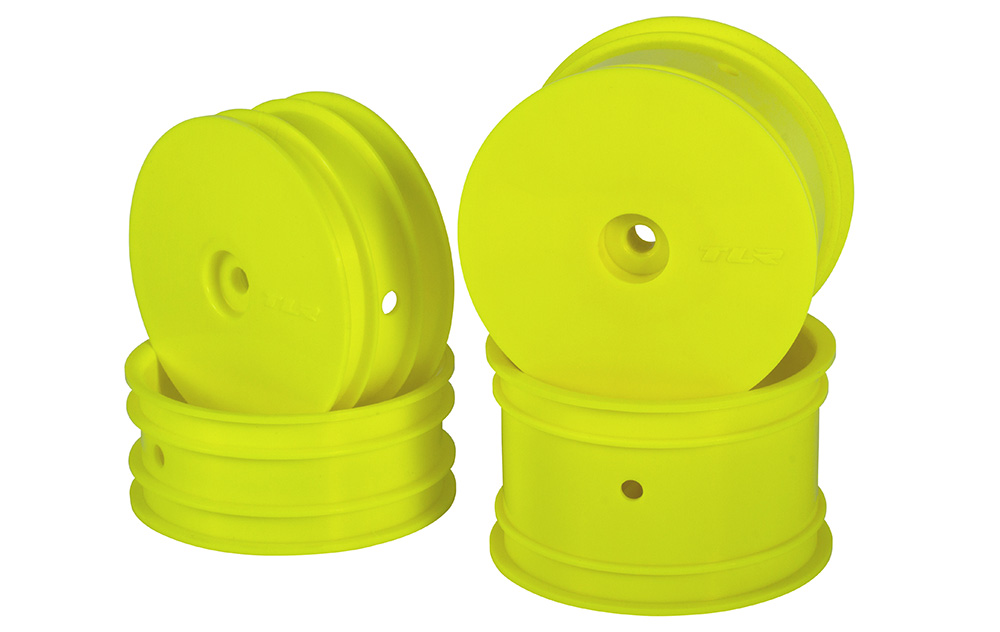

The 22X-4 includes a full set of fluorescent yellow wheels to get racers on the track quickly. The 22X-4 does include the new deeper off-set front wheels which provide improved hex engagement, and a stiffer wheel face for more consistent performance.

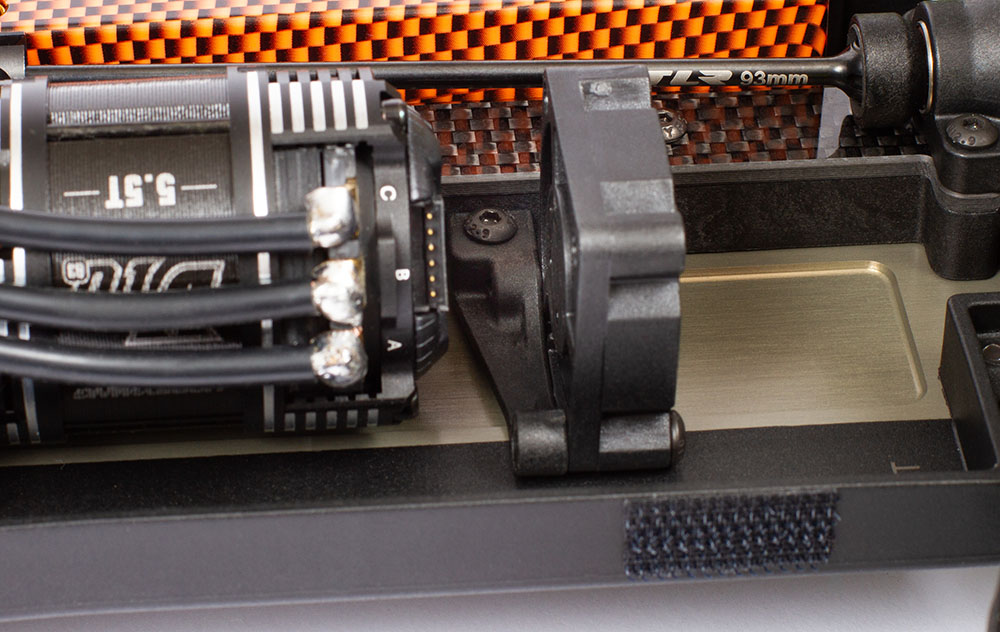

The prevalence of high grip tracks and the 13.5 4WD class have led to the need for many racers to run motor fans to keep temperatures in check. Rather than an aluminum mount, or double-sided tape, the 22X-4 includes a molded fan mount secured to the mudguard for easy and dependable fan mounting without any extra holes in the chassis.
